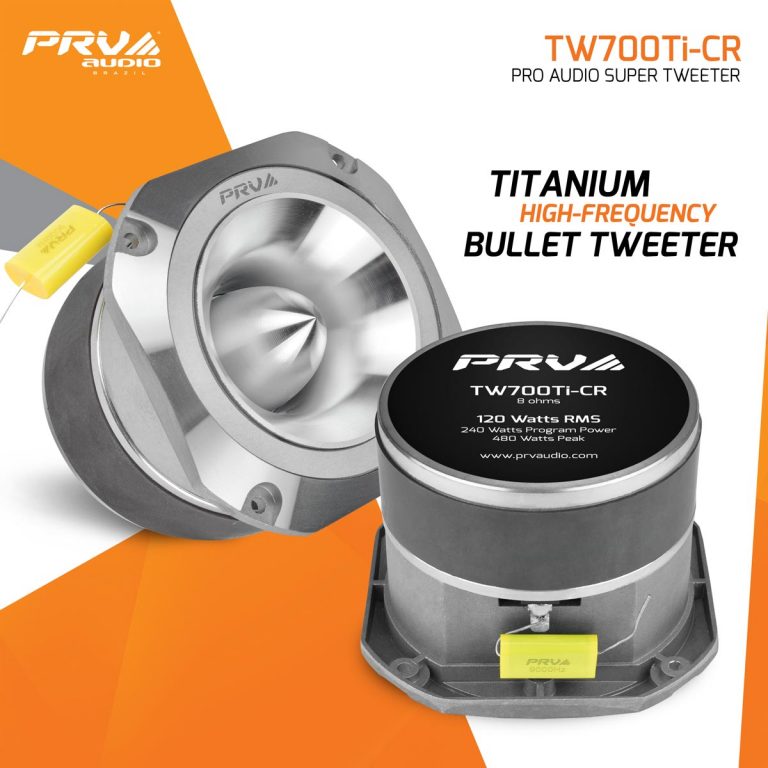

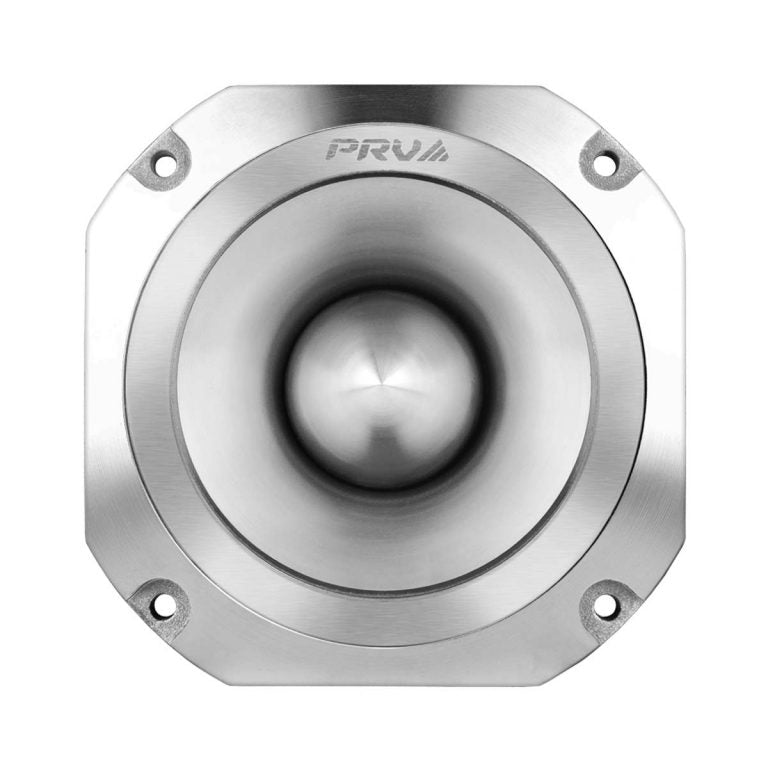

PRV Audio TW700Ti-CR High Power Titanium Bullet Tweeter Chrome - 8 Ohms

PRV Audio's TW700Ti-CR super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium, ring-radiator diaphragm combines with the durable, yet light weight, Kapton™ voice coil former for sensitivity levels of up to 107 dB from 3,500 to 20,000 Hz. A controlled 50° x 50° coverage pattern reduces reflections and close side by side mounting is facilitated by flat sides.

Not only does this driver look as good as it sounds it is also able to take a huge amount of power due to its 1.5" diameter copper voice coil. Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 5,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power.

Highlights:

• Titanium ring-radiator diaphragm for accurate and detailed response
• Kapton voice coil former ensures high power handling and reliability
• Front mount design for easy installation, flat sides for side-by-side multiple driver arrays
• High 108 dB sensitivity and 120 watt RMS power handling
• Designed for ultra-high frequency use from 3,500-20,000 Hz

Specifications:

• Type: Super Tweeter
• Nominal Impedance: 8Ω
• Rated Power Handling (RMS): 120 Watts
• Program Power: 240 Watts
• Sensitivity (1W/1m): 107 dB
• Recommended Hi Pass X-Over: 5000 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 3,500 - 20,000 Hz
• Voice Coil Diameter: 1.5" (38 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Type: Titanium
• Flux Density: 1.60 T
• Magnet Material: Ferrite
• Replacement Diaphragm: RPTW700Ti

• Overall Depth: 2.97" (75.54 mm)
• Mounting Depth: 2.55" (64.9 mm)
• Overall Width: 4.05" (103 mm)
• Overall Height: 4.05" (103 mm)
• Cutout Diameter: 3.58" (91 mm)
• Weight: 3.48 Lbs
