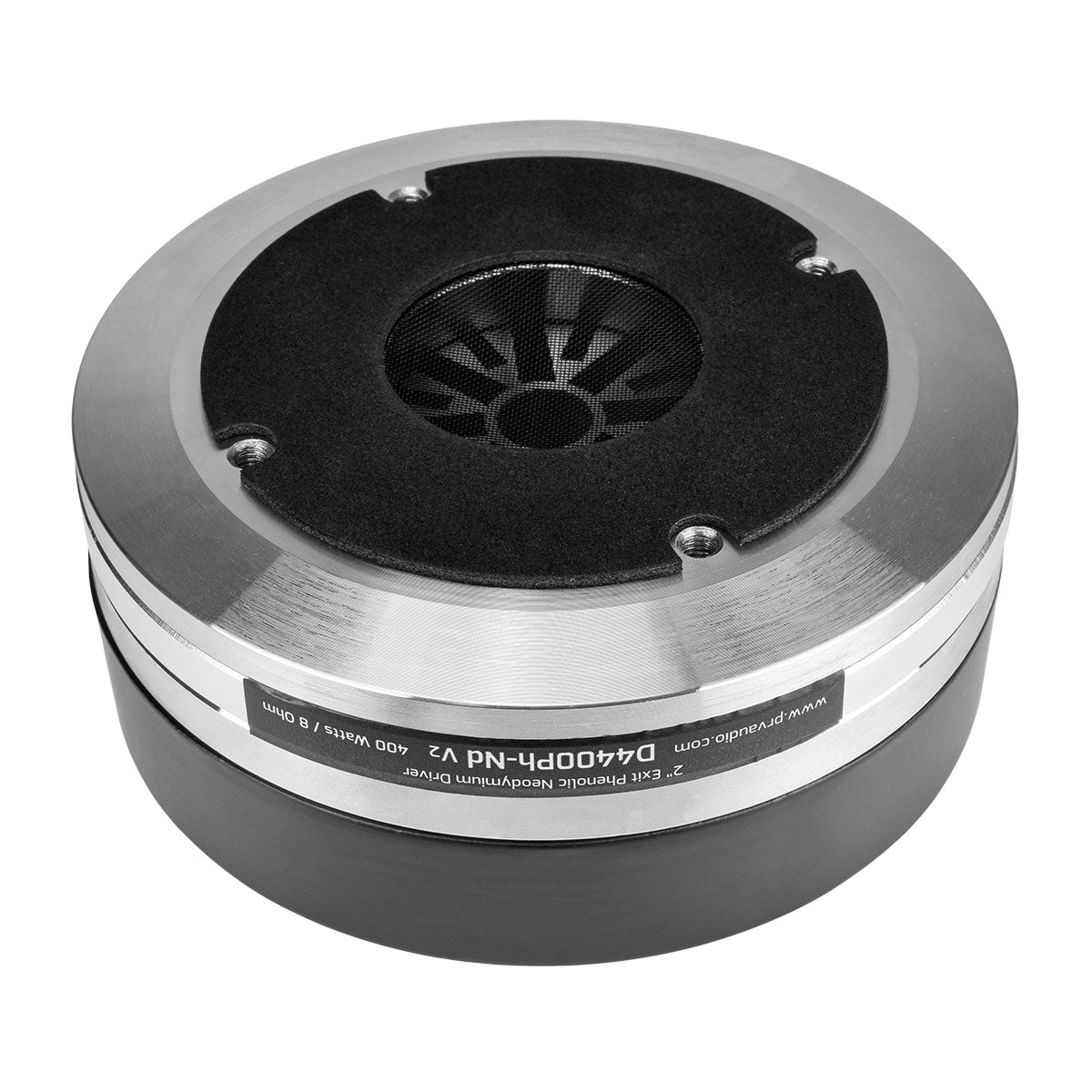

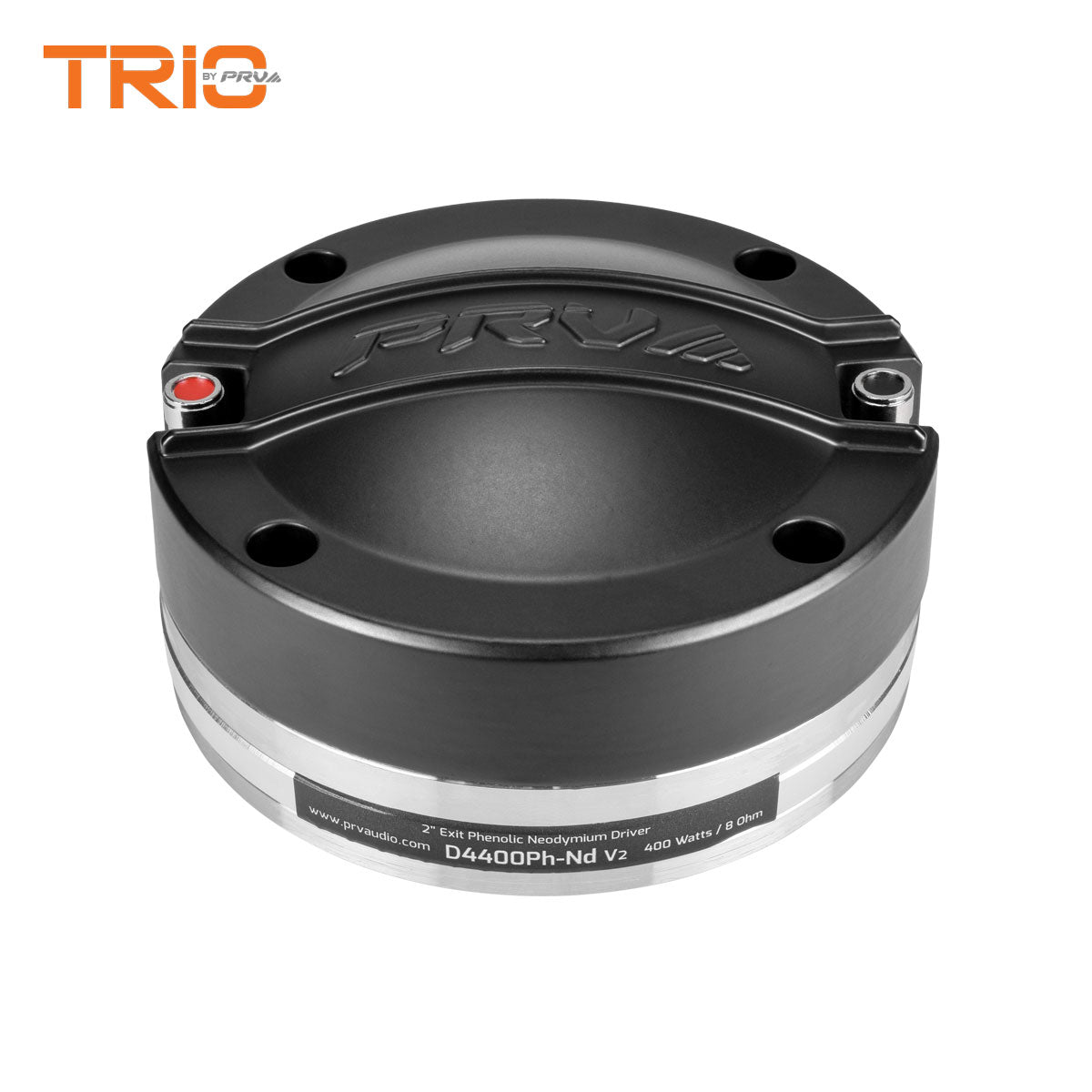

PRV D4400Ph-Nd v2 - 2" Exit Midrange Compression Driver
PRV D4400Ph-Nd v2 - 2" Exit Midrange Compression Driver is backordered and will ship as soon as it is back in stock.
Description
Description
The D4400Ph-Nd v2 is the evolution of our most famous midrange neodymium compression driver. This new design has improved efficiency, and strong vocal reproduction, making it the ideal choice for extreme car audio competitions.

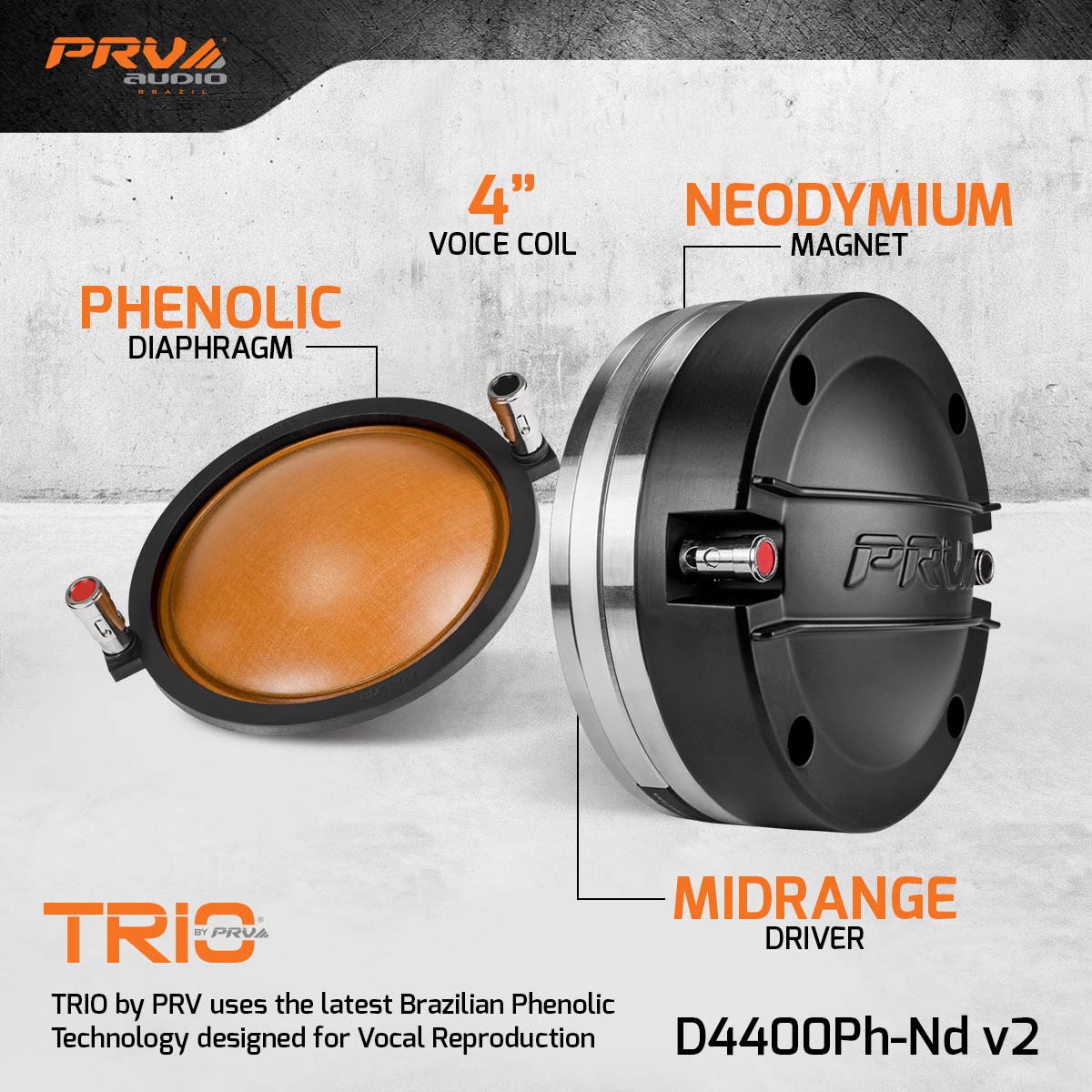

The nearly indestructible Phenolic Diaphragm structure, designed for vocal reproduction, allows low midrange reproduction from 450 Hz, which makes this driver ideal for reproducing the important vocal range with enough output to keep up the most powerful low frequency speakers.
- The Brazilian phenolic technology delivers natural response throughout the vocal midrange frequencies.
- Car audio SPL enthusiasts use this 2” driver for vocal reinforcement on 3-way systems.
- The large high temperature 4 inch voice coil can handle up to 400 watts of musical power.
- For the highest output audio systems, this 109 dB efficient driver provides competition performance.
- Features a strong 6″ diameter neodymium ring magnet that reduces overall size and weight

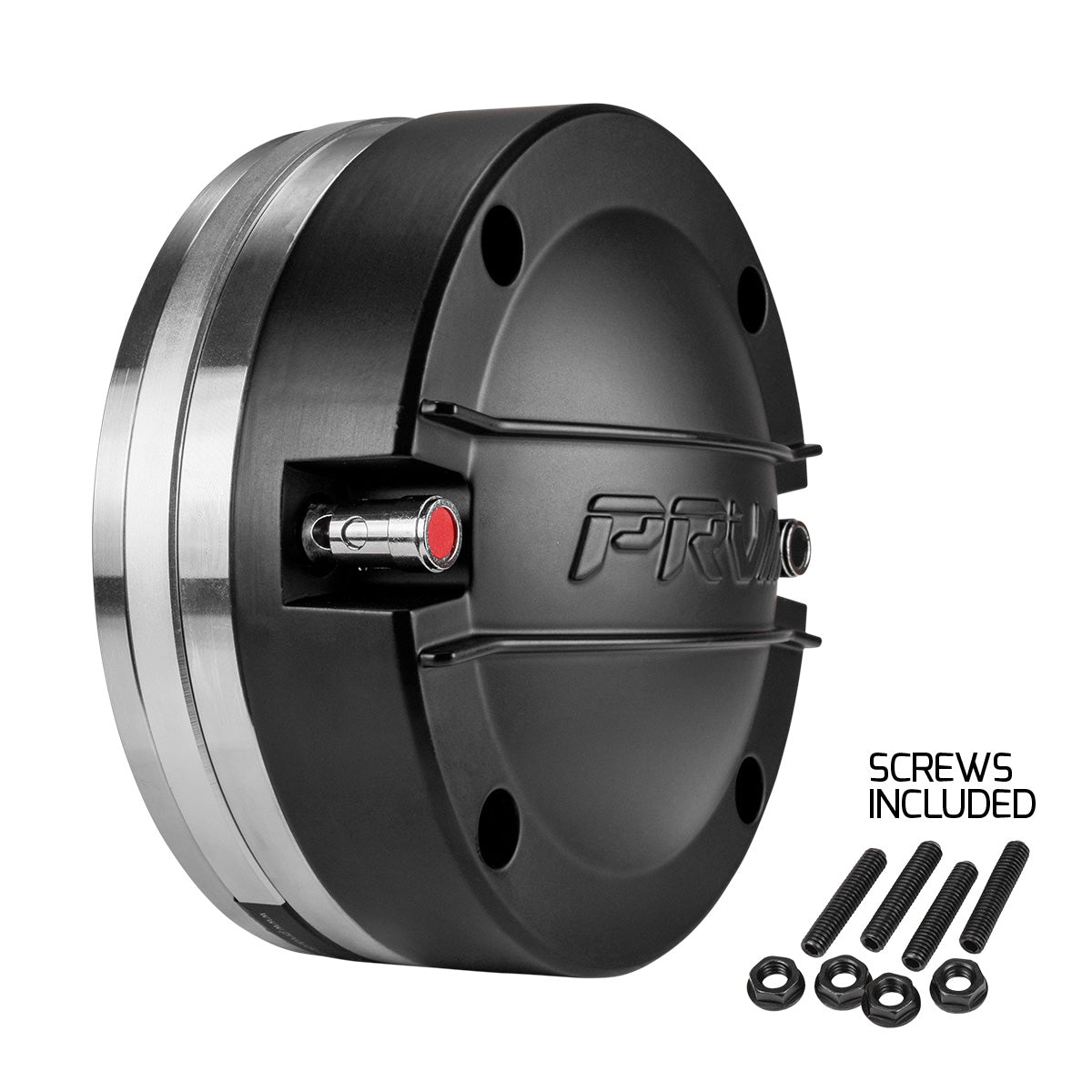

Using a 6.10″ diameter neodymium motor provides a more compact design for easy front-mount installation with WGP22-50 horns, providing a compact yet powerful driver that solves the spacing and weight issues for large systems. Mounting hardware is included.

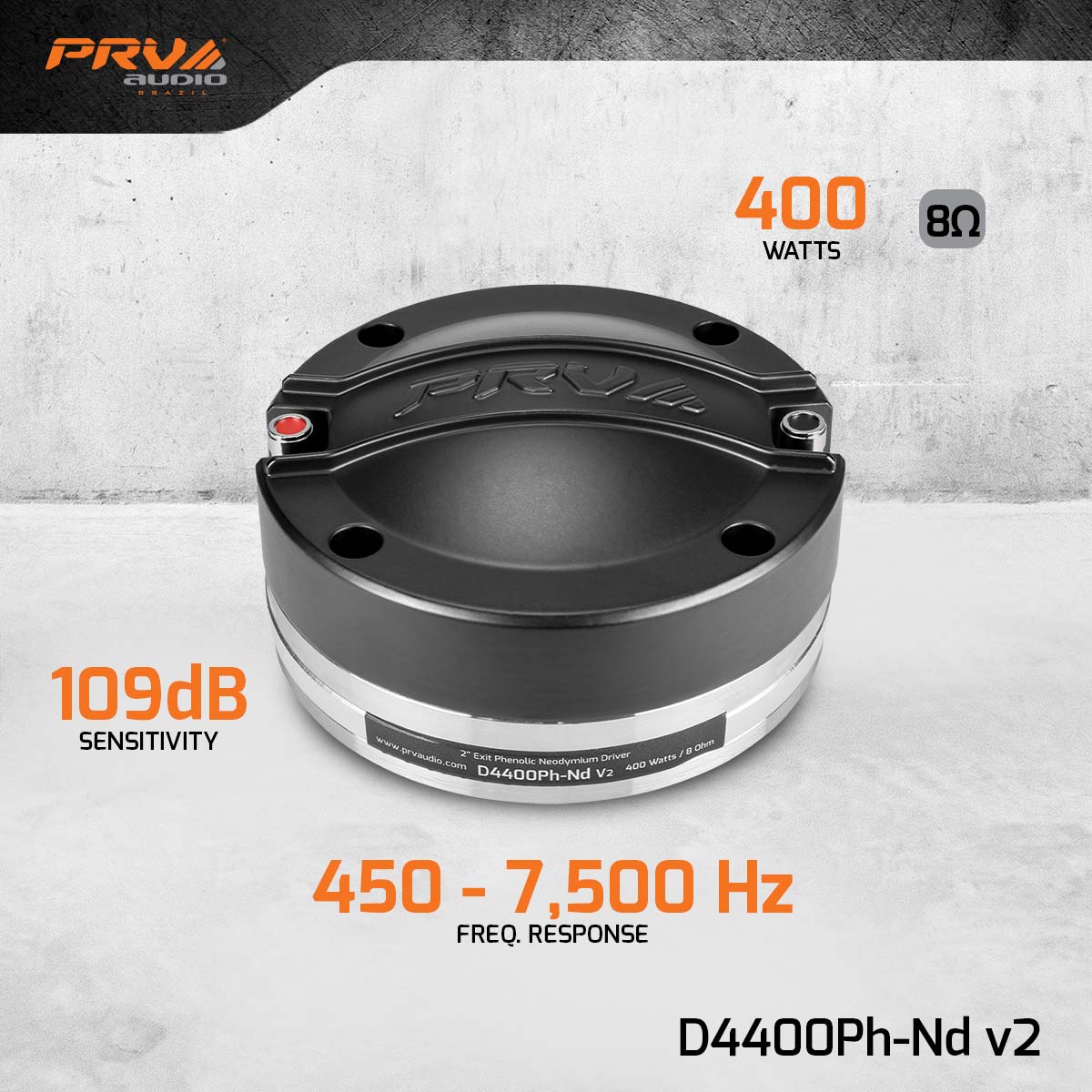

GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 200 Watts |
| Continuous Program Power(RMS)** | 400 Watts |
| Peak Power*** | 800 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
700 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 450 – 7,500 Hz |
| Voice Coil Diameter | 4” (101.6 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic |
| Flux Density | 1.95 T |
| Magnet Material | Neodymium |
EXTRA INFO
| Overall Diameter | 6.10″ (155 mm) |
| Overall Depth | 3.25″ (82.5 mm) |
| Mounting Bolt Circle | M6 x 4 4″ (102 mm) |
| Net Weight | 8.81 lbs (4.0 kg) |
| Shipping Weight | 9.25 lbs (4.2 kg) |
| Carton Dimensions W x L x H | 6.5″ x 6.5″ x 4.72″ (165 x 165 x 120 mm) |
