TW700Ti | PRO Audio Super Tweeter 240 Watts, 8 Ohm
TW700Ti | PRO Audio Super Tweeter 240 Watts, 8 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description

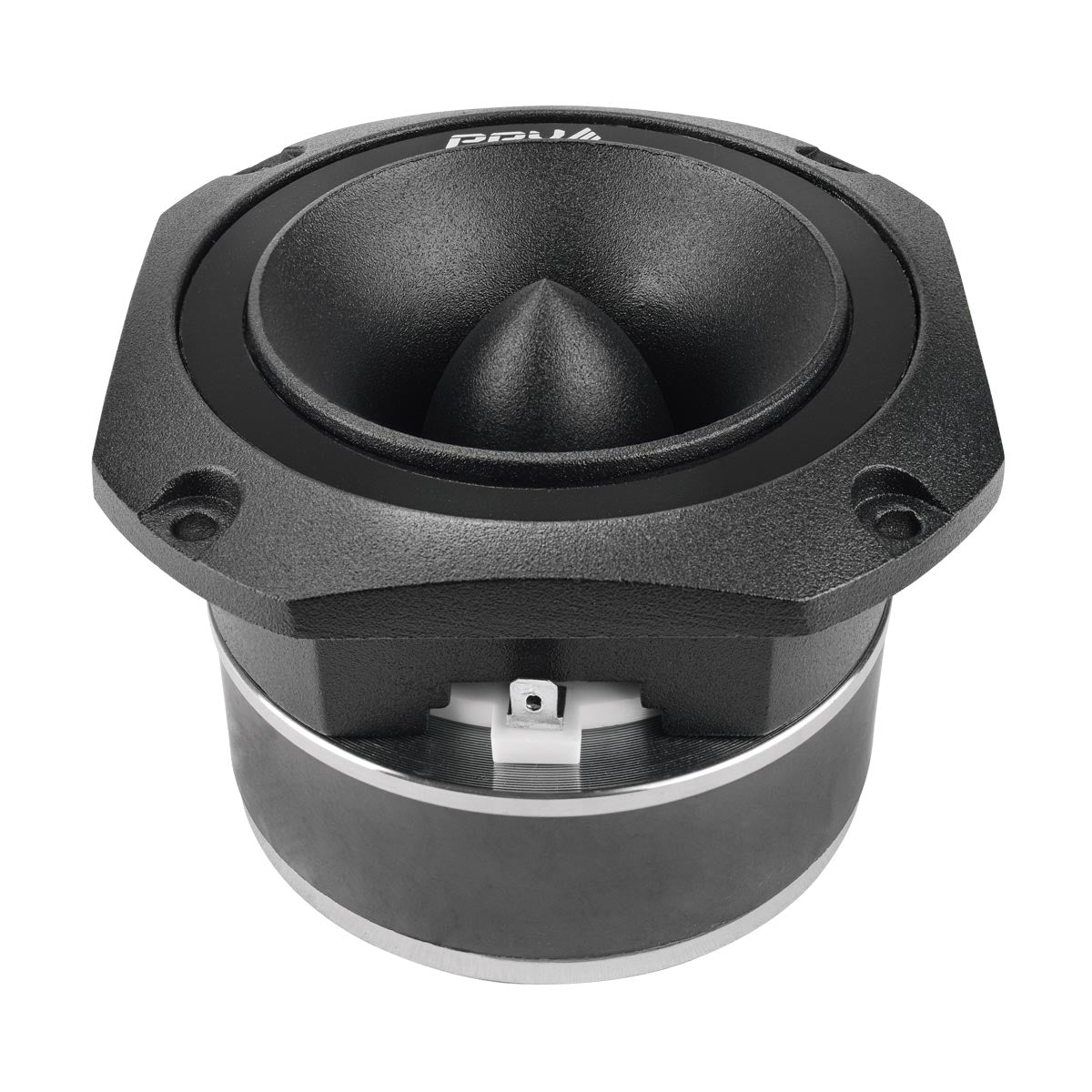

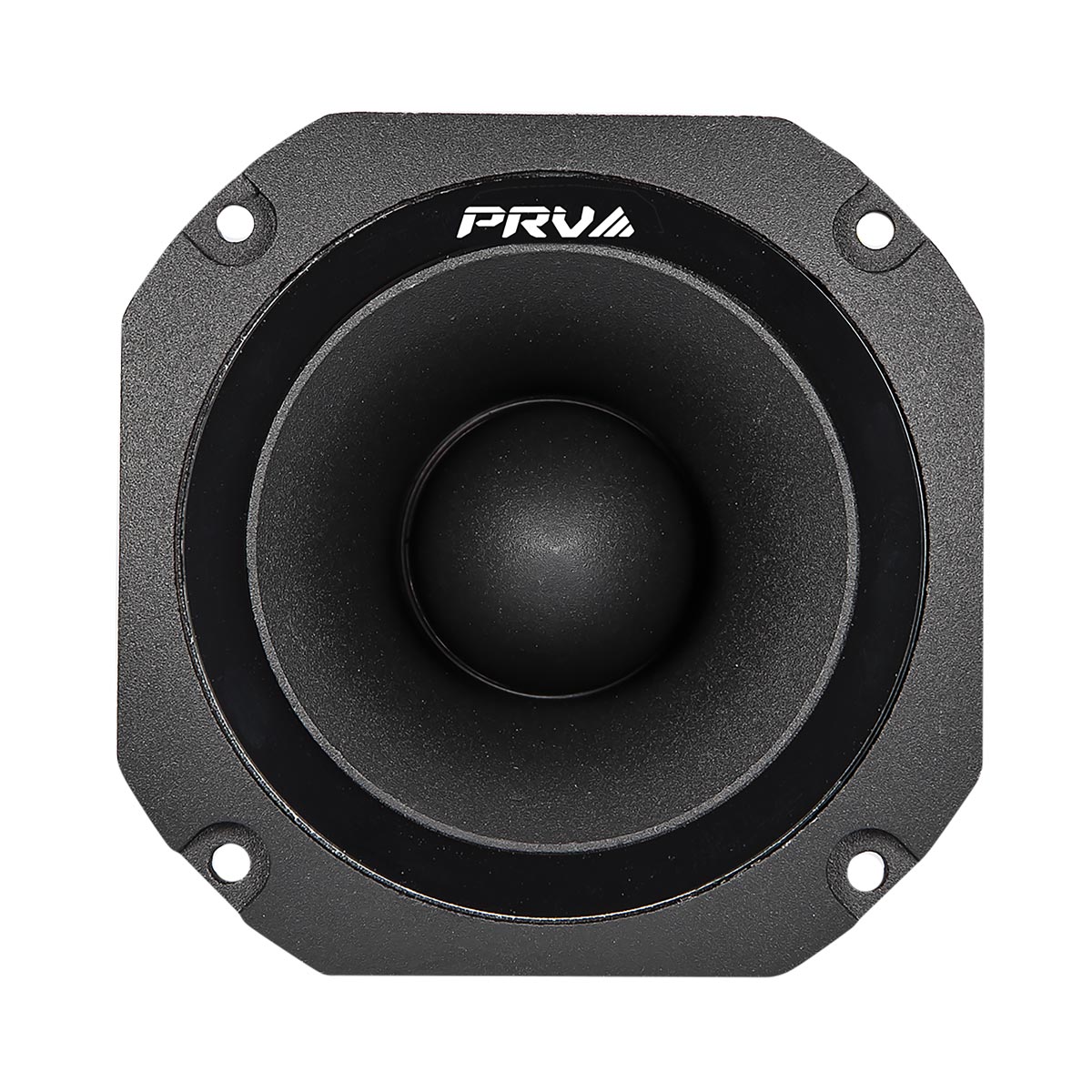

Add detail to any speaker with PRV Audio’s TW700Ti BLACK titanium bullet super tweeter! With high frequency response up to 20,000 Hz and a sensitivity of 107 dB at 1W/1m, the TW700Ti Series PRO Audio Tweeter can keep up with even the most demanding speaker systems.
A square faceplate makes it easier to install, made from a strong aluminum horn, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.
- 4″ Square PRO Audio Super Tweeter – Built to Perform to add high output, high frequency response to large output systems
- High Temperature 1.5″ diameter voice coil capable of handling up to 240 Watts musical program power up to 240 Watts of amplifier RMS power
- Designed for high frequency reproduction at a high SPL level with low distortion thanks to its large motor.

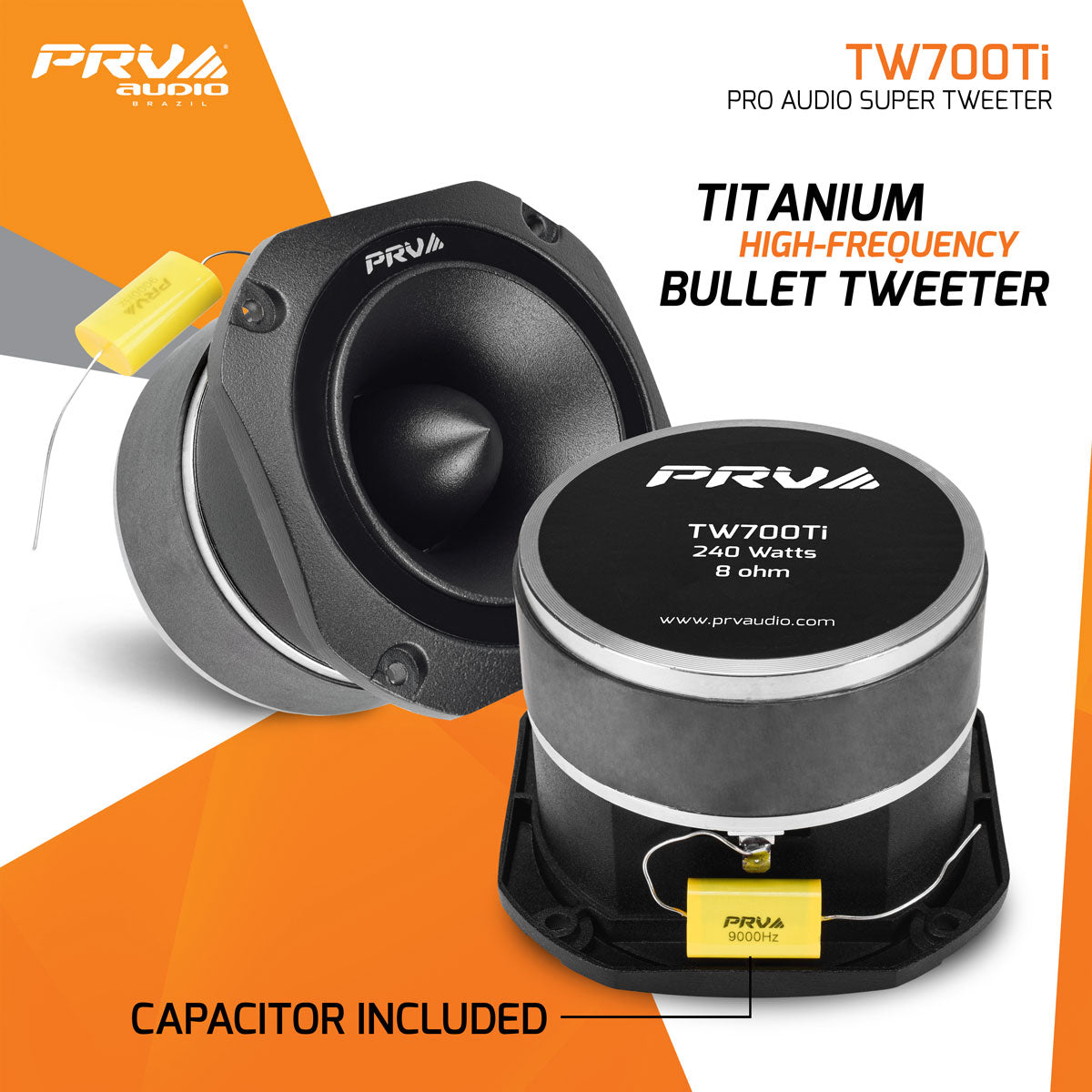

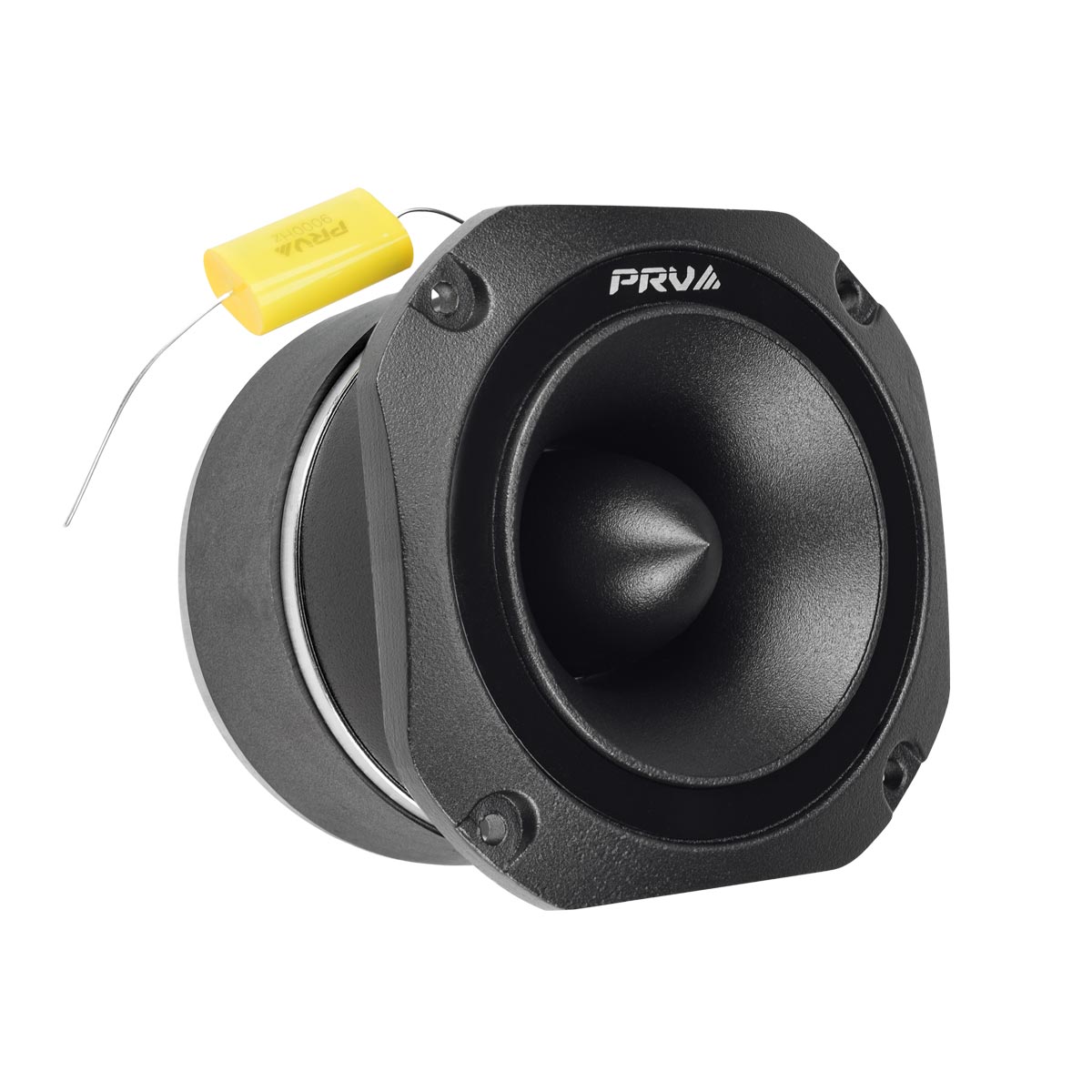

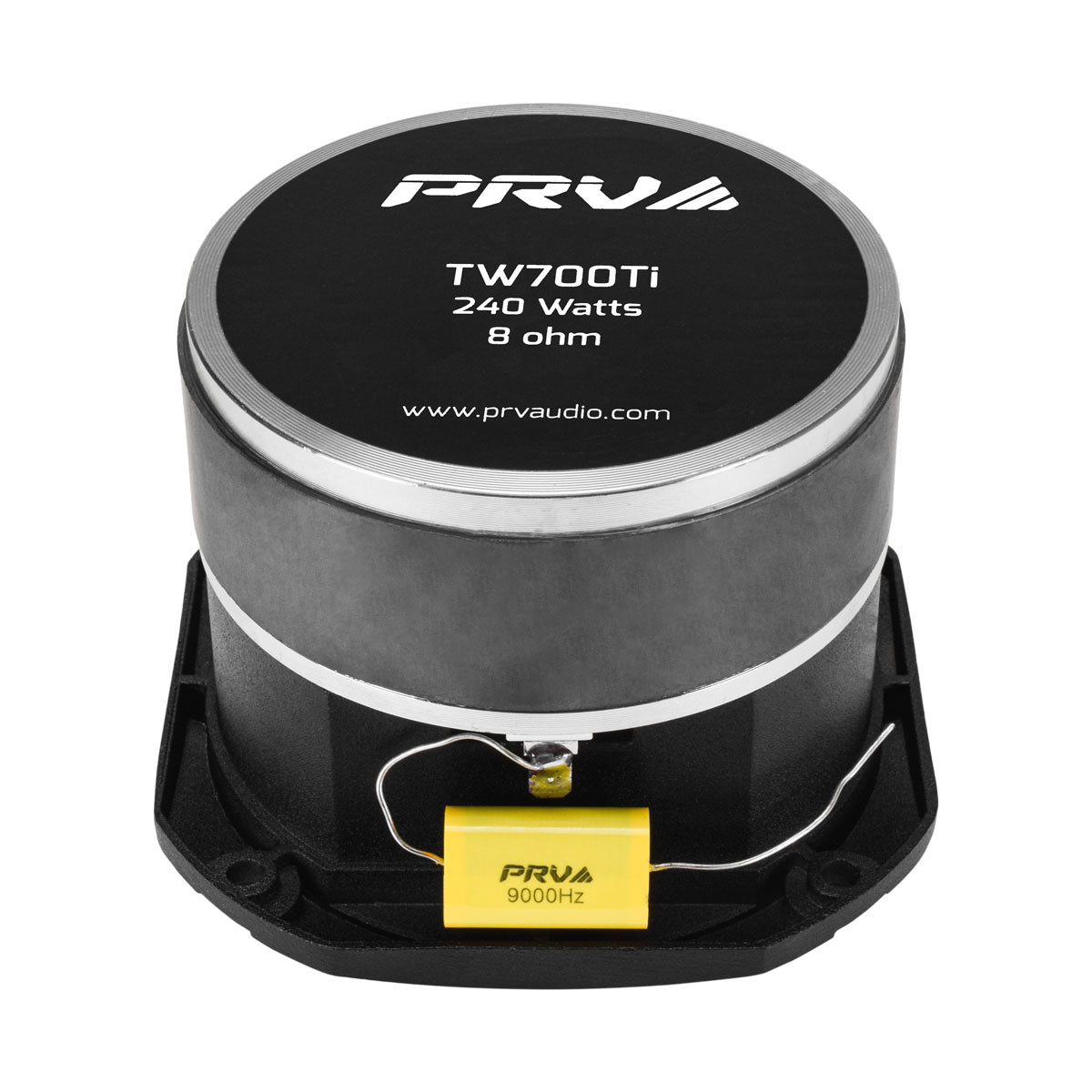

- The built-in capacitor acts as a crossover and attenuates the low frequencies for smooth frequency response.
GENERAL SPECIFICATIONS
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 120 Watts |
| Continuous Program Power (RMS) | 240 Watts |
| Max Peak Power | 480 Watts |
| Sensitivity 2.83V at 1m | 107 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
5000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 3,500 – 20,000 Hz |
| Voice Coil Diameter | 1.5”(38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.60 T |
| Magnet Material | Ferrite |
EXTRA INFO

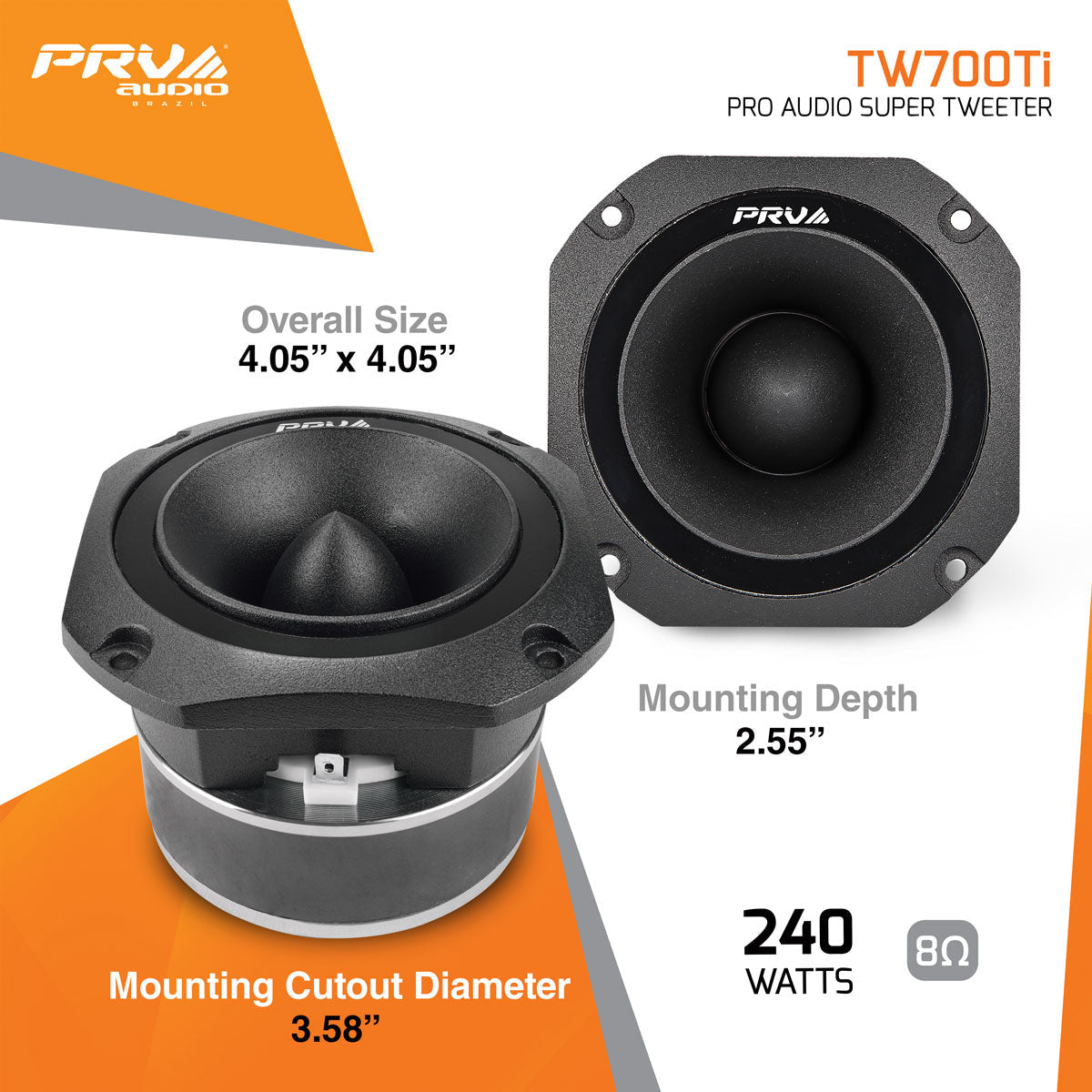

| Overall Depth | 2.97” (75.54 mm) |
| Mounting Depth | 2.55” (64.9 mm) |
| Overall Width | 4.05” (103 mm) |
| Overall Height | 4.05” (103 mm) |
| Cutout Diameter | 3.58” (91 mm) |
| Net Weight | 3.58 lbs (1.58 kg) |
| Shipping Weight | 3.62 lbs (1.64 kg) |
| Carton Dimensions W x L x H | 4.5” x 4.5” x 3.25” (114 x 114 x 82.5 mm) |
