PRV WGP14-50X WHITE CR Waveguide
PRV WGP14-50X WHITE CR Waveguide is backordered and will ship as soon as it is back in stock.
Description
Description

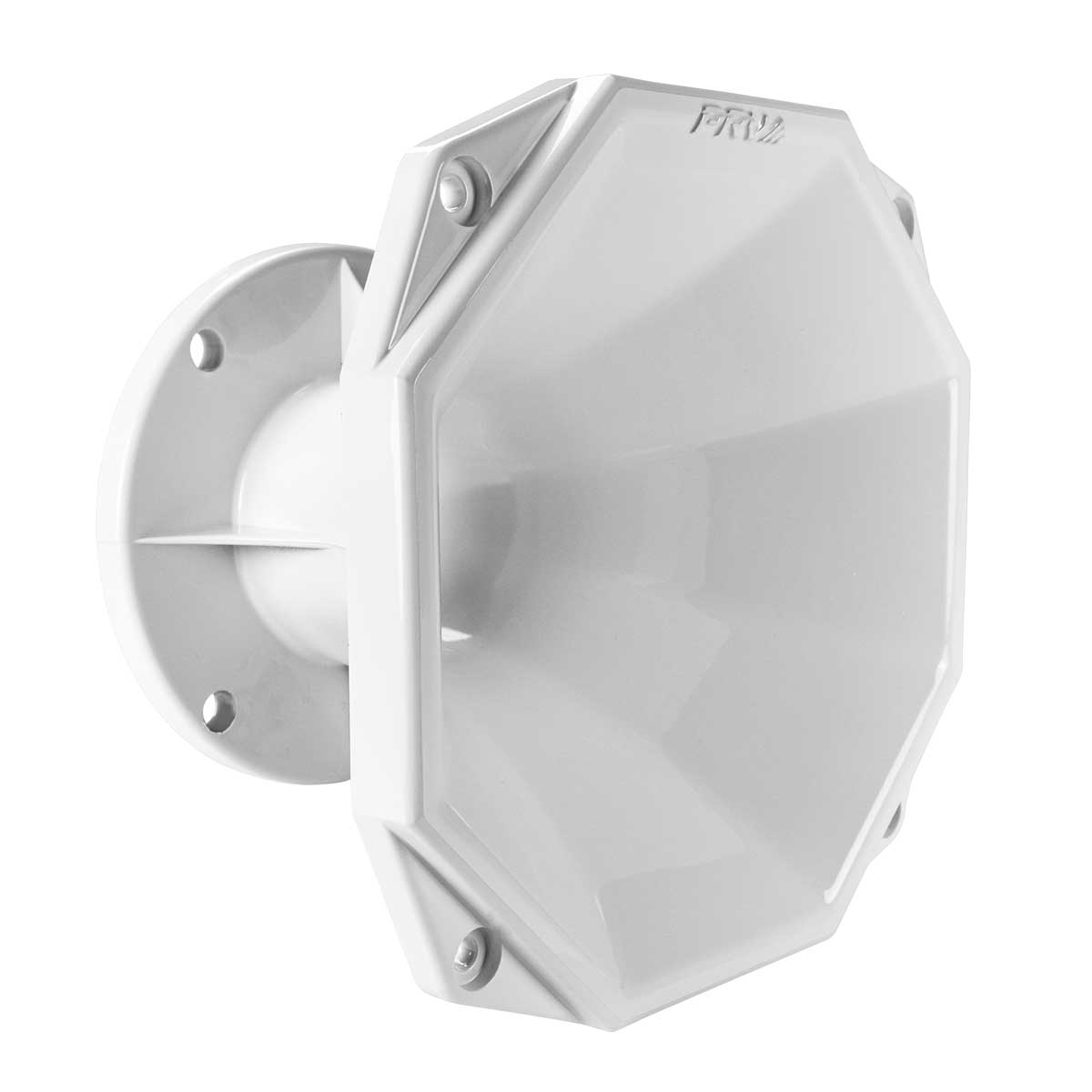

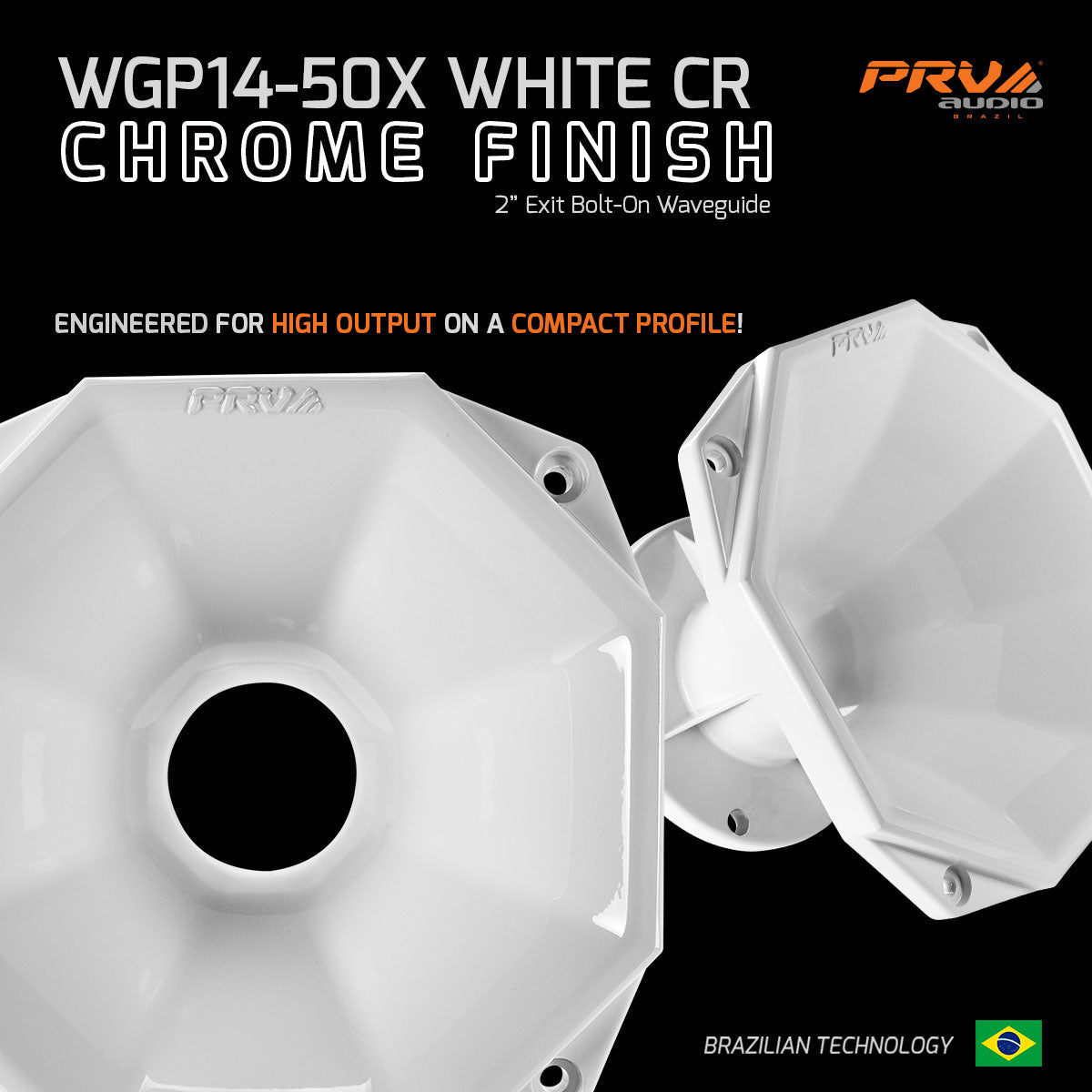

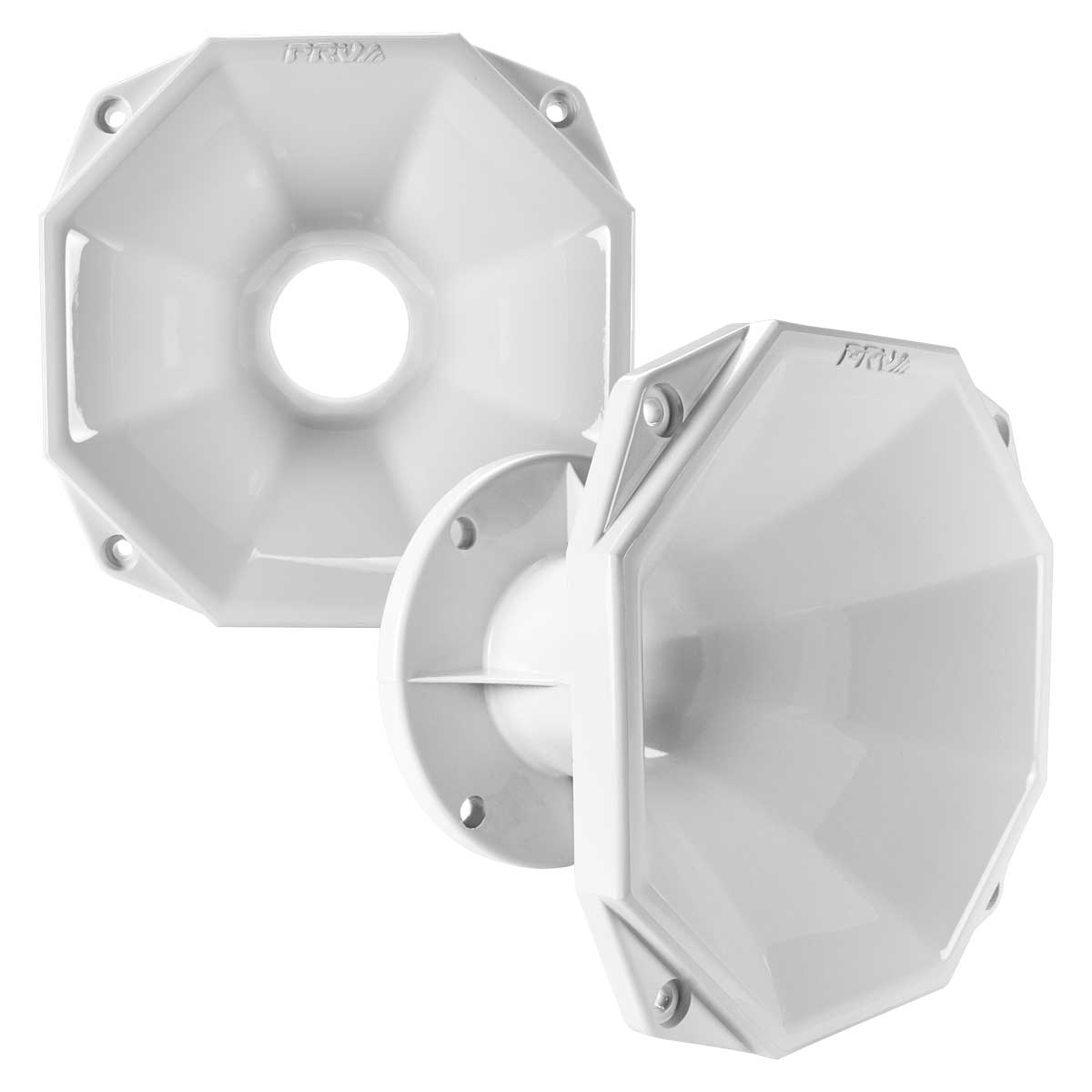

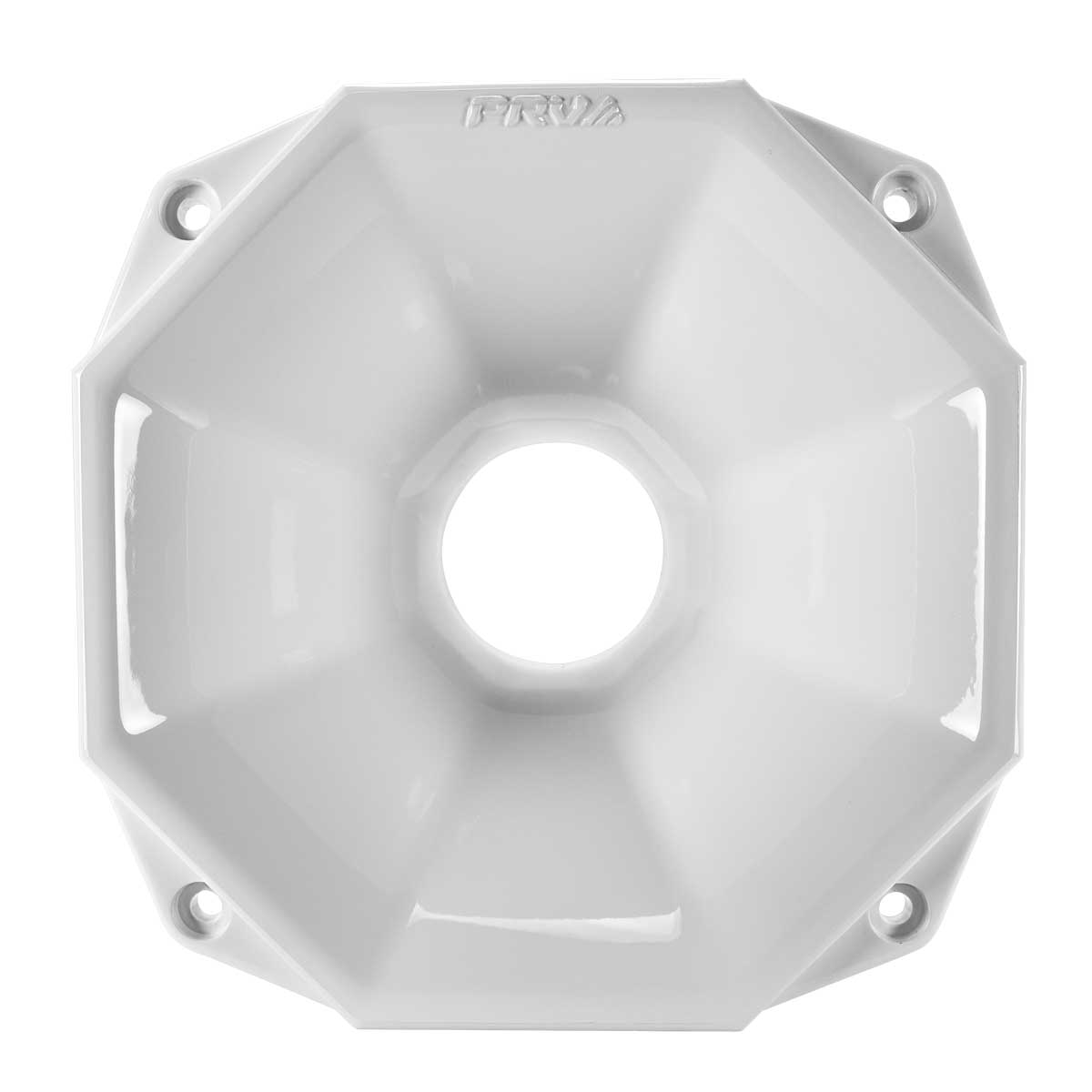

After several months of research and development in search of a shorter horn that would still amplify low frequencies without any output loss, PRV Audio Group engineers developed the WGP14-50X Horn Series’ patented design (Patent #29/842,663), which features a unique octagonal shape engineered not only for outstanding looks, but to dramatically increase dispersion and output on a compact profile!
Take your custom system to the next level armed with a unique LOOK with the WGP14-50X Horn Series, a waveguide with a 2″ throat exit designed to work with any of our 2″ Exit Compression Drivers.
We reduced 1.16″ off its mounting depth, compared to our rounded WGP14-50 Horn Series, giving the new design only 3.86″ of mounting depth. This increases options for custom systems, allowing you to fit more with less space, which is ideal for both custom door panels and trunk systems.
Its white matte paint gives it a distinct finish, making this new series the most unique horn in today’s car audio market!
- Compact Profile allows to mount 2″ drivers with very little depth
- Squared outside edges allow easy side or up stack of multiple drivers in a compact format
- 2″ throat with standard 4-bolt mounting pattern
- Non-resonant reinforced plastic construction
- Wide 60° x 60° Coverage with low 700Hz cutoff frequency
GENERAL SPECIFICATIONS
| Throat Diameter | 2” (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.31″ 8 mm |
| Bolt Circle | 4″ 102 mm |
| Nominal Coverage | |
| Horizontal | 60° |
| Vertical | 60° |
| Flare type | Hybrid |
| Material | Plastic (ABS) |
| Finish / Coating | Several Colors |
| Dimensions | |

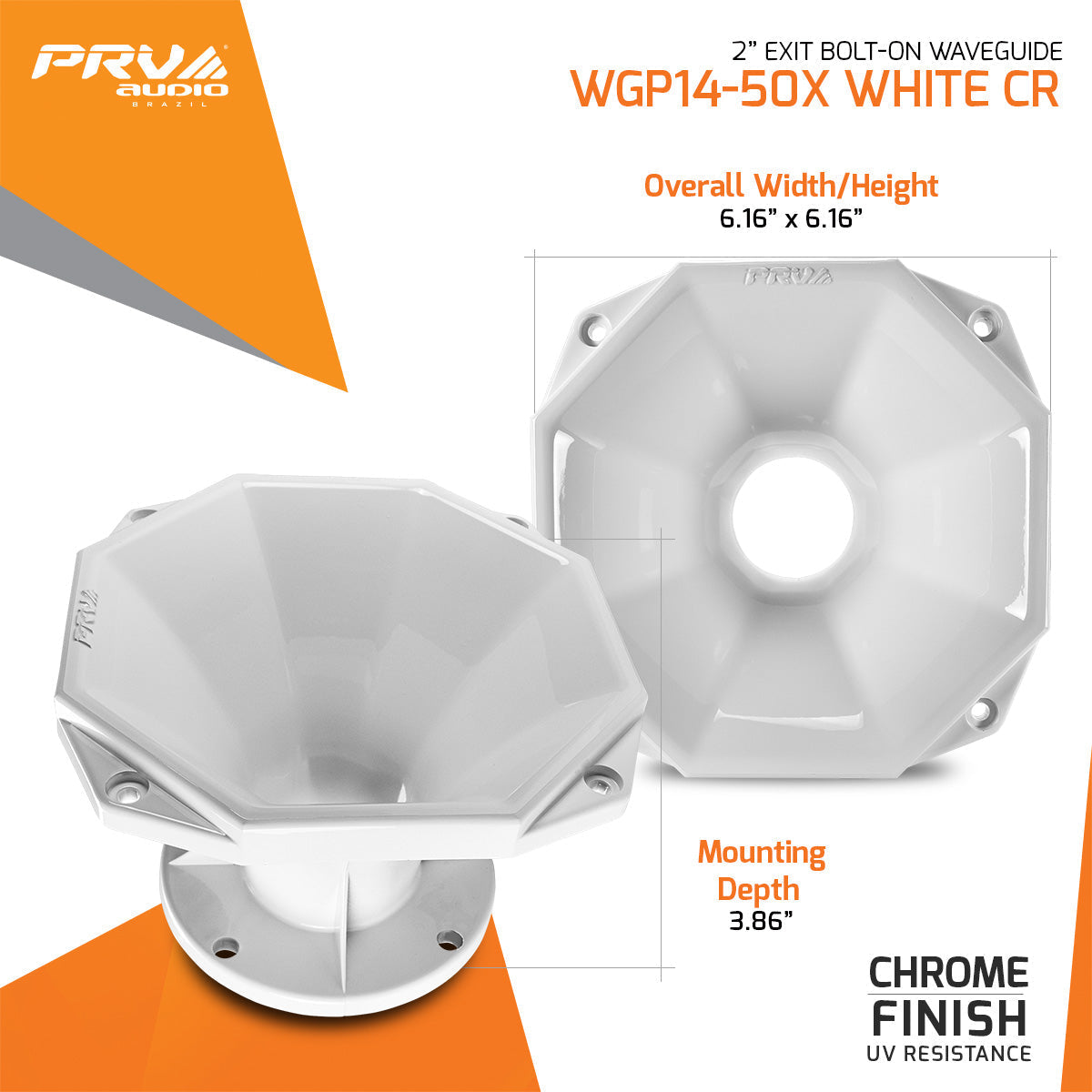

| Height | 6.16″ (156.5 mm) |
| Width | 6.16″ (156.5 mm) |
| Depth | 4.37″ (111 mm) |
| Mounting Depth | 3.86″ (98 mm) |
| Baffle Cutout | |
| Diameter Circle | 5.75″ (146 mm) |
| Net weight | 0.46 lb (0.21 kg) |
