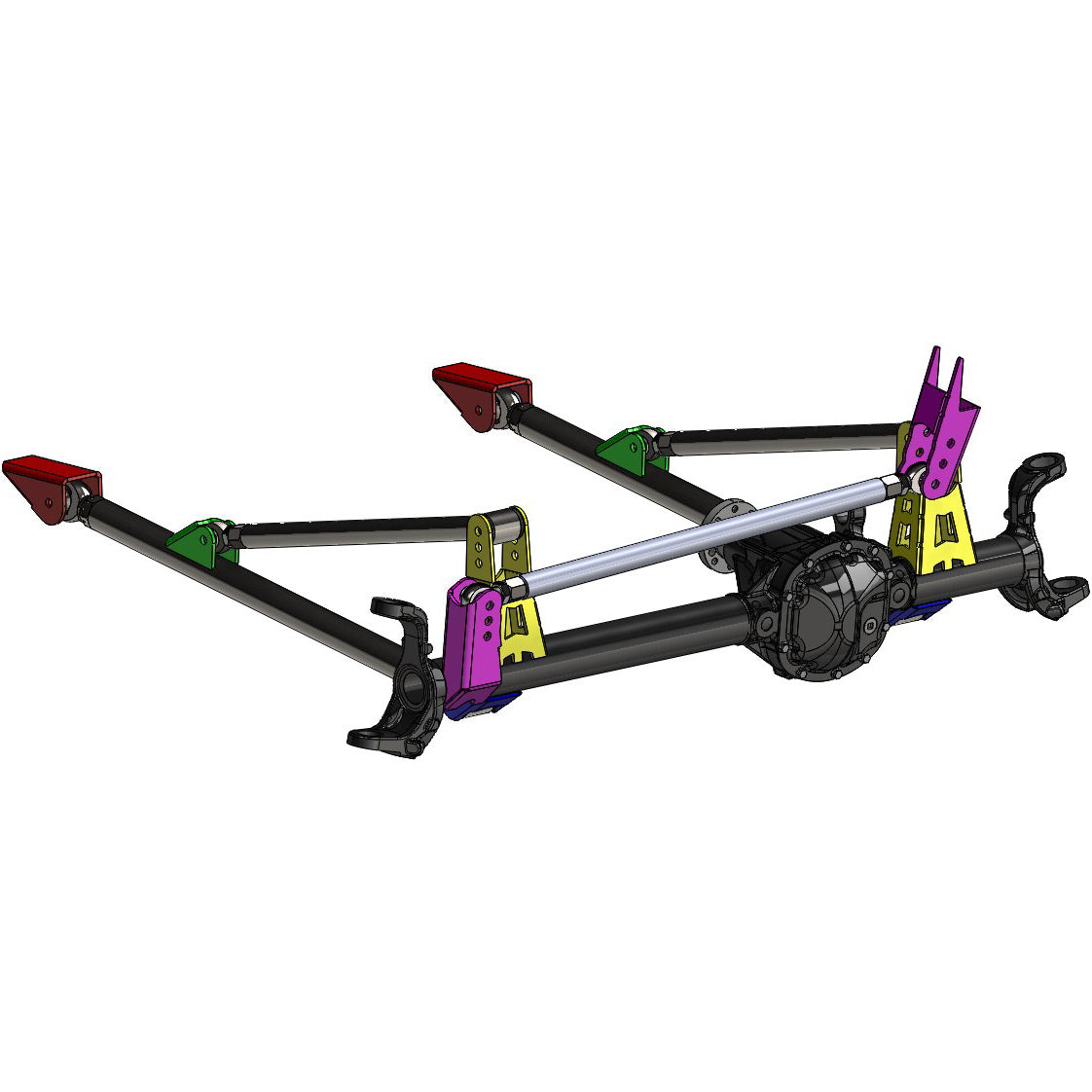

RADIUS ARM LINK KIT WITH TRACK BAR

Radius Arms are one of the more simple and easy ways to set up a link suspension. They have been used by OEM and Aftermarket manufacturers for several decades. A lot of times finding space on the inside of the frame between the exhaust, motor mounts, crossmembers ect... for upper control arms to mount can be challenging. Since the upper control arm mounts to the lower control arms, you only have to worry about mounting the lower control arm to the frame. We've offered a Radius Arm Kit for many years. Now we offer a more complete kit with the Track Bar included.

KIT INCLUDES:

• 2 - 38" of DOM tubing 2" x .250 wall
• 2 - 24" of DOM tubing 1.5" x .250 wall
• 1 - 54" of DOM tubing 1.5" x .250 wall
• 2 - 1.25" Heat treated Heims with 9/16" Misalignment Spacers
• 2 - 7/8" Heat treated Heims with narrow 9/16" Misalignment Spacers
• 2 - 7/8" Heat treated Heims with 9/16" Misalignment Spacers
• 4 - 2-5/8" wide Bushed DOM sleeves with 9/16" Inner Sleeve
• 2 - Adjustable Axle Mount Link Towers(0 or 10 Degree) (Upper)
• 2 - 3.0"Tube Radius Axle Mount (0 or 10 Degree) Link Bracket (Lower)
• 2 - Radius Arm Brackets
• 2 - Chassis Link Bracket with 9/16" Holes
• 1 - Frame Inside or Outside Track Bar Bracket
• 1 - Axle Center or Offset Track Bar Bracket
• 1 - Bag of 9/16" Hardware
