(Sold Out) RevMax 6R140 TorqShift 6 High Performance Transmission Rebuild Kit, 2011-2017 Ford 6.7L Powerstroke

RevMax Ford 6R140 TorqShift 6 High Performance Transmission Rebuild Kit.
For 2011, 2012, 2013, 2014, 2015, 2016, 2017 Ford 6.7L Powerstroke

2011-2017 Ford 6R140 TorqShift 6 High Performance Transmission Rebuild Kit

This rebuild kit is upgraded with increased clutch capacity, improved clutch plate material, phosphate steels and ZeroFlex technology. Our rebuild kit is unique to Revmax and cannot be purchased at any of the other copycat builders.

The 6R140 is the most robust stock transmission ever put into a passenger truck. However due to cost restraints, Ford elected to use a cheap molded piston to apply and balance the overdrive clutches. The OE piston design only applies a miniscule surface area onto the steel plate. Over time and with hear cycling, this causes the steel and clutch plates to adapt a “cone” memory. This coning causes two further issues. First, clutch pack clearance is reduced which causes drag. This drag then causes the pack to fail as it is being partially applied even when it should not be. Secondly, the coning does not allow the full contact face of the clutch to apply and this causes reduced torque capacity and again rapid failure.

Revmax’s patent pending ZeroFlex technology completely solves the coning and inadequate apply issues by the use of our billet apply piston, balance piston and custom spring assembly. Our apply piston allows the overdrive clutch to apply to 100% of the clutch face surface area. Utilizing this billet piston along with our proprietary billet intermediate shaft, we can also increase clutch capacity past that of ANY of our competition without using thinner steel plates or frictions. You can now build this unit with up to 11 frictions in the OD clutch (10 or 11 friction OD clutch requires a billet intermediate shaft), a whopping 44% increase in clutch surface area. By doing this, you now have increased torque capacity and coning is no longer an issue. In addition our ZeroFlex technology also completely eliminates the clutch squawking issue that is prevalent on all aftermarket 6R140 transmissions without the use of expensive, lubrication oil restricting dampers that are currently being sold by the aftermarket.

When you are looking for the best rebuild kit for your DIY or local shop build then the only choice is RevMax. We are proud to offer the best rebuilding kits for your diesel transmission that money can buy. These kits feature the same technology and parts that we use in our in house transmission builds. The kit components have been meticulously selected by our technicians to get you the best parts money can buy.

When companies like Alto Products or Raybestos Powertrain are looking for information on how to design the latest performance clutches and steels, they come to us at RevMax to help design them. These designs are then tested here, in house at RevMax and then sold around the world by many of the other so called innovators that claim to have designed these parts. Unlike our competitors we don’t go around bragging about our work in multi-page ads in every magazine, we let our work speak for itself.

Our kits feature Precision International overhaul kits* which are regarded as the finest overhaul kits in the industry. These overhaul kits contain all of the gaskets, o-rings, seals sealing rings and small parts required to completely overhaul your transmission properly. The clutches and steels are RevMax designed and then manufactured by either Raybestos or Alto to our exact specifications. Any custom pistons or pressure plates required are included in our kits. The clutch and steel modules are all designed to be assembled within clearance tolerances out of the box, however it is crucial that all clearances are checked and recorded.

All of our rebuild kits come complete with a pump bushing, sump filter and spin on filter where applicable. Planetary washer kits, bushing kits, bearing kits and other user option items are not included but available for purchase separately on our website. We do this as some customers do not want these parts and others do.

RevMax does not warranty any rebuild kit components as we cannot control the installer’s quality of work or knowledge. It is imperative that you select a highly qualified installer or be extremely competent with the rebuilding process of your transmission.

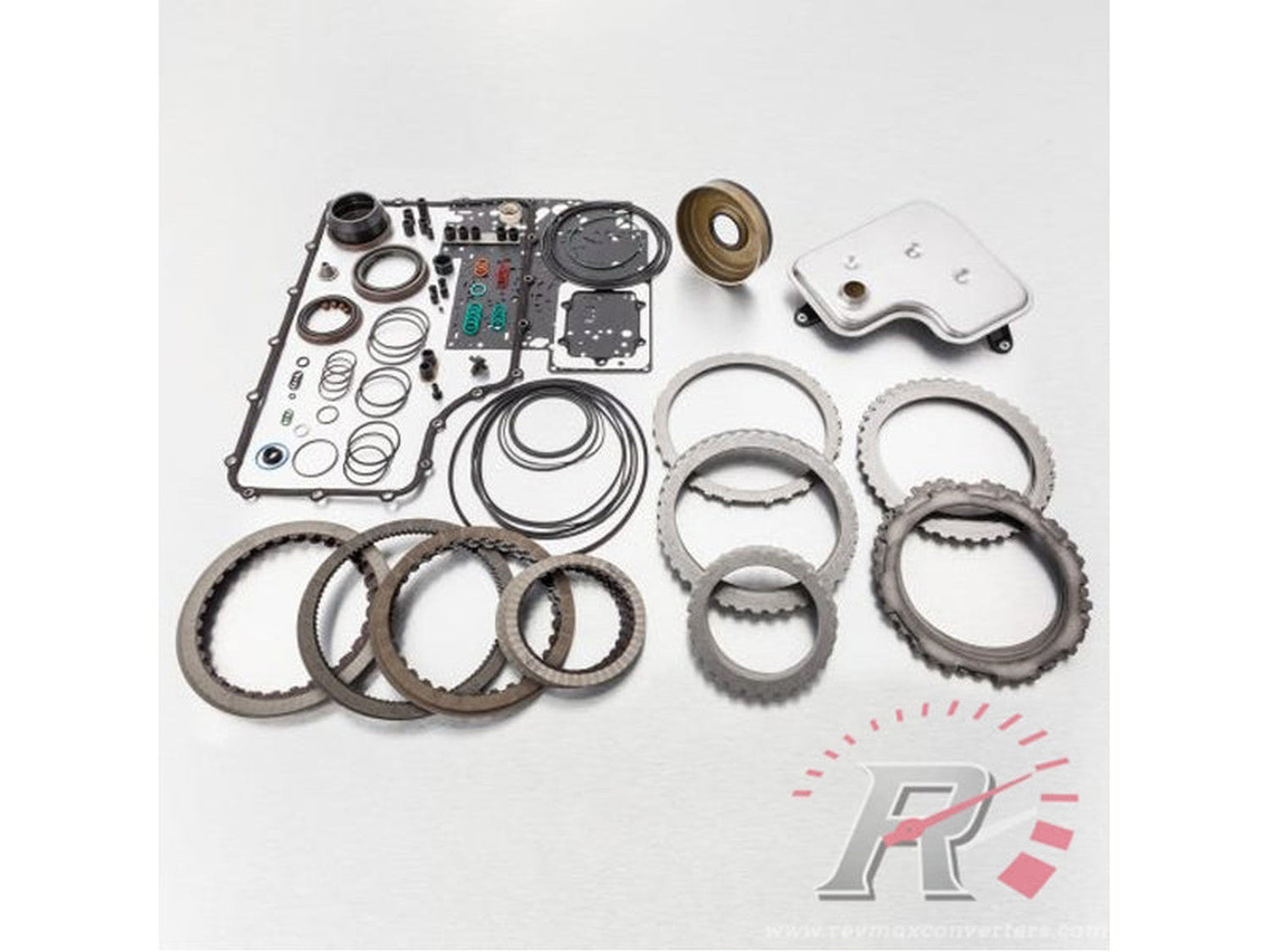

This high quality RevMax kit consists of the following components:

• 5 Clutch High Energy Forward Drum with GPZ Frictions and Steels. (Factory Has 5 Clutches)
• 6 Clutch Direct Drum with GPZ Clutches and Steels. (Factory Has 5 Clutches)
• 9 Clutch Overdrive (upgrade-able to 10 or 11 frictions) w GPZ Fritctions and Steels w\ patent pending ZeroFlex technology billet apply piston, balance piston and spring assembly.(Factory has 7 Clutches)
• 6 Clutch Intermediate GPZ Frictions and Steels. (Factory has 5 clutches)
• High Energy Low Reverse Clutches and Steels
• Complete overhaul kit

Additional Information:Make:FordCompatible Car Models: E250, E350, F250, F350, F450Compatible Year: 2011, 2012, 2013, 2014, 2015, 2016, 2017Engine: 6.7L PowerstrokeTransmission Type: FORD 6R140
