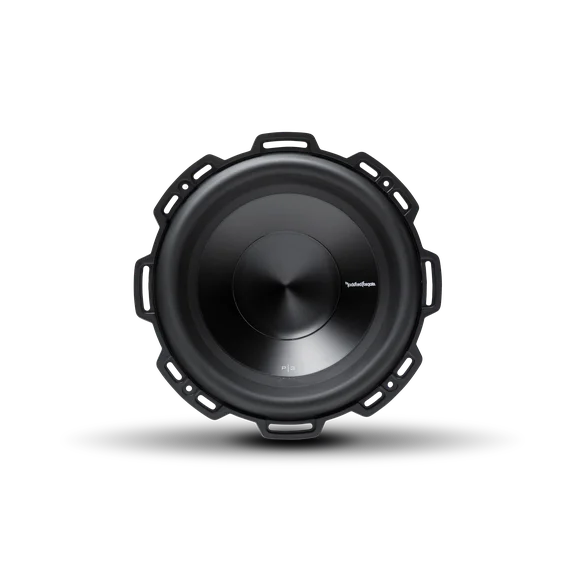

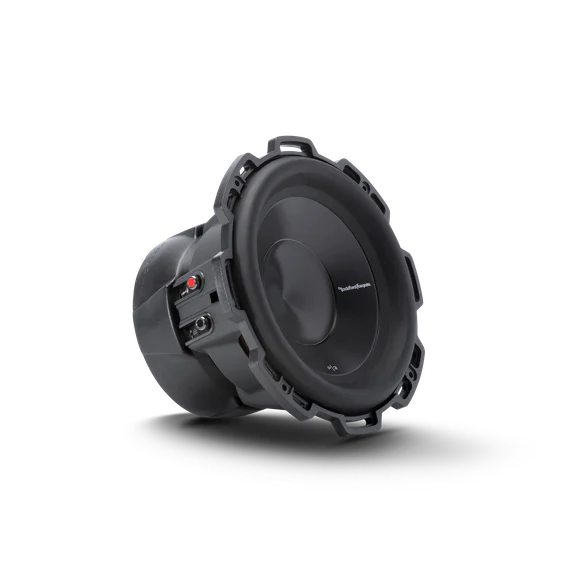

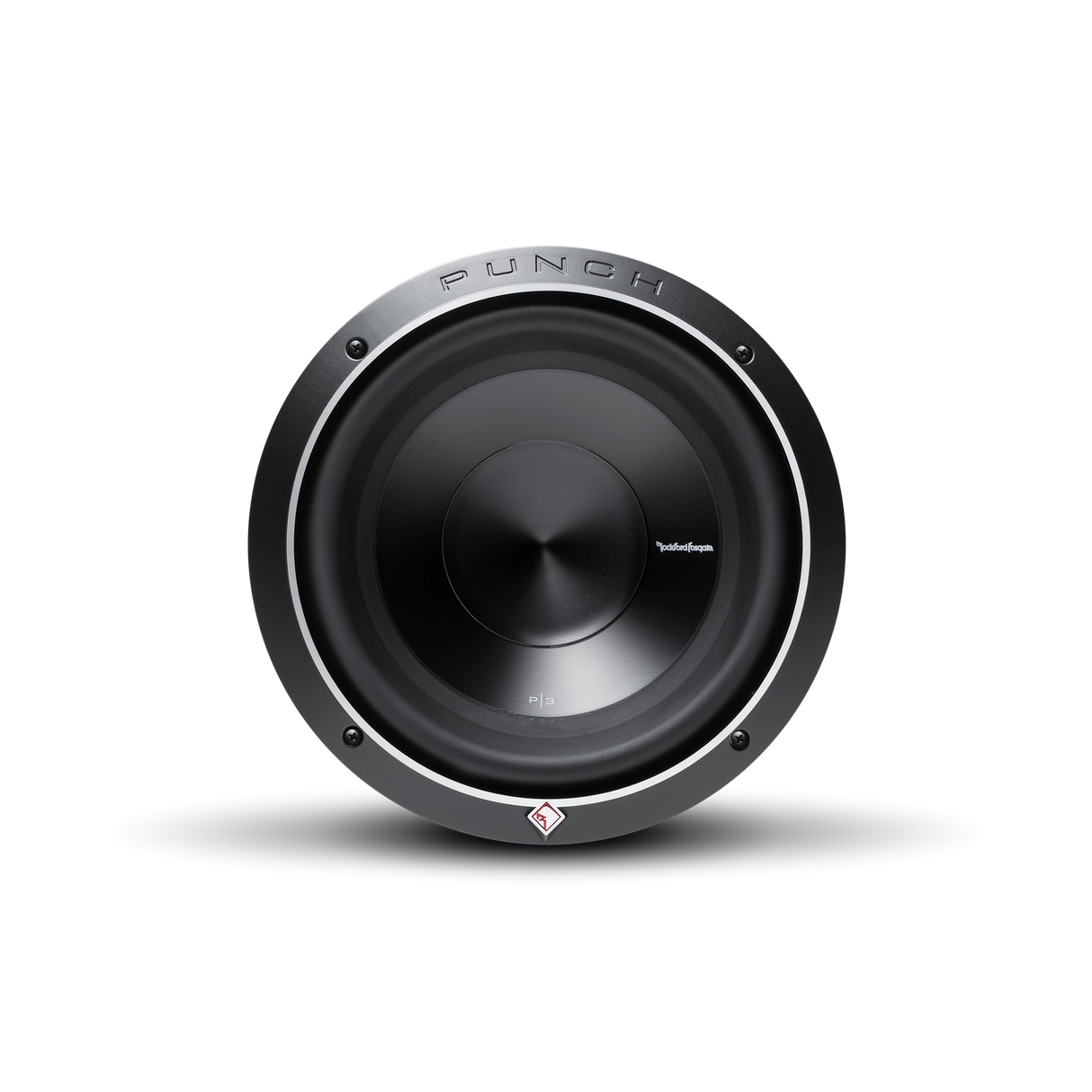

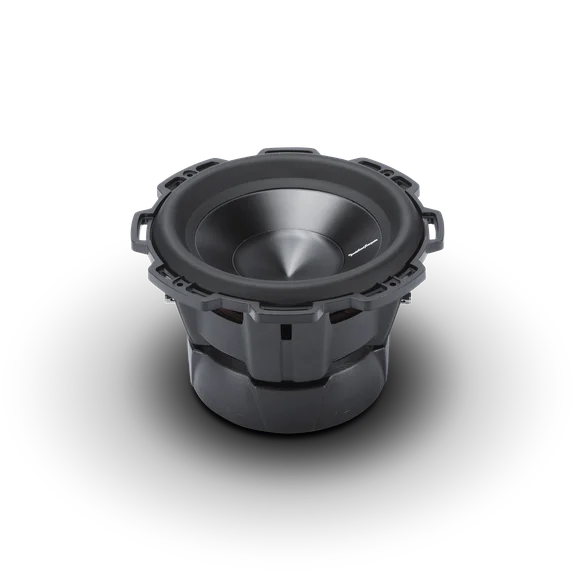

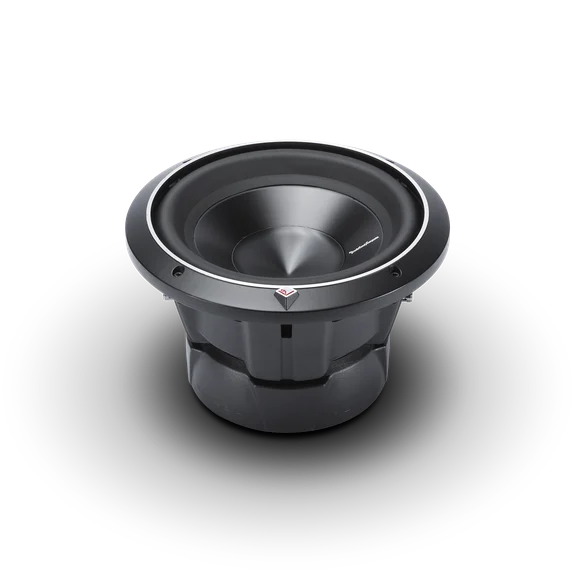

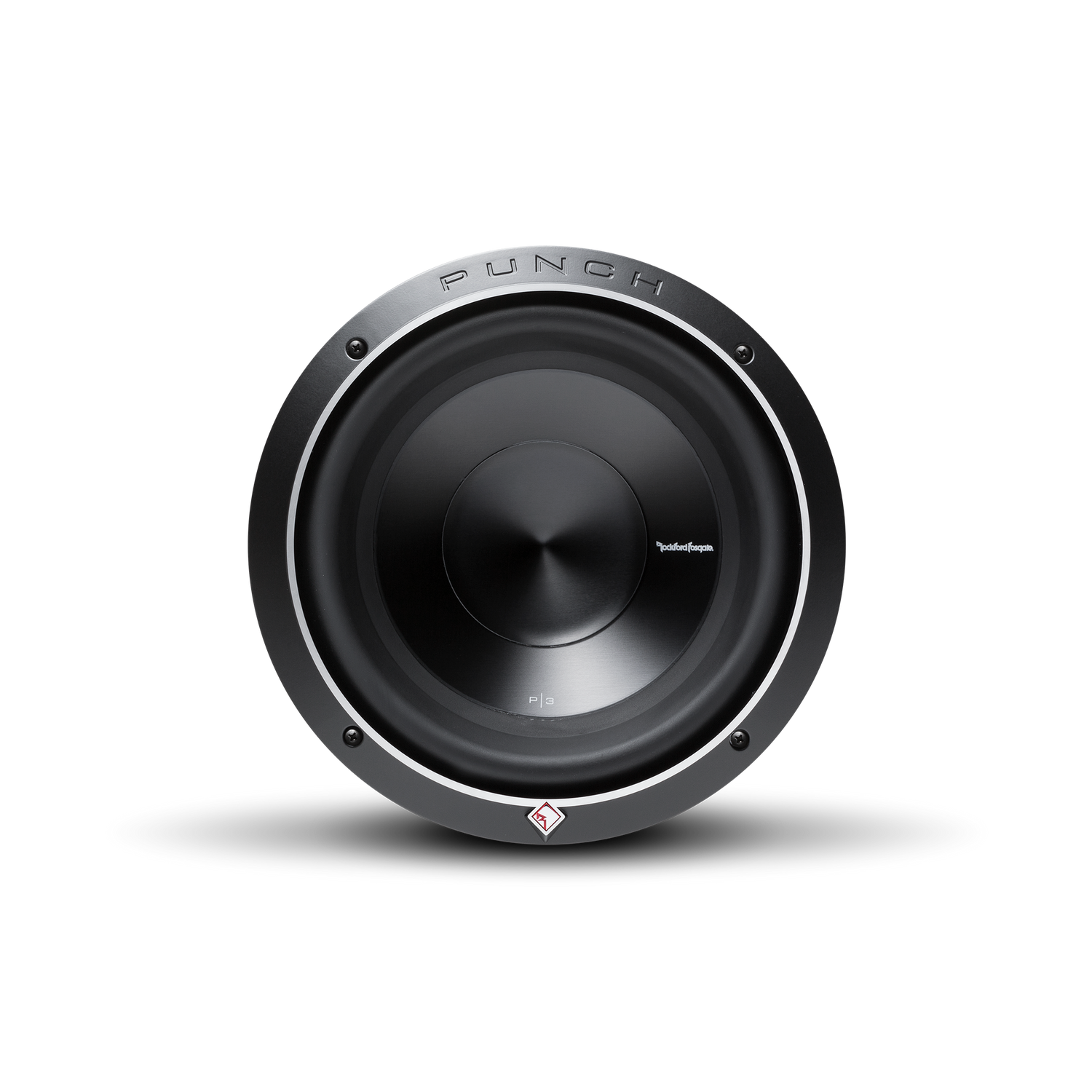

Rockford Fosgate P3D4-10 10" 600W RMS Subwoofer DVC 4-Ohm
Rockford Fosgate P3D4-10 10" 600W RMS Subwoofer DVC 4-Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Key Features:
- 10″ subwoofer with dual 4-ohm voice coils
- anodized aluminum cone with Santoprene surround
- hybrid StampCast basket provides strength while minimizing weight and resonance
- Vertical Attach Surround Technique (VAST™) increases cone area
- power range: 250-500 watts RMS (1000 watts peak power)
- frequency response: 28-250 Hz
- sensitivity: 82 dB
- top-mount depth: 6-3/16″
- sealed box volume: 0.5-0.75 cubic feet
- ported box volume: 1.4 cubic feet
- grille not included
- warranty: 1 year
Features & specs
| Size | 10 -inch | |
| Impedance | 2 ohms | |
| Cone Material | Anodized Aluminum | |
| Surround Material | Santoprene | |
| Ideal Sealed Box Volume (cubic feet) | 0.59 | |
| Ideal Ported Box Volume (cubic feet) | 1.4 | |
| Port diameter (inches) | 4 | |
| Port length (inches) | 14 | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity | 82 dB at 1 watt | |
| Frequency Response | 28 – 250 Hz | |
| Max RMS Power Handling | 500 | |
| Peak Power Handling (Watts) | 1000 | |
| Top Mount Depth (inches) | 6 3/16 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 | |
| Vas (liters) | 27 | |
| Fs (Hz) | 28 | |
| Qts | 0.56 | |
| Xmax (millimeters) | 13.9 | |
