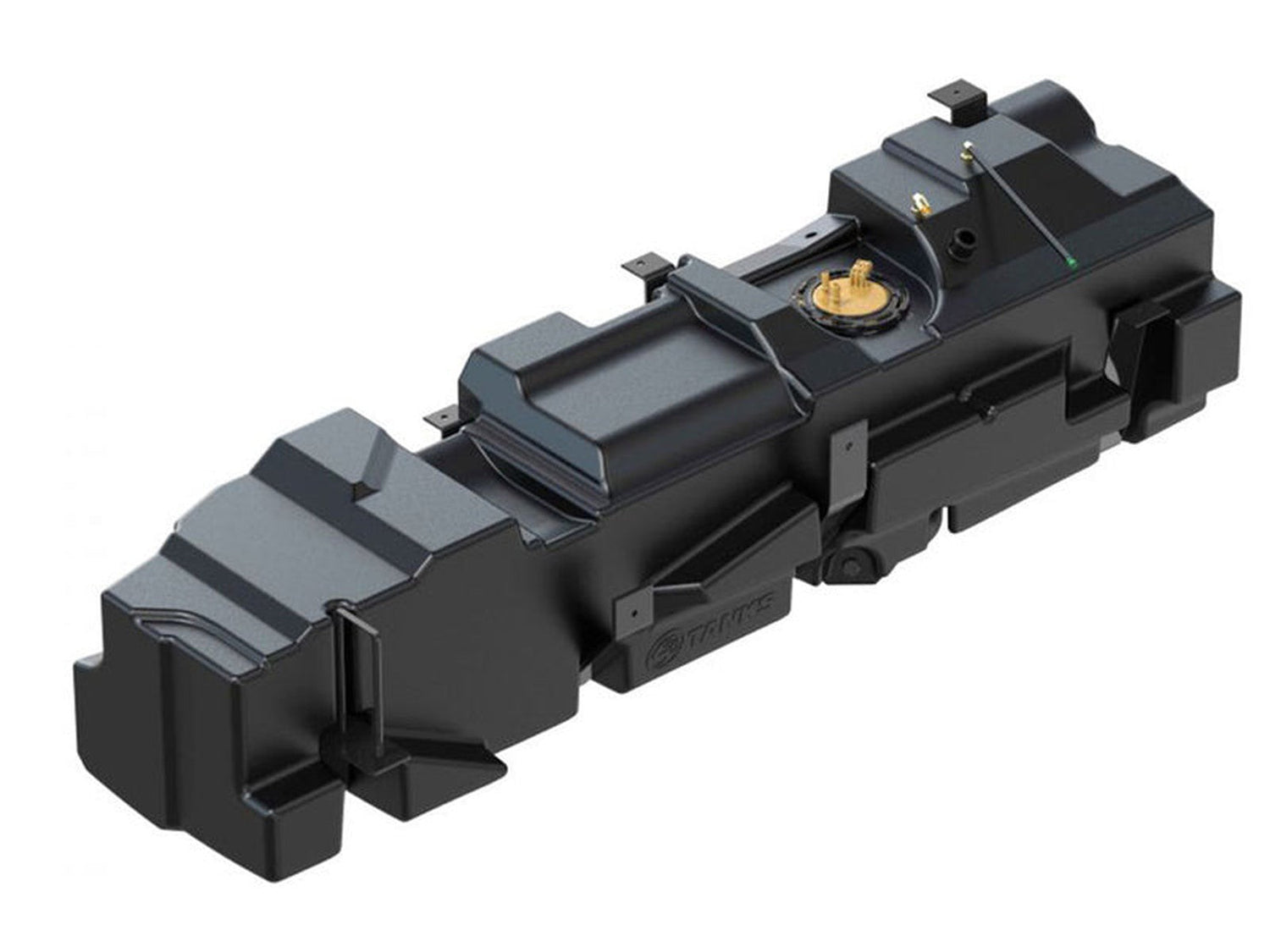

S&B 10-1003 70 Gallon Replacement Fuel Tank for 2011-2016 Ford Powerstroke 6.7L Crew Cab Long Bed

S&B 10-1003 70 Gallon Replacement Fuel Tank.
For 2011, 2012, 2013, 2014, 2015, 2016 Ford Powerstroke 6.7L Crew Cab Long Bed.
Capacity (Approximate) 70 gallons. Add a refundable EZLynk to your order to re-calibrate your miles to empty on your vehicle.

Note - Fuel sending unit is not included

S&B's 70 gallon fuel tank replaces the OEM 35 gallon fuel tank. The replacement tank sits 3" below the OEM fuel tank shield and hold approximately 70 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 70 Gallon tank with have a greater fuel reserve.


Tank Type Midship
S&B Capacity (Approximate) 70 gallons
Weight (Dry) 53lbs
Ground Clearance Compare to OE Tank 3" Lower
Sump No
Drain Yes
Sending Unit OE
Straps Included Yes
Compatible with OE Skid Plate No
Compatible with Gooseneck and 5th Wheel Yes
Transfer Pump Ready Yes
Embedded Fitting Thread Size 1/2" NPT
Dimensions 80.82" X 19.18" X 20.79"



Do you have an Auxiliary Fuel Tank?
WARNING For Those Using Auxiliary Fuel Tanks


On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.


Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.
