SKU: USW-SAV210D4

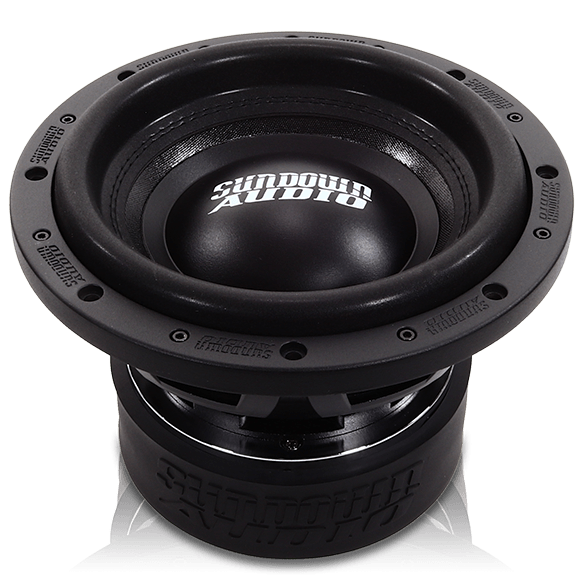

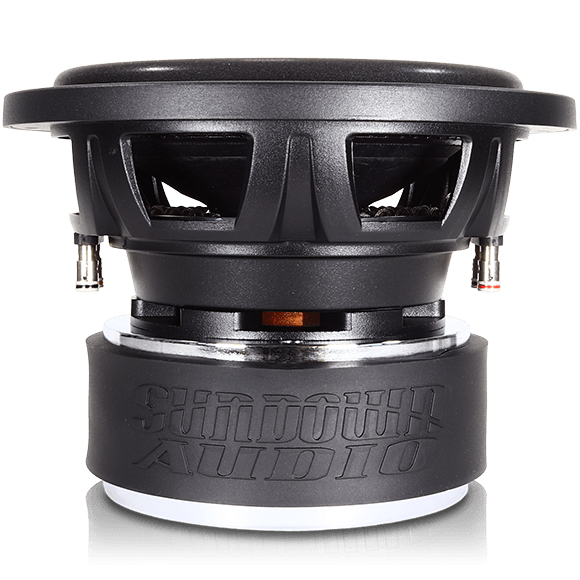

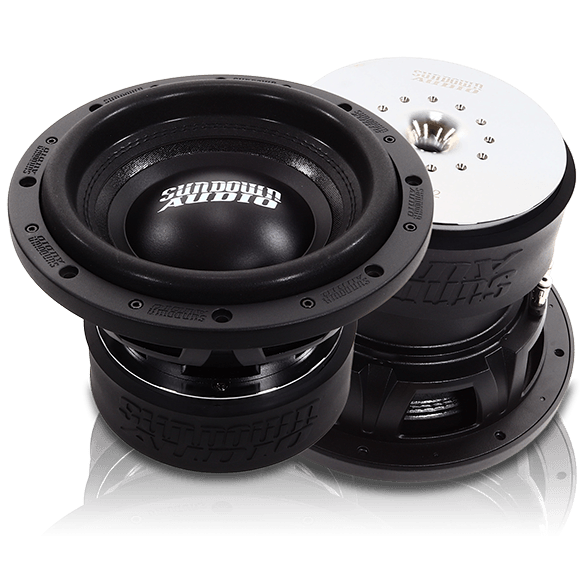

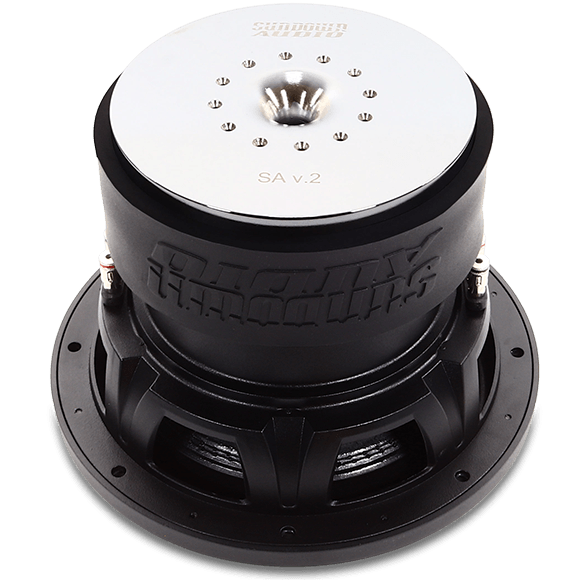

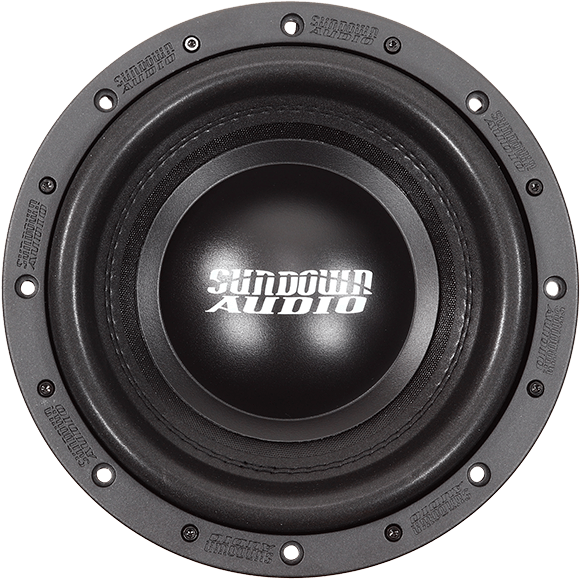

SA-Series v.2 10" Subwoofer *USED*

Regular price $231.99
Shipping calculated at checkout.

Impedance

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

This is a used product that has been professionally rebuilt here at Sundown Audio. It comes with a non-doa warranty only. That means they are guaranteed to work when you receive it but no further warranty afterwards. Let us know within 24 hours of delivery if this product has an issue. We will not warranty any used subwoofer after that time. These potentially have scratches & scuffs on the magnets/motors and will not be in new condition.

  • RMS 1000 watts
  • Dual 2 or 4 ohm voice coils
  • Vented magnetic gap
  • Aluminum 2.75” voice coil former for superior heat dissipation
  • Innovative high-velocity vented frame spacer ring
  • Large aluminum Faraday ring for smooth acoustic response
  • Patented high-strength cast aluminum frame
  • High-temperature voice coil wire

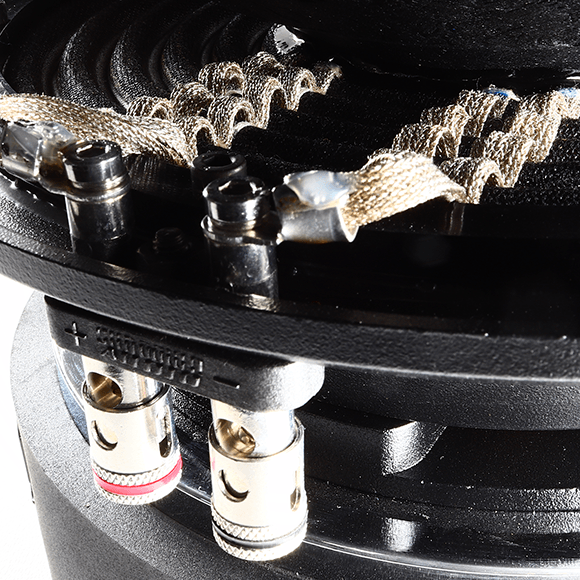

  • Spring-loaded terminals
  • Stitched-on double “XL” tinsel lead wires
This mighty 10-inch was a top-down improvement of its predecessor, which now delivers over 35mm of mechanical excursion. The 2.75” coil punches way above its weight, outperforming most 3” coils without adding weight. The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust double-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone and a strong foam surround were used to complete this masterpiece.

Specifications

RE (Ohms) 3.90 6.82
FS (Hz) 37.0810 36.1409
VAS (L) 10.3683 12.3547
Qes 0.3598 0.3744
Qms 3.7041 3.5051
Qts 0.3280 0.3383
Le (mH) 3.5178 4.4560
BL (NA) 28.3634 31.5270
Mms (Grams) 318.8226 281.6632
Cms (uM/N) 57.7815 68.8513
Sens (dB @ 1w/1m) 83.42 83.67
Xmax 19mm 19mm
T/S SPECS SAV2 10″ D2 SAV2 10″ D4

Enclosure Specifications

Sealed Enclosure 0.5 cu ft
Ported Enclosure 1.0 cu ft
Recommended Tuning 35Hz
Recommended Port Area 15 sq in
Displacement
Depth 6.92"
Outside Diameter 10.94″
Cut-Out 9.17″
Physical Dimensions Download

Enclosure Designs

.Zip File
