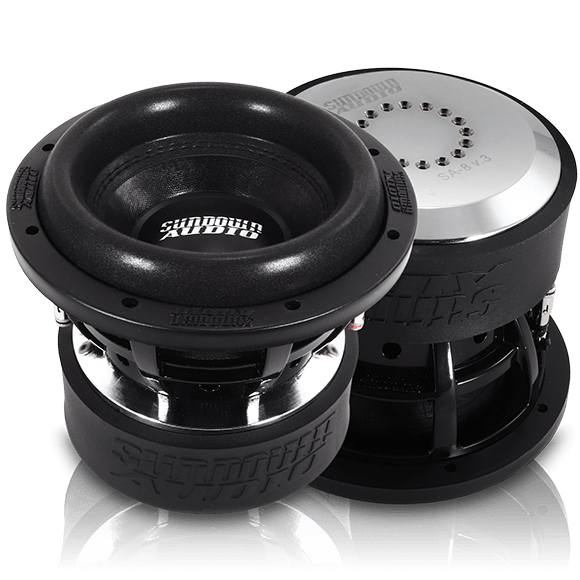

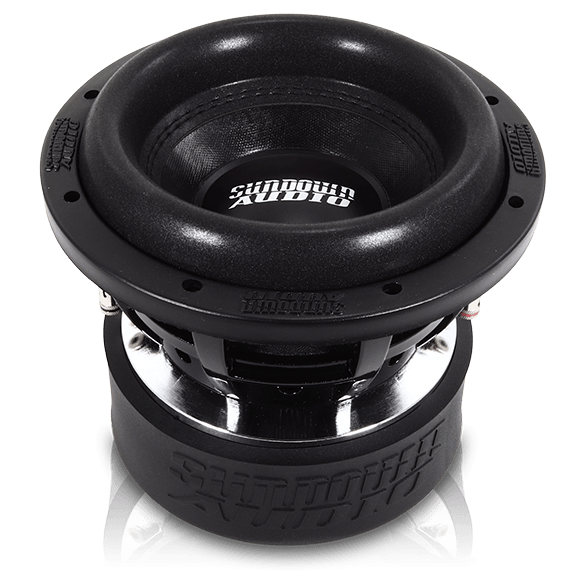

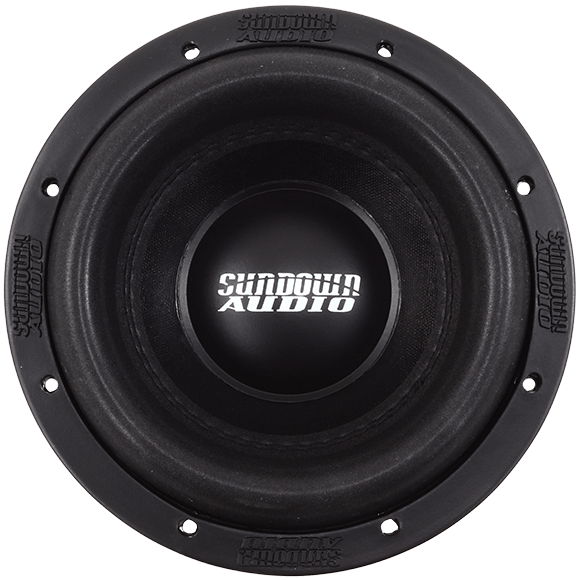

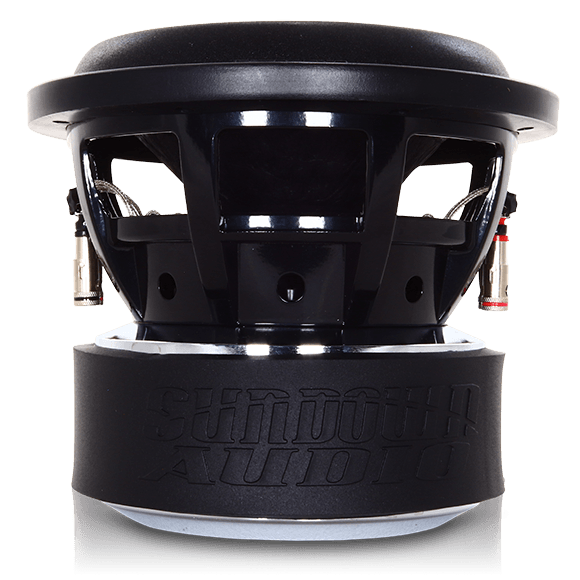

SA-Series v.3 8" Subwoofer *USED*
SA-Series v.3 8" Subwoofer *USED* - D4 is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
SA-Series v.3 8" Subwoofer *USED*
SA-Series v.3 8" Subwoofer *USED* - D4 is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
- RMS 500 watts
- Dual 2 or 4 ohm voice coils

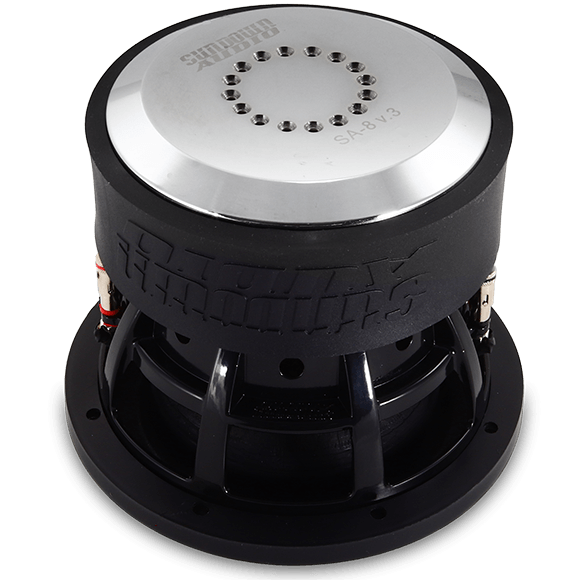

- Vented magnetic gap with 16 chamfered vents
- Large aluminum Faraday ring for smooth acoustic response
- Patented high-strength cast aluminum frame
- Low distortion motor construction
- High-temperature voice coil wire

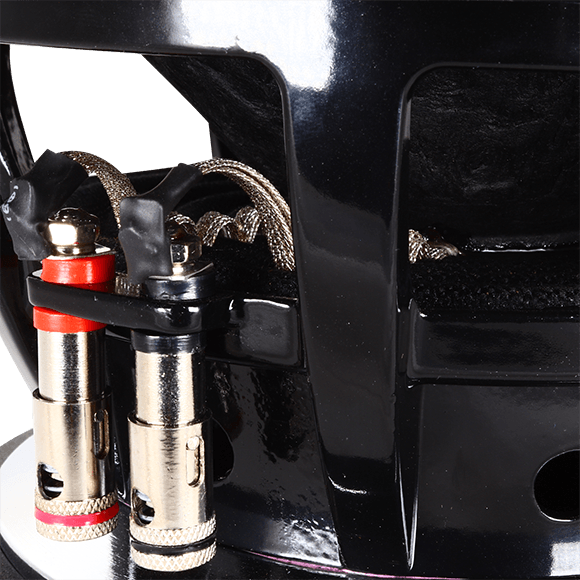

- Spring-loaded terminals
- Stitched-on “XL” tinsel lead wires
SA V.3 8"
| RE (Ohms) | 3.36 | 6.0 |
| FS (Hz) | 38.29 | 40.0 |
| VAS (L) | 6.88 | 7.17 |
| Qes | 0.324 | 0.392 |
| Qms | 6.31 | 4.31 |
| Qts | 0.309 | 0.36 |
| Le (mH) | 2.08 | 3.32 |
| BL (NA) | 18.94 | 22.06 |
| Mms (Grams) | 144 | 126.6 |
| Cms (uM/N) | 120 | 125 |
| Sens (dB @ 1w/1m) | 82.79 | 82.71 |
| Xmax | 16mm | 16mm |
| T/S SPECS | SAV3 8″ D2 | SAV3 8″ D4 |
|---|
SA V.3 8"
| Sealed Enclosure | 0.3 cu ft |
| Ported Enclosure | 0.65 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 9 sq in |
| Displacement | 0.08 cu ft |
| Depth | 6.625″ |
| Outside Diameter | 8.375″ |
| Cut-Out | 7.375″ |
| Physical Dimensions | Download |
