SKU: HP9009

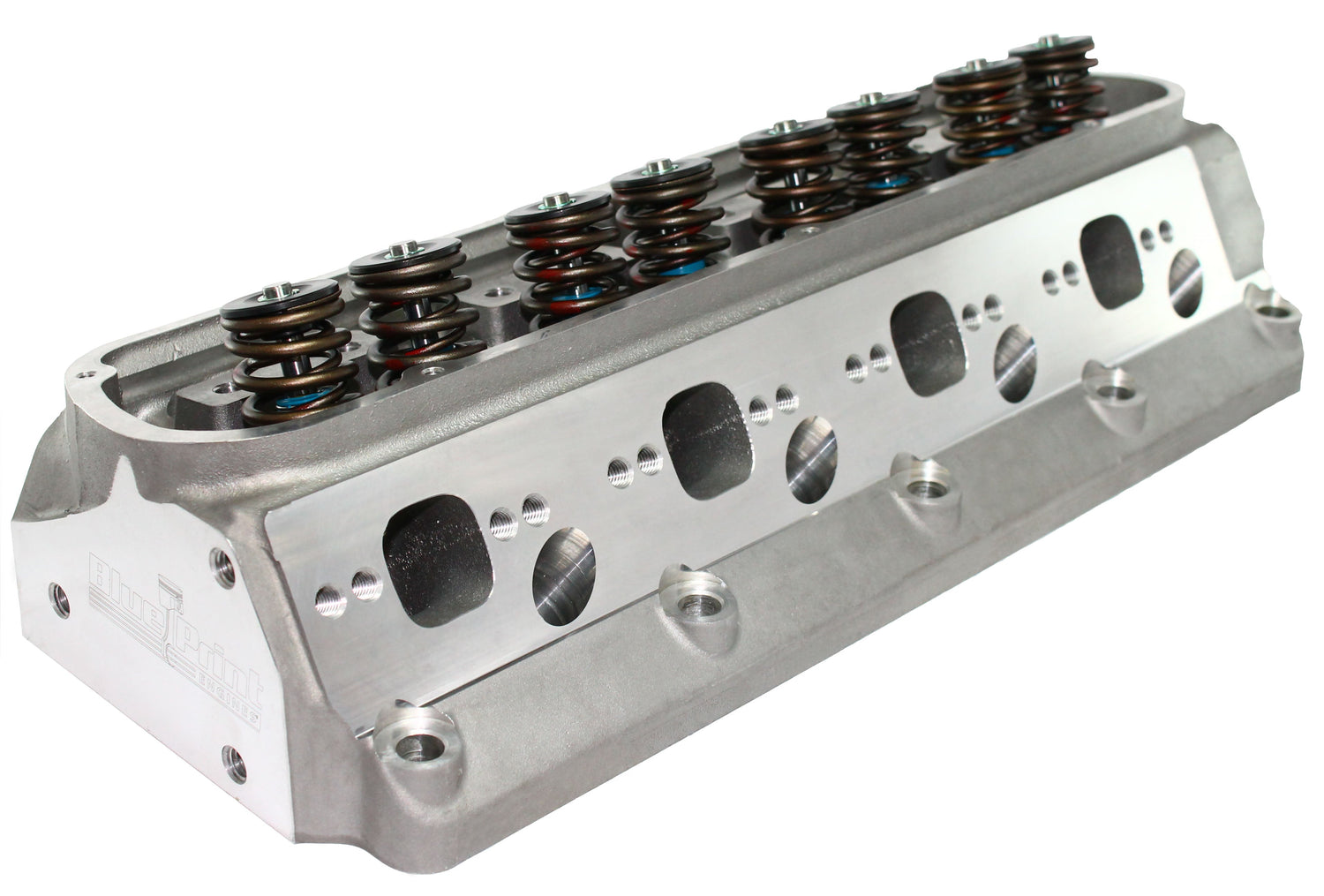

Aluminum Assembled Cylinder Head - Stud Mount - Ford SB Compatible - 190cc

No reviews yet. Bought this? Write the first review
Regular price $849.00
Shipping calculated at checkout.


Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Overview:

Get big power on a small budget with BluePrint Muscle Series cylinder heads! These lightweight aluminum heads bolt up to your small block Ford and feature 190cc intake/60cc exhaust runners, 60cc combustion chambers, and 2.02" intake/1.60" exhaust valves. They're fully assembled with valve springs, retainers, locks, guide plates, studs, and seals. Manufactures part number -HP9009.

  • Maximum Output for Less Money!
  • Designed and Produced by BluePrint Engines
  • Fully Assembled with Heavy Duty Components
  • Backed by Our Full 12-Month Limited Warranty

Intake:

  • Intake Runner Volume (cc): 190cc
  • Intake Port Location: Standard
  • Intake Port Shape: Rectangular
  • Port Dimension 2 x 1.10 in.
  • Intake Valves Included: Yes
  • Intake Valve Diameter (in): 2.020 in.
  • Machined Intake Runner: CNC-No
  •  CFM Port Flow Average @ 28"
    • .100" – 81
    • .200" – 134
    • .300" – 184
    • .400" – 224
    • .500" – 249
    • .600" - 251

Exhaust:

  • Runner Volume (cc): 65cc
  • Exhaust Valve Diameter (in): 1.600 in.
  • Exhaust Valves Included: Yes
  • Port Shape: Square-Port
  • Exhaust Port Location: Standard
  • CFM Port Flow Average @ 28"
    • .100" – 51
    • .200" – 102
    • .300" – 138
    • .400" – 163
    • .500" – 172
    • .600" - 176

Combustion Chamber:

  • Combustion Chamber Volume (cc): 60cc
  • CNC-Machined Combustion Chamber: No

Valve Specs:

  • Maximum Valve Lift (in): .575 in.
  • Intake Valve Angle: 20 Degrees
  • Exhaust Valve Angle: 20 Degrees
  • Valve Guides Included: Yes
  • Valve Guide Material: Manganese Bronze
  • Valve Seats Machined: Yes
  • Valve Seat Machine Style: 5-Angle
  • Valve Seat Material: Chrome
  • Valve Stem Seals Included: Yes
  • Valve Stem Seal Style: Viton® Fluoroelastomer

Springs:

  • Valve Springs Included: Yes
  • Spring Pressure Open: 295-305 @ 1.225
  • Spring Pressure Closed: 115-125 @ 1.800
  • Outside Diameter of Outer Spring (in): 1.437 in.
  • Damper Spring Included: No
  • Number of Springs Per Valve: Dual
  • Retainers Included: Yes
  • Retainer Material: Chromemoly Steel
  • Locks Included: Yes
  • Lock Style: 7 Degree

Pushrods:

  • Guide Plates Included: Yes
  • Guide Plate Pushrod Size (in): 5/16 in.

Rocker Arms:

  • Rocker Arm Studs Included: Yes
  • Rocker Arm Stud Size (in): 3/8 in.
  • Rocker Arms Included: N/A
  • Rocker Arm Nuts Included: No

Guide Plate:

  • Guide Plate Included: Yes
  • Guide Plate Pushrod Size: 5/16"

Misc:

  • Head Style: Assembled
  • Cylinder Head Material: Aluminum
  • Cylinder Head Finish: Natural
  • Cover Mounting Style: Standard
  • Oiling Style: Through Pushrod
  • Machined for O-Ring: No
  • Valve Cover Mounting Style: Perimeter Bolt
  • Heat Crossover: No
  • Spark Plug Style: Angled
  • Camshaft Style: Hydraulic Roller
  • 7/16-14 in. & 3/8-16 in. Accessory Bolt Holes Machined on Ends of Heads

Qty:

  • Sold Individually

Warranty:

  • Backed by our full 12-month limited warranty!
