05-22 Superduty 60 Double Ended Ram Mount

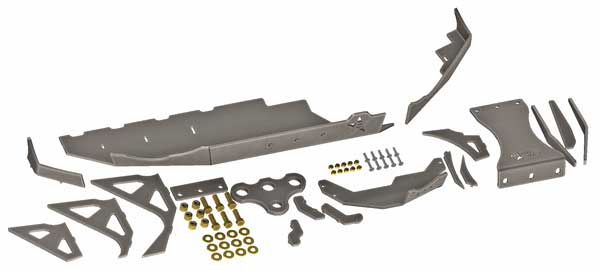

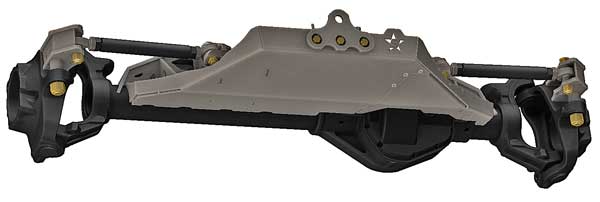

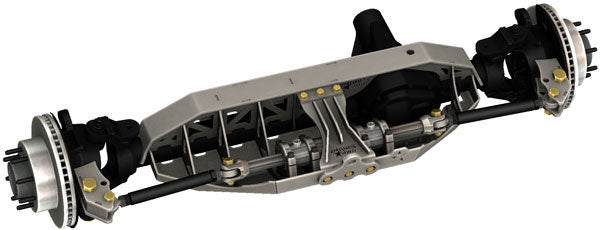

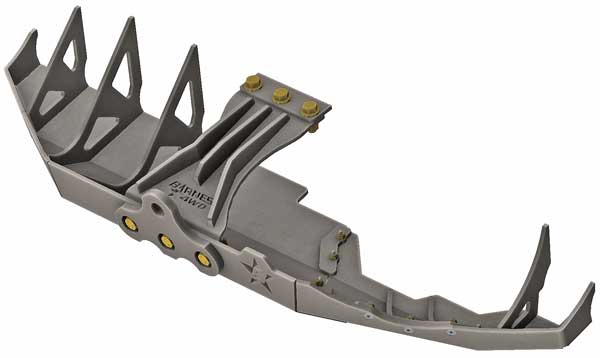

This kit is designed to be used with our Pro-Series 2005-2022 Super Duty Dana 60 flat top axle truss and is compatible with the PSC Motorsports 2.5"x 8" double ended cylinder (SCX2212 or SC2212). We designed this double ended steering cylinder mount to use the proper geometry for full hydraulic steering and incorporate as much ground clearance as possible.  Hydraulic steering cylinders are a very expensive part of your build, they are in a very vulnerable spot and need protection.  This ram mount offers complete protection for the cylinder, and lines, giving you peace of mind while out on the trail. A winch point has also been incorporated for those that need a point to attach a winch to pull up the front axle on those steep climbs.  A removable cover has also been incorporated, to allow full access to the gears and carrier if service needs to be performed after installation.  All of the components in this kit are manufactured from 1/4" steel, and all hardware is included.  This product will ship bare and need to be painted or powder coated after installation, welding is required

This kit is not compatible with 1999-2004 Ford Superduty Dana 60 axles.
