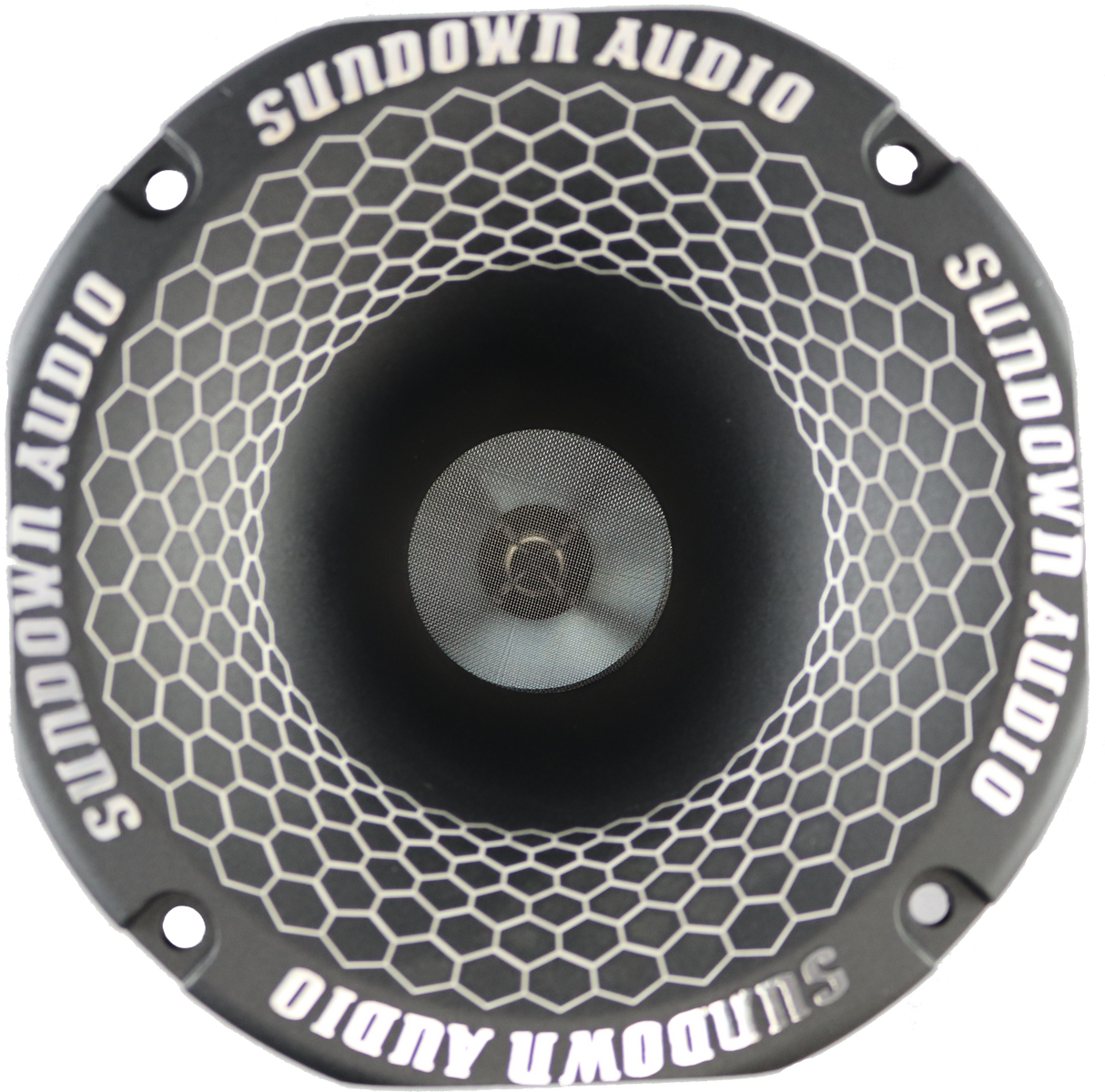

SHFST 2" Throat Super Horn With Ferrite Magnet
SHFST 2" Throat Super Horn With Ferrite Magnet is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
SHFST 2" Throat Super Horn With Ferrite Magnet
SHFST 2" Throat Super Horn With Ferrite Magnet is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
- 2in Horn driver
- Strontium Ferrite Magnet
- Die-cast Aluminium Cover
- Die-cast Aluminium Horn
- Titanium Diaphragm
- 4 Ohm
- 80 Wrms
- Exit Throat Diameter @ inch – 2
- Rated Impedance @Ohm – 4
- Power Handling Capacity @ Watt – 80
- Program Power @Watt – 160
- Sensitivity(1W/1m) @ Hz – 115
- Frequency Range @ Hz – 1,000-20,000
- Voice Coil Diameter @ inch - 2
- Voice Coil Material - CCAW
- Voice Coil Former Material - Kapton
- Voice Coil Winding Depth @ mm - 2
- Cutout – 5.5”
- Mounting Depth – 5.15”
- Gap Height @ mm – 2.5
- Driver Size @ in 5.28*2.5”
- Back Cover Material – Die-cast Aluminium
- Diaphragm Material - Titanium
- Horn Material – Die-cast Aluminium
- Product Dimension @ in – L6.75*W6.75*H5.5”
Key Features:
- Efficient Power Handling: Rated at 80W RMS and 160W program power, this driver offers a balance of power and performance for demanding setups.
- Wide Frequency Range: Covers frequencies from 1,000Hz to 20,000Hz, ensuring crisp and detailed sound.
- High Sensitivity: A sensitivity of 115 dB (1W/1m @ Hz) delivers excellent output with minimal power consumption.
Durable Construction:
- Diaphragm Material: Titanium diaphragm for reliable performance and precise audio reproduction.
- Voice Coil Design: 2-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former provides thermal stability and durability.
- Robust Build: Die-cast aluminum cover and horn for lightweight strength and effective sound dispersion.
- Magnet: Strontium ferrite magnet ensures high magnetic flux and long-lasting reliability.
Specifications:
- Exit Throat Diameter: 2 inches
- Impedance: 4 Ohms
- Cutout Size: 5.5 inches
- Mounting Depth: 5.15 inches
- Driver Size: 5.28 x 2.5 inches
- Product Dimensions: 6.75 x 6.75 x 5.5 inches (L x W x H)
Additional Details:
- Voice Coil Winding Depth: 2 mm
- Gap Height: 2.5 mm
- Materials: Titanium diaphragm, Kapton former, and die-cast aluminum components provide durability and optimized performance.
