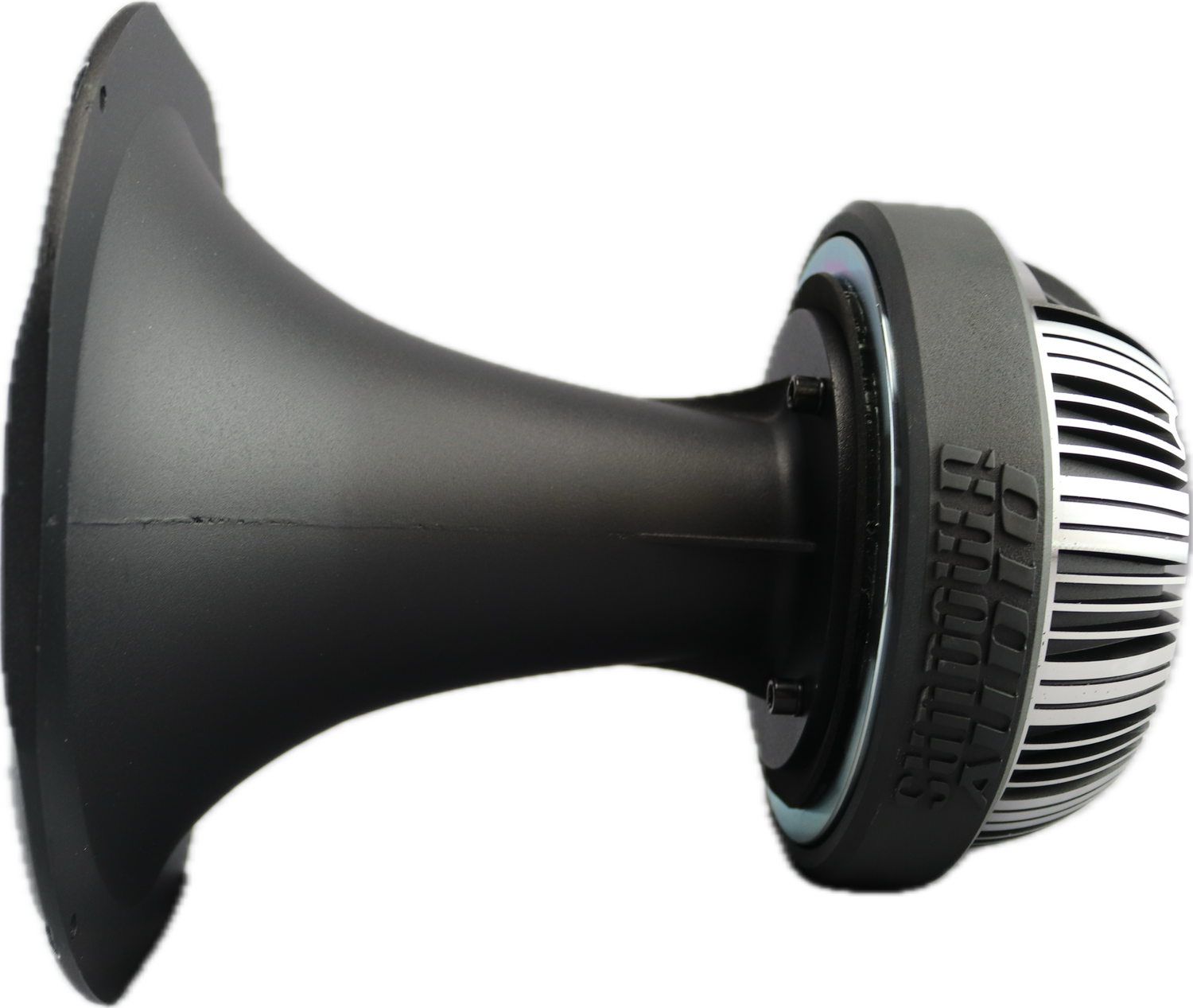

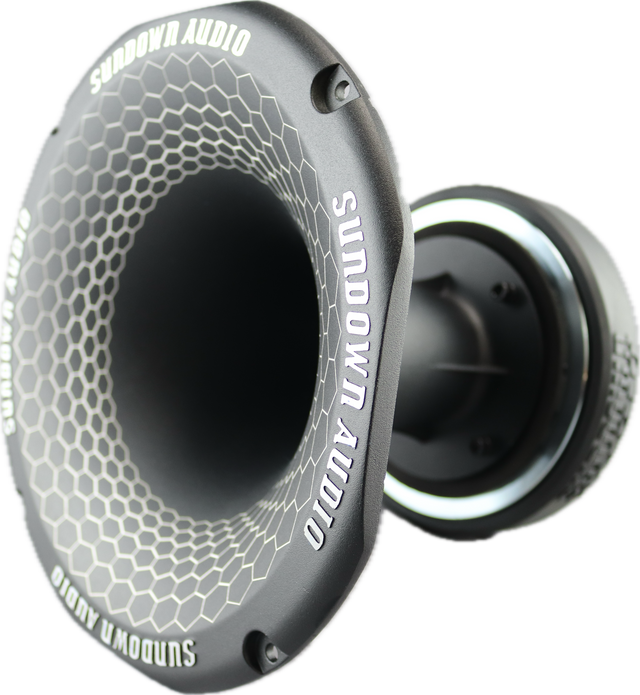

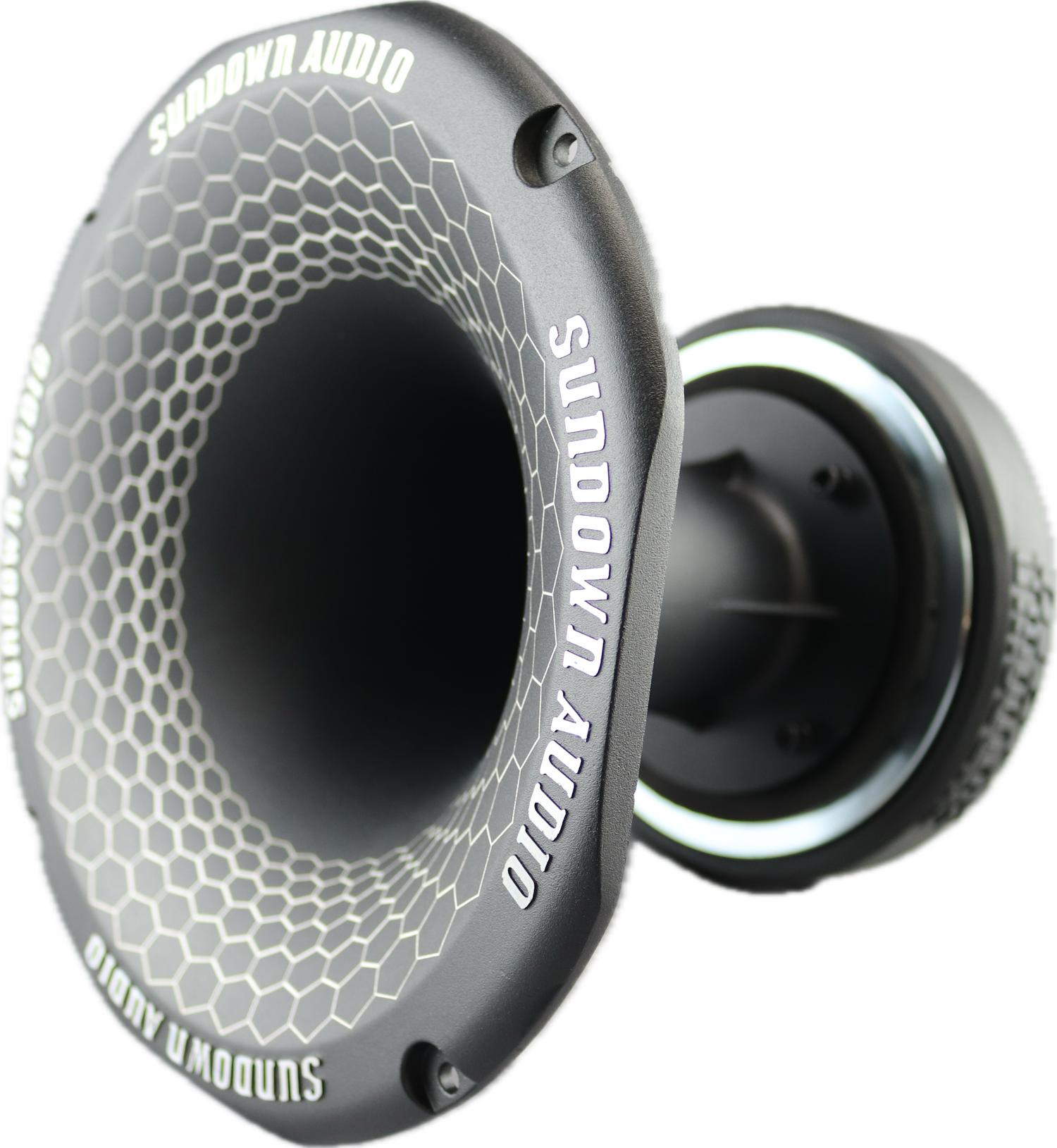

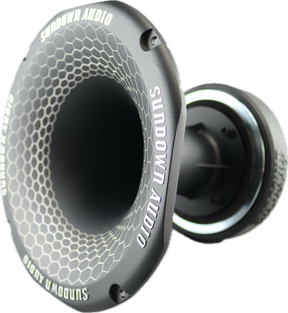

SHFTL 2" Throat Super Horn With Ferrite Magnet
SHFTL 2" Throat Super Horn With Ferrite Magnet is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
SHFTL 2" Throat Super Horn With Ferrite Magnet
SHFTL 2" Throat Super Horn With Ferrite Magnet is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

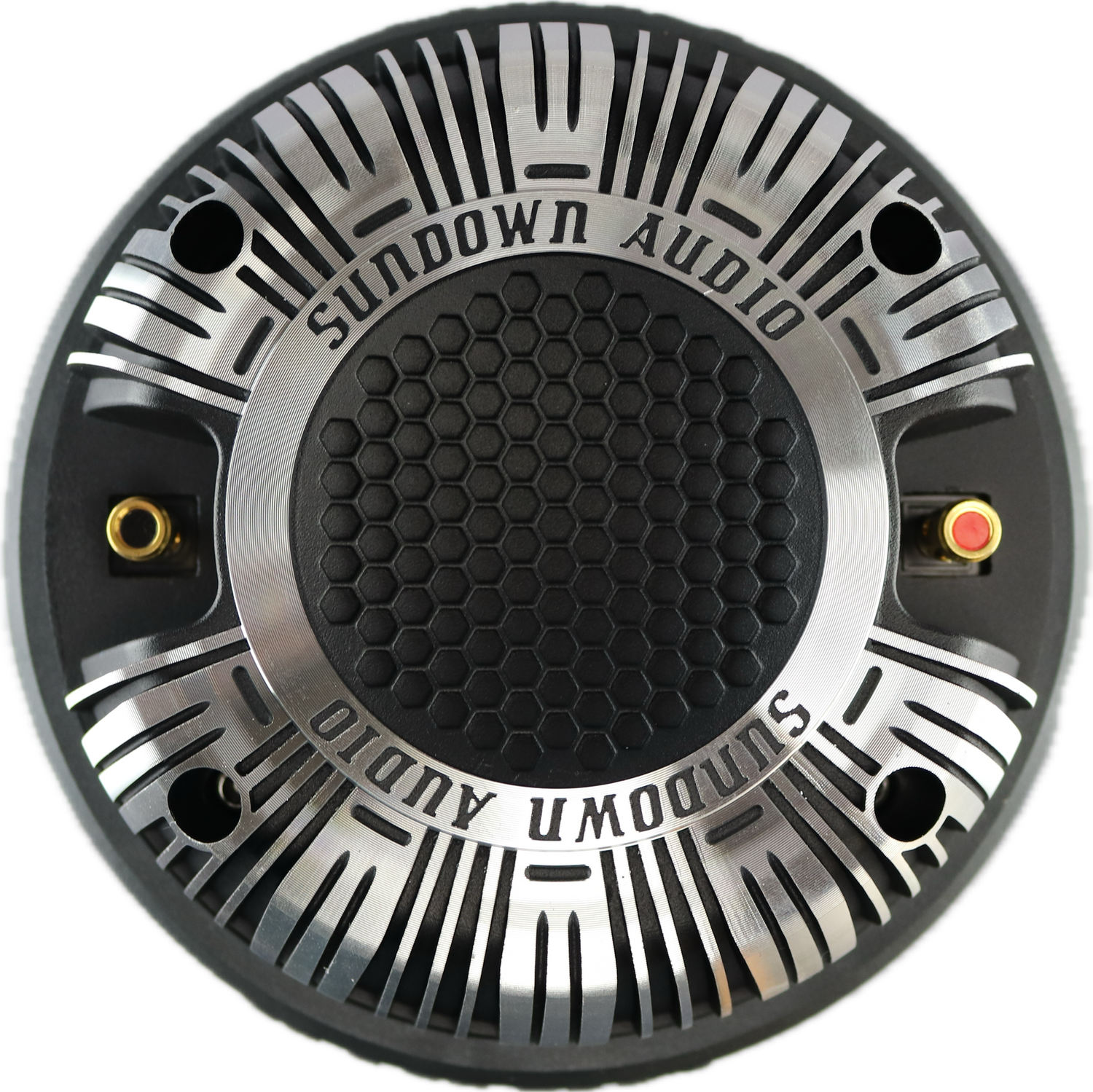

- 3in Horn driver
- Strontium Ferrite Magnet
- Die-cast Aluminium Cover

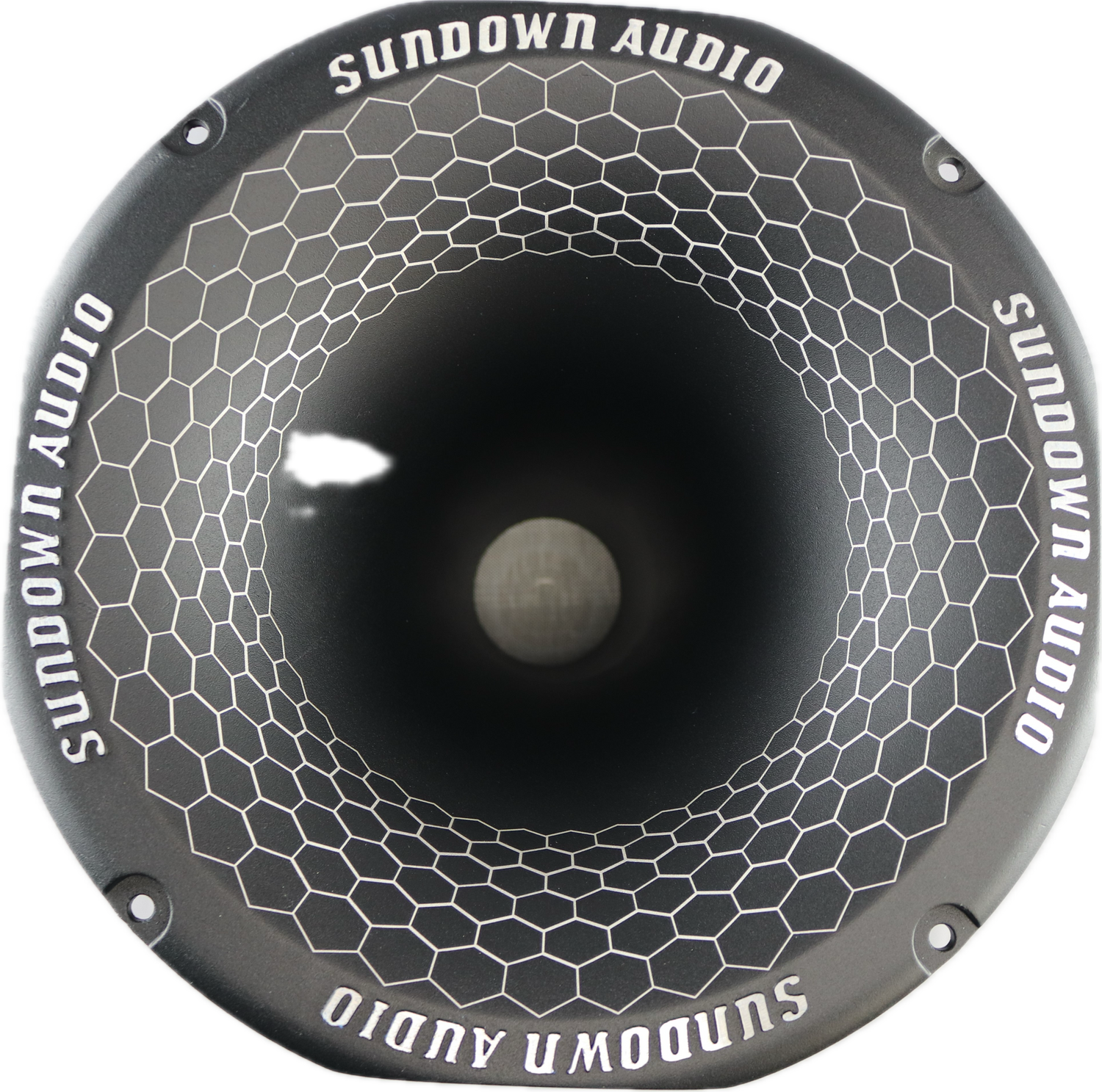

- Die-cast Aluminium Horn
- Titanium Diaphragm
- 4 Ohm
- 110 Wrms
- Exit Throat Diameter @ inch – 2
- Rated Impedance @Ohm – 4
- Power Handling Capacity @ Watt – 110
- Program Power @Watt – 220
- Sensitivity(1W/1m) @ Hz – 118
- Frequency Range @ Hz - 600-20,000
- Voice Coil Diameter @ inch - 3
- Voice Coil Material - CCAW
- Voice Coil Former Material - Kapton
- Voice Coil Winding Depth @ mm - 3
- Cutout – 6.75”
- Mounting Depth – 9.65”
- Gap Height @ mm – 3.5
- Driver Size @ in 6.7*3”
- Back Cover Material – Die-cast Aluminium
- Diaphragm Material - Titanium
- Horn Material – Die-cast Aluminium
- Product Dimension @ in – L9.5*W9.5*H10”
Key Features:
- Powerful Performance: Rated at 110W RMS and 220W program power, it handles demanding audio requirements with ease.
- Wide Frequency Range: Covers 600Hz to 20,000Hz, providing crisp, detailed sound reproduction across mid-to-high frequencies.
- Exceptional Sensitivity: Sensitivity of 118 dB (1W/1m @ Hz) ensures efficient sound output with reduced power consumption.
Robust Construction:
- Durable Materials: Titanium diaphragm for precision and long-lasting performance.
- Voice Coil Design: Equipped with a 3-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former for excellent thermal resistance and durability.
- High-Quality Build: Die-cast aluminum cover and horn provide lightweight durability and efficient sound dispersion.
- Magnet: Strontium ferrite magnet ensures strong magnetic flux for reliable operation.
Specifications:
- Exit Throat Diameter: 2 inches
- Impedance: 4 Ohms
- Cutout Size: 6.75 inches
- Mounting Depth: 9.65 inches
- Driver Size: 6.7 x 3 inches
- Product Dimensions: 9.5 x 9.5 x 10 inches (L x W x H)
Additional Details:
- Voice Coil Winding Depth: 3 mm
- Gap Height: 3.5 mm
- Materials: Titanium diaphragm, Kapton former, and die-cast aluminum construction for maximum durability and performance.
