SKU: JB-FC-1-PTT

Jack Box Headset Stations for RRP800 Fire & Safety Intercoms

No reviews yet. Bought this? Write the first review
Regular price $140.00
Shipping calculated at checkout.

Select Your Option

Shipping & delivery

Usually ships in 2–3 business days unless a different lead time is shown on this page. Shipping cost is calculated at checkout (UPS or USPS to the contiguous U.S.).

Shipping policy · Returns · Fitment questions? (561) 207-7988

Delivery and Shipping

Standard order processing is 2–3 business days unless this product or your order confirmation states a different lead time. Custom-built, made-to-order, backorder, and pre-order items follow their stated lead times.

Enclosures and subwoofer boxes ship for $50 per unit. Other shipping charges are calculated at checkout. Orders outside the contiguous 48 United States may require additional shipping; we will contact you for approval before shipment.

Subwoofer boxes ship UPS Ground where available. Read our Shipping Policy and Return and Refund Policy for delivery, product-specific return windows, and warranty details.

Description

Rugged Quick Lock™ jack box with Firecom 5-Pin jacks and easy install daisy chain in and out connectors for adding two additional positions or pump panels.

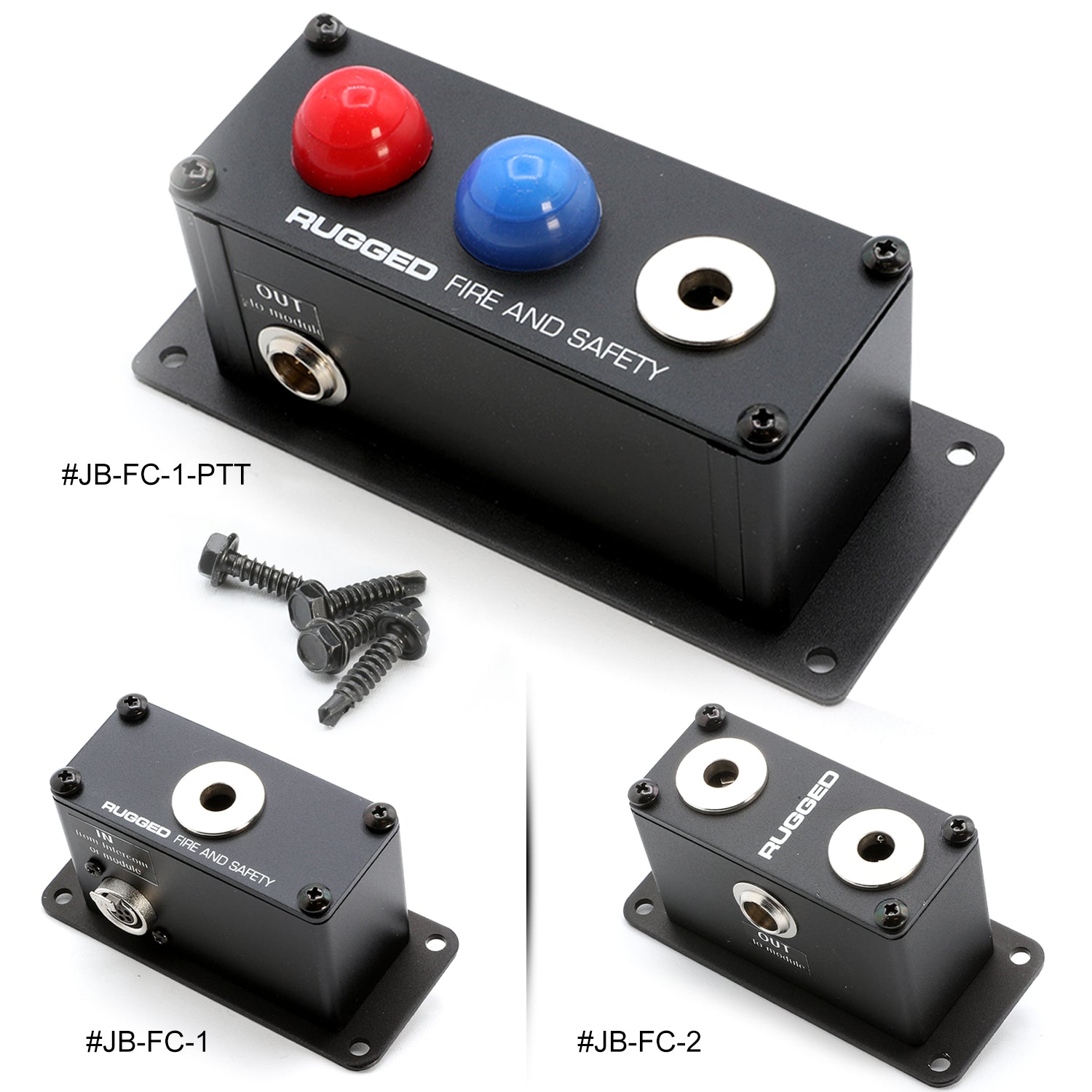

Choose from Three Models:

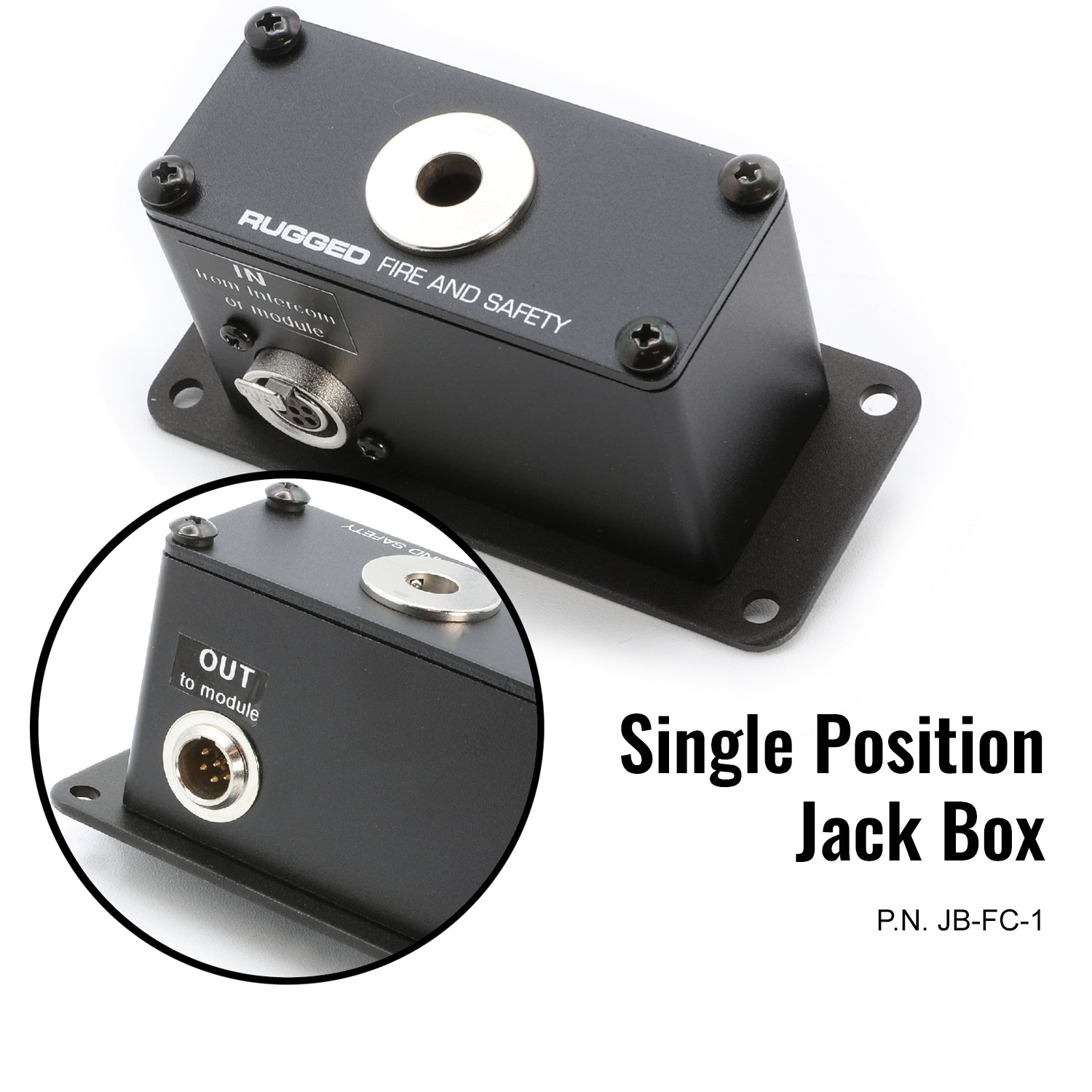

  • Single Position Jack Box Headset Station

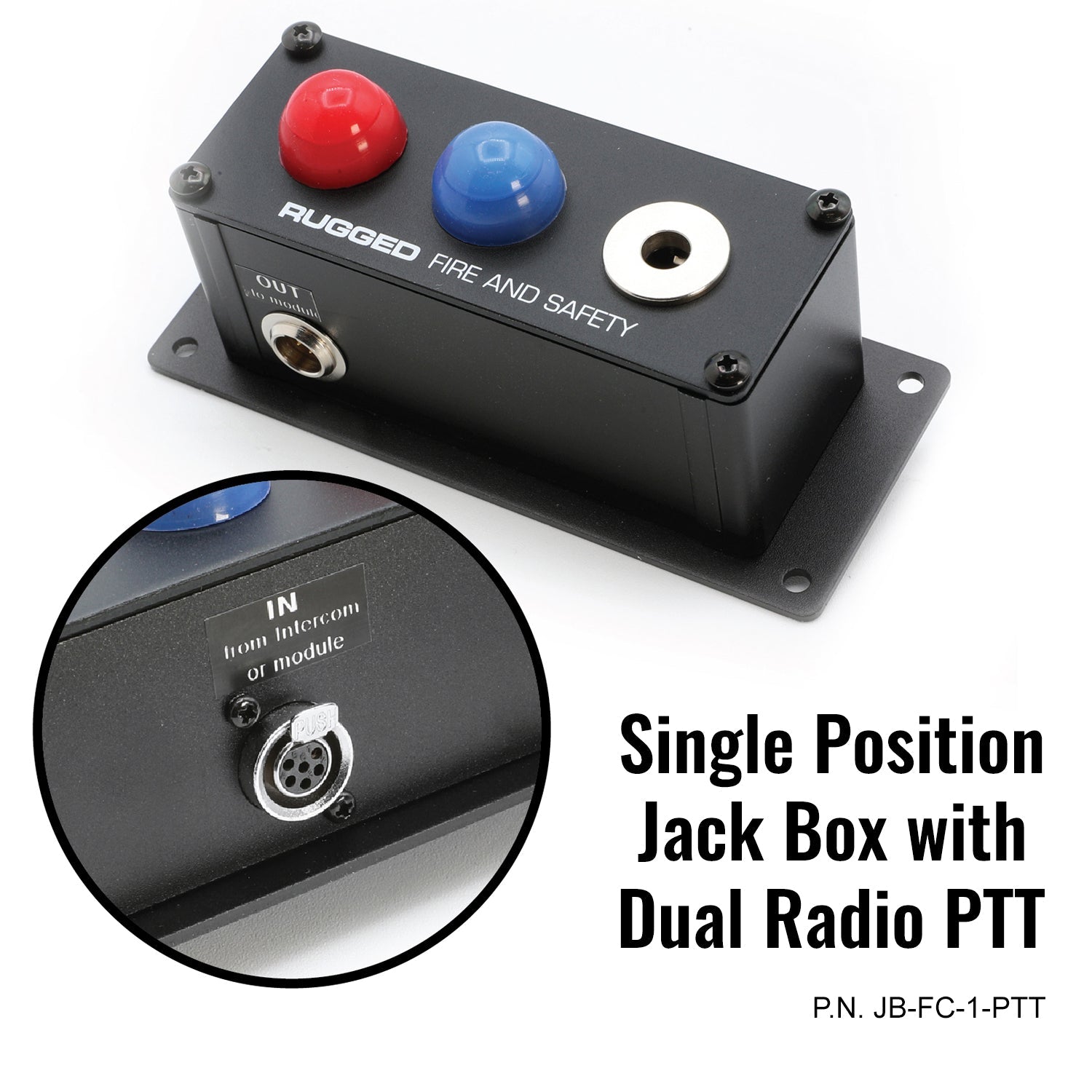

  • Single Position Jack Box Headset Station with dual PTT

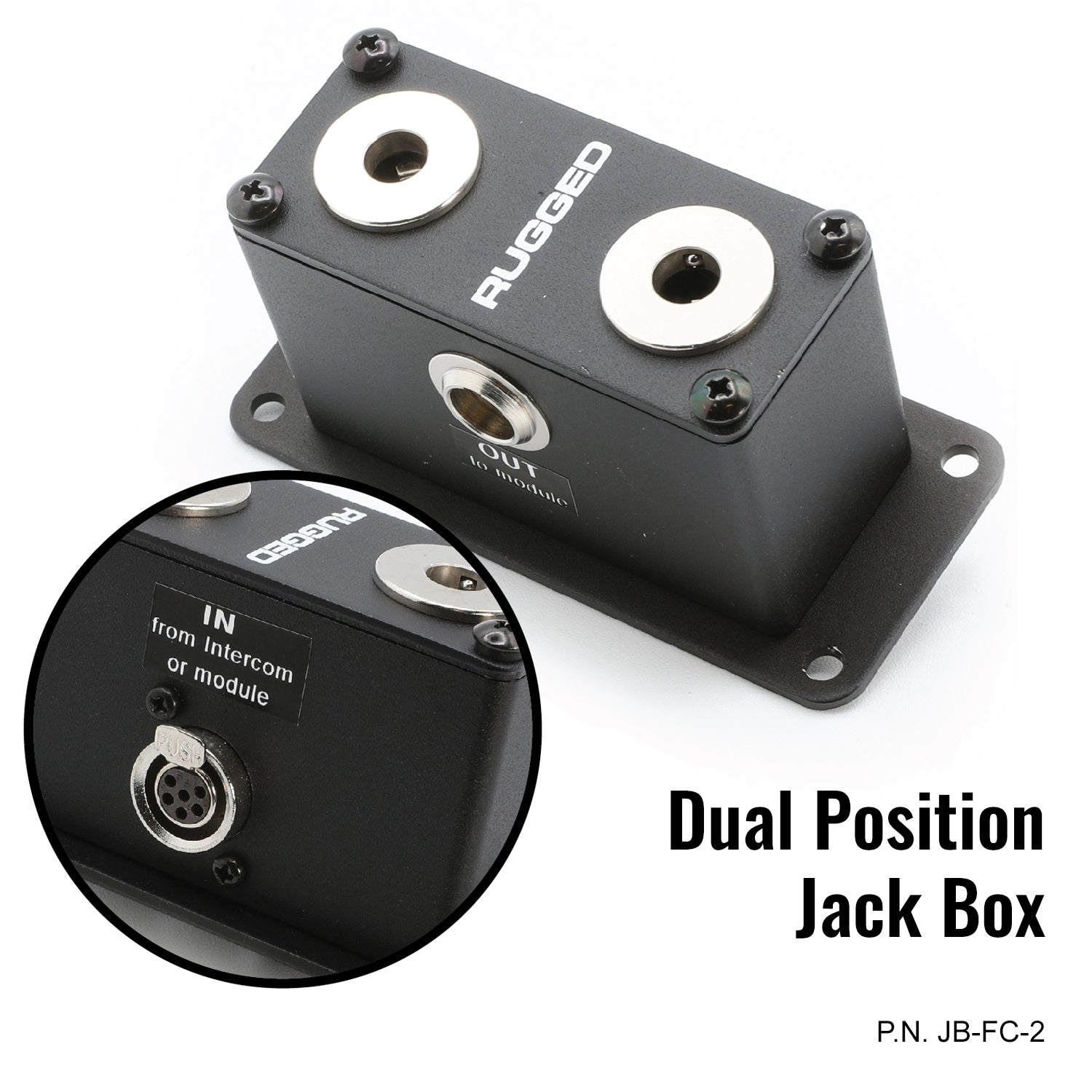

  • Dual Position Jack Box Headset Station

Features:

  • Dual PTT Jack Box  provides PTT functions - one for each radio
  • Extension jack box allows in-vehicle communication with listen-only radio function
  • Nexus 5 conductor TJ105 jack for Firecom style headset plugs
  • Quick Lock™ locking connections
  • Aluminum extrusion construction
  • Built in panel mount design with self-tapping screws for easy installation
  • Daisy chain using in/out 6-pin jacks
  • Includes self-tapping mounting screws

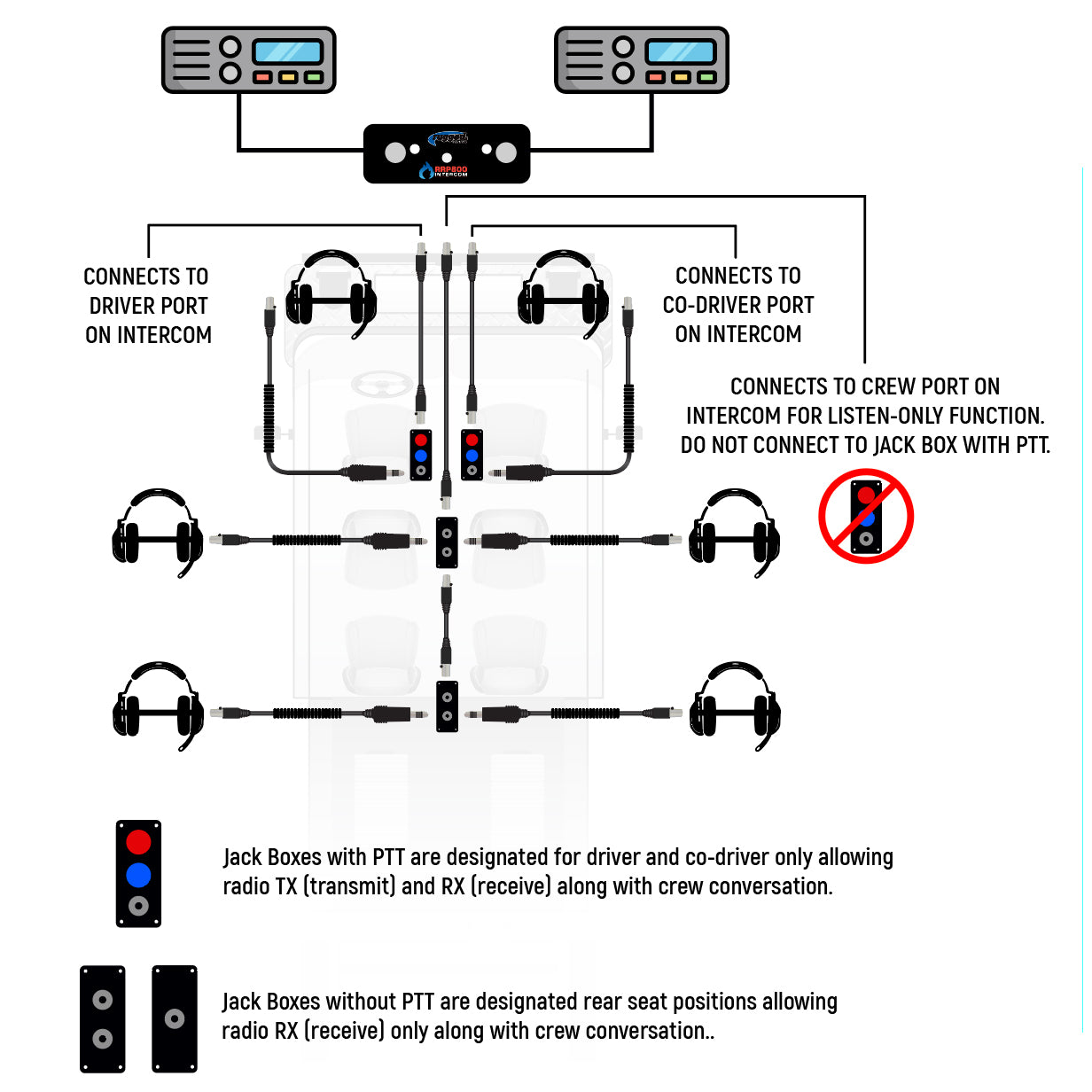

Configuration:

Jack Box with PTT
Headsets connect directly to the Jack Box and allows transmit.

Jack Box without PTT
These link to each other and the crew port on the intercom only. This provides listen-only capability for crew. Do not daisy chain to Jack Boxes with PTT.

See "Resources" section below for installation guide.

SETUP IS FAST and EASY:

Rugged Quick Lock™ jack boxes provide fast reliable installation that is easily configured and expanded from 2 positions to 6 positions and to pump panels. Rugged eliminates timely soldering and RF interference when using our 6, 10, or 15 ft.  Quick Lock™ pre assembled cables.
