FXB-2000.1

2,100 WATTS. STILL RIDICULOUSLY SMALL.

Need more?

The Sky High Car Audio FXB-2000.1 nearly doubles the output while barely increasing the footprint.

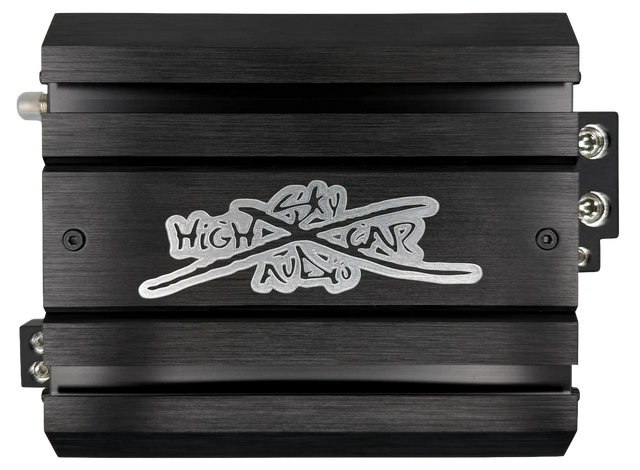

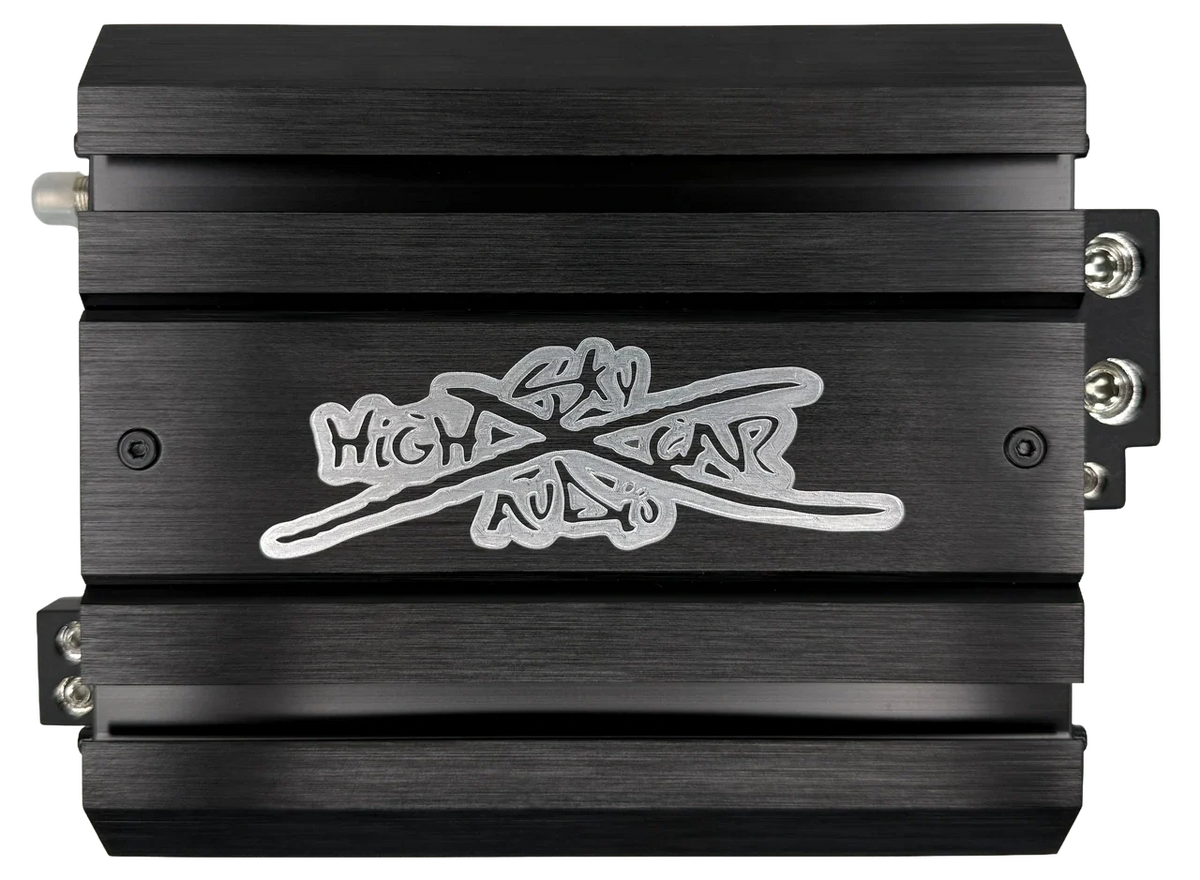

At just 5.9" × 6.7" × 2.1", this compact Class D monoblock delivers an impressive 2,100 watts RMS at 1 ohm at 14.4V.

That's more than 2,000 watts of subwoofer power from an amplifier less than 7 inches long.

Don't let the reasonable price or compact chassis fool you.

The FXB-2000.1 was built to bring serious power, useful technology, and SHCA quality into a category where customers have traditionally had to choose between size, features, performance, and price.

With FXB, we're changing that.

2,000+ WATTS WHERE SPACE ACTUALLY MATTERS.

A high-powered system doesn't always come with a giant amplifier rack.

Motorcycles don't have room for one.

Modern cars and trucks increasingly don't either.

The incredibly compact dimensions of the FXB-2000.1 make it perfect for motorcycle audio, powersports systems, modern vehicle integration, under-seat installations, behind-seat installs, factory system upgrades, stealth builds, and custom installations where amplifier space is at a premium.

This is where compact power becomes more than a cool specification.

It solves a real installation problem.

The FXB-2000.1 allows installers to put more than 2,000 watts of rated subwoofer power into locations that would have been extremely difficult—or simply impossible—with a traditional amplifier.

Less space dedicated to the amplifier means more freedom to build the rest of the system the way you want it.

A BASS KNOB THAT ACTUALLY TELLS YOU SOMETHING.

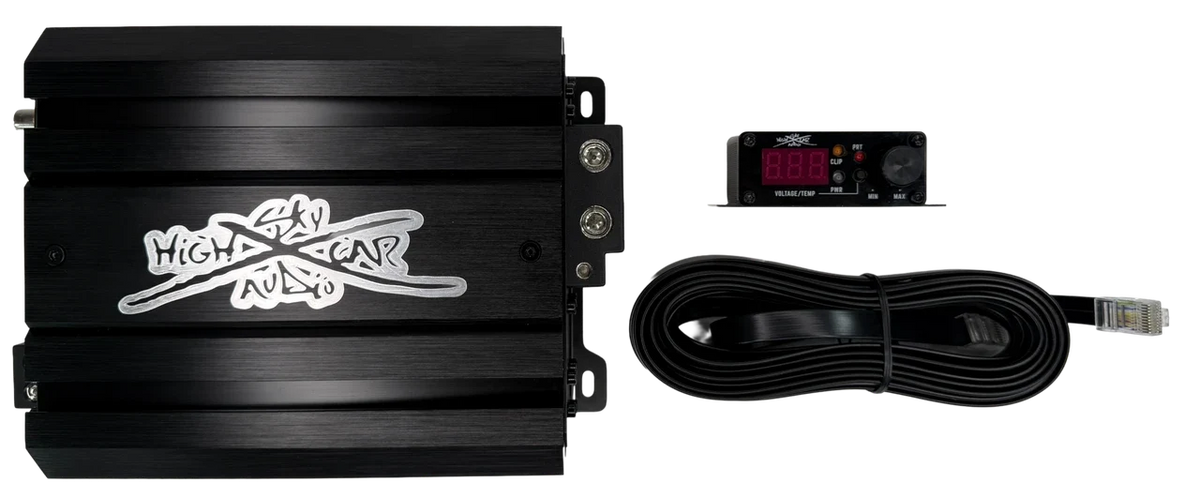

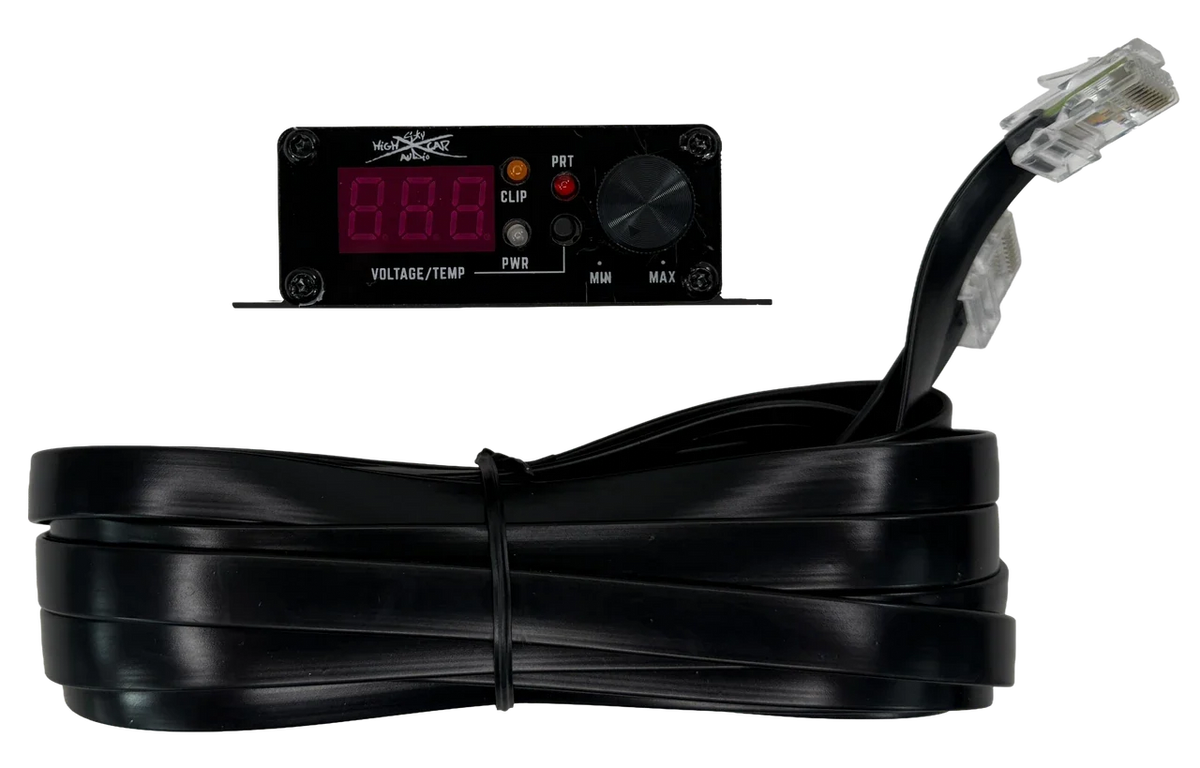

Every FXB monoblock includes our multi-function bass knob featuring real-time amplifier temperature, system voltage, and clipping indication.

Turn the bass up and down like you'd expect—but now you can also see what's happening with the amplifier and electrical system while you're using it.

Temperature. Voltage. Clipping. Right at your fingertips.

This is the kind of functionality traditionally associated with significantly more expensive equipment, and bringing it to the FXB Series represents exactly what these amplifiers are about.

It's also especially valuable when the amplifier is installed somewhere difficult to see or access.

Mount the amp under a seat, behind a panel, inside a motorcycle installation, or hidden as part of a factory integration build—you can still keep an eye on critical information from the bass knob.

More information. More control. Less guesswork.

SERIOUS POWER IN A SERIOUSLY SMALL PACKAGE.

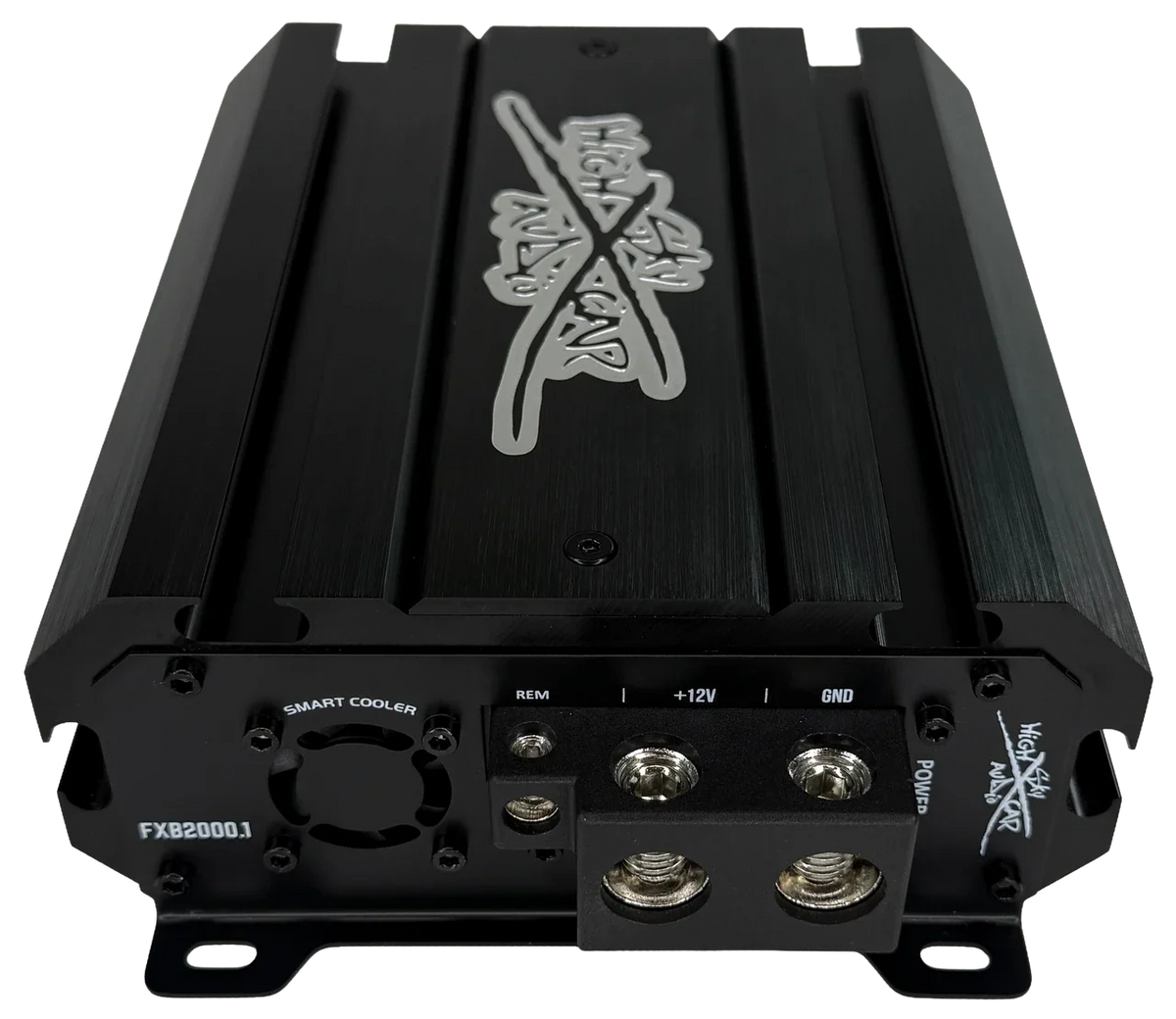

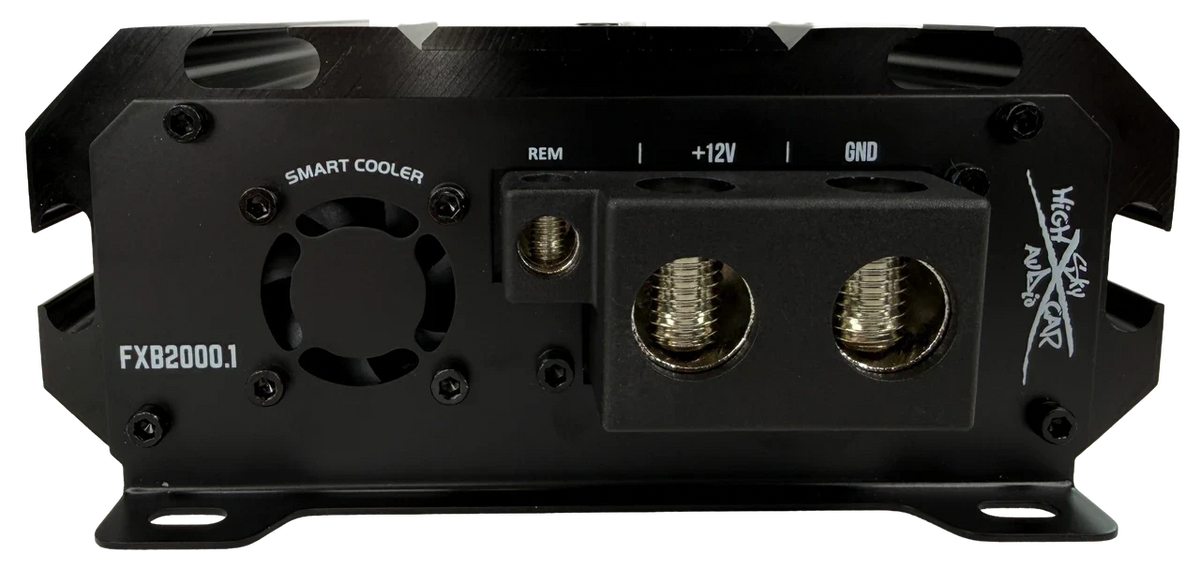

The FXB-2000.1 steps up to a 1/0-gauge power input and 200A fuse rating, while an internal cooling fan helps keep temperatures under control.

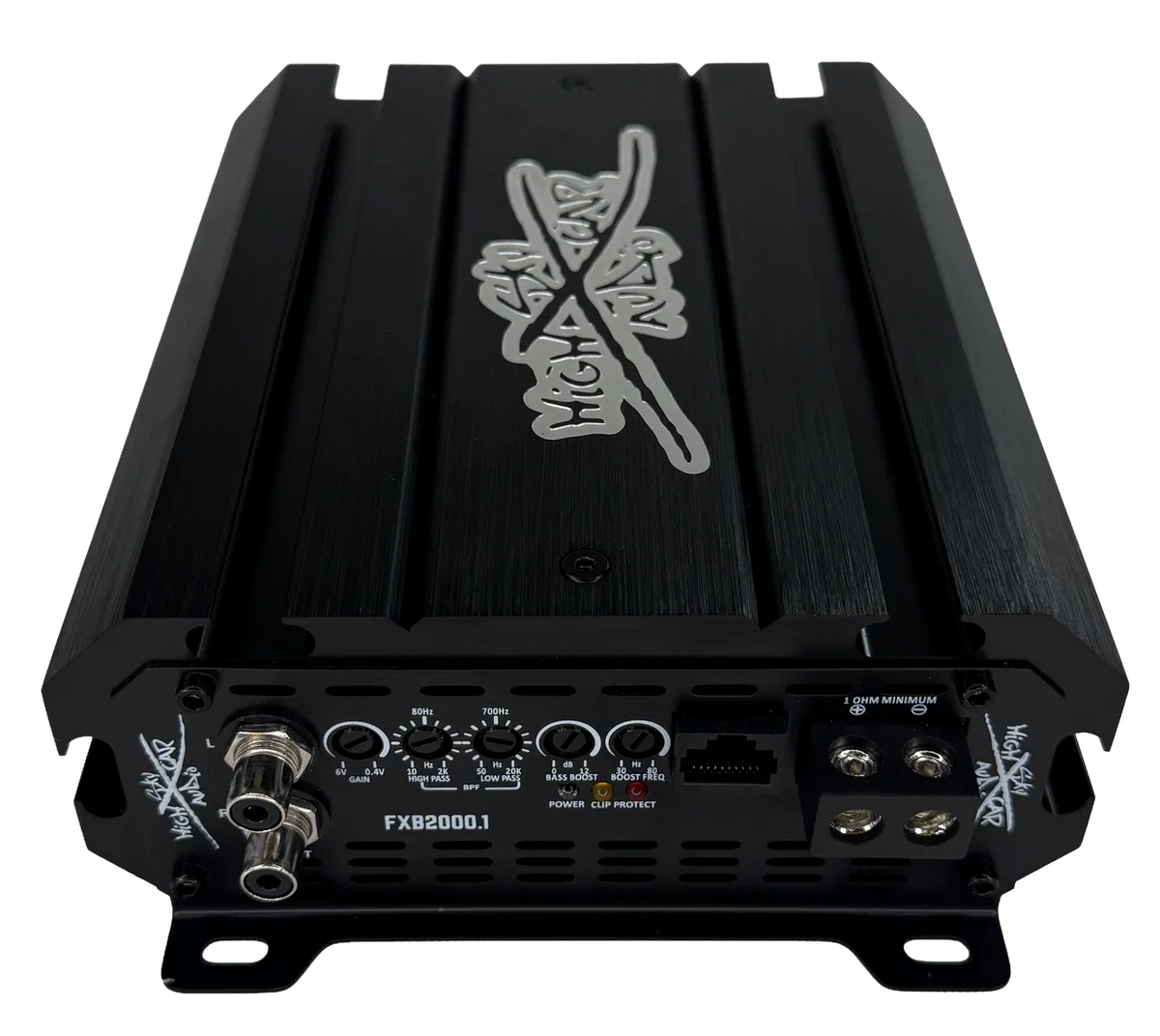

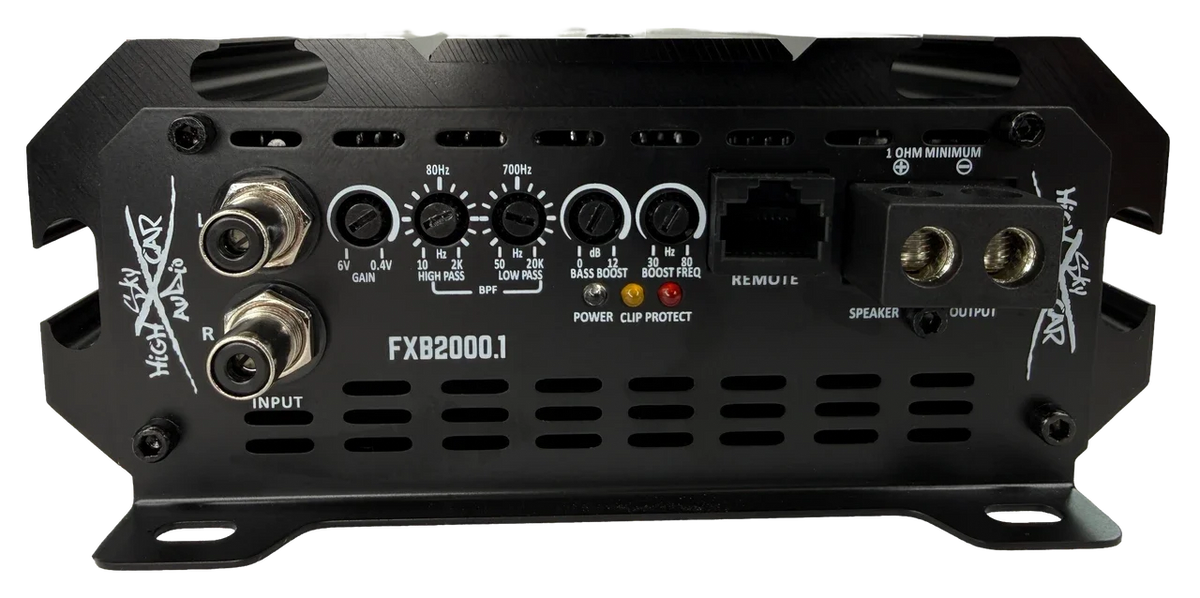

Adjustable crossovers, subsonic filtering, bass boost, clipping indication, and extensive protection circuitry give you the tools needed to properly dial in your system.

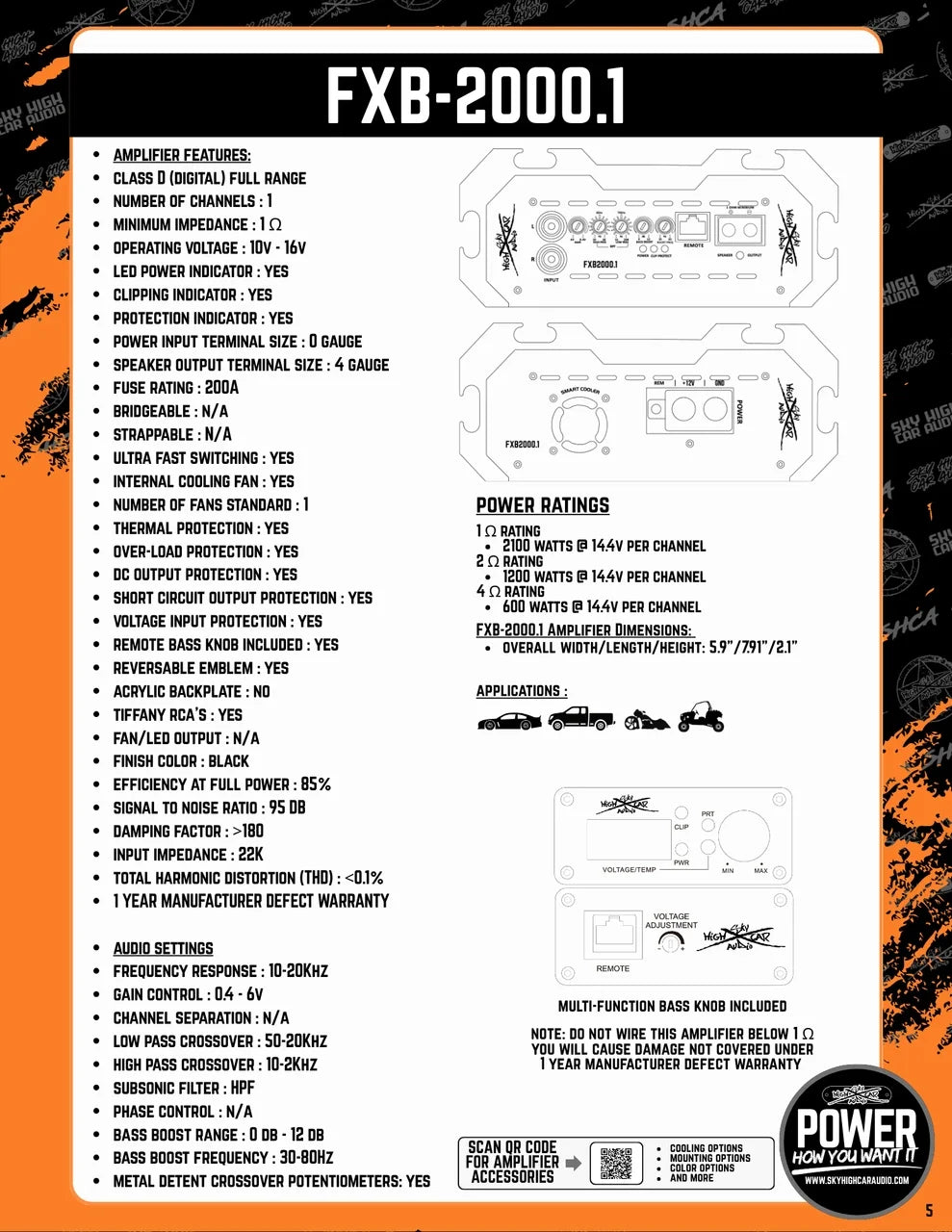

POWER @ 14.4V

• 2,100W RMS @ 1 Ohm
• 1,200W RMS @ 2 Ohms
• 600W RMS @ 4 Ohms
• 1-Ohm Minimum Impedance

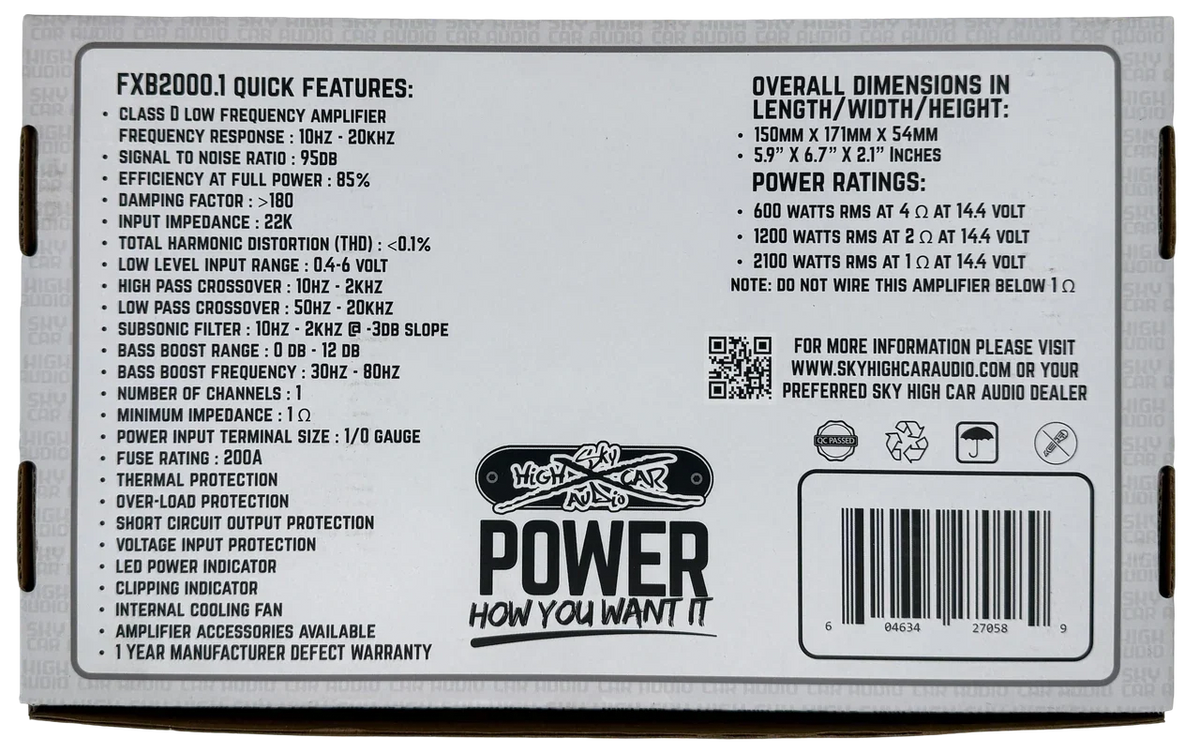

HIGHLIGHTS

• Compact Class D monoblock
• More than 2,000 watts RMS at 1 ohm
• Only 6.7 inches long
• Perfect for motorcycle audio and space-constrained installations
• Excellent for modern vehicle and factory system integration
• Multi-function bass knob included
• Real-time amplifier temperature display
• Real-time system voltage display
• Clipping indicator on bass knob
• Internal cooling fan
• Adjustable HPF and LPF
• Adjustable subsonic filter
• Adjustable 0–12 dB bass boost
• 10Hz–20kHz frequency response
• >180 damping factor
• <0.1% THD
• Thermal, overload, short-circuit, DC output, and voltage protection
• 1/0-gauge power input
• 200A fuse rating
• SHCA modular mounting ecosystem compatibility
• SHCA Universal Amp Key mounting options
• Passive cooling and color options

DIMENSIONS

5.9" × 6.7" × 2.1"
