Super Duty Axle Swap Bracket Kit – 92-97 OBS Ford F-250/F-350
Description:
Over a year of prototyping and five years of on-road testing went into perfecting this Super Duty axle swap bracket kit. Built to solve common problems seen in other kits, it’s laser cut and CNC-formed from premium 1/4" A36 P&O steel—far superior to typical mill scale plate. Every component is engineered for maximum strength, precision, and clean fitment.
Application:
-
Truck: 1992–1997 Ford F-250 / F-350 4x4
-
Axle: 2005–2016 Ford Super Duty Dana 60

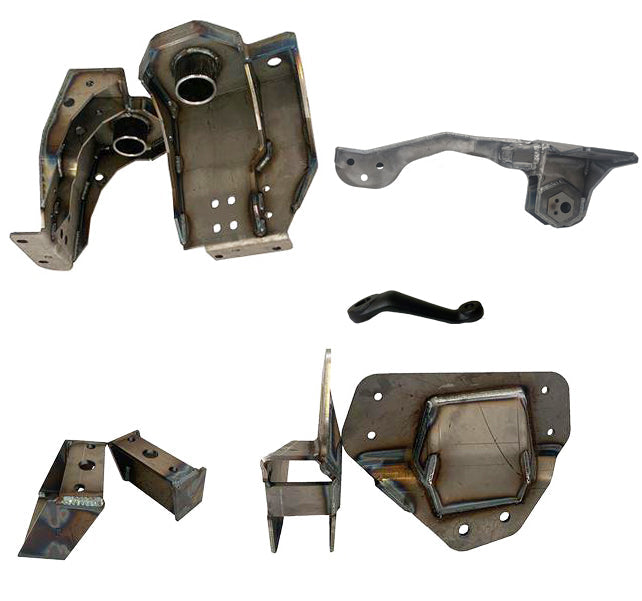

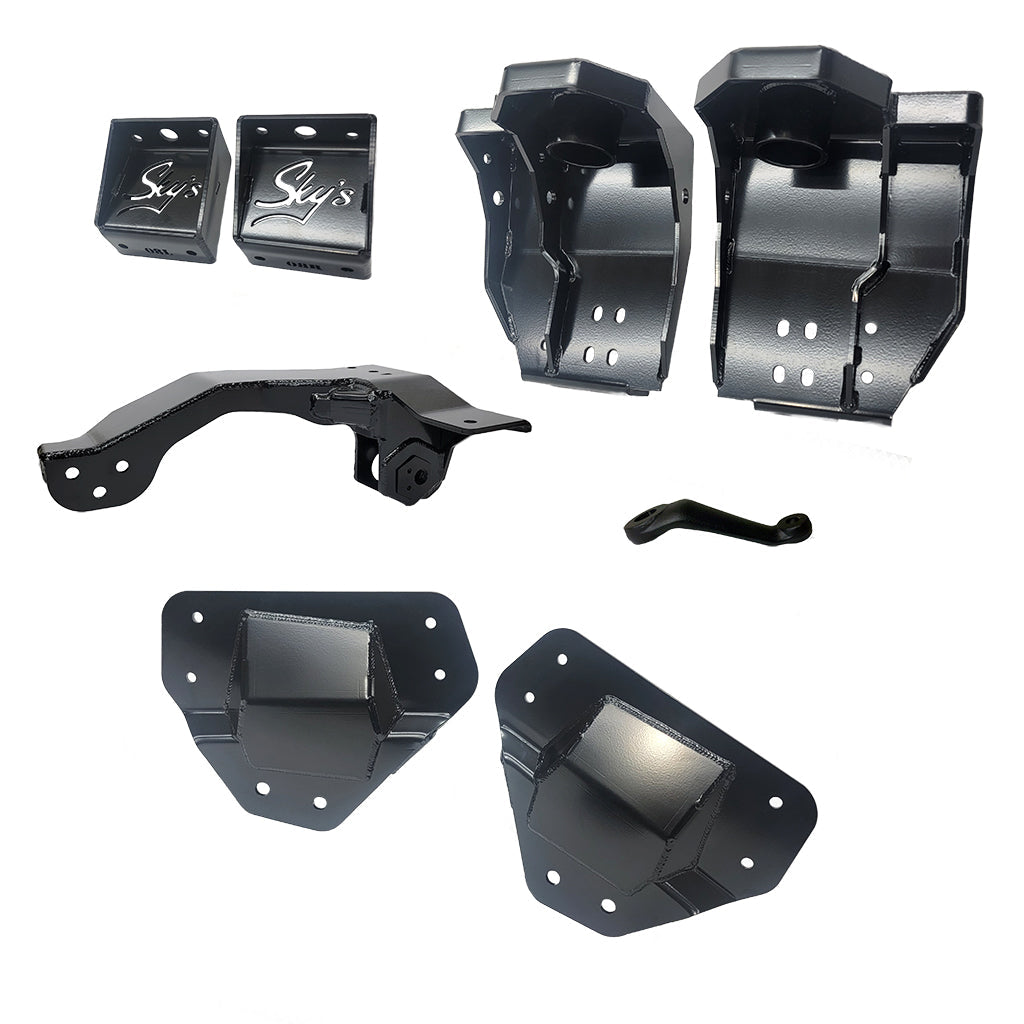

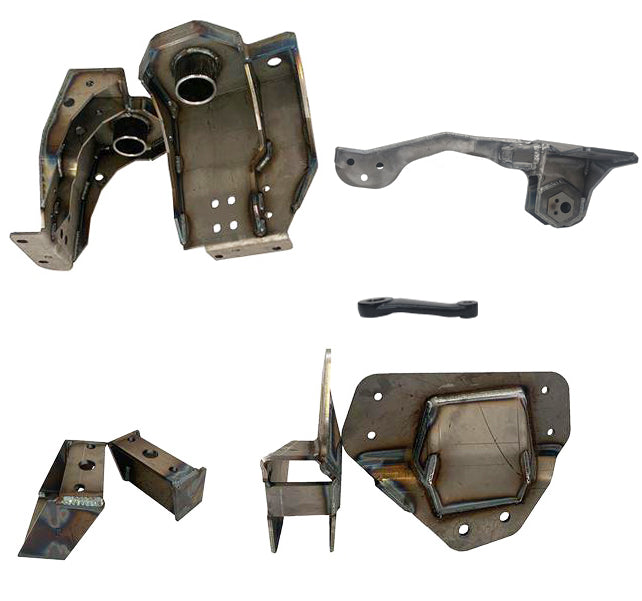

Kit Includes:
-

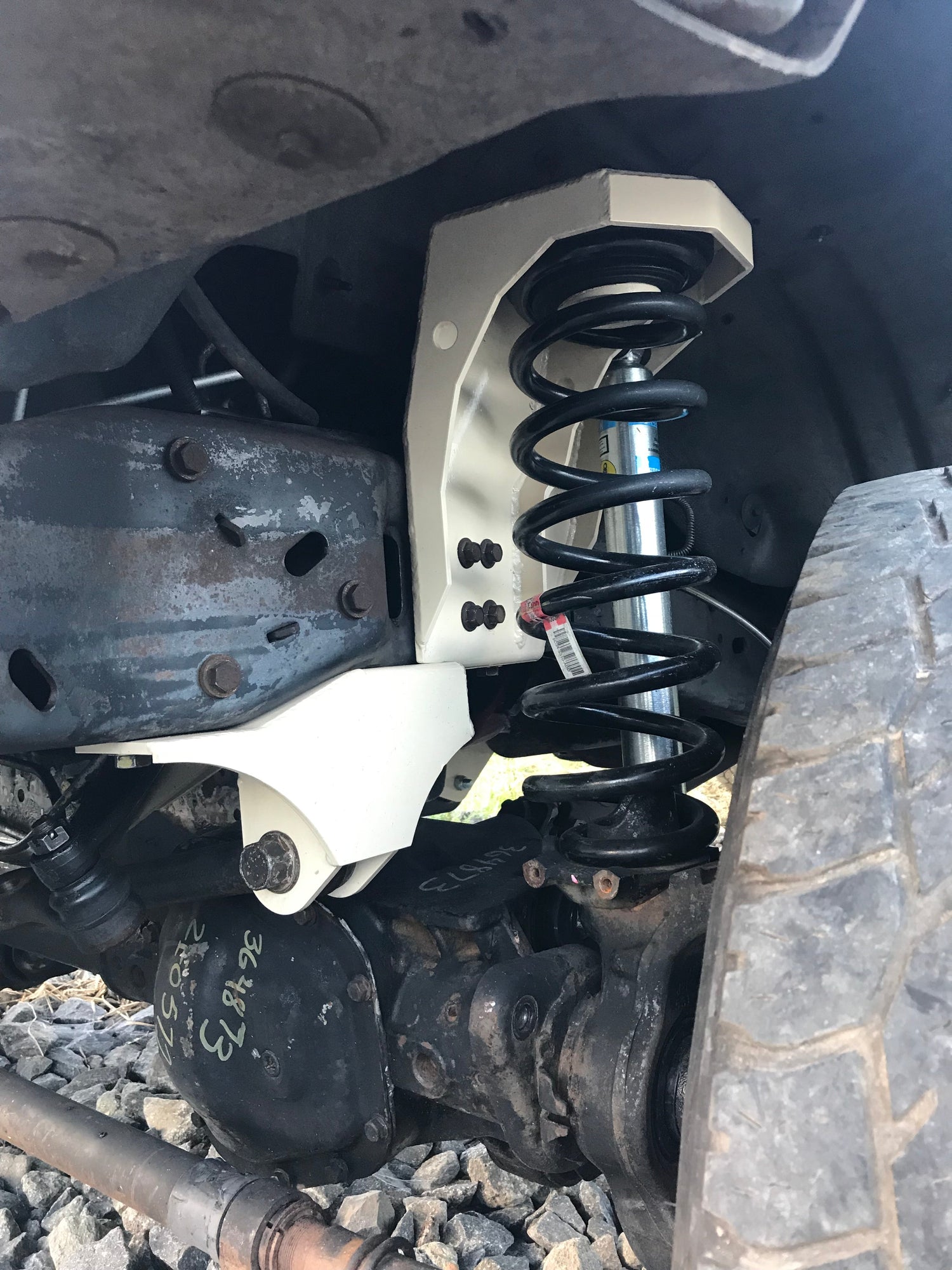

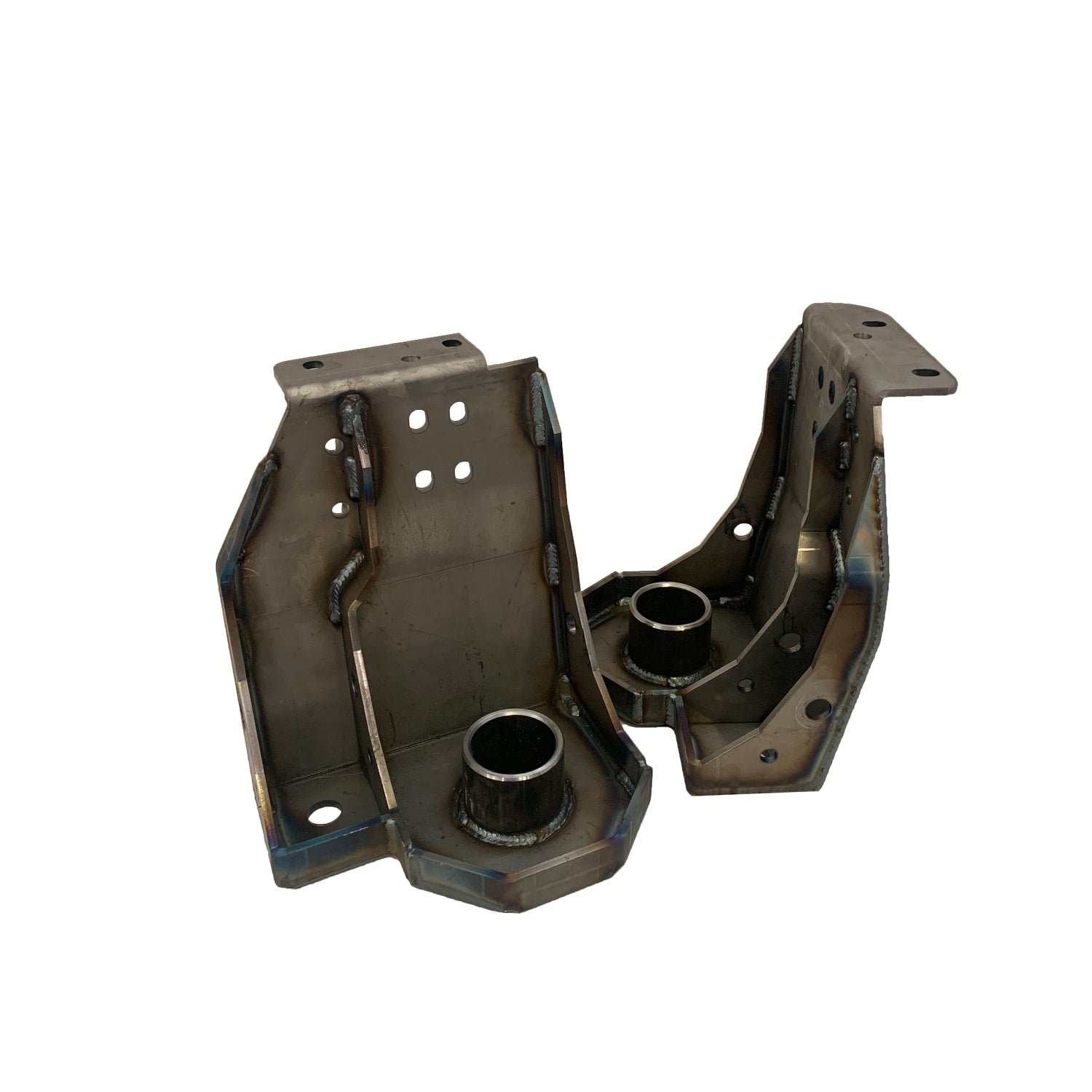

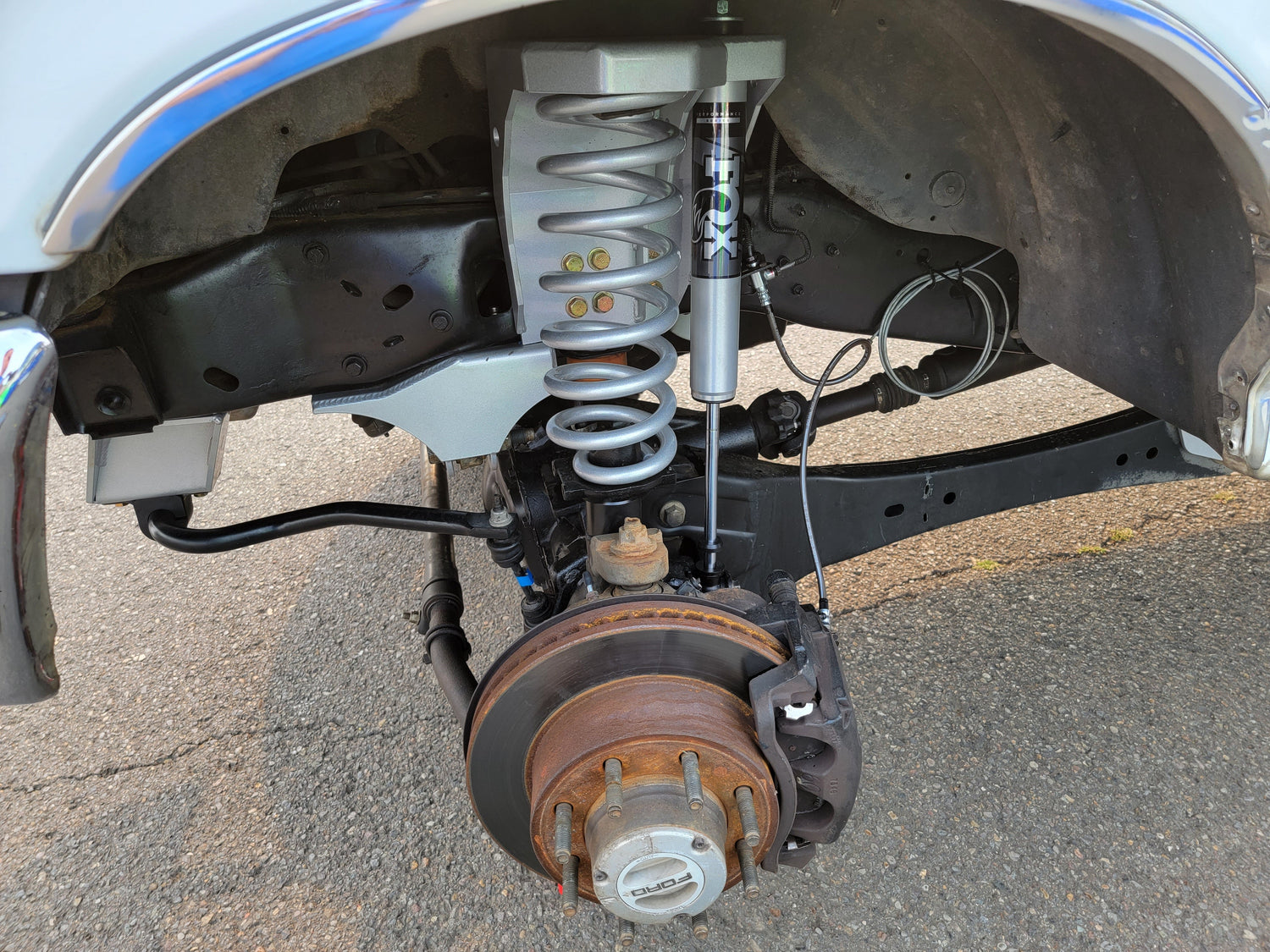

Coil Buckets (stock height or coilover)
-

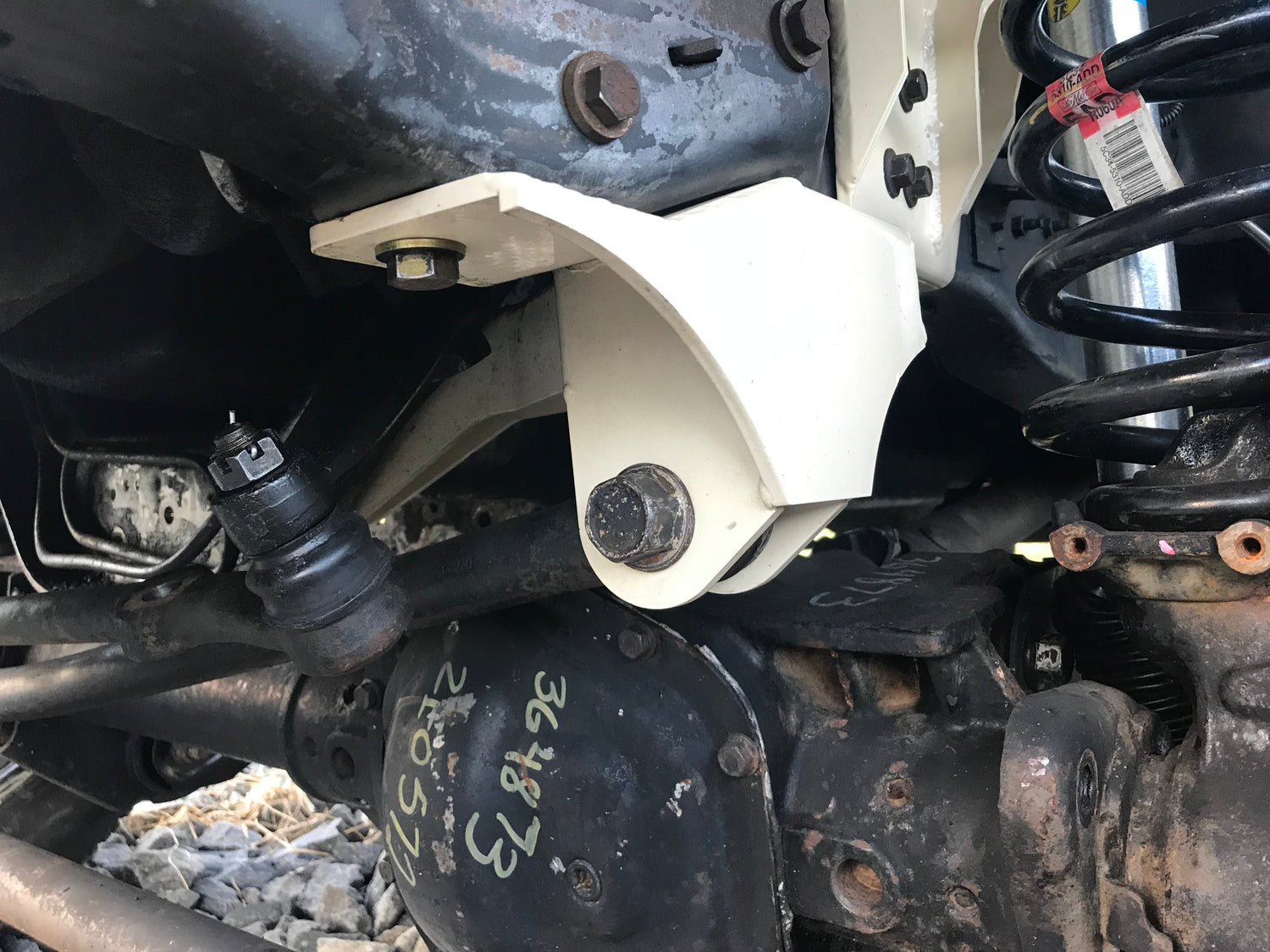

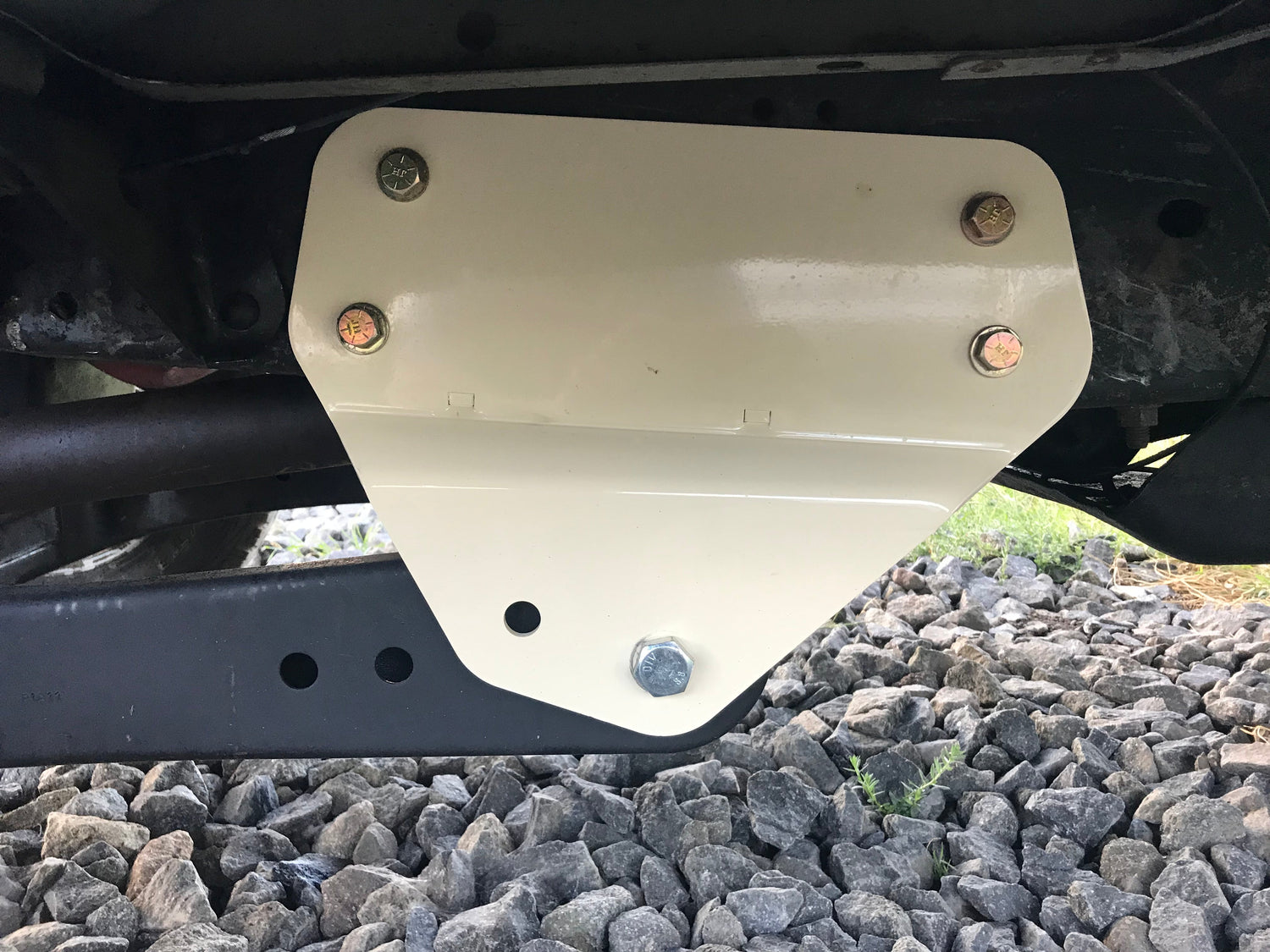

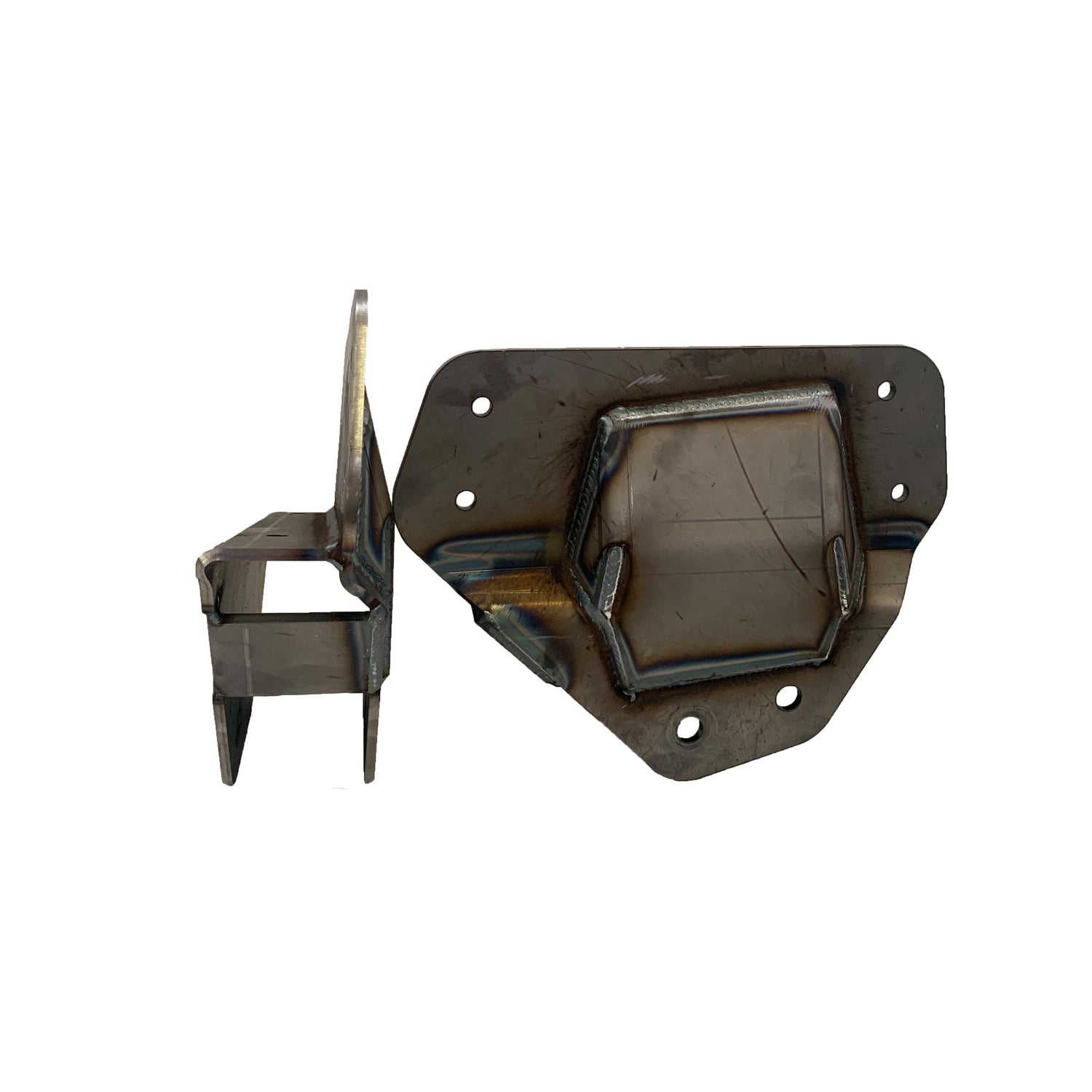

Radius Arm Frame Brackets or 4-Link Brackets (driver & passenger)
-

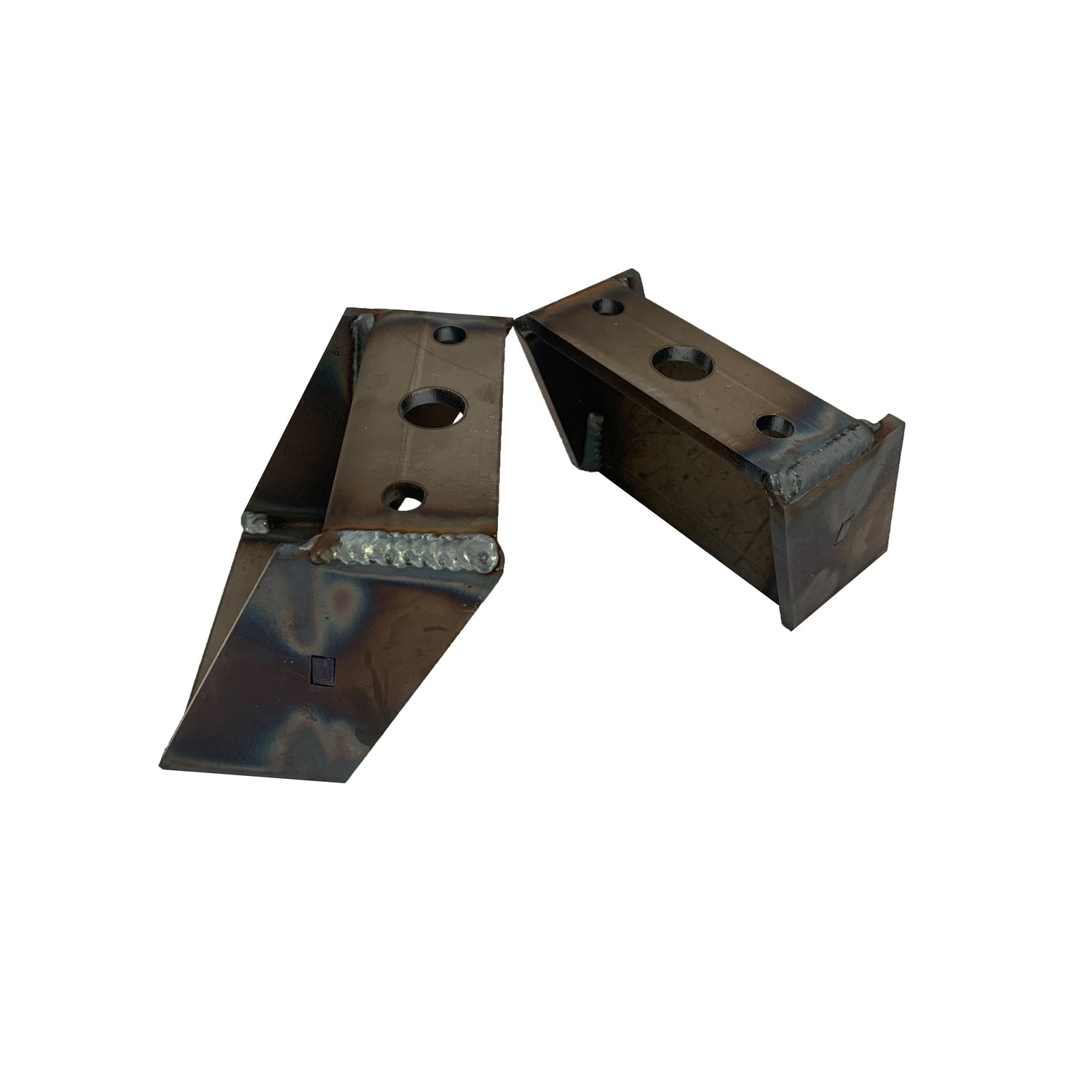

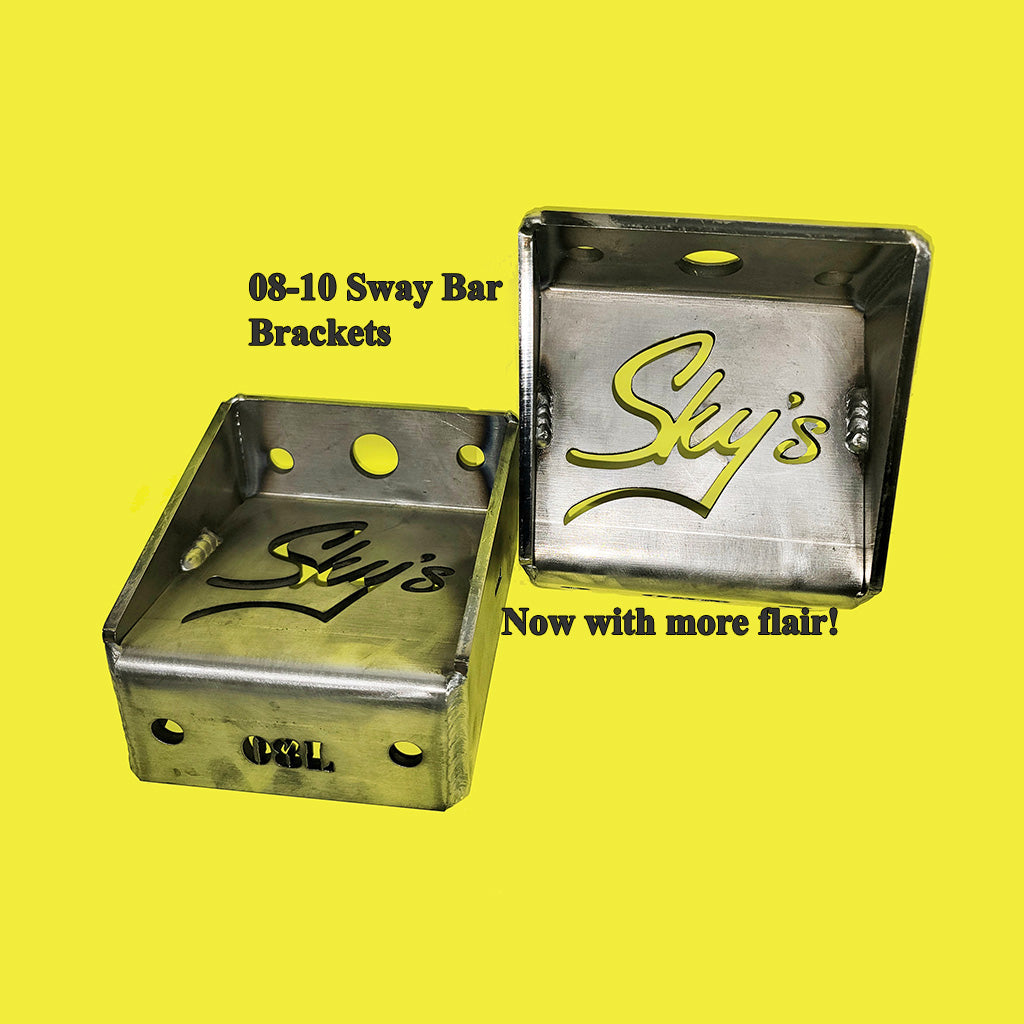

Sway Bar Frame Brackets (driver & passenger)
-

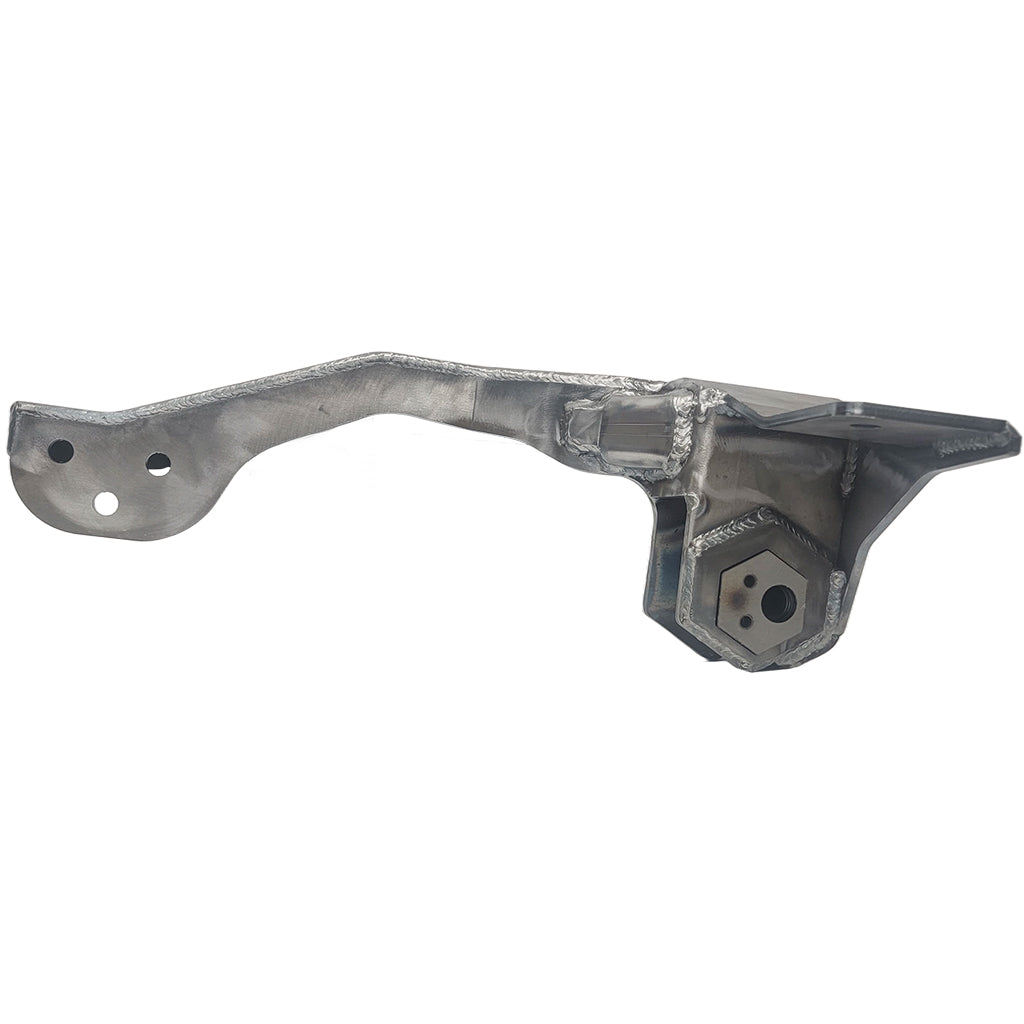

Adjustable Panhard Bracket
-
Machined Pitman Arm (flat or drop style)
-
Grade 8 Hardware
Donor Axle Requirements:
-
Front: 2005–2016 Dana 60 (F-250/F-350 8x170 bolt pattern)
-
Rear: 1999–2016 axle (2008–2016 preferred for leaf springs/brake upgrade)
-
Also compatible with factory Super Duty coils, radius arms, sway bar, and steering components
Notes on Fitment & Lift:
-
Designed to provide 1–2" of lift over a stock OBS F-250/350
-
Factory 4400 lb “ADD” coil springs recommended for leveled setup
-
Coil buckets add ~1.5–2" of lift over spring height
-
Works with most aftermarket Super Duty lift coils
-
Compatible with all 1980–1997 F-Series frames; 1980–1991 may need 1/4" shim at panhard bracket location
Spring Rate Chart (lbs):
-
ACD: 4000
-
ADD: 4400 (recommended)
-
AED: 4800
-
AFD: 5200
-
AGD: 5600
-
AHD: 6000

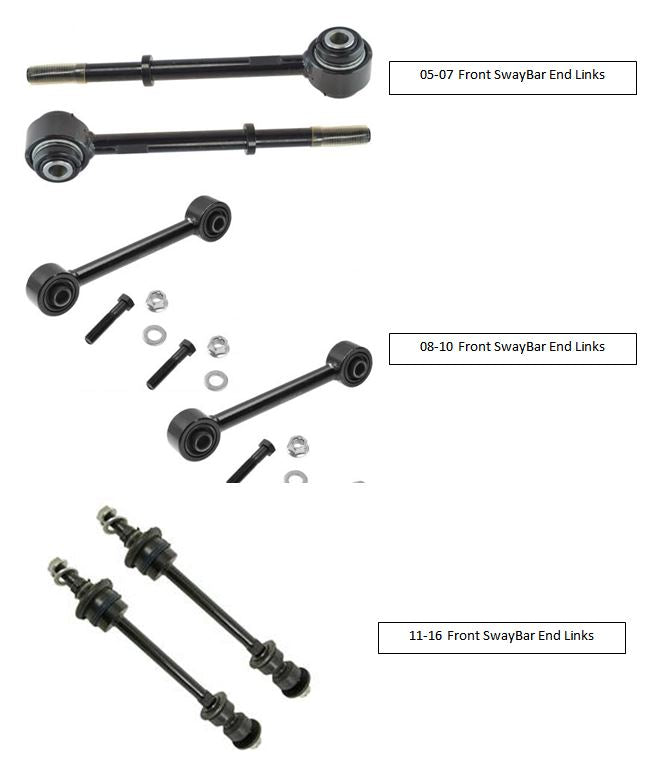

Sway Bar Link ID Reference:
-
2005–2007: bushing bottom, stud top
-
2008–2010: bushings top and bottom
-
2011–2016: stud top and bottom
Highlights:
-
CAD-designed for OE-like fit and geometry
-
Brackets are gusseted and precision welded
-
Designed to work with stock Super Duty and aftermarket lift components
-
Fully tested on-road and off-road
