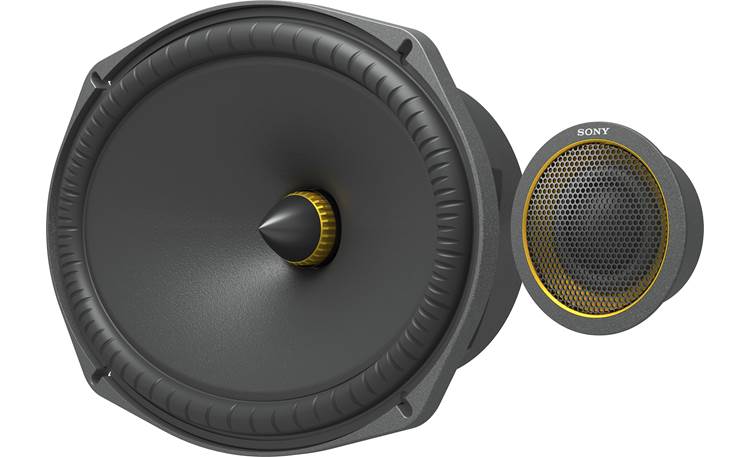

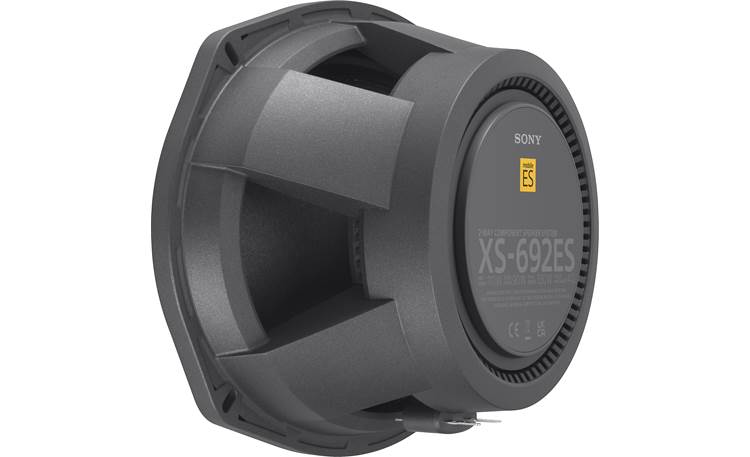

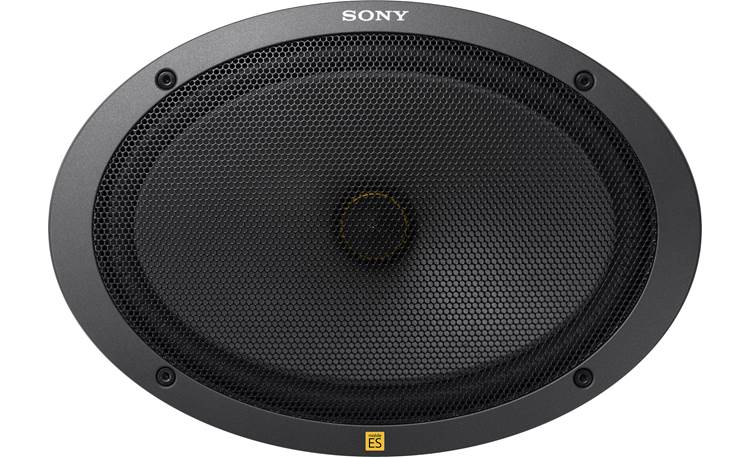

Sony XS-692ES Mobile ES Series 6"x9" 2-way component speaker system

Sony XS-692ESMobile ES Series 6"x9" 2-way component speaker system

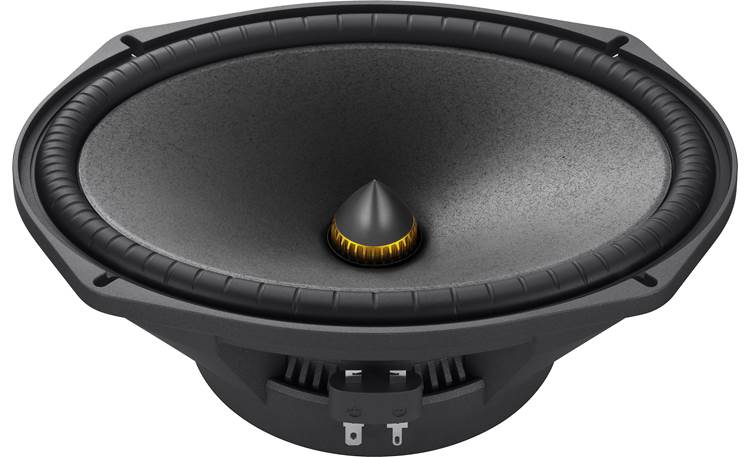

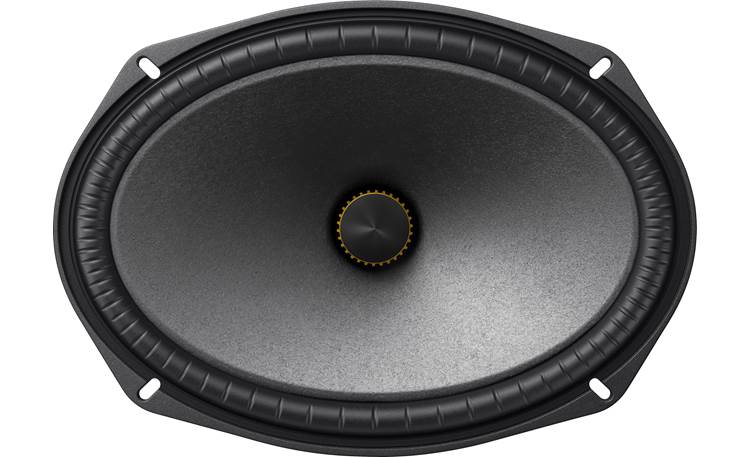

Phase Plug: The bullet-shaped phase plug in the center of the woofer ensures a smooth, flat off-axis frequency response by preventing the higher frequency sound waves emanating from one side of the cone from interfering with sound waves from the other side of the cone.

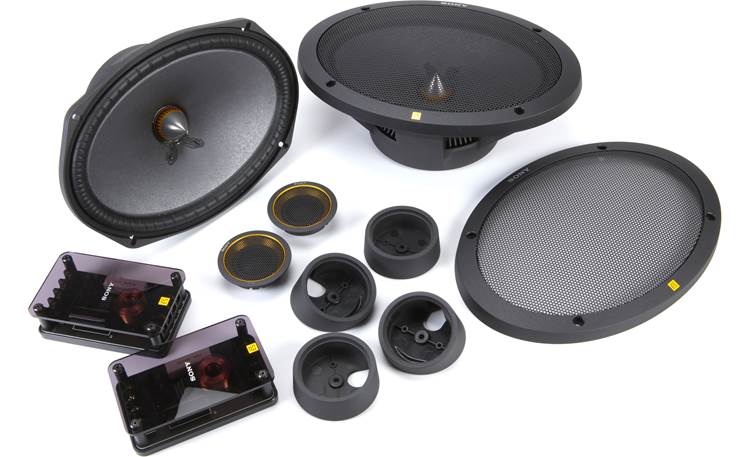

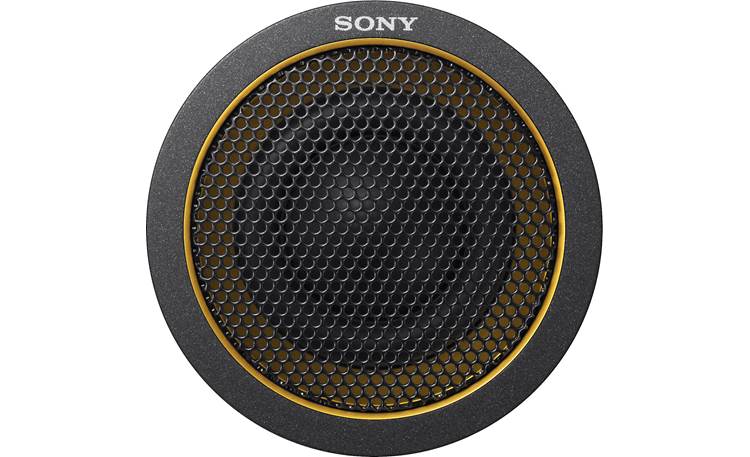

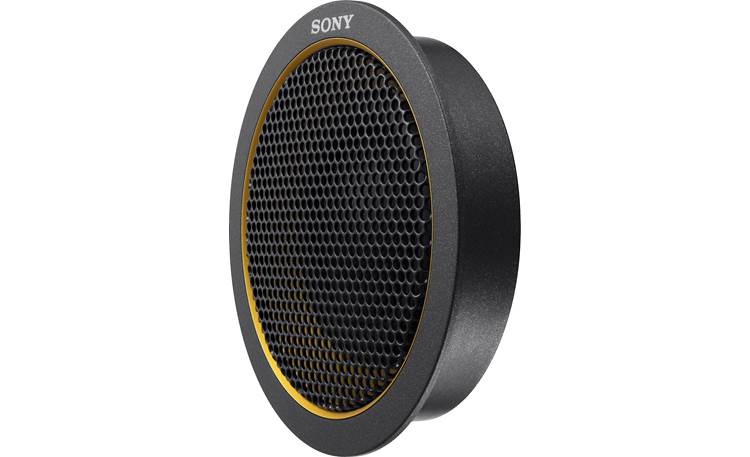

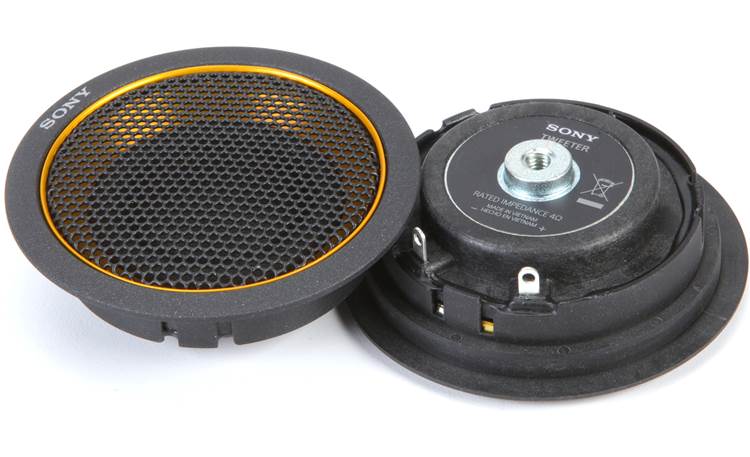

Tweeter Mounting: Flat and angled surface mount housings are included for tweeter mounting. In either case the tweeter is secured to the housing using the included M4 machine screws. The tweeters can also be flush mounted, but no bracket is included. Often the tweeters can be bolted to the factory brackets using the same M4 machine screws, or a custom bracket can be created

Tweeter Dimensions:

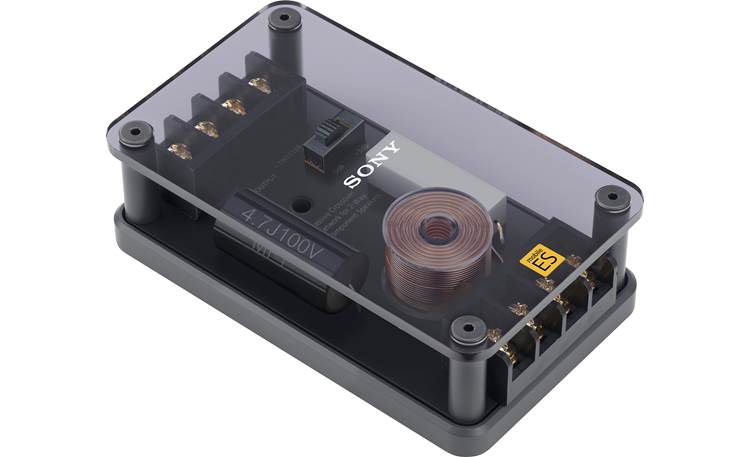

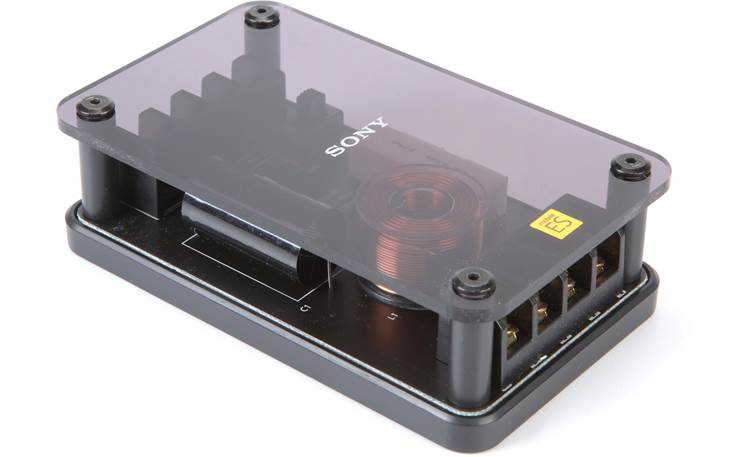

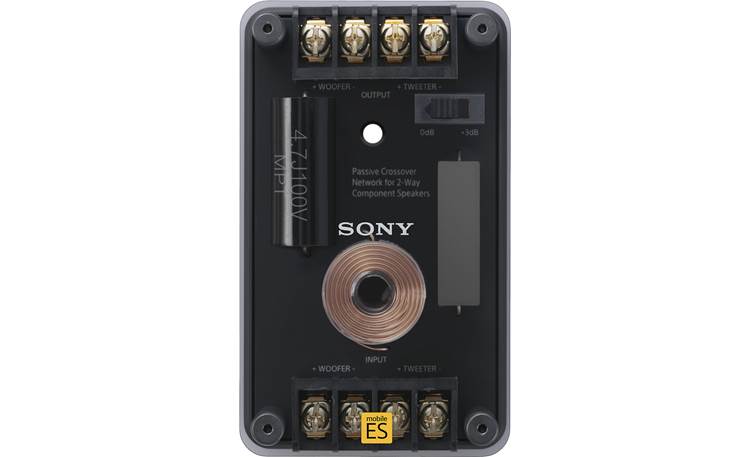

Crossovers: Each crossover has high-pass and low-pass outputs with a 5 kHz crossover point and 6 dB/octave slope. A switch inside each crossover allows you to set the tweeter output level according to your system requirements and personal preference; choose 0 dB (factory setting) or +3dB. (A 2mm hex key is required to remove the crossovers' tops, not included.) The inputs and outputs are screw terminals; they will accommodate bare wire or spade connectors up to 0.315" wide. There is a mounting hole in the base of each crossover.

Bi-amp Inputs: The 2-way crossovers have separate inputs for the woofer and tweeter; this lets you drive the system with dedicated power for the separate speaker elements, instead of sharing power. If the system is powered using only two amplifier channels, the woofer and tweeter inputs should be shorted together using the included jumpers.

Crossover Dimensions:

• Length: 4-3/8"
• Width: 2-5/8"
• Height: 1-3/8"

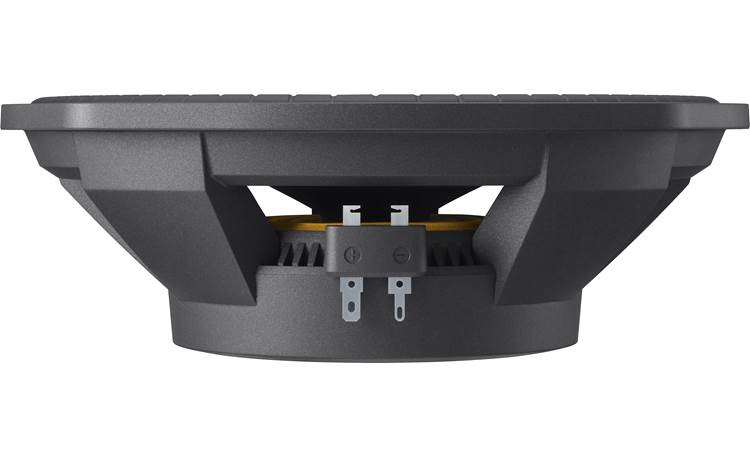

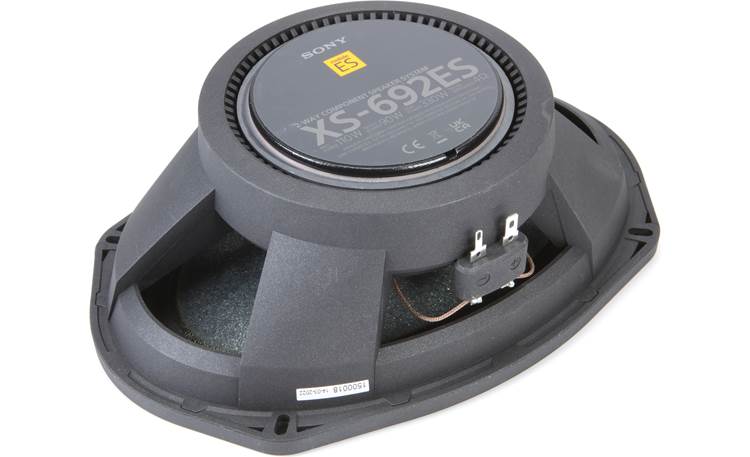

Wiring: No wire is included with these speakers, so it will need to be ordered separately. Both the woofers and tweeters have male quick-slide terminals. The woofer terminals are 0.205" wide (positive) and 0.110" wide (negative), and both tweeter terminals are 0.110" wide.

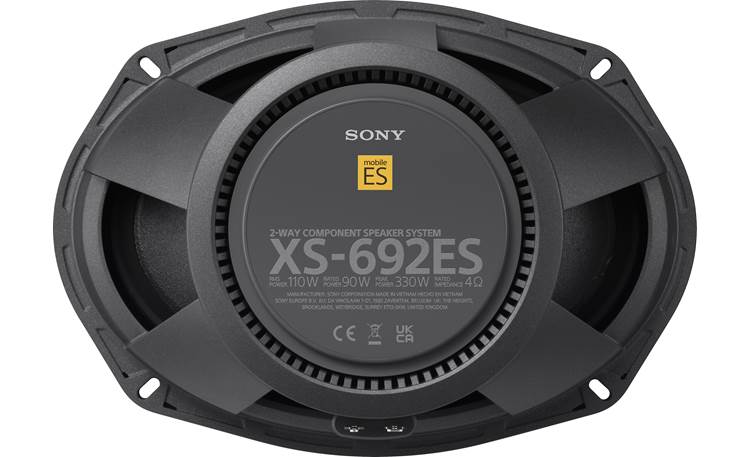

Specification Note: Sony's rated power spec for the XS-692ES is 90 watts (derived using IEC 60268-5 standards). In the manual they also list the CTA 2031 compliant RMS power as 110 watts. We've adopted the 110 watt RMS rating because CTA 2031 is the more common rating system.
