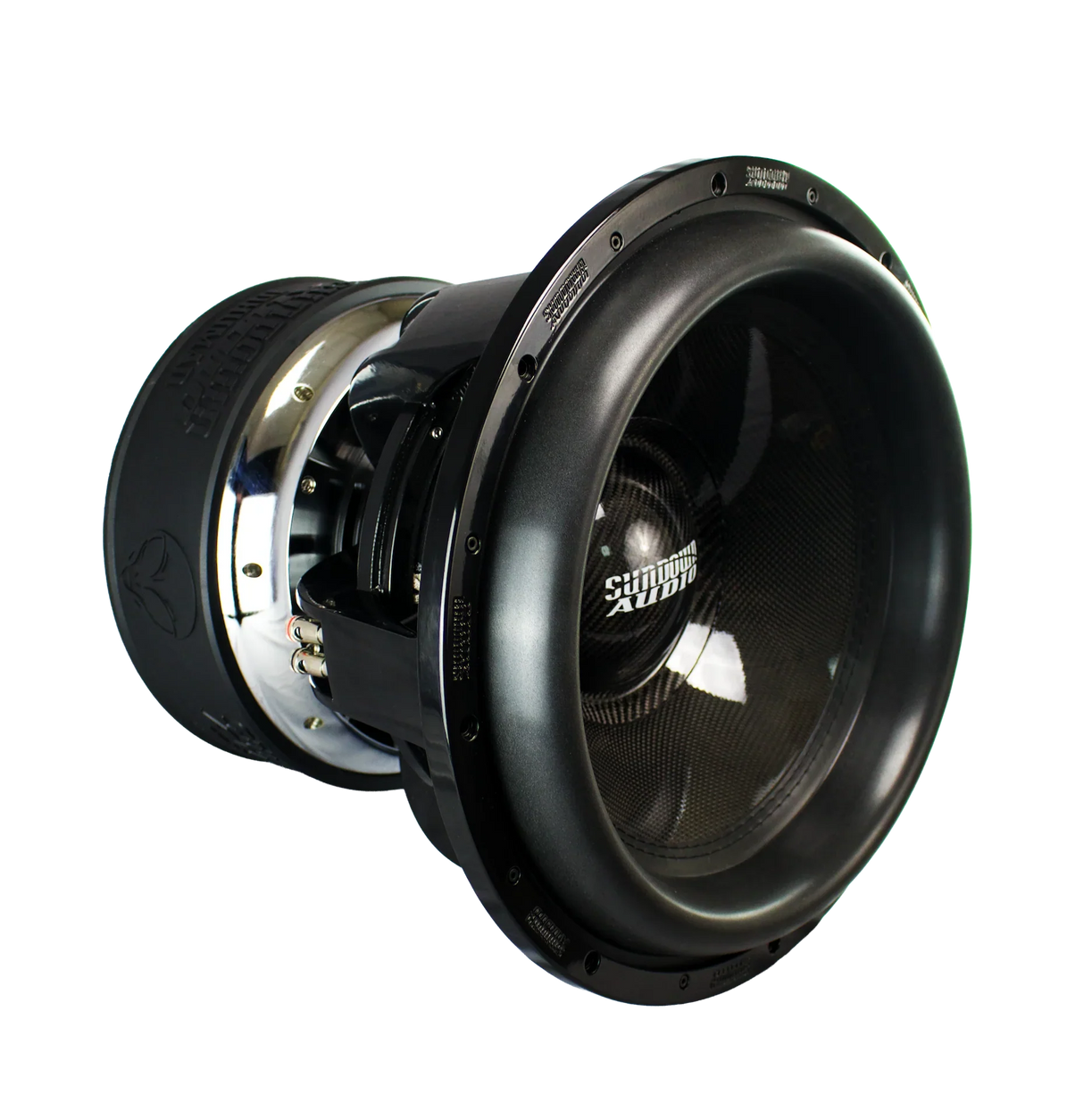

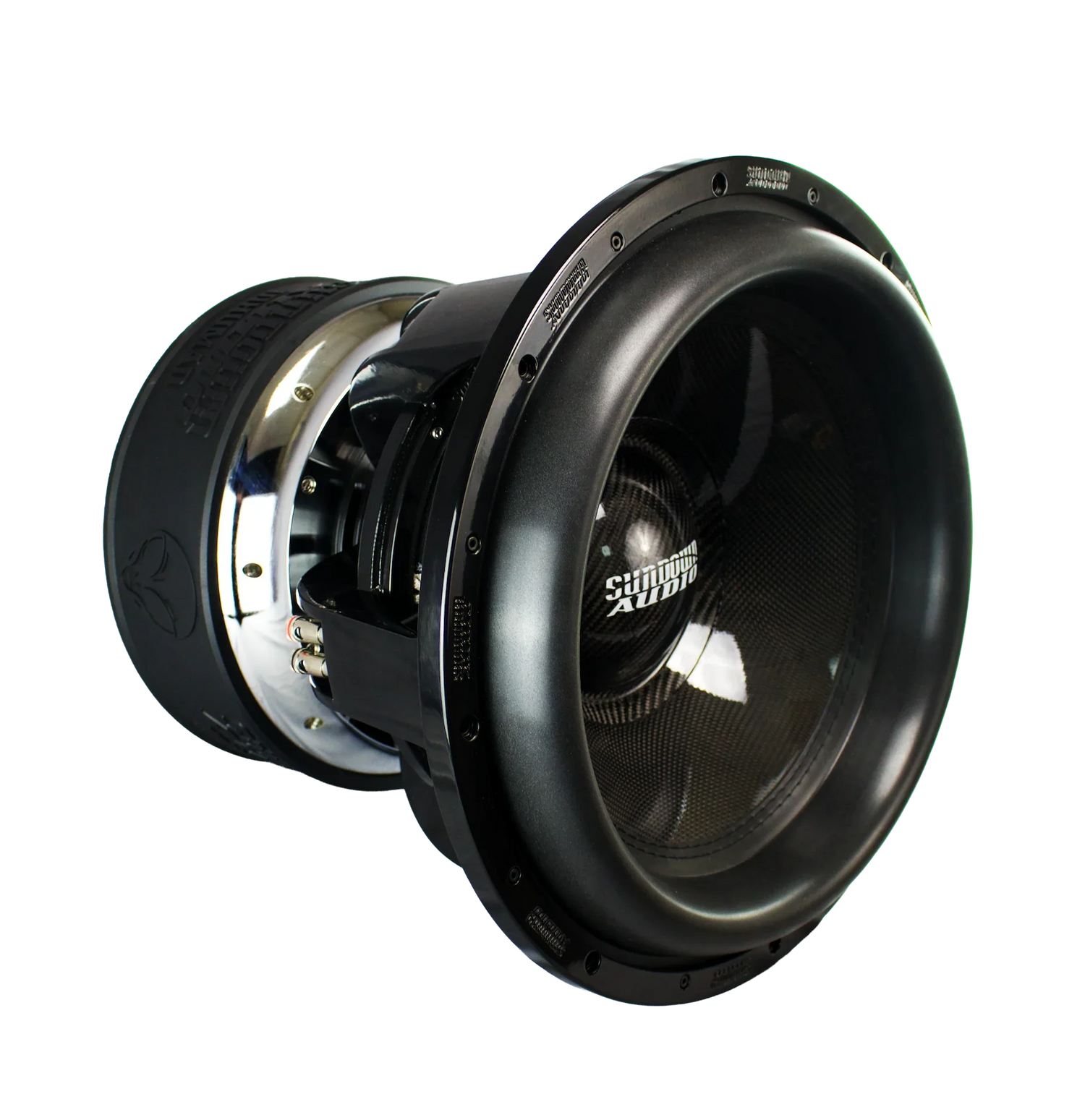

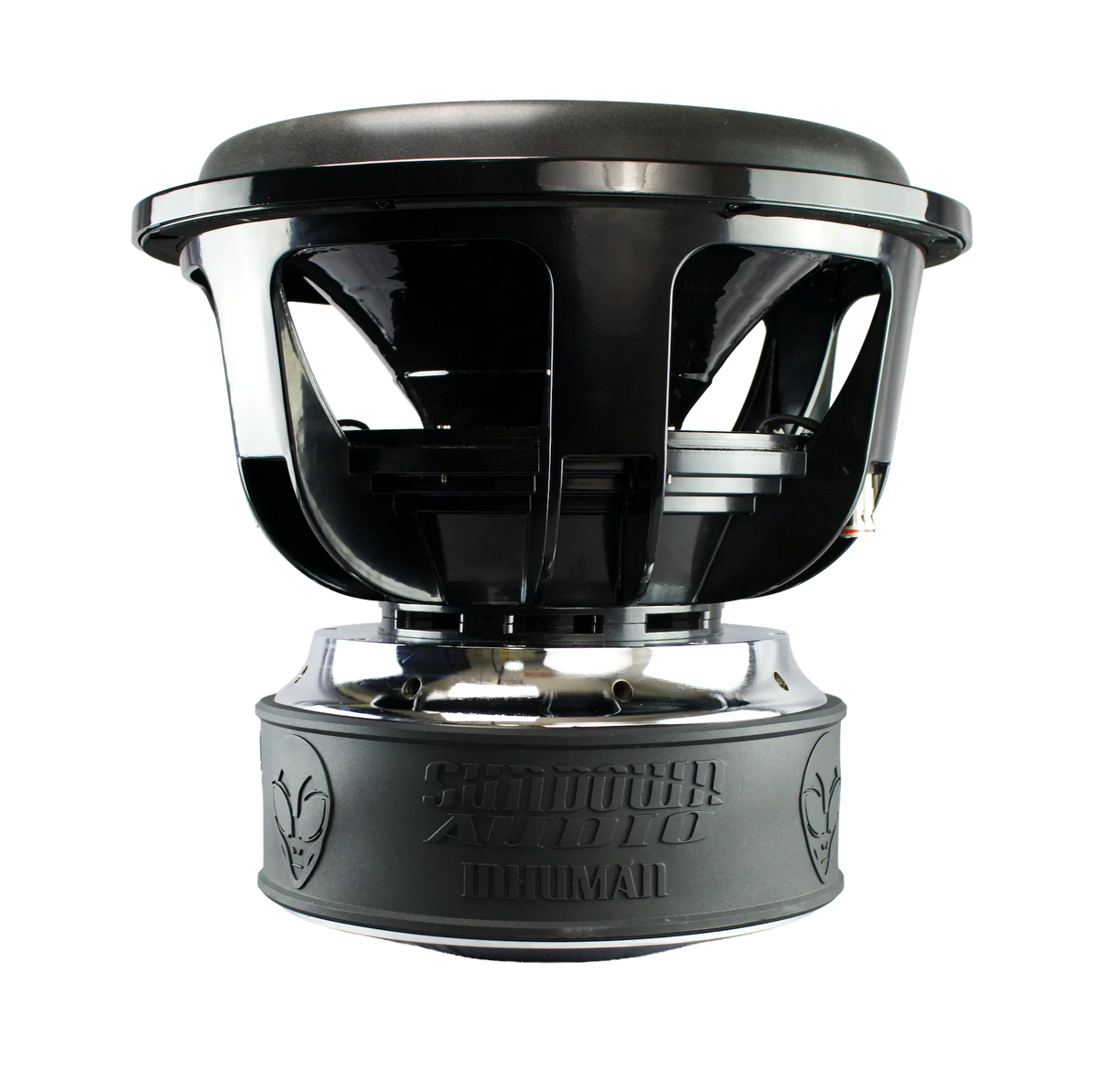

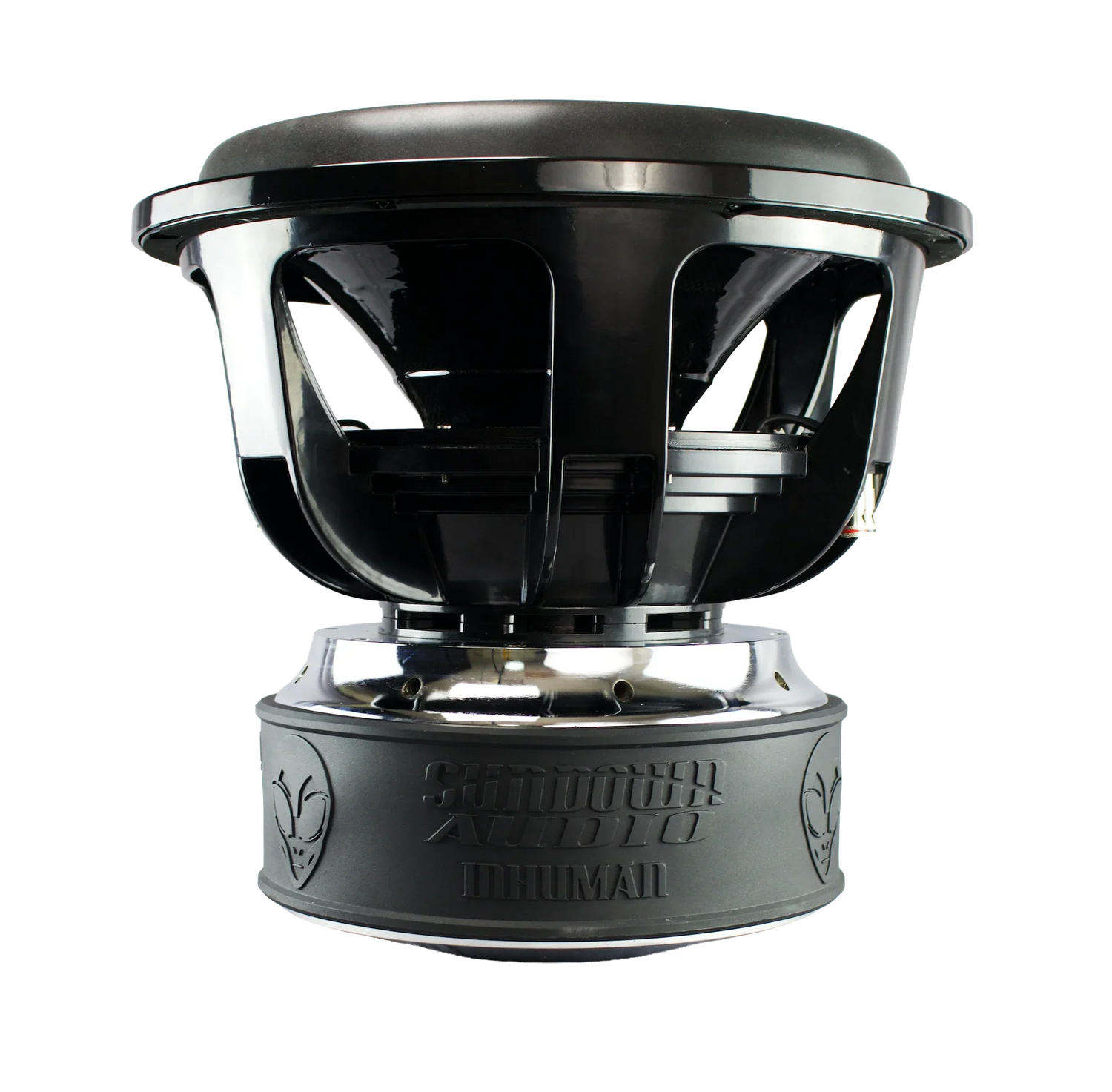

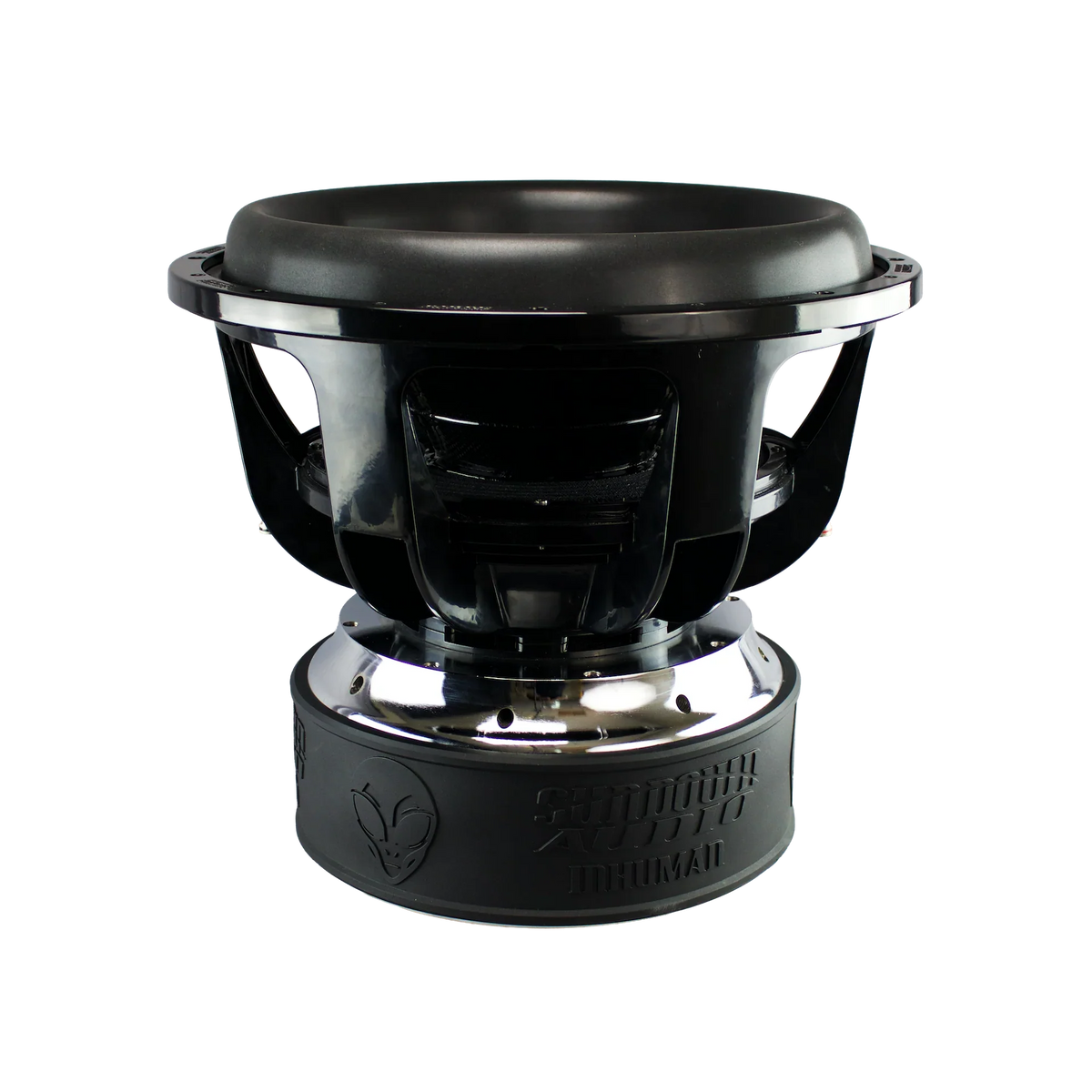

Sundown Audio InHuman 18" 7500W Subwoofer DVC 1-Ohm
Sundown Audio InHuman 18" 7500W Subwoofer DVC 1-Ohm is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description

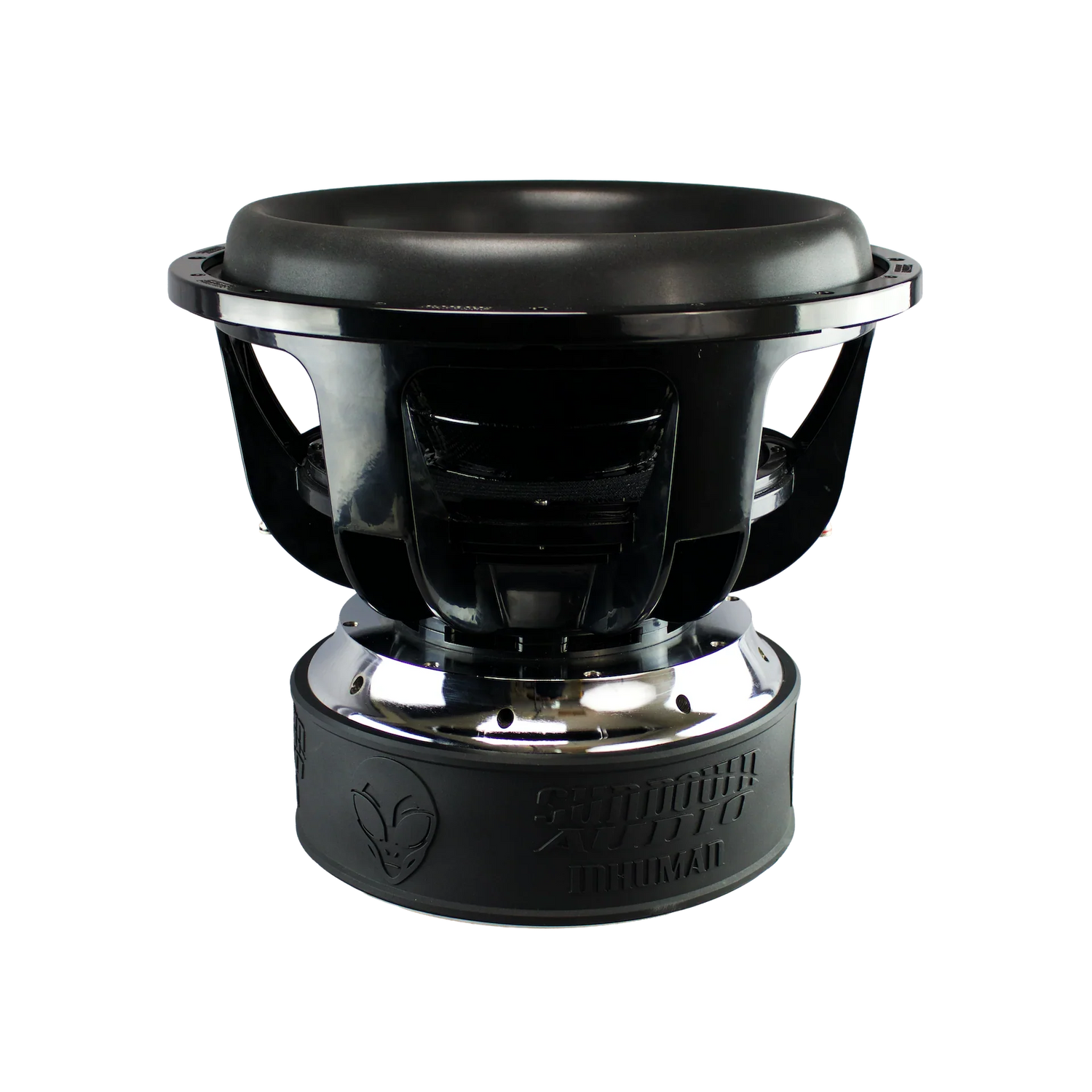

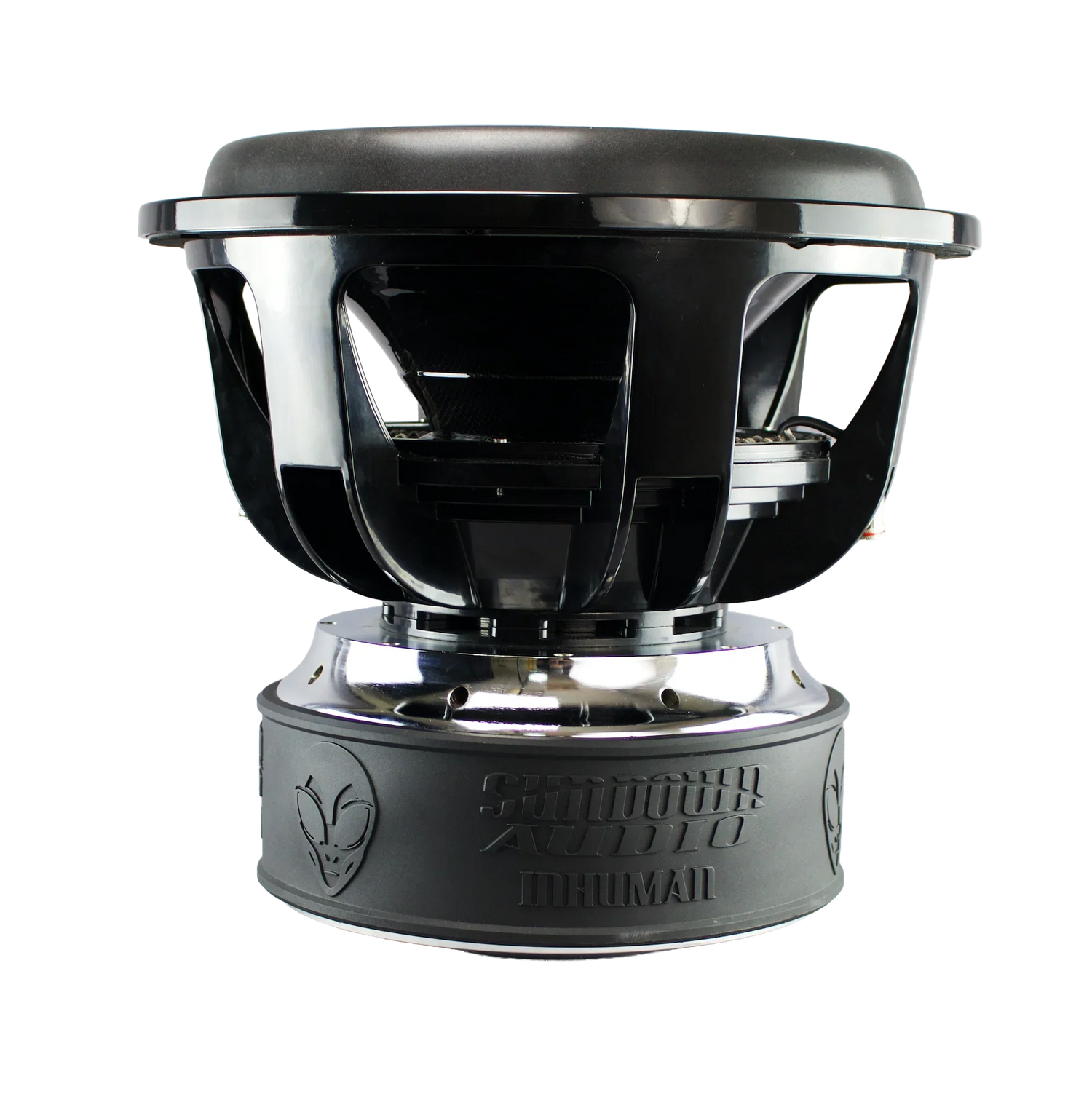

The InHuman is what you get when massive just isn't enough – it can only be described as monstrous. Built on our legendary, patented 18" Sundown Tooled Frame (US D741,841) – perhaps the only frame on the market fit for its absolutely enormous Quad-Stack 330mm magnet motor structure. The InHuman can be considered the big-brother to the SDDN model featuring a similar design philosophy of absolutely maximum motor force factor (BL^2/RE of over 1,000) – in this case around 2.5x as powerful as the acclaimed SDDN.
It was made primarily for one purpose – devastating demo builds with 6th order band-pass enclosures. This is the only application it is recommended for, although some customers may find success in ported enclosures - it can be tricky due to the QTS figure being below the 0.2 range. Additionally it features an incredibly low FS to excel in wind production (FS will fall to around 18-20hz after full break-in period). It was purpose-built for hurricane-force winds.

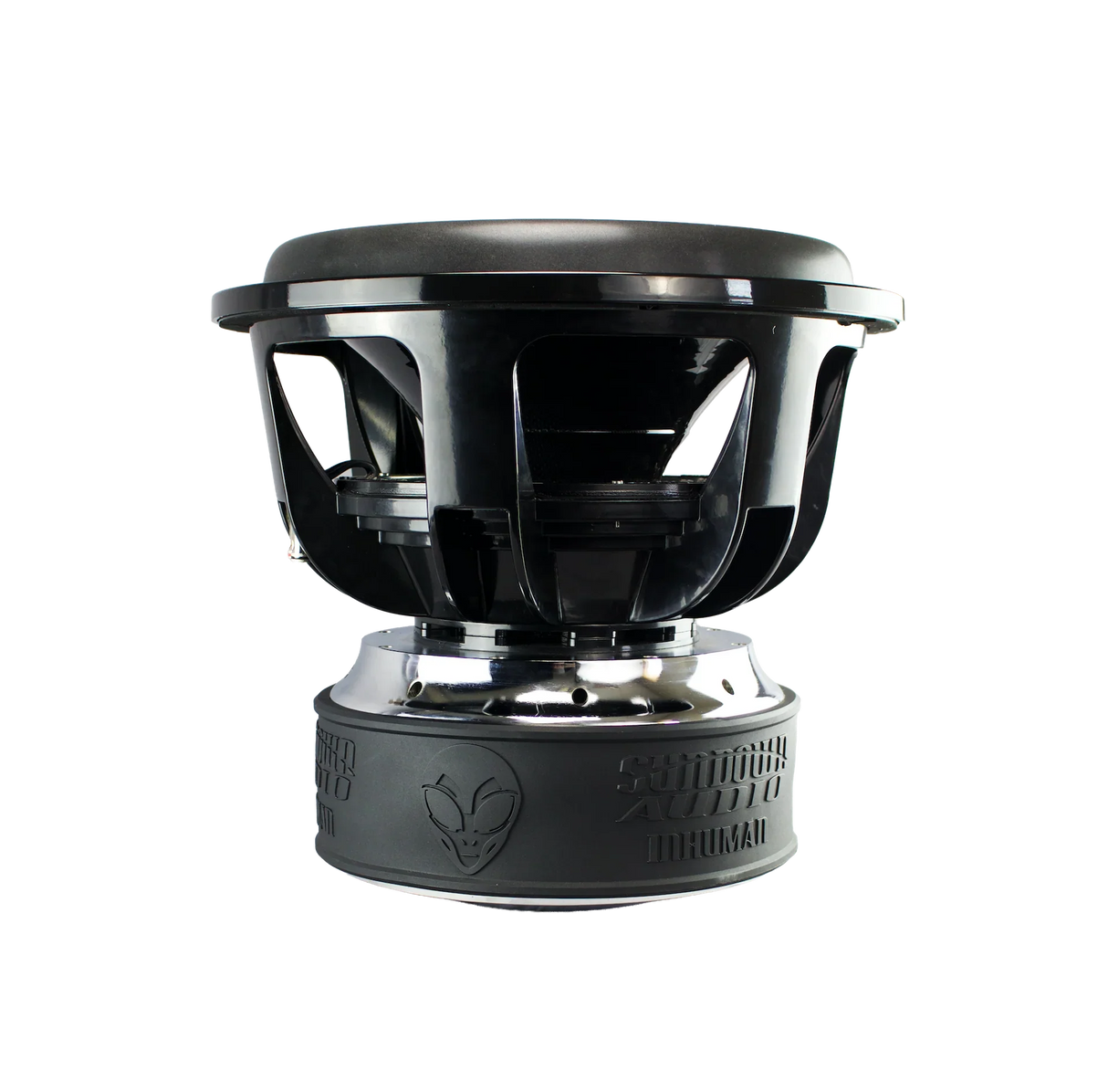

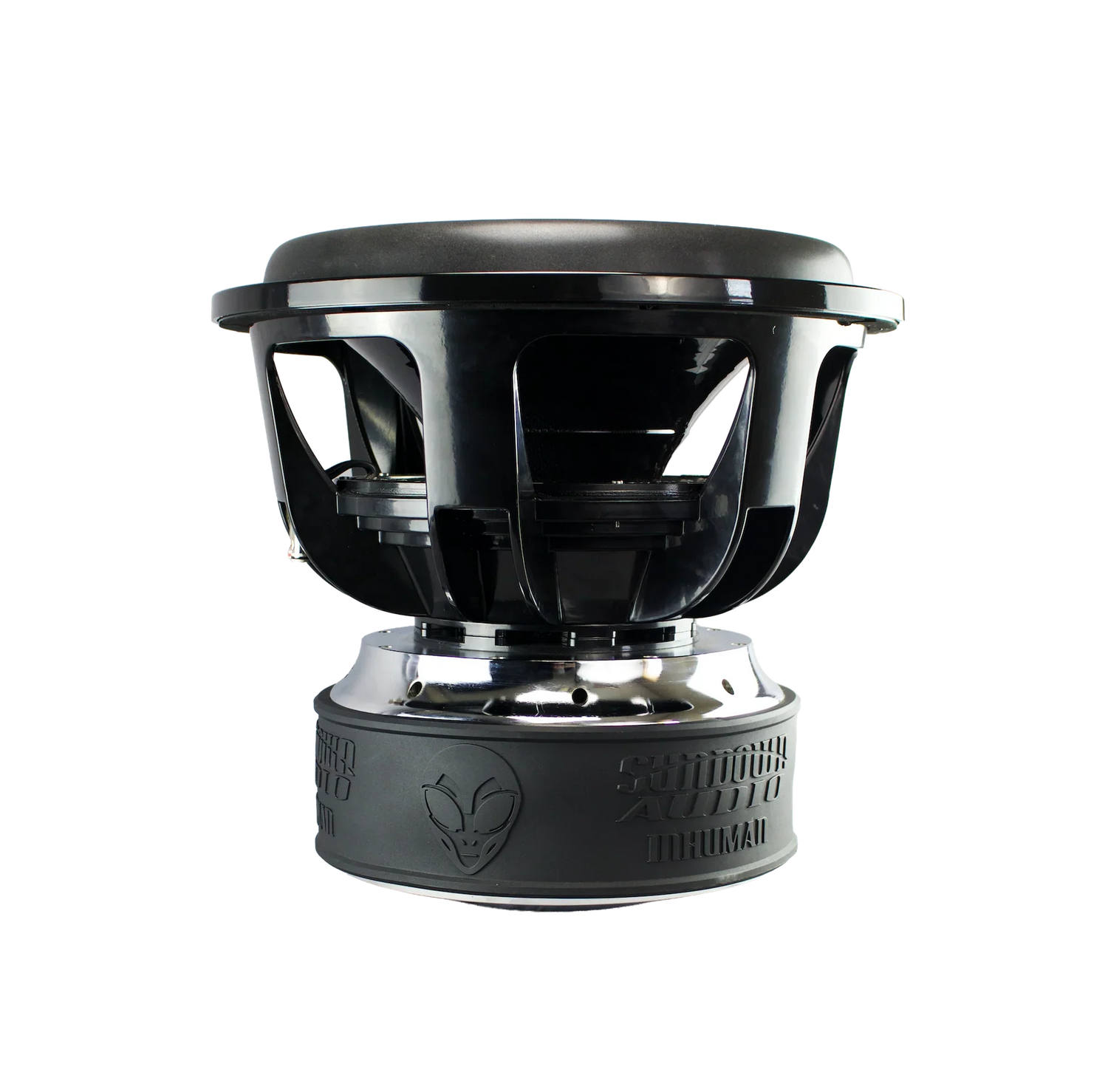

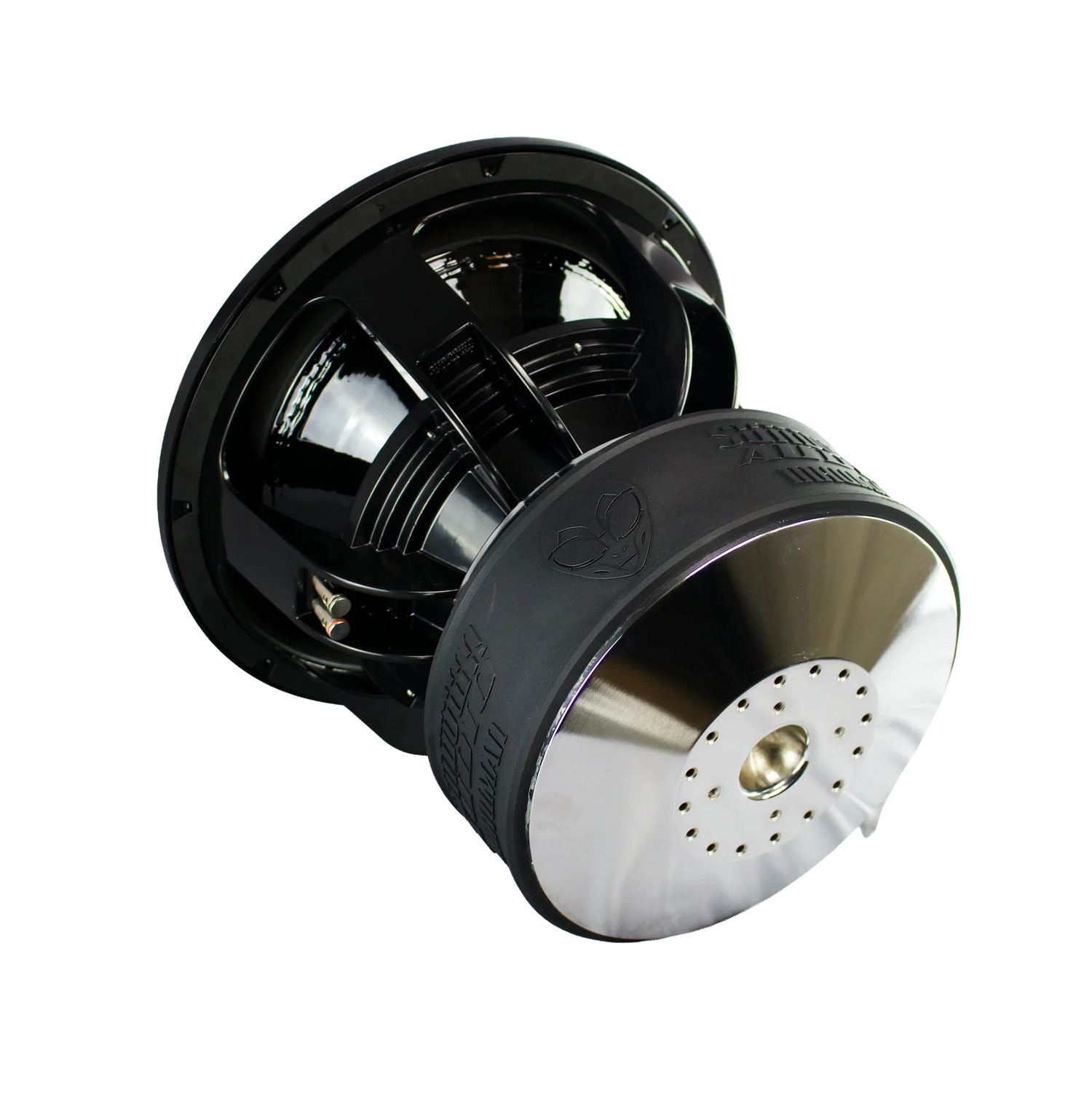

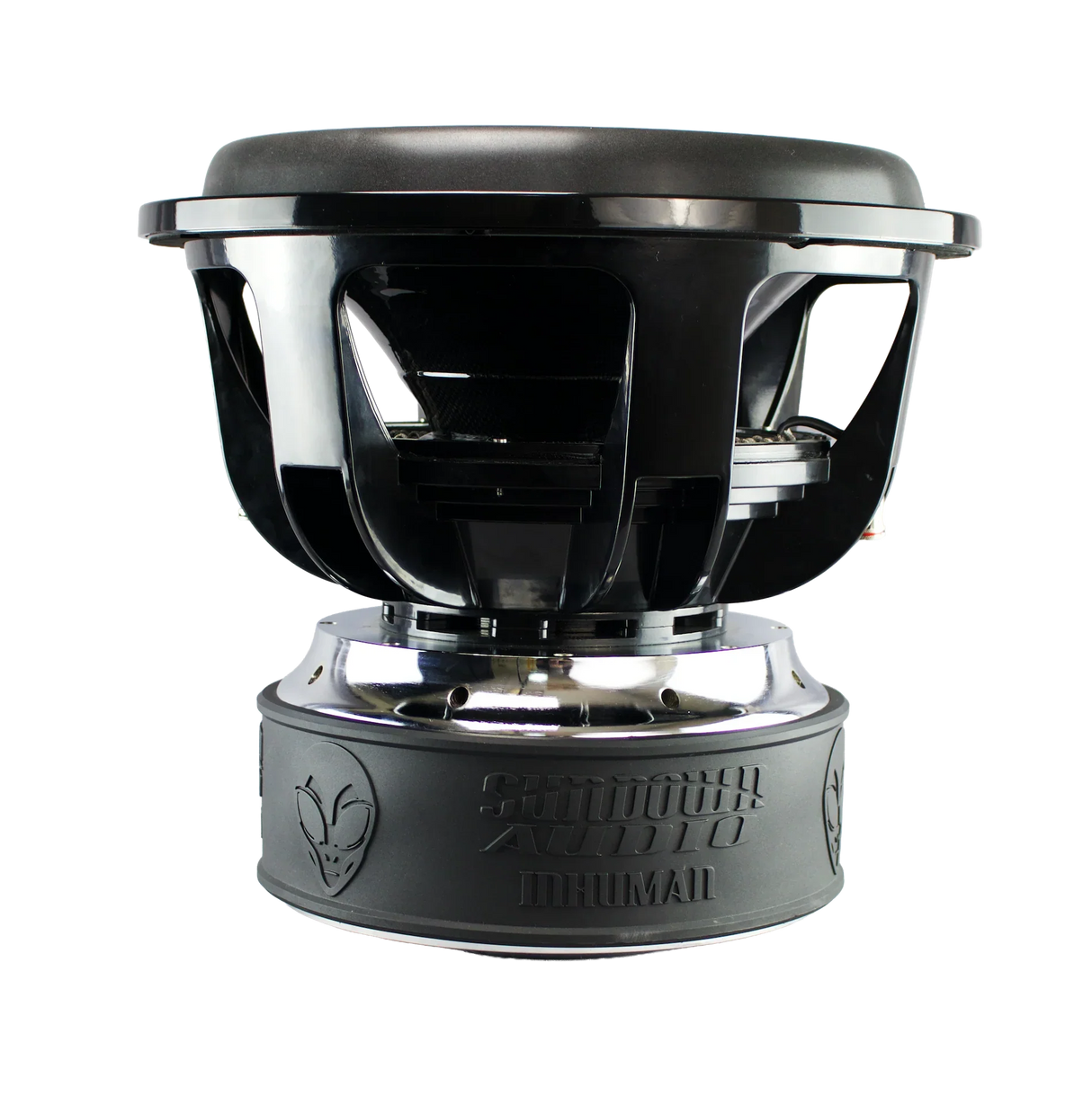

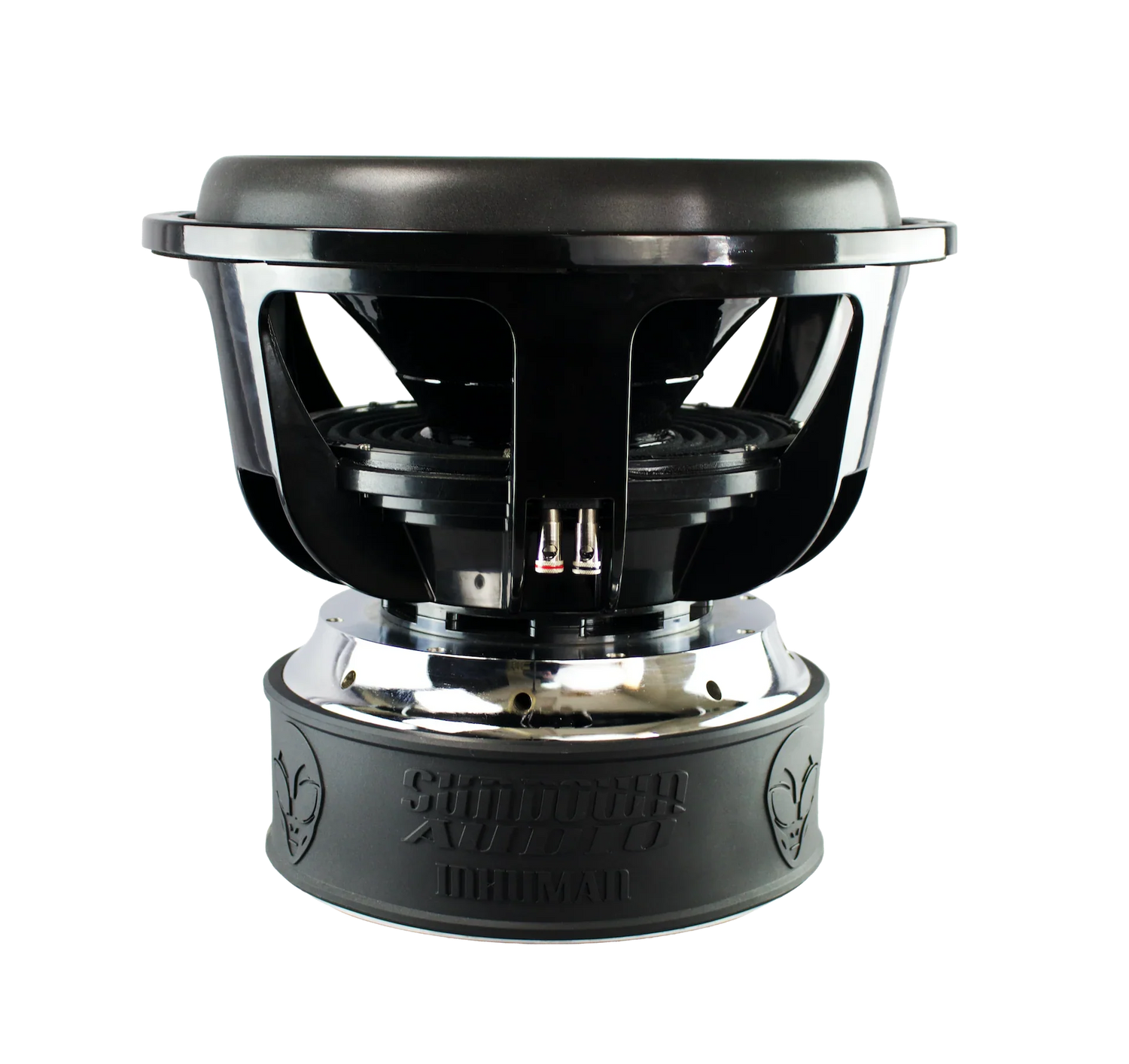

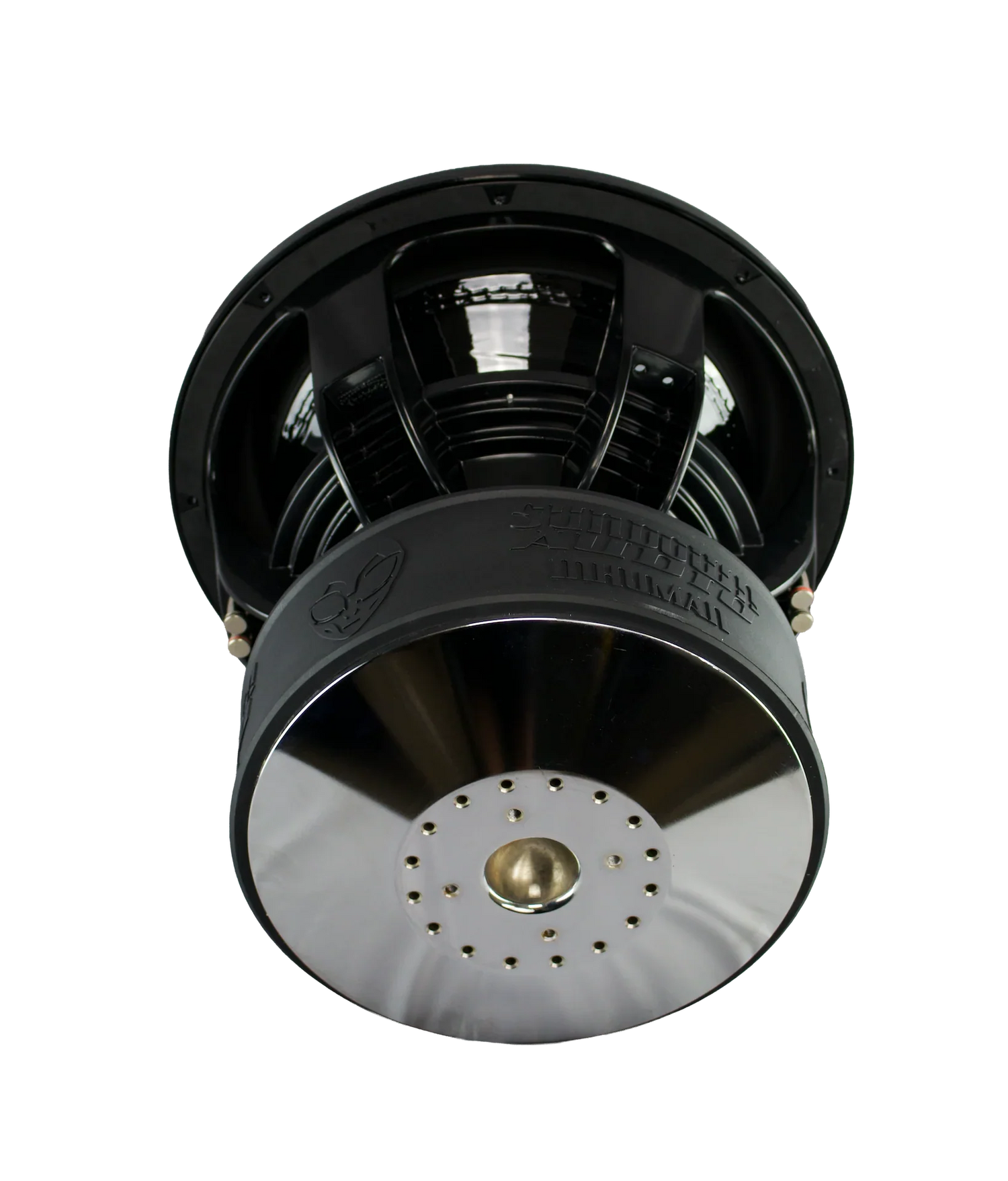

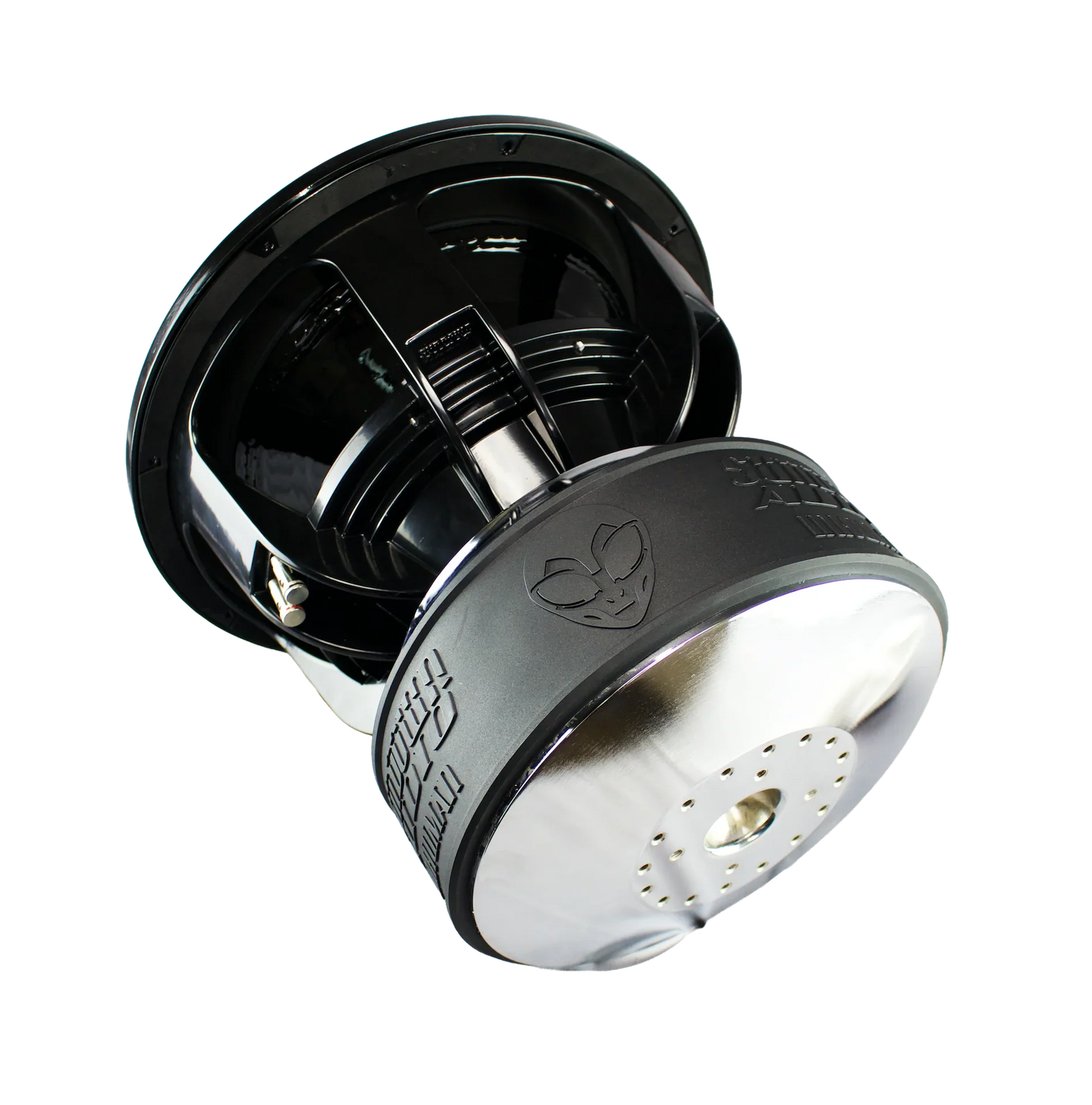

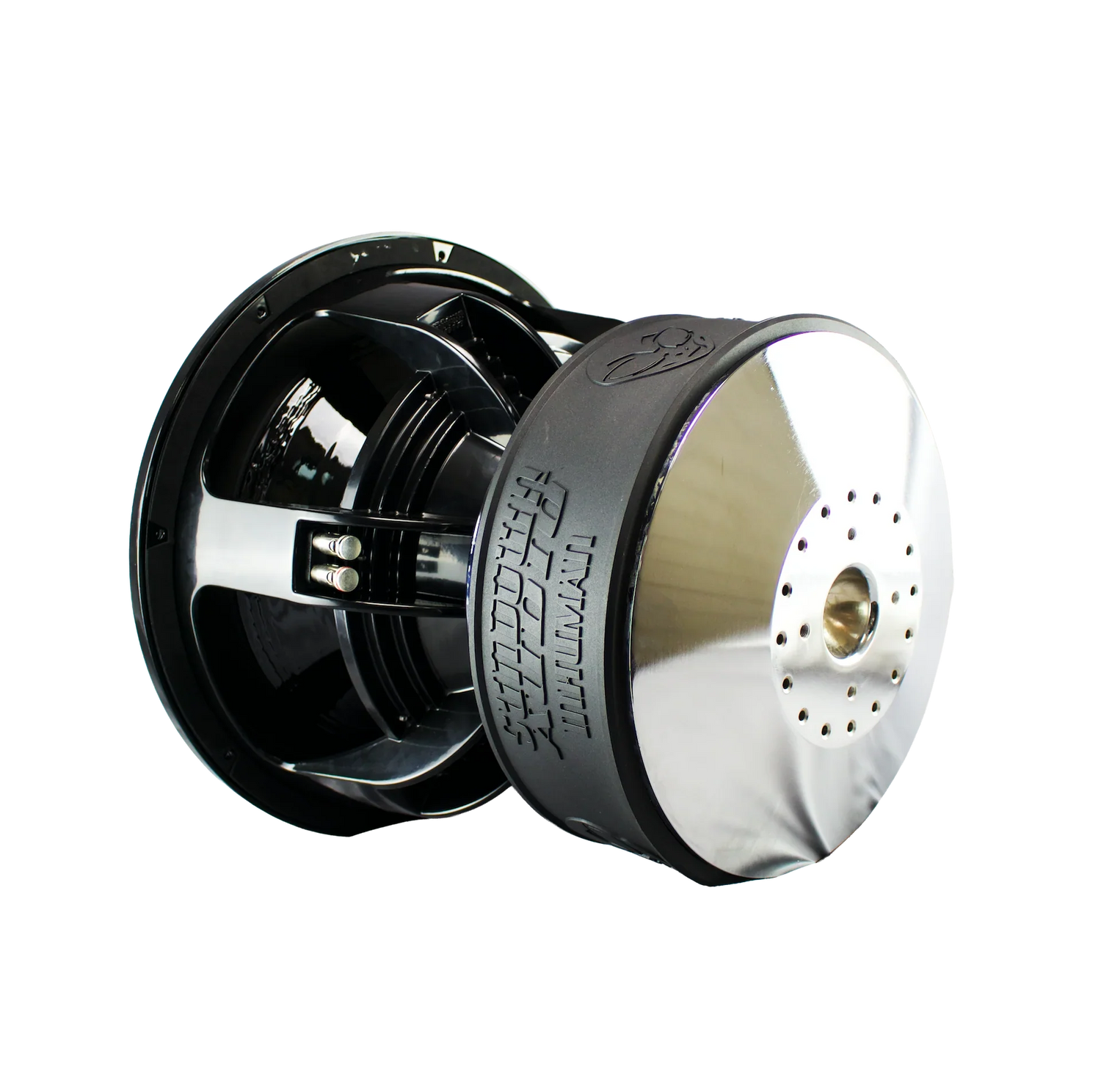

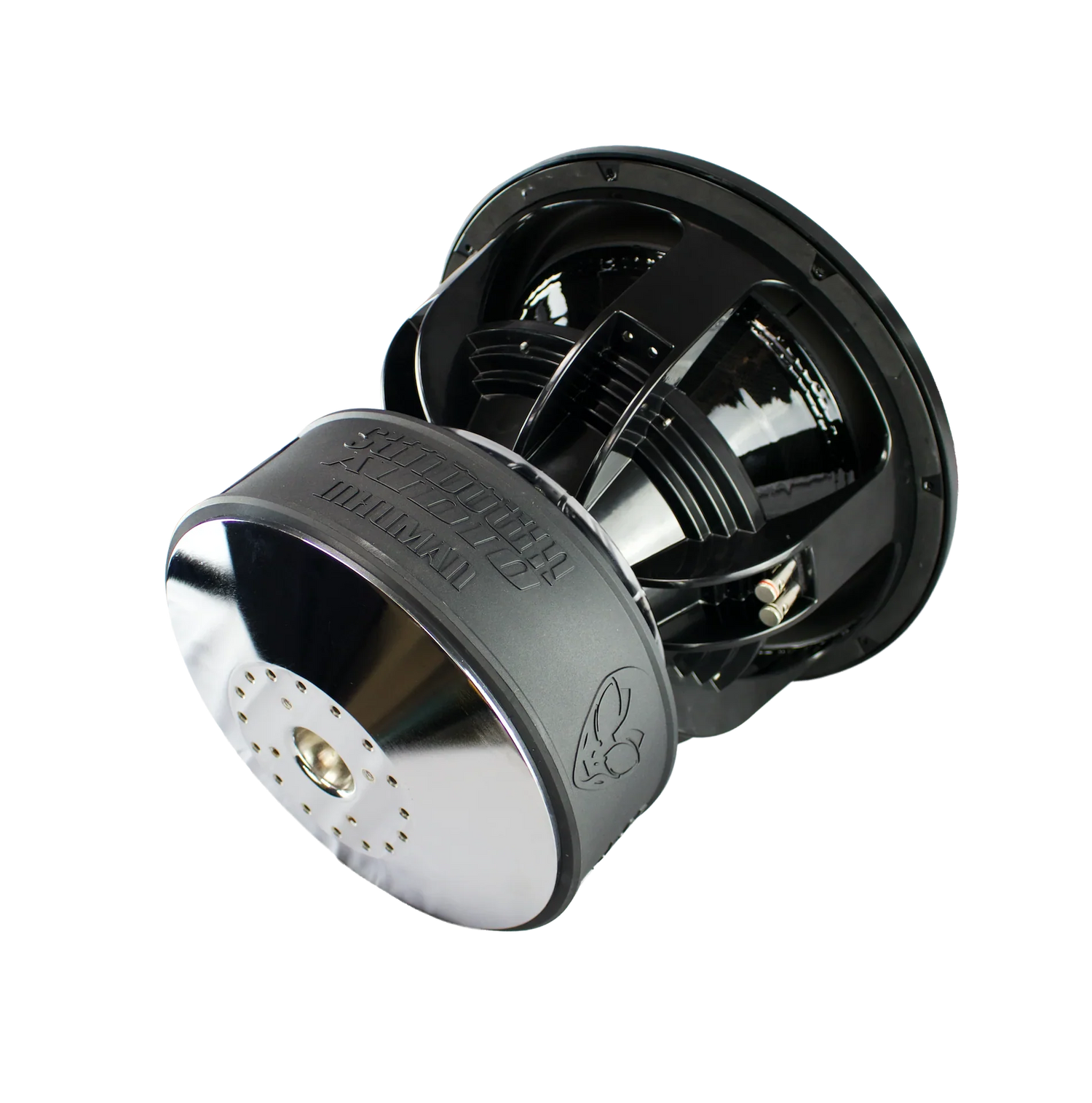

We have pushed the limits of what is possible with a primarily ferrite motor structure (it also features a Neo pole cap) – the InHuman weighs in at close to 190 pounds and not just for show (the motor force factor makes this quite clear). It features drilled & tapped bolt holes on the back-plate for mandatory motor support – even with out 10+ pound cast aluminum frame this motor is so enormous it still requires additional support.

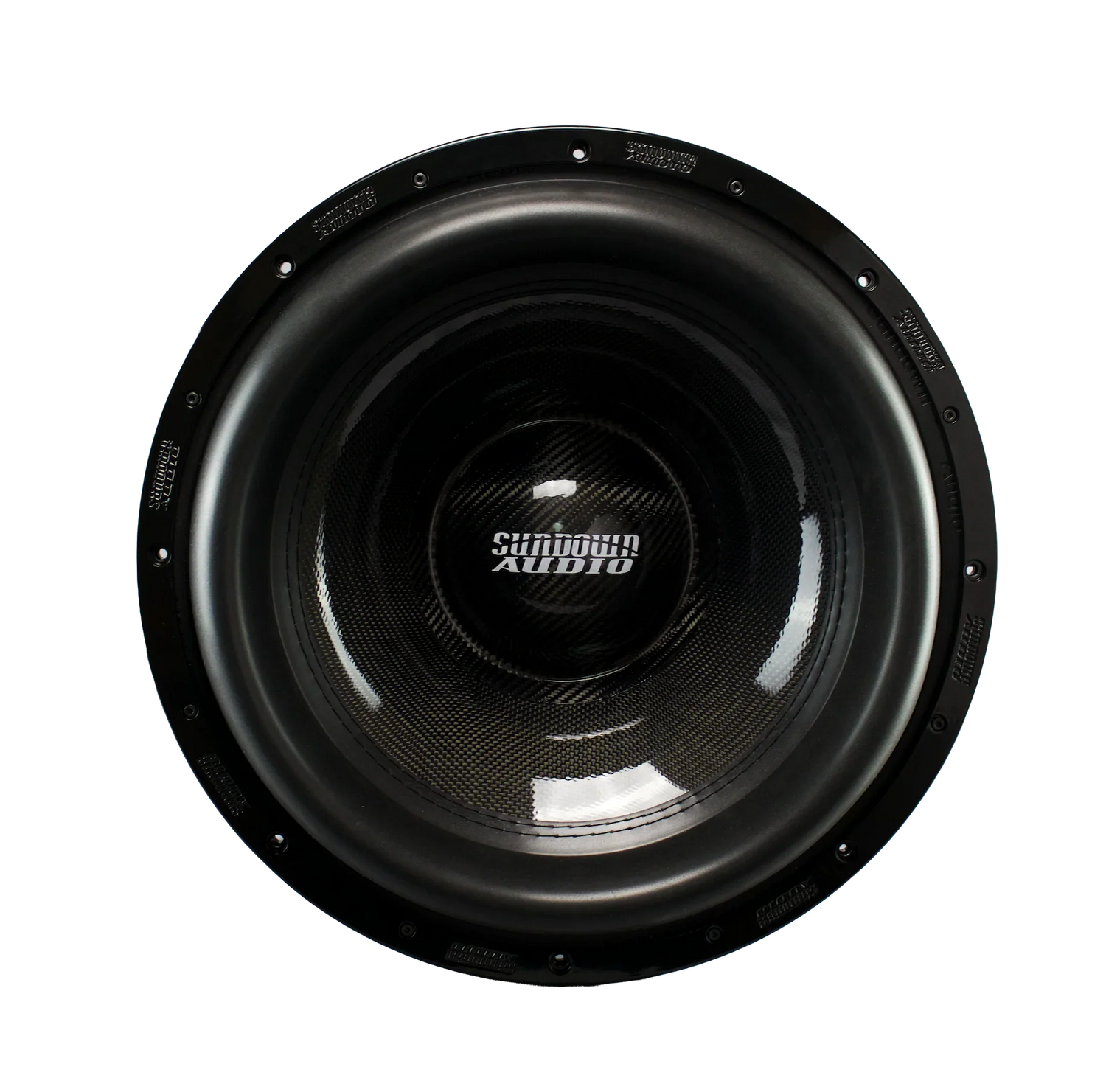

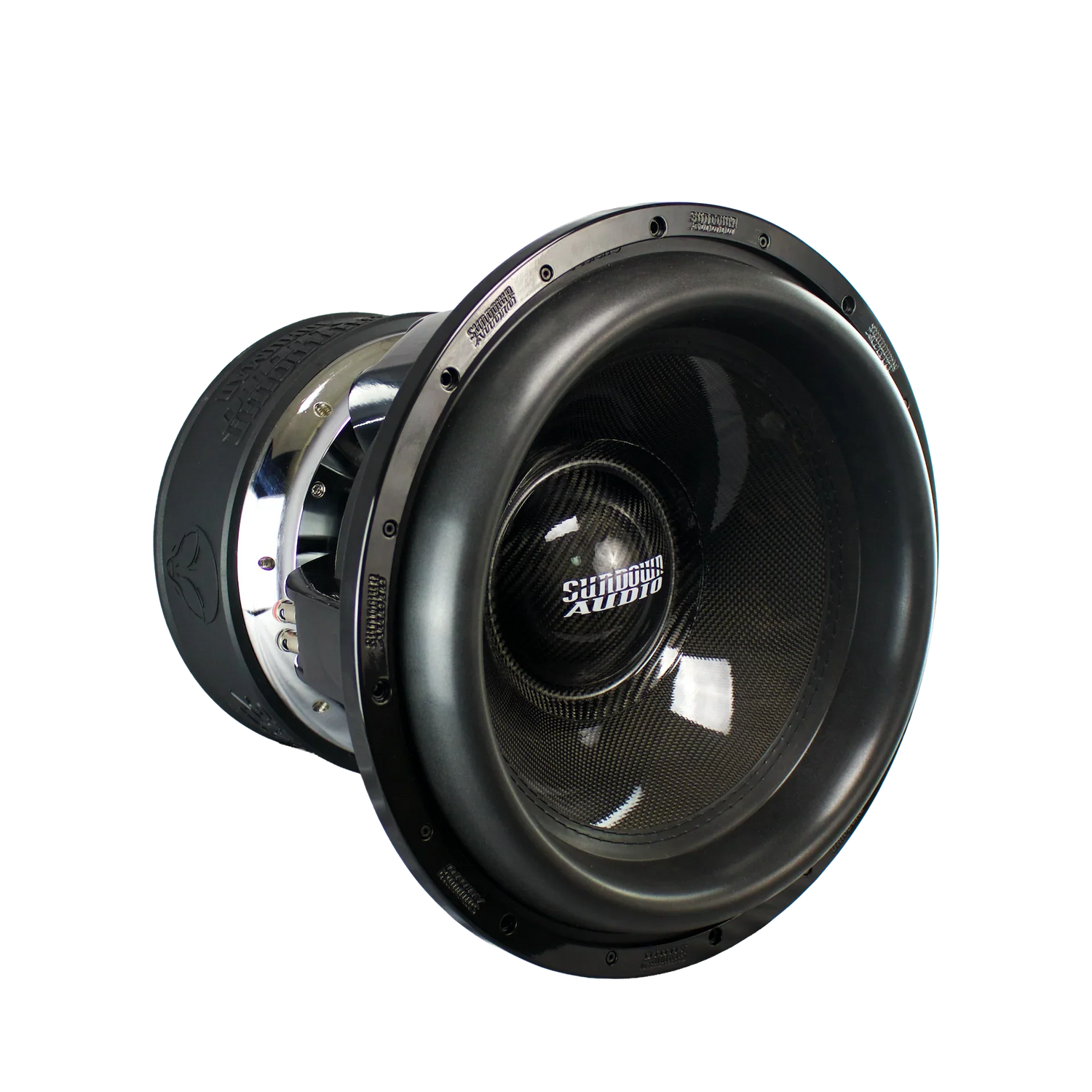

The spider alone has dozens of hours of computer FEA work in it and it supports excursion up to the limits of the frame itself. This extreme travel combined with the massive motor force required an entirely new triple-joint ring design as well that is proprietary to the InHuman. It features a full 40mm tall glue joint contact area. It is only available with a foam-core carbon fiber sandwich cone as nothing else would hold up to these extreme conditions.
This is a limited edition unit designed for the most outlandish builds possible. Buckle up and prepare yourself for the experience.
| Specification | Inhuman-18 D1 |
|---|---|
| Fs | 23.9 Hz |
| Re | 1.78 Ω |
| Qms | 3.601 |
| Qes | 0.208 |
| Qts | 0.197 |
| Mms | 1470.8 g |
| Cms | 30.10 um/N |
| Sd | 1641.9 cm² |
| Vas | 55.58 L |
| SPL (1w/1m) | 93.9 dB |
| BL | 43.421 |
| Le | 4.253 mH |
| X-Max | 41 mm |
| Xmech | 77 mm |
| Power (RMS) | 7500W |
| Power (Peak) | 15000W |
Enclosure Specs
| Specification | Inhuman-18 D1 |
|---|---|
| Overall Diameter | 18.62" |
| Cutout Diameter | 16.69" |
| Motor Diameter | 13" |
| Mounting Depth | 15.6" |
| Displacement | 0.70 Cu. Ft. |
| Sealed | Not Recommended |
| Ported Volume | 7.0 cu ft |
| Port Tuning | 32 Hz |
| Port Area | 100 sq in |
