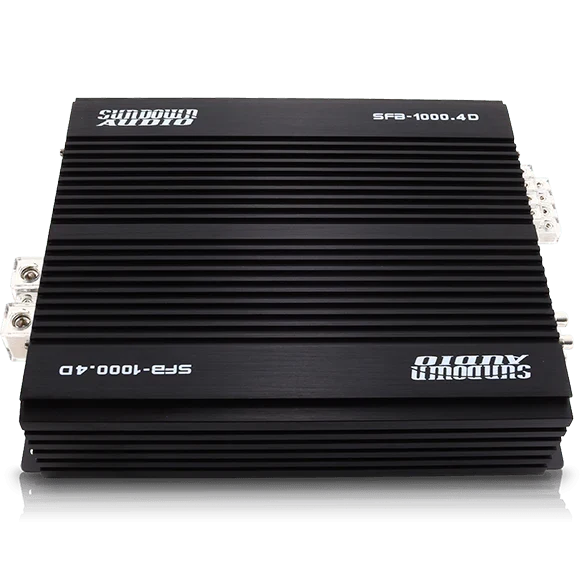

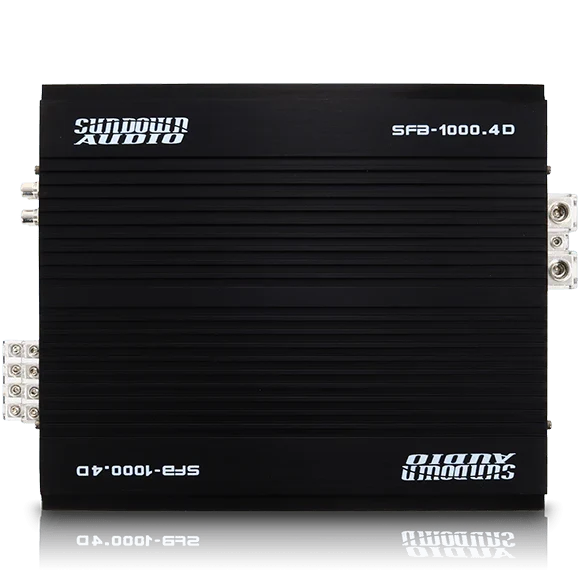

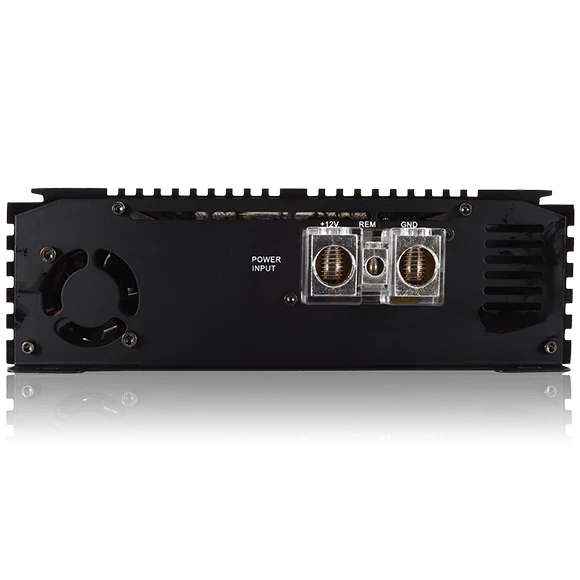

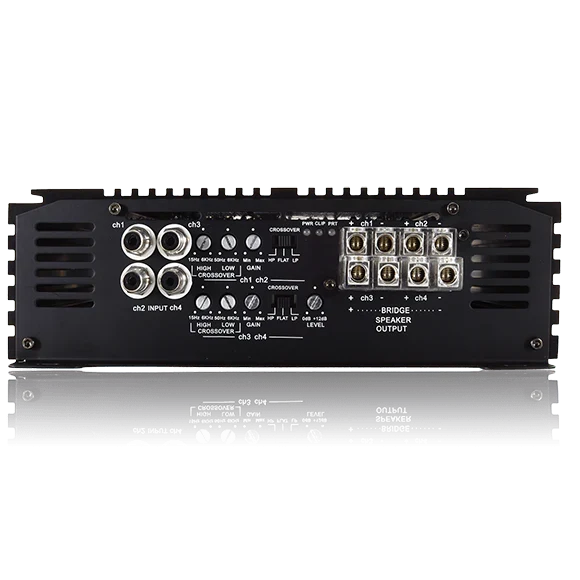

Sundown Audio SFB-1000.4 4-Channel Full Range Amplifier
Sundown Audio SFB-1000.4 4-Channel Full Range Amplifier is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
Sundown Audio SFB-1000.4 4-Channel Full Range Amplifier
Sundown Audio SFB-1000.4 4-Channel Full Range Amplifier is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
- 1,000 x 4 @ 1 ohm RMS
- 590 x 4 @ 2 ohms RMS
- 350 x 4 @ 4 ohms RMS
- 4-channel full-range amplifier
- Variable 12dB low pass filter: 50Hz – 6kHz
- Variable 12dB high pass filter: 15Hz – 6kHz
- Variable 12dB Bass Boost @ 50Hz
- Power, protection & clipping indicators included
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Optional wired remote control with clipping indicator
Introducing the Sundown Full Bridge line of amplifiers! The “Brazilian Style” SFB packs a powerful punch in a compact size, stable down to 1 ohm per channel. Use the SFB to wire several speakers together on every channel - an ideal amp for a PA mid/high speaker array, a large marine system, or your favorite set of separates. If you are looking for raw power on a budget – look no further!
Specifications
- Frequency Response: 10HZ-20KHZ(-3dB)
- Input Impedance: 56k ohms
- Input Sensitivity 5V Max
- S/N Ratio 100dB
- Minimum Supply Voltage: 9VDC
- Maximum Supply Voltage: 16VDC
- Working Voltage 10.5v-15.5v
- Recommended Fuse Rating 350A
- Dimensions 8.86″ x 10.43″ x 2.70″
