Sundown Audio U18 v.2 18" 2000W RMS Subwoofer DVC
Sundown Audio U18 v.2 18" 2000W RMS Subwoofer DVC - Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
Confirm vehicle fitment
Confirm vehicle fitment
Confirm fitment before ordering. Match the year, make, model, trim, engine, drivetrain and selected options shown on this page. If any detail is unclear, search your exact vehicle or contact us before checkout.
Shipping expectations
Shipping expectations
Availability and processing time can vary by manufacturer. Available shipping choices and charges appear at checkout. Tracking is emailed after shipment. Oversized, special-order and supplier-shipped items can require additional processing time.
Returns and cancellations
Returns and cancellations
Please review eligibility before purchase. Installed, used, electronic, custom, special-order and clearance items may have return restrictions. Contact us promptly if you need to change or cancel an order.
What’s included
What’s included
The product description and selected variant determine what is included. Items shown in lifestyle or installation photos are not included unless they are specifically listed in the description.
Sundown Audio U18 v.2 18" 2000W RMS Subwoofer DVC
Sundown Audio U18 v.2 18" 2000W RMS Subwoofer DVC - Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
- 2000 Watts RMS / 4000 Watts Peak
- Dual 2 or 4 ohm voice coils
- Optimized for small ported or bandpass enclosures
- Aluminum 3” voice coil former for superior heat dissipation
- High-temperature copper voice coil
- Double stitched surround
- Heavy-duty cast basket
- Spring-loaded terminals accept up to 8-gauge wire
- Stitched-on heavy-duty tinsel leads
- Solid pole with vent channels and aluminum shortin
g ring cap
- Rear gap-venting
- Top-Plate Cooling Channels

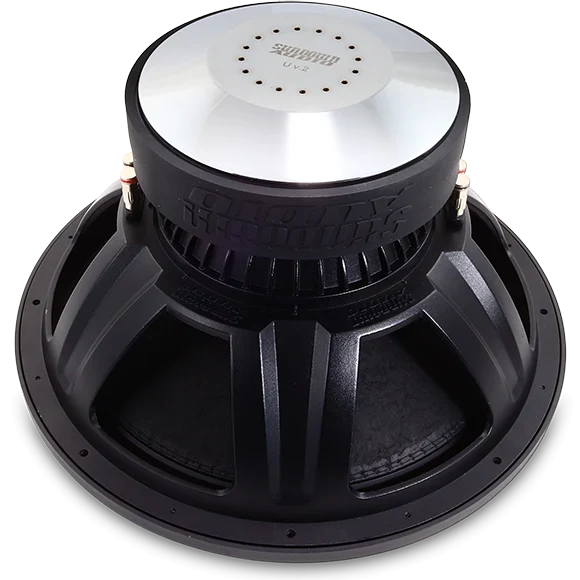

Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier “standard suspension” woofer in the Sundown lineup. A double-stacked 9.4-inch wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom aluminum frame was designed specifically for the U Series. It’s substantially thicker and equipped with heat dissipation ribs at the bottom of the frame. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is controlled with machined, high-velocity pole channels and a series of 16 direct air-gap vents in the back plate.
Specifications
| Specification | D2 Model | D4 Model |
|---|---|---|
| RMS Power | 2000 W | 2000 W |
| Peak Power | 4000 W | 4000 W |
| Displacement | .26cu ft | .26cu ft |
| Mounting Depth | 10" | 10" |
| Outside Diameter | 18.63" | 18.63" |
| Cutout Diameter | 16.9" | 16.9" |
| Motor Diameter | 9.7" | 9.7" |
| Sealed Enclosure | 3.0cu ft | 3.0cu ft |
| Ported Enclosure | 4.0cu ft | 4.0cu ft |
| Recommended Port Tuning | 35hz | 35hz |
| Recommended Port Area | 64sq in | 64sq in |
| Xmax | 30mm | 30mm |
| 4th Order Sealed | 2.25cu ft | 2.25cu ft |
| 4th Order Ported | 6.75cu ft | 6.75cu ft |
| 4th Order Port Area | 135sq in | 135sq in |
| 4th Order Port Length | 6" | 6" |
