Description
Description
This model has been discontinued. You can find similar models here!
HELOOOOOOoooooo

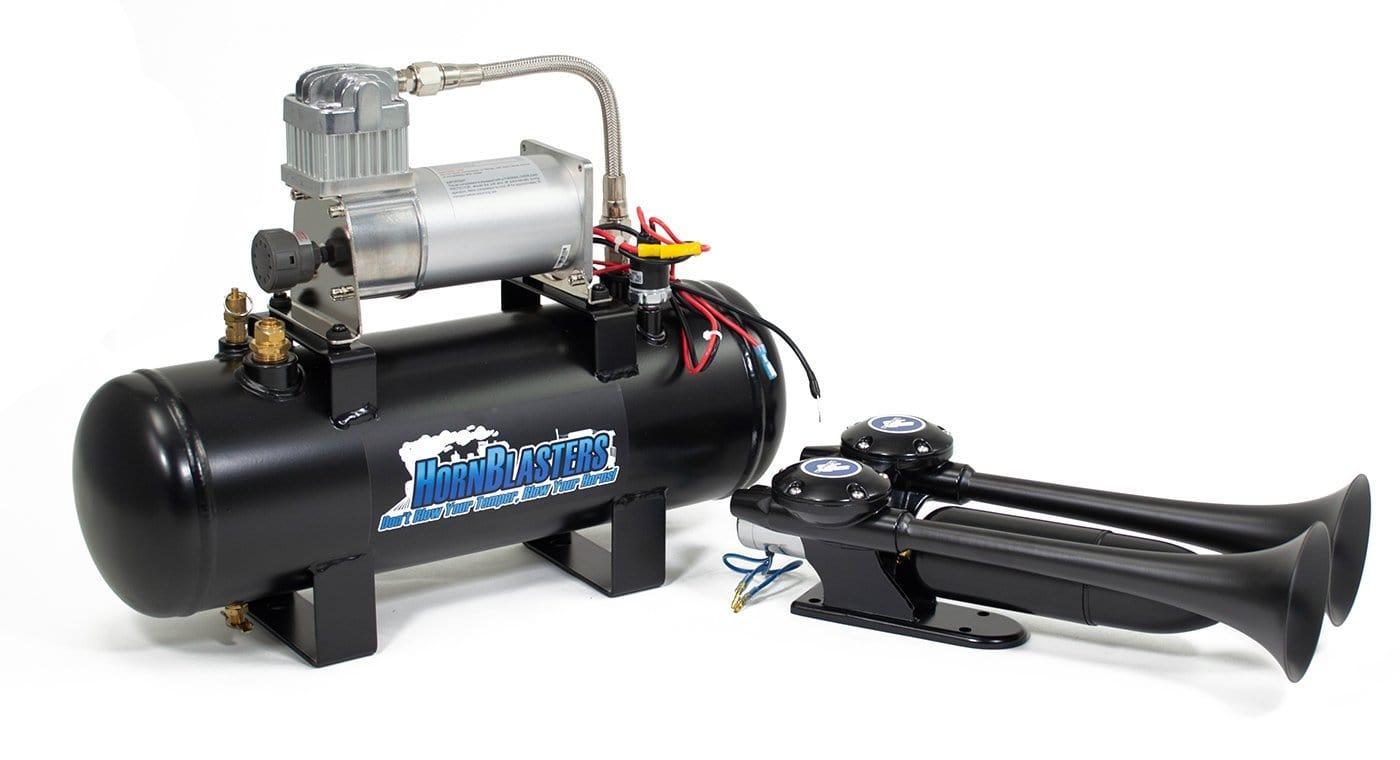

Stand out with the Super Echo 228H air horn kit, offering a unique high-pitched tone thanks to its dual chime stealth black air horn and specially engineered resonance chamber. This budget-friendly, beginner-oriented kit includes the compact HornAir 228H air source unit, providing up to 5 seconds of continuous honking and easy installation for vehicles with limited space.
- All-inclusive air horn solution!
- Heavy-duty air compressor for faster fills!
- 145 PSI Air system
- Max honk time: 4-5 seconds
- Unique pulsing tone

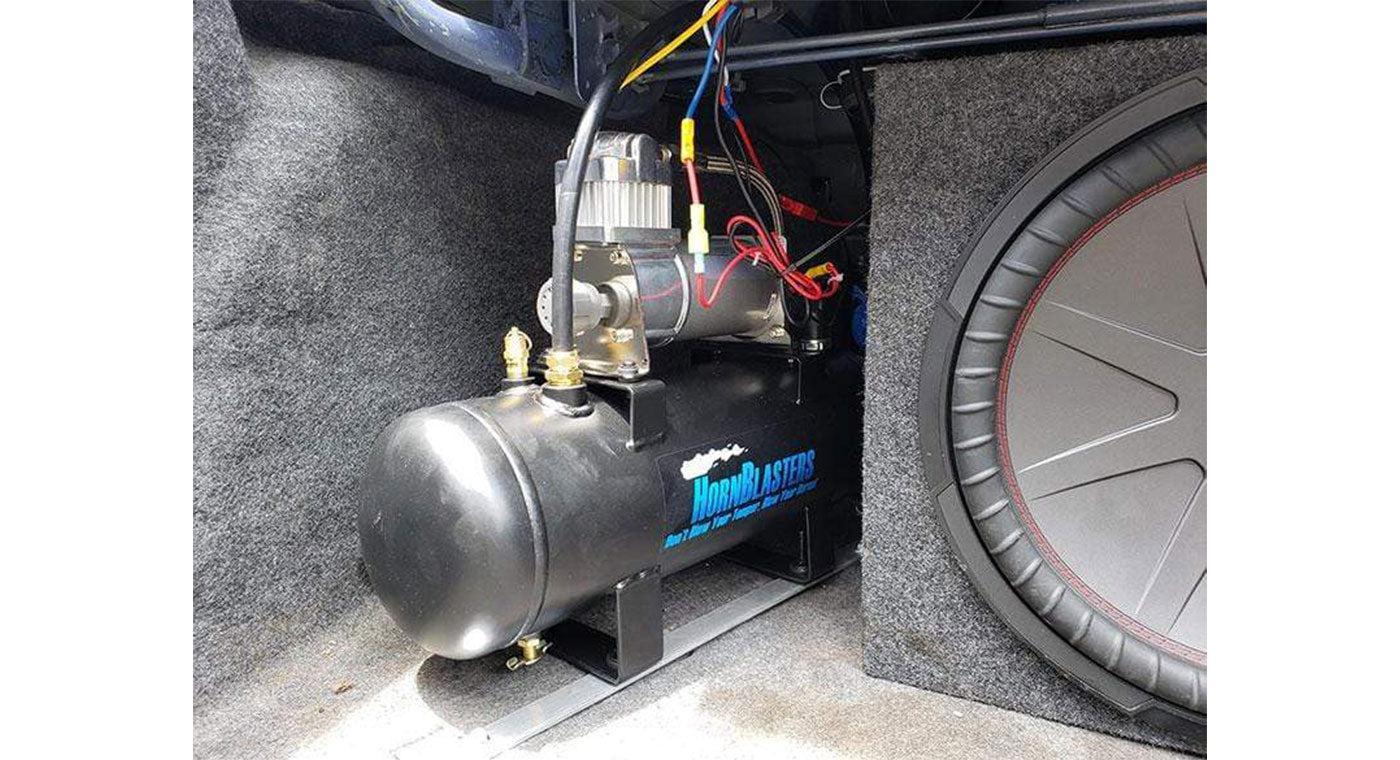

(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

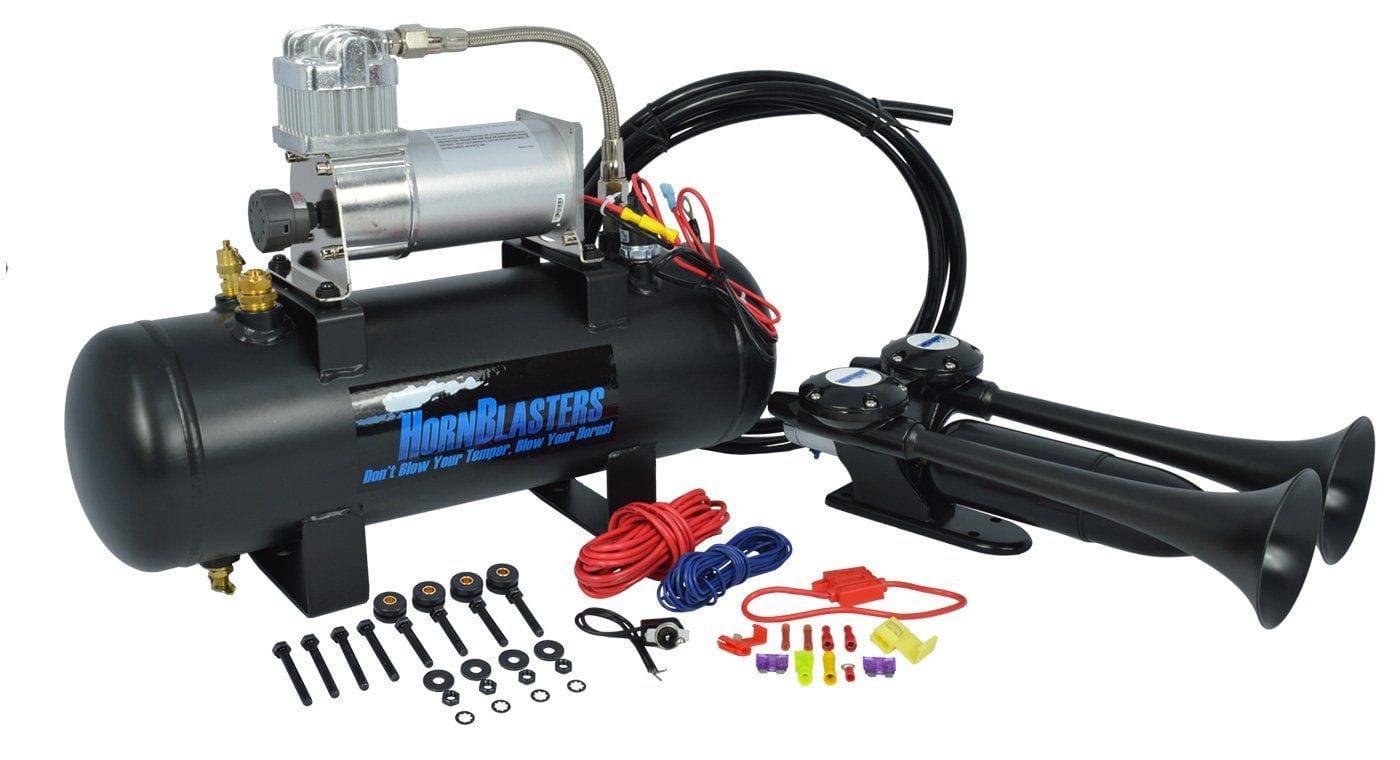

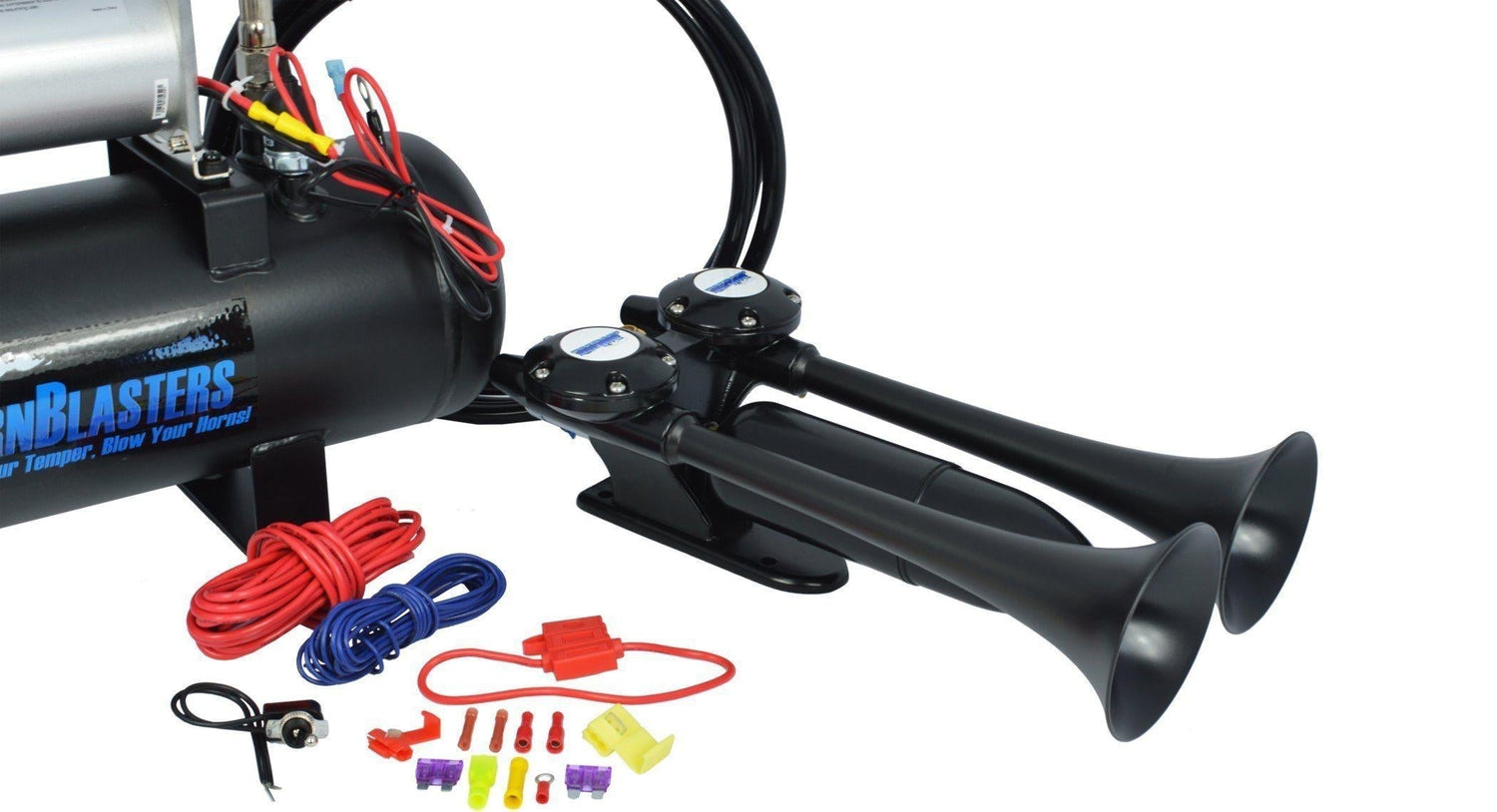

- HornBlasters Super Echo air horn
- HornBlasters 228H air source unit
- 17 ft of 1/2" D.O.T. approved air line
-
22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire
- Pre-Installed 1/4" electric air valve
- Brass NPT fittings kit including a safety blow-off & drain cock
-
Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Air line cutter
- Detailed instructions
- Earplugs
- Part Number: HK-D2K-228H
- Operating Pressure: 150 PSI
- Restart Pressure: 110 PSI
- Voltage: 12-Volt DC

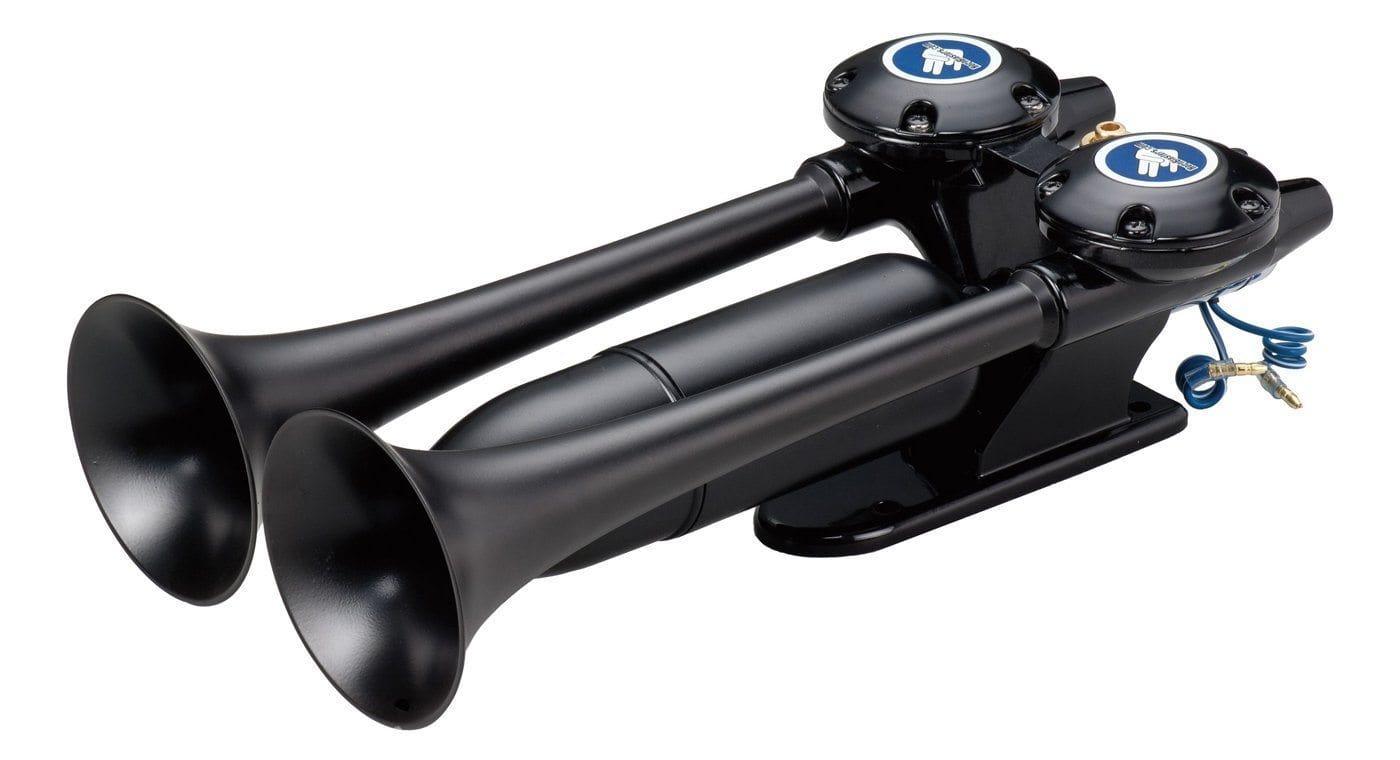

- Horn: HornBlasters Super Echo air horn
- Horn Length: 15.125" (384.17 mm)
- Horn Width: 7.75" (196.85 mm)
- Horn Height: 4.5" (114.3 mm)
- Horn Weight: 5.2 lb
- Horn Air Inlet: 1/2" air line
- Air Source Unit: HornBlasters 228H air source unit
- Air Source Length: 18.9″ (480.6 mm)
- Air Source Width: 5.9″ (149.86 mm)
- Air Source Height: 13.7″ (347.98 mm)
- Air Source Weight: 17.15 lb (7.78 Kg)
- Air Tank: 2-gallon 5 port air tank
- Volume: 2 Gal (8.8 L)
- Air Source Kit Compressor: 280C air Compressor
- Max Amperage: 19 amps
- Maximum Duty Cycle: 30% @ 100 PSI
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 10 | 0 | 45.0 | 10 |
| 10 | 1.49 | 12 | 1.0 | 40.2 | 13 |
| 20 | 1.33 | 13 | 2.0 | 32.1 | 14 |
| 30 | 1.11 | 14 | 3.0 | 29.0 | 15 |
| 40 | 1.04 | 15 | 4.0 | 26.4 | 16 |
| 50 | 0.99 | 15 | 5.0 | 24.2 | 16 |
| 60 | 0.92 | 16 | 6.0 | 22.0 | 17 |
| 70 | 0.87 | 16 | 7.0 | 21.0 | 19 |
| 80 | 0.81 | 17 | 8.0 | 19.4 | 18 |
| 90 | 0.76 | 17 | 9.0 | 17.5 | 17 |
| 100 | 0.74 | 19 | 10.0 | 15.3 | 17 |
| 110 | 0.71 | 19 | |||
| 120 | 0.67 | 18 | |||
| 130 | 0.62 | 17 | |||
| 140 | 0.57 | 17 | |||
| 150 | 0.51 | 17 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
-
