PMF Superduty Spring Reverse Shackle Kit (1992-1997 Ford F250/350)

Super Duty Spring Reverse Shackle Kit (1992-1997 OBS Ford 4x4)

Upgrade your 1992-1997 OBS Ford F-250/F-350 with the PMF Super Duty Spring Reverse Shackle Kit (RSK)—the first fully bolt-on conversion kit that allows the installation of 1999-2004 Super Duty leaf springs without modifying your frame or bumper. This kit is designed to improve ride quality, handling, and suspension travel, making your truck ride and drive like a 1999-2004 Super Duty.

Key Features:

• True Bolt-On Installation:

  • No frame or bumper modifications required—hangars bolt directly to existing factory holes.
  • Optional bolt locations for additional clearance when installing an intercooler (requires drilling two 1/2” holes per side).

• Improved Ride Quality:

  • Relocates the shackle to the rear of the spring, eliminating resistance when hitting bumps.
  • Uses longer Super Duty leaf springs, allowing smoother suspension movement.

• Three Lift Height Options:

  • The kit itself provides lift, but final ride height will also depend on the Super Duty spring code used.

• Heavy-Duty Construction:

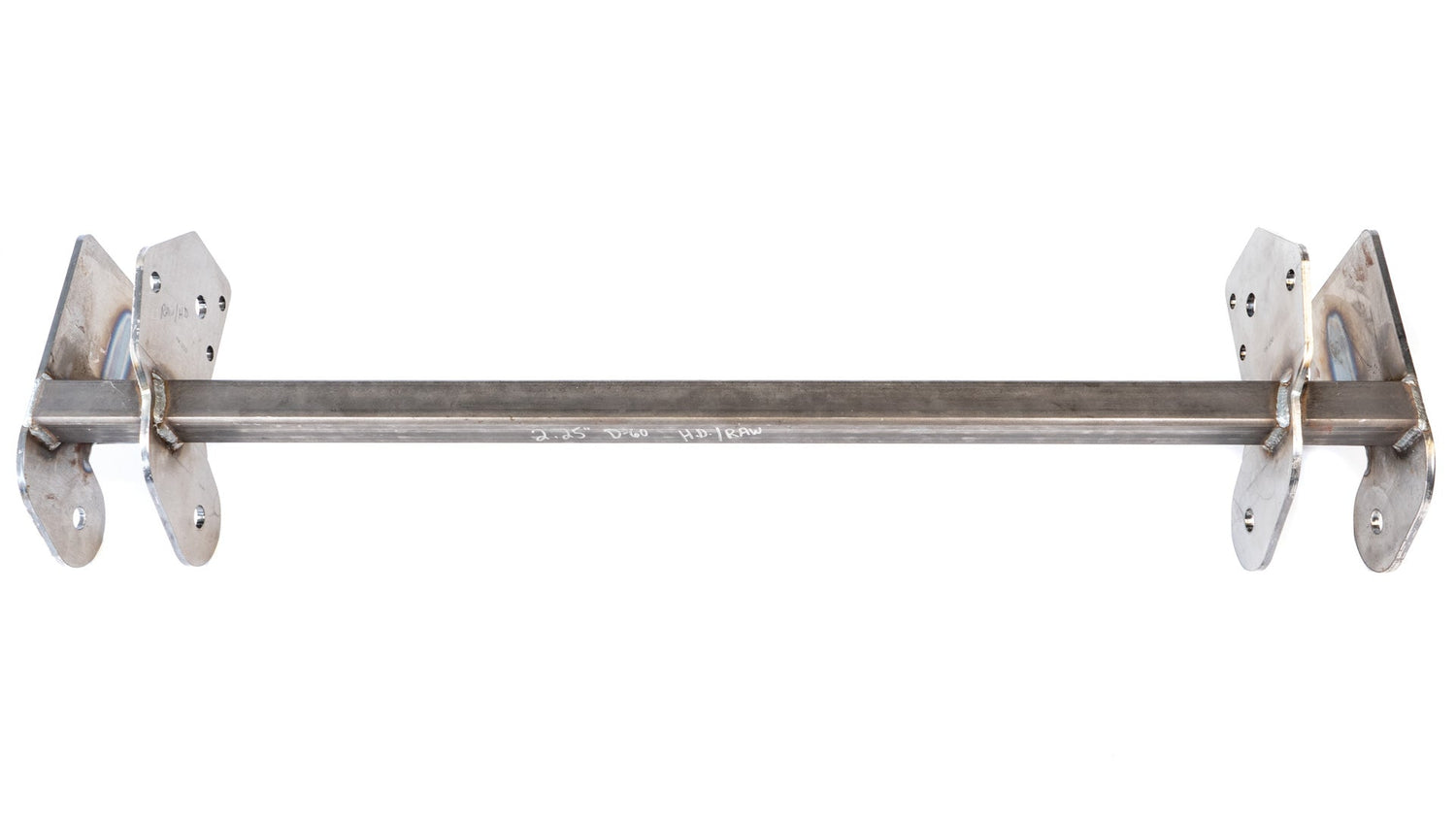

  • Includes a 1/4” wall square crossbar that reinforces the frame and stabilizes the front hangers.

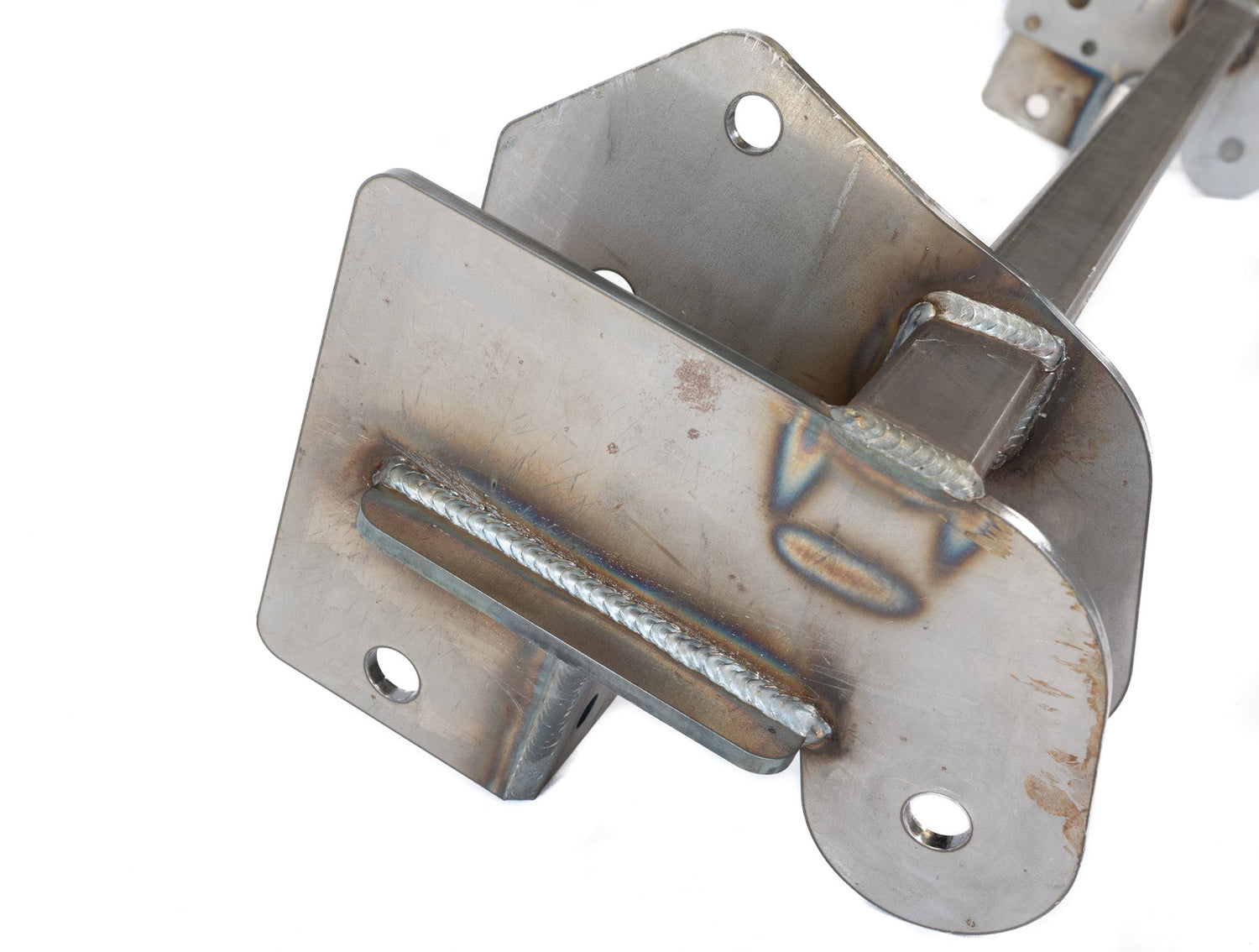

  • Precision laser-cut brackets for superior strength and longevity.

Fitment & Important Notes:

✔ Designed for 1992-1997 OBS Ford F-250 & F-350 4x4 with a boxed frame rail.
✔ If using a 1999-2004 Super Duty axle, select the SD Axle configuration for proper fitment.
✔ For open frame rails: You must purchase the Front Frame Rail Box Kit (sold separately).
✔ For 2WD Trucks: You will need to source shackle pivot brackets or purchase our adjustable replacements.

🚨 Leaf Spring Requirements:

• You MUST use OEM 1999-2004 Super Duty Leaf Springs or aftermarket springs that match the exact 55 3/8” eye-to-eye length.
• Some aftermarket springs, especially Pro Comp leaf springs, are too short, causing issues with axle placement and shackle geometry.

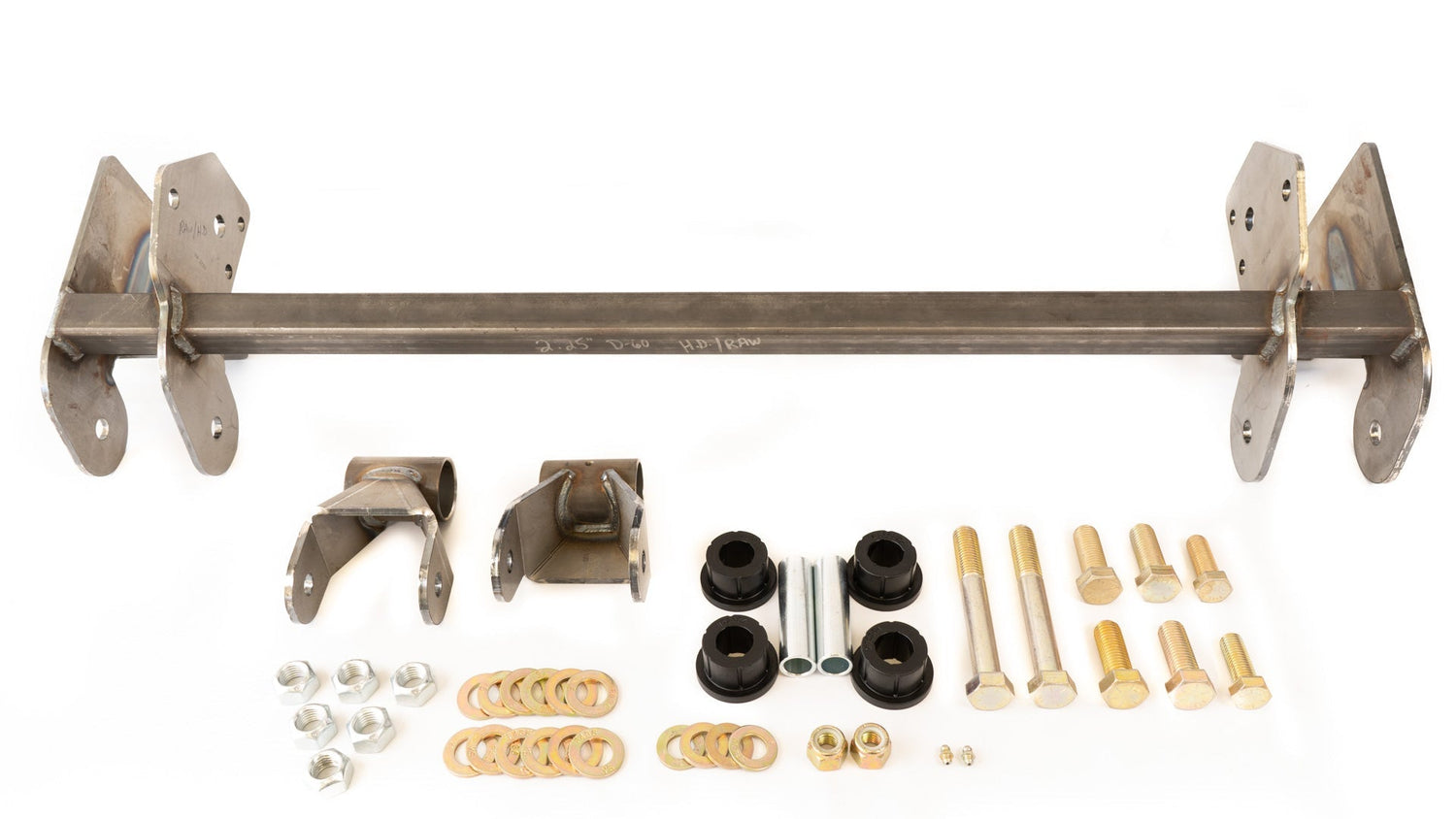

What’s Included?

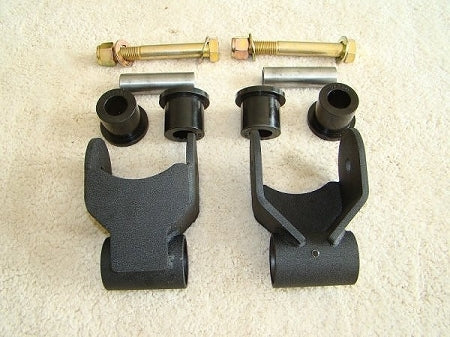

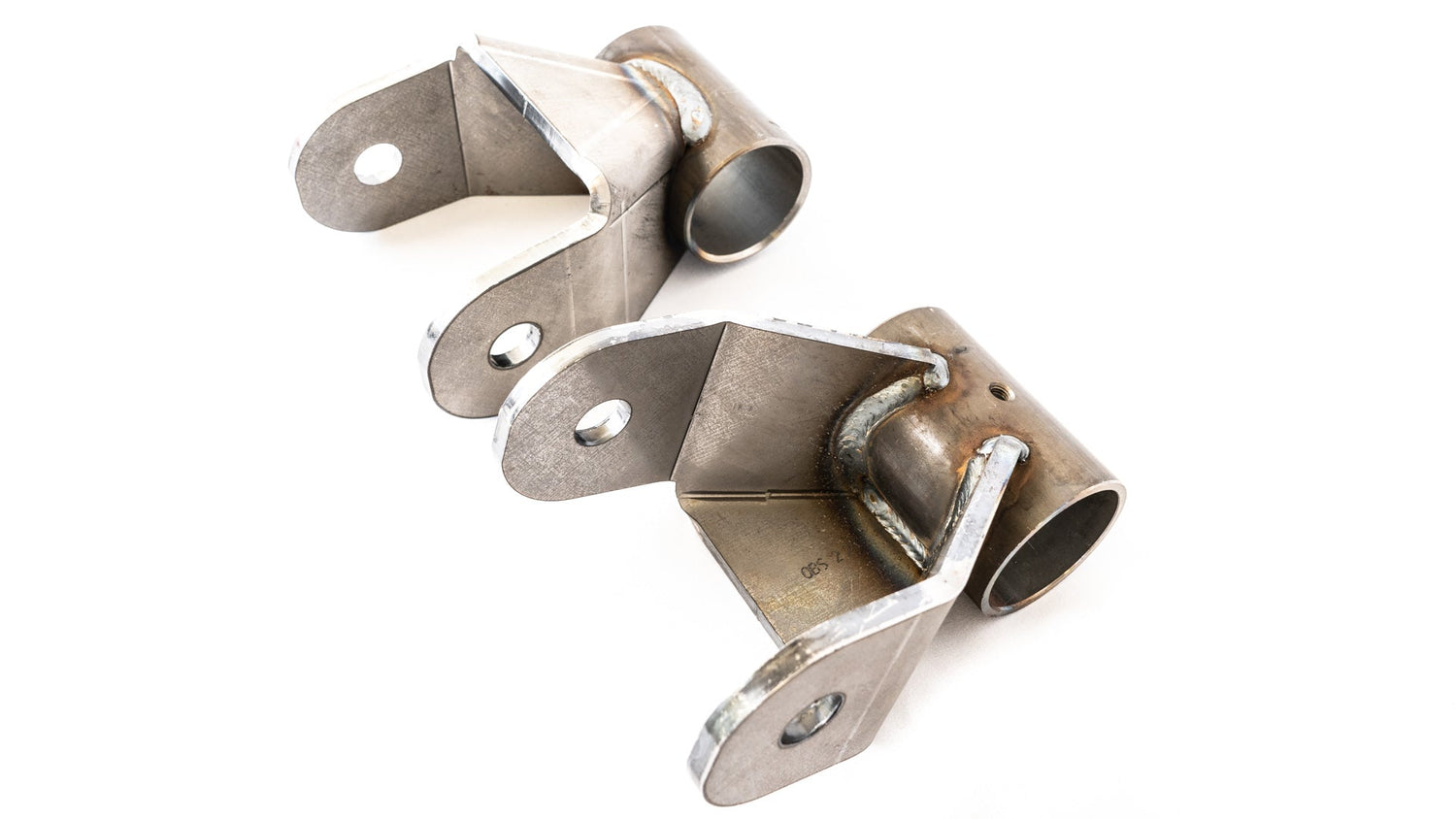

✔ Front Hangers & Rear Shackles
✔ Heavy-Duty 1/4” Wall Crossbar for Added Frame Rigidity
✔ All Necessary Assembly Hardware

🔧 Super Duty springs and spring eyelet bolts are NOT included.

Build Time & Finish Options:

• Bare Steel Finish: ~3 weeks lead time.
• Powder-Coated Finish: ~4 weeks lead time.

Why Upgrade?

✔ Transforms Your OBS Ford’s Ride Quality – Achieve the smoother handling of a 1999-2004 Super Duty.
✔ Proven Strength & Durability – Heavy-duty components for long-lasting performance.
✔ Easier Suspension Upgrades – Works with lifted or stock-height Super Duty springs for additional customization.

Upgrade your 1992-1997 OBS Ford with the PMF Super Duty Spring Reverse Shackle Kit for unmatched ride quality, improved suspension geometry, and a true bolt-on installation! 🚛🔥
