Timpano TPT-10500EQ 1 Channel 1 Ohm Car Audio Amplifier
Timpano TPT-10500EQ 1 Channel 1 Ohm Car Audio Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Small Footprint Technology!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact fullrange amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D fullrange amplifier.
Additional Information:
Number of Channels: 1
RMS Power at 1 Ohm 12.6V: 10500W RMS
RMS Power at 2 Ohm 12.6V: 6400W RMS
RMS Power at 4 Ohm 12.6V: 3900W RMS
RMS Power at 1 Ohm 14.4V: 11600W RMS
RMS Power at 2 Ohm 14.4V: 7300W RMS
RMS Power at 4 Ohm 14.4V: 4800W RMS
Supply Voltage: 9.5 ~ 15V
Frequency Response: 10Hz ~ 15KHz
Crossover Low Pass: 50Hz ~ 15KHz
Crossover High Pass: 10Hz ~ 700Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Sensitivity: 0.2V
Input Impedance: 25K Ohm
Impedance Output: 1 Ohm
Consumption with Signal Musical: 6.7A ~ 495A
Consumption with Signal Bass: 6.7A ~ 990A
Dimensions (L x W x H): 11.57” x 20” x 3”
Weight: 16.50 Lbs
Features:

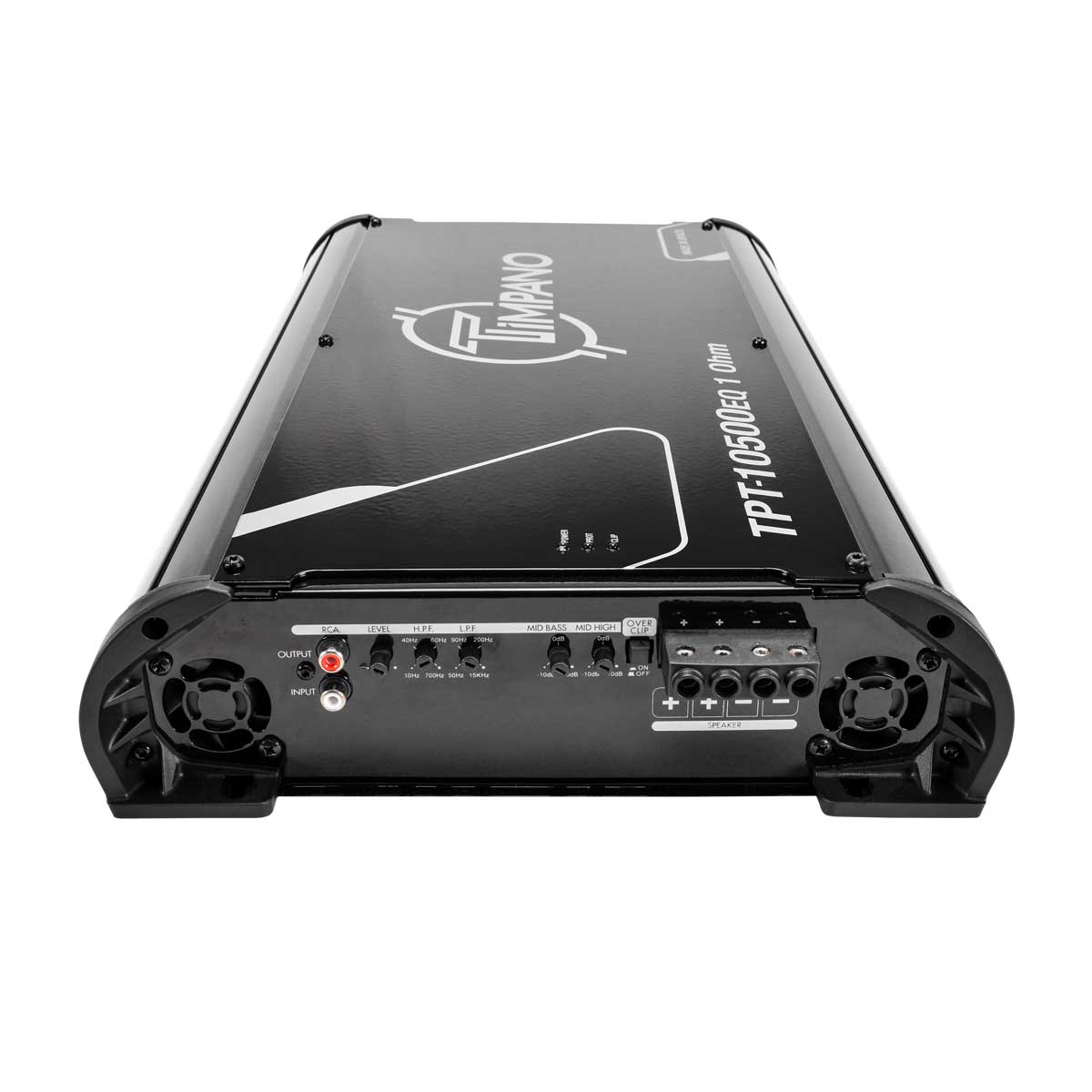

The TPT-10500EQ offer 1 channel with advanced individual equalization features for Bass, Midbass and Midhigh, plus the traditional Level, High Pass and Low Pass features. Its Fullrange frequency response from 10Hz to 15KHz allows the installation of Subwoofers, Woofers, Drivers and Tweeters.
