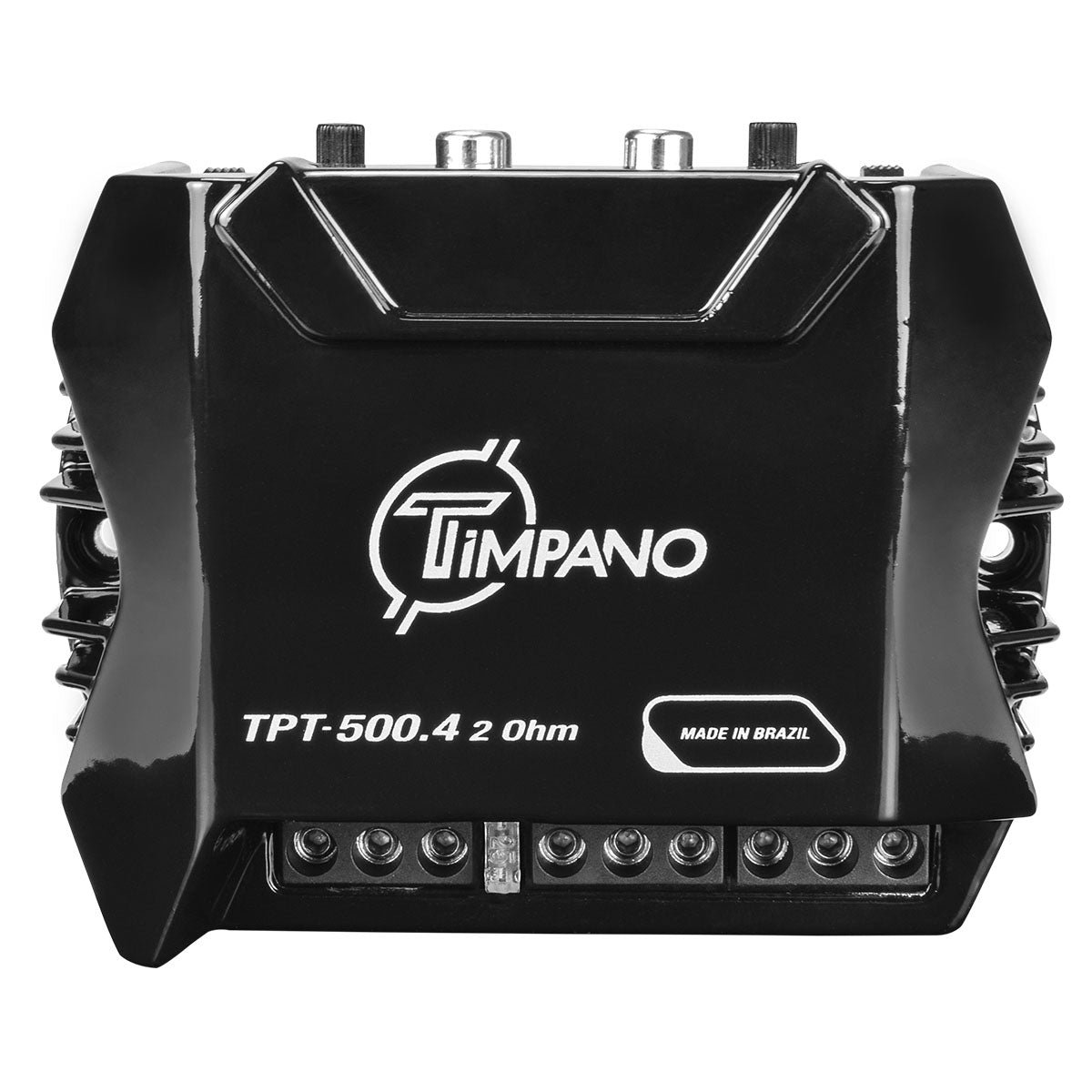

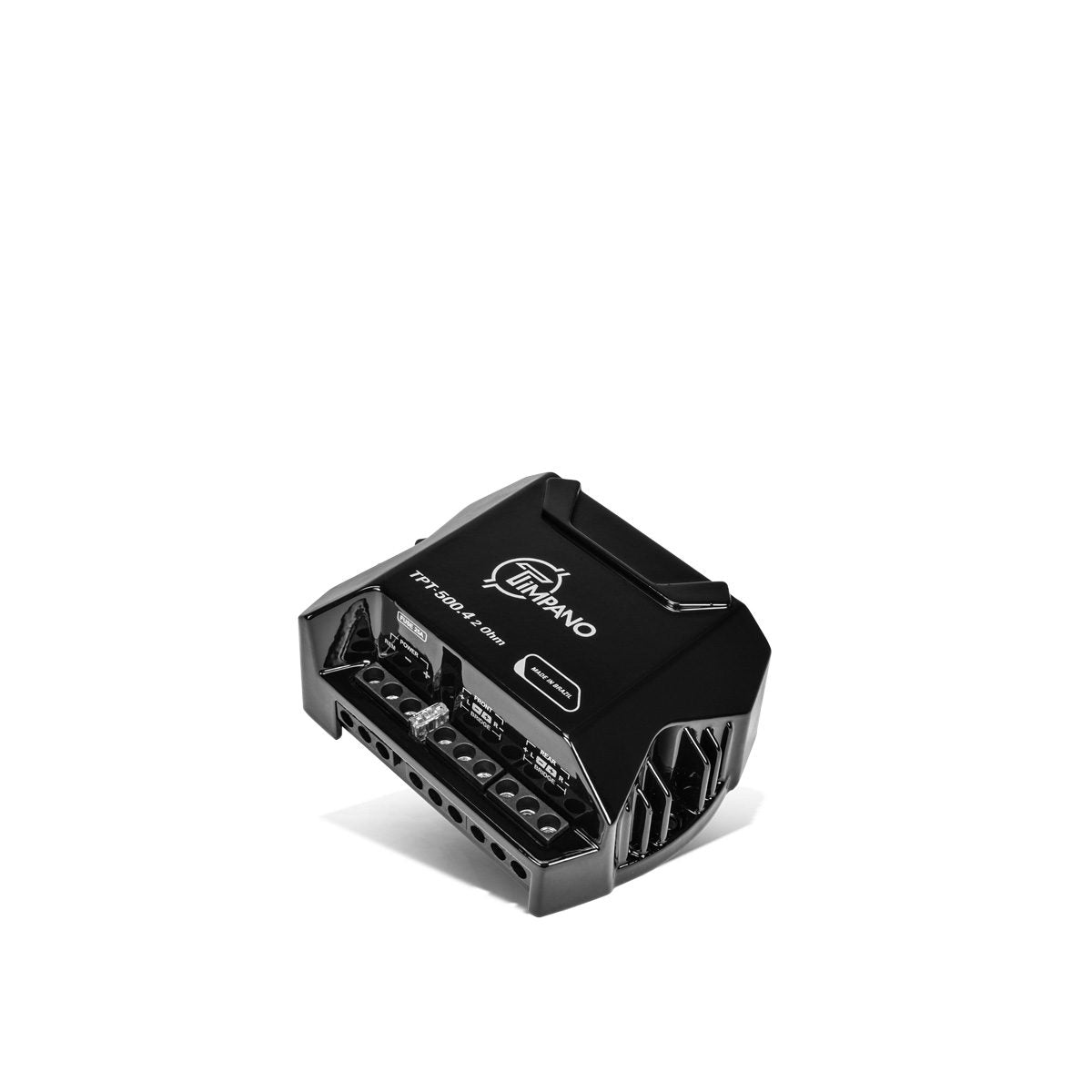

TPT500.4 Timpano Compact 4 Channel Amplifier
TPT500.4 Timpano Compact 4 Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Small Footprint Technology! HD Sound Quality!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% in a compact Class D full range amplifier.

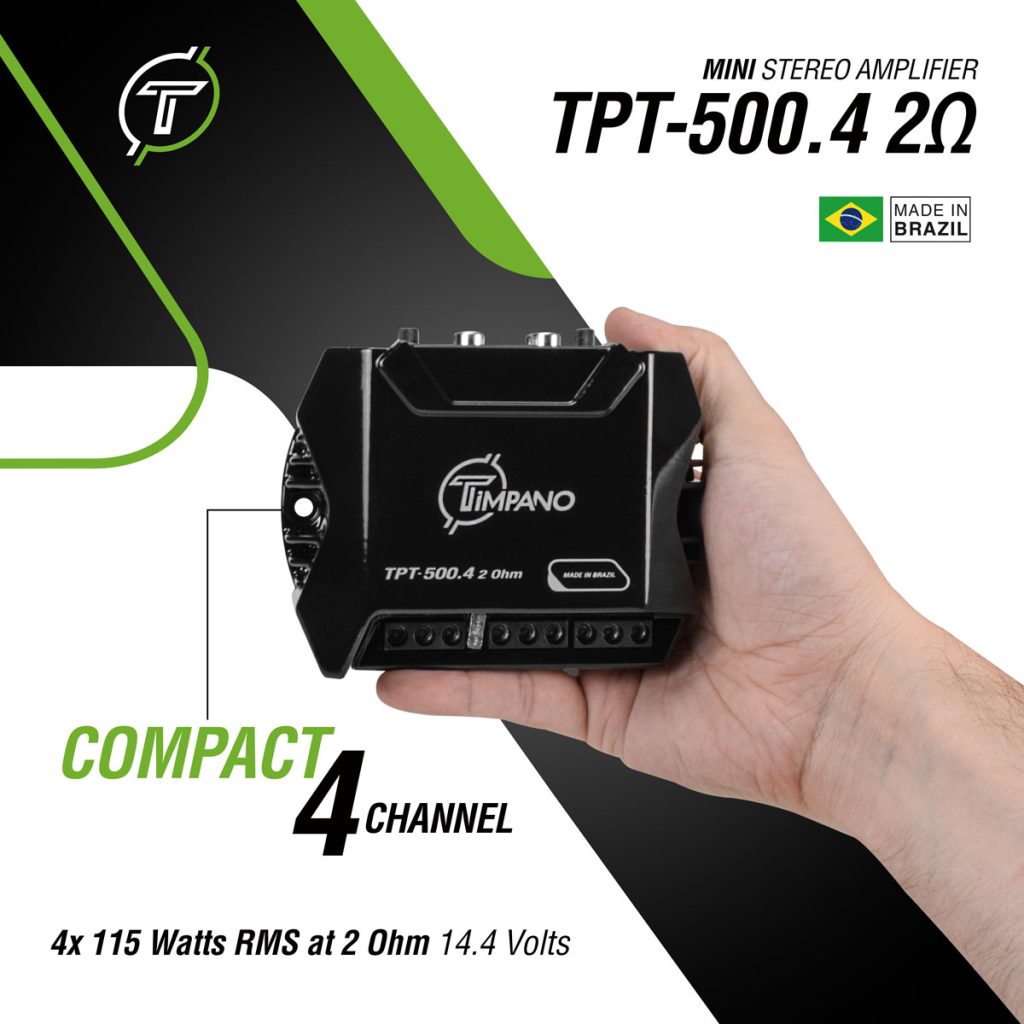

- COMPACT DESIGN: Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 3.93″ depth x 5.02″ width x 2″ height

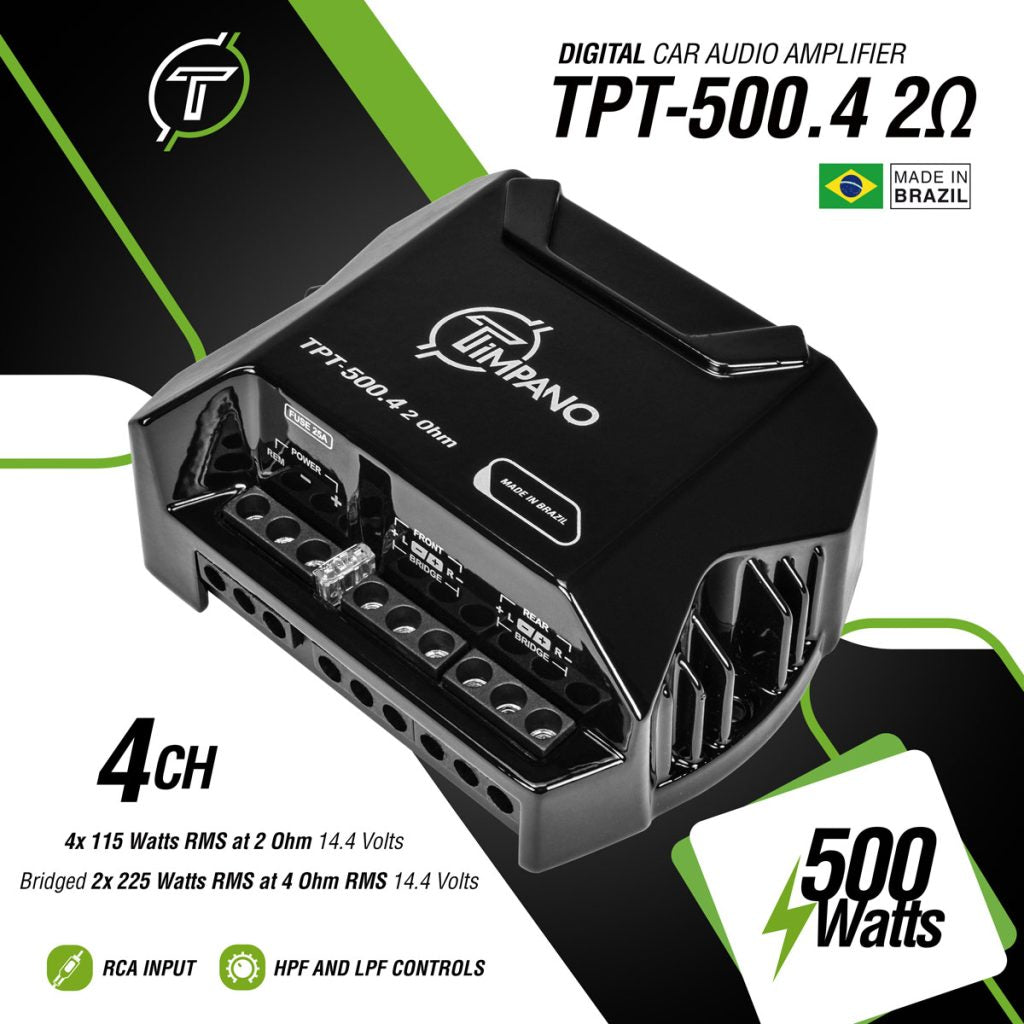

- POWER: This amplifier is designed to run your stereo system with the power it needs to perform! 500 Watts maximum dynamic RMS power output of 4x 125 Watts at 2 Ohm per channel. Its high efficiency rate of 87% provides more power with less battery consumption.
- BRIDGEABLE: Double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohm per bridged channel at output power of 2 x 225 Watts RMS
- TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 10 to 24,000Hz was used to give the best sound reproduction on this tiny amplifier.

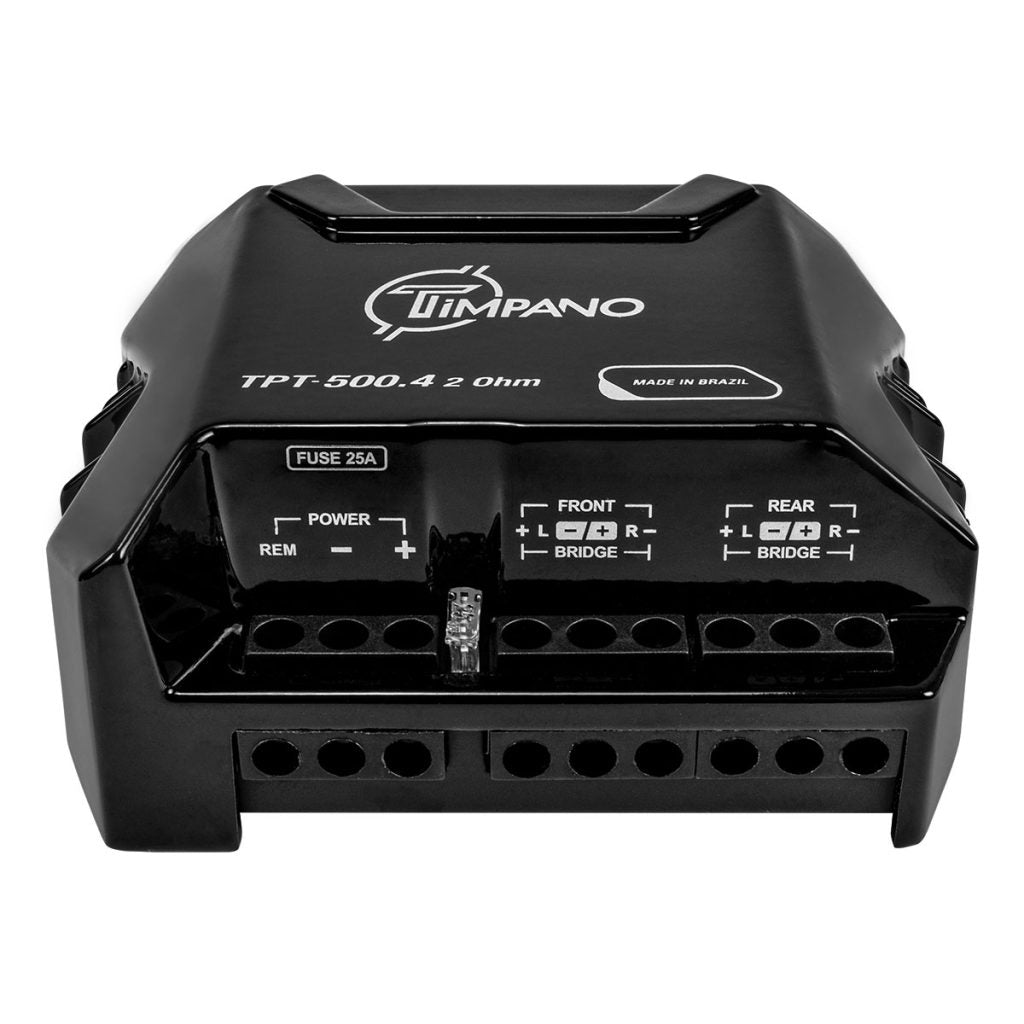

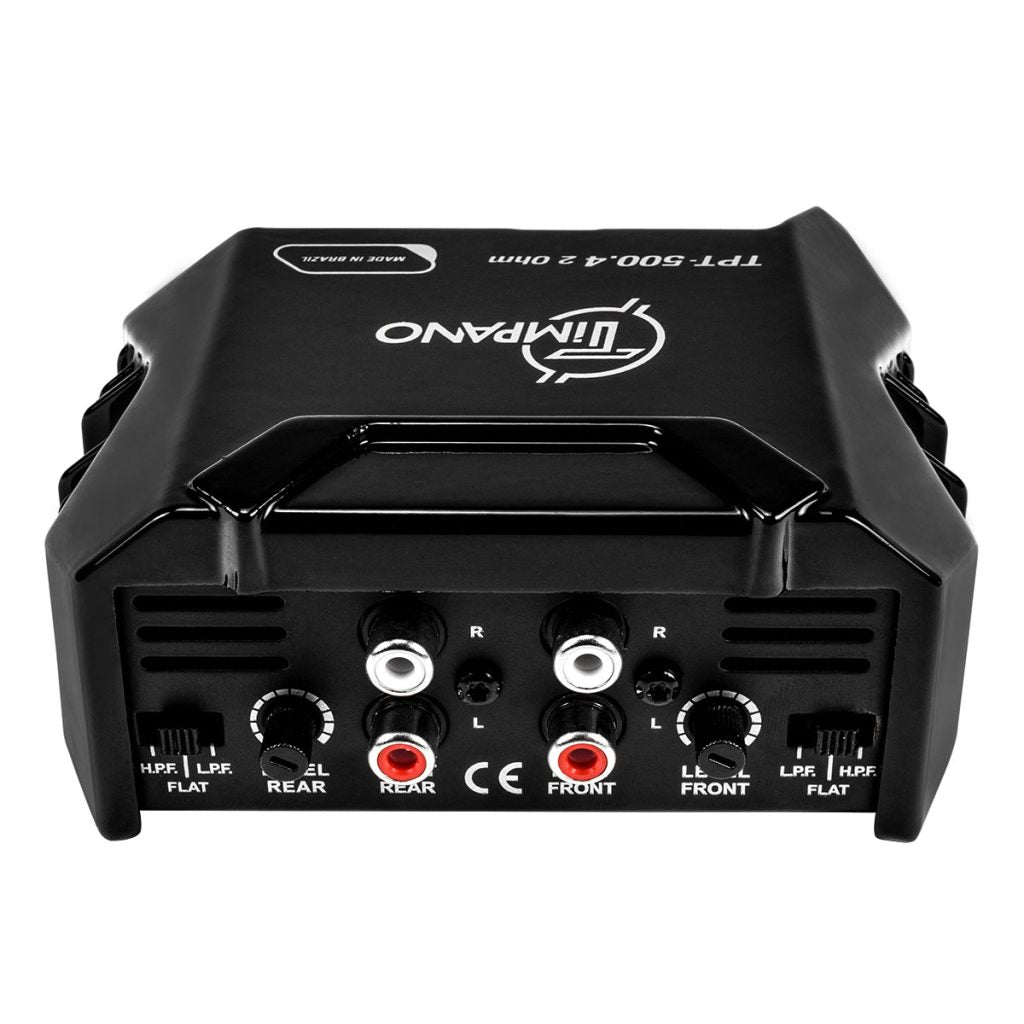

- FEATURES: Heavy Duty 10 Gauge power and speaker wire Inputs. Built-in crossover filters for easy tuning! Choose between a fixed HPF at 90Hz or LPF at 90Hz + 45Hz Bass Boost or just turn it FLAT and use your external crossover or DSP settings. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
Additional Information:
Number of Channels: 4
Max Dynamic Output: 4 x 125 Watts RMS 2 Ohm
4x 100 Watts RMS Power at 2 Ohm 12.6 Volts
4x 50 Watts RMS Power at 4 Ohm 12.6 Volts
Bridged 2x 200 Watts RMS Power at 4 Ohm 12.6 Volts
Supply Voltage: 10 ~ 15V
Frequency Response: 10Hz ~ 24KHz
Crossover Low Pass: Fixed at 90Hz + 45Hz bass boost
Crossover High Pass: Fixed at 90Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Impedance: 20K Ohm
Impedance Output: 2 Ohm
Consumption with Signal Musical: 1A ~ 17A

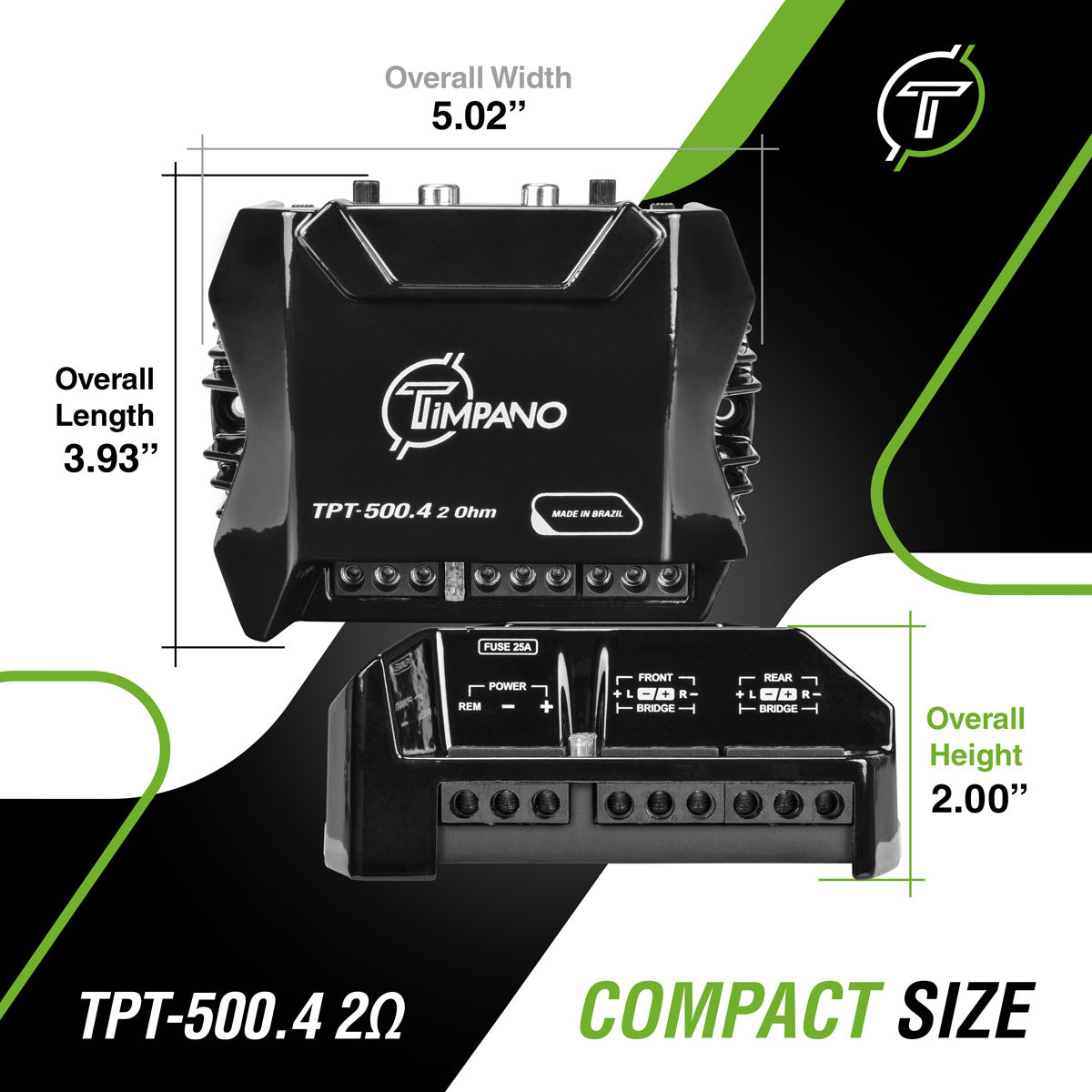

Dimensions (L x W x H): 3.93” x 5.02” x 2”
Weight: 1.12 Lbs
Before Installing:
Recommended fuse or circuit breaker – Not recommended Amplifier has a fuse
Power Wire Inputs – (OFC) 8 Gauge wire
Speakers Wire Output – ( OFC) 16 Gauge wire
