TPT-MB6-4 SLIM

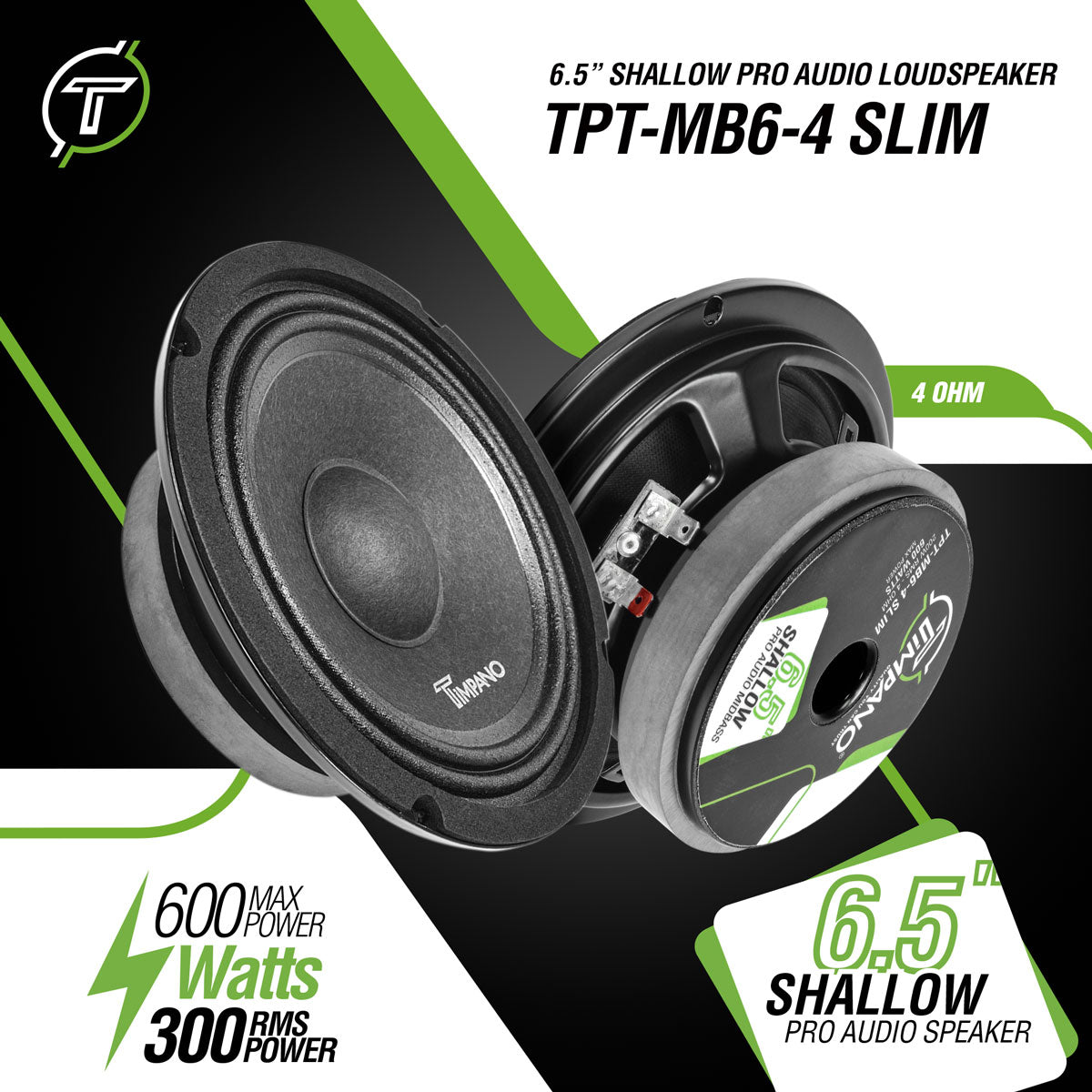

TPT-MB6-4 SLIM 6.5” Shallow Car Audio Midbass Loudspeaker – 4 Ohm

Timpano Audio’s MB Slim Series mid bass loudspeakers are designed to provide low and mid frequency sound reproduction in a wide range from a compact, slim design. These are some of the best choices for car door speakers in doors with a shallow depth.

Engineered to be efficient without sacrificing power or performance, this driver utilizes an extremely efficient ferrite motor and high temperature voice coil, bringing to you a suitable option to upgrade your system to a high level of performance and SPL output at a reasonable price.

• PRO AUDIO PERFORMANCE: Experience exceptional sound quality with TIMPANO speakers 6.5 inch midbass, perfect for car audio applications. Elevate your audio experience to new heights.
• SHALLOW MOUNT DESIGN: The slim profile of our 6.5 Midbass speakers allows for easy installation in tight spaces, such as car doors. Enjoy powerful and immersive audio without compromising on space.
• PREMIUM SOUND 6.5 DOOR SPEAKERS: Immerse yourself in crystal-clear vocals and dynamic midbass frequencies. Engineered to reproduce music with precision, ensuring every note is heard with exceptional clarity.

There are a variety of sizes and impedance versions available in the Timpano Slim Series. These include the 8 Ohm version of this model TPT-MB6-8 SLIM and the 8″ size of this model TPT-Mb8-4 Slim.

Specs:
600 Watts Max Power
300 Watts RMS Power with Digital DSP
200 Watts RMS Power with Car Audio Crossover
Impedance: 4 Ohm
Sensitivity: 94 dB
Frequency Response: 95 – 7,600 Hz
Voice Coil: 1.5″

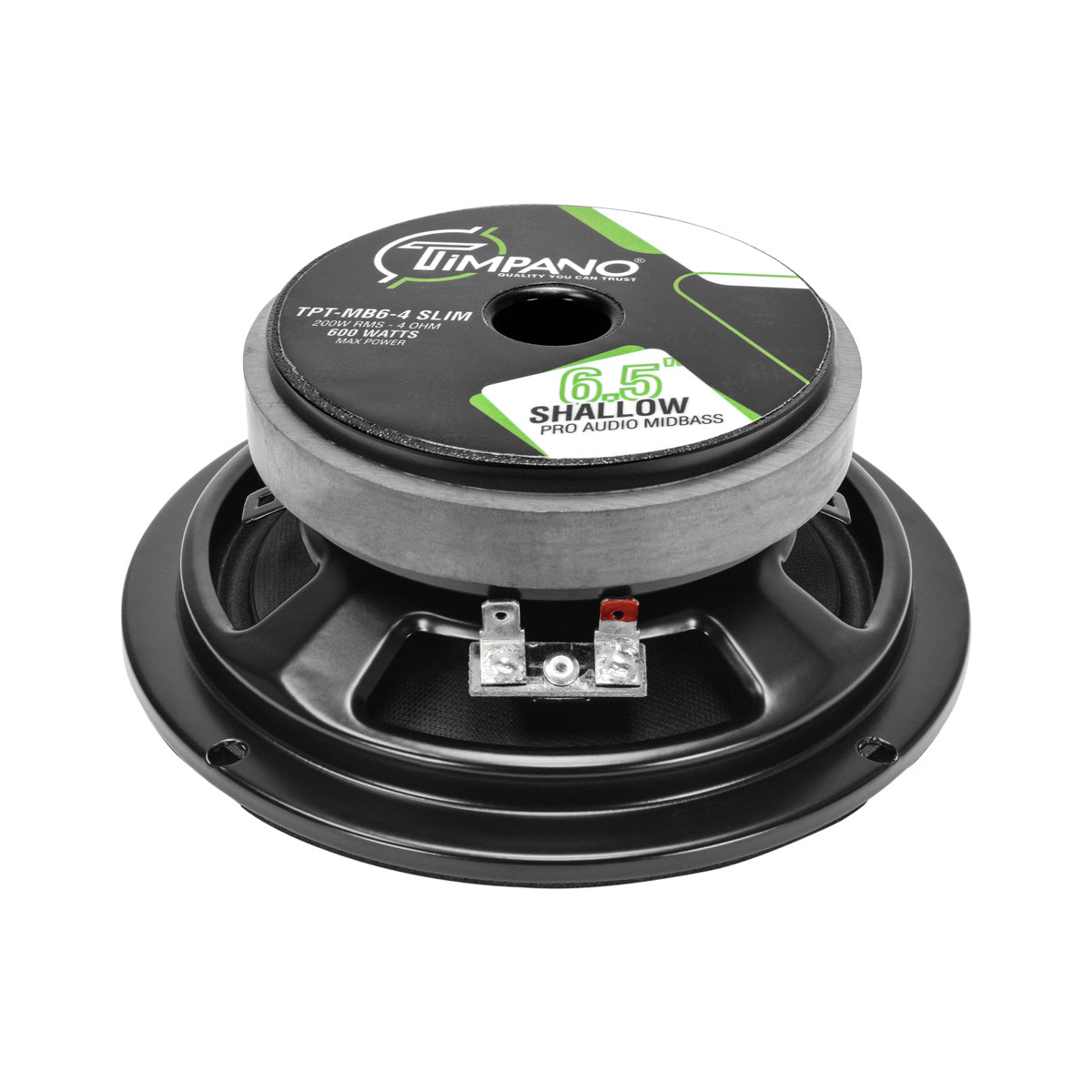

Shallow Steel Basket with High Strength Ferrite Magnet

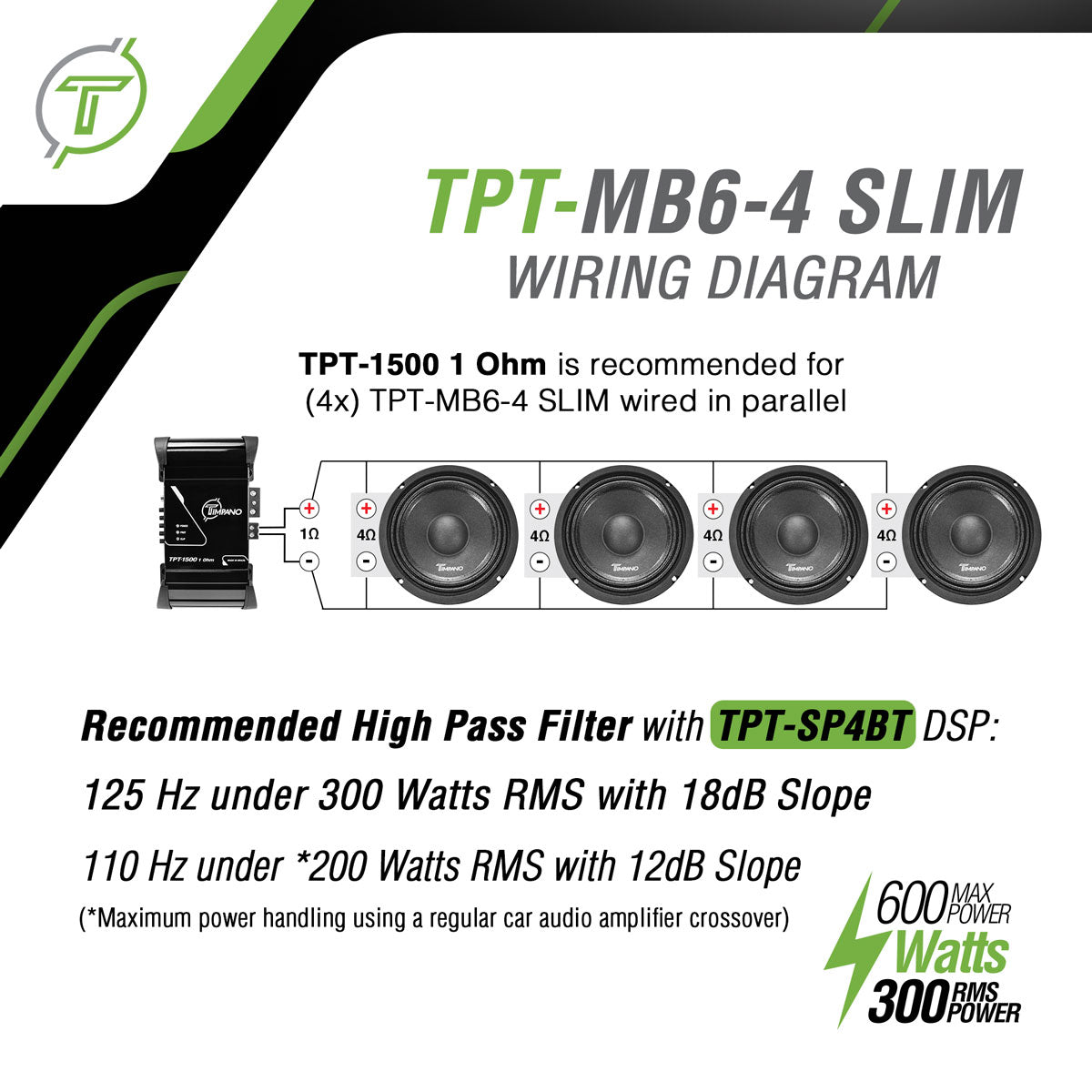

Recommended High Pass Filter with TPT-SP4BT DSP:
125 Hz under 300 Watts of Amplifier RMS Power with 18dB Slope
110 Hz under *200 Watts of Amplifier RMS Power with 12dB Slope
(*Maximum power handling using a regular car audio amplifier crossover)

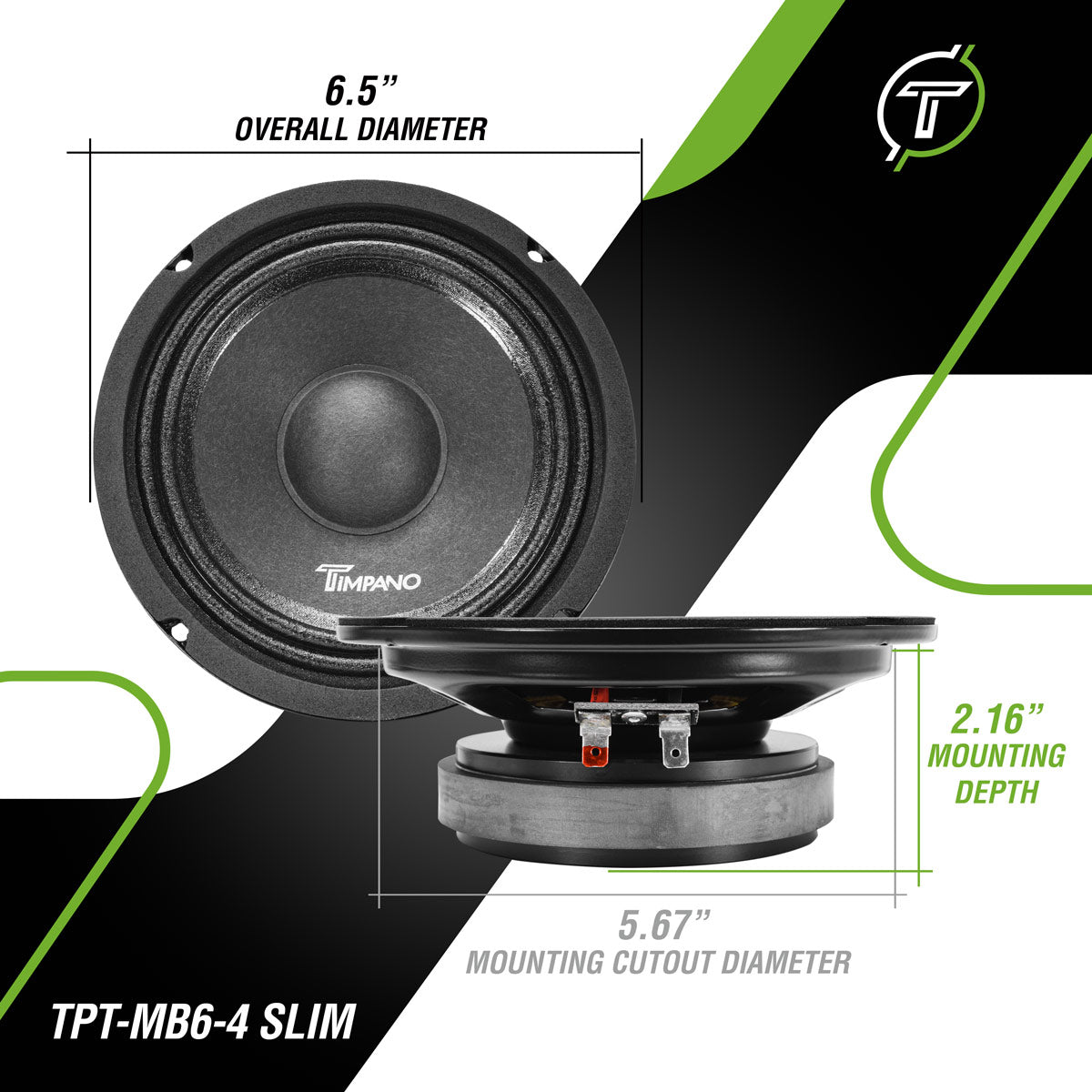

Sizing:
Mounting Depth: 2.16″
Mounting Cutout Diameter: 5.67″
Overall Diameter: 6.5″
Weight: 3.30 Lbs
