TPT-MB6-8 SLIM

TPT-MB6-8 SLIM 6.5” Shallow PRO Audio Midbass Loudspeaker – 8 Ohm

Timpano Audio’s MB Slim Series mid bass loudspeakers are designed to provide low and mid frequency sound reproduction in a wide range from a compact, slim design. These are some of the best choices for car door speakers in doors with a shallow depth.

Engineered to be efficient without sacrificing power or performance, this driver utilizes an extremely efficient ferrite motor and high temperature voice coil, bringing to you a suitable option to upgrade your system to a high level of performance and SPL output at a reasonable price.

• PRO AUDIO PERFORMANCE: Experience exceptional sound quality with TIMPANO speakers 6.5 inch midbass, perfect for custom car audio applications. Elevate your audio experience to new heights.
• SHALLOW MOUNT DESIGN: The slim profile of our 6.5 Midbass speakers allows for easy installation in tight spaces, such as car doors. Enjoy powerful and immersive audio without compromising on space.
• PREMIUM SOUND 6.5 DOOR SPEAKERS: Immerse yourself in crystal-clear vocals and dynamic mid bass frequencies. Engineered to reproduce music with precision, ensuring every note is heard with exceptional clarity.

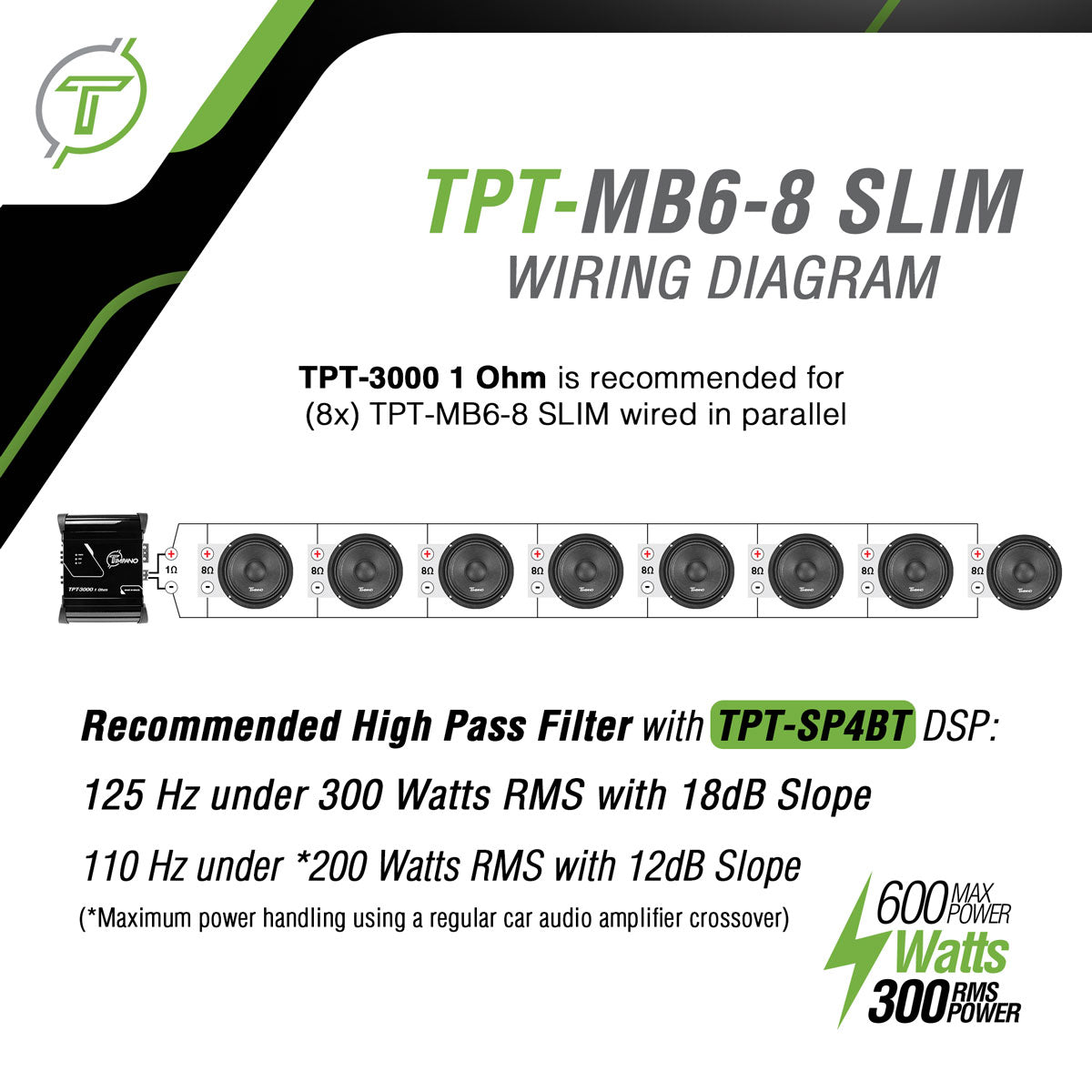

Designated at 8 Ohm impedance to work great with our high power amplifiers, where you can install multiple speakers on a single system amplifier, you can easily wire 8x speakers in parallel to a TPT-2200 at 1ohm. Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

If you are building a large system and need more speaker options, the MD Series offers more variety on PRO Audio loudspeakers at 8 Ohm. If you’re just interested in the 4 Ohm version of this model, check out the TPT-MB6-4 SLIM.

Specs:
600 Watts Max Power
300 Watts RMS Power with Digital DSP
200 Watts RMS Power with Car Audio Crossover
Impedance: 8 Ohm
Sensitivity: 94 dB
Frequency Response: 95 – 7,600 Hz
Voice Coil: 1.5″

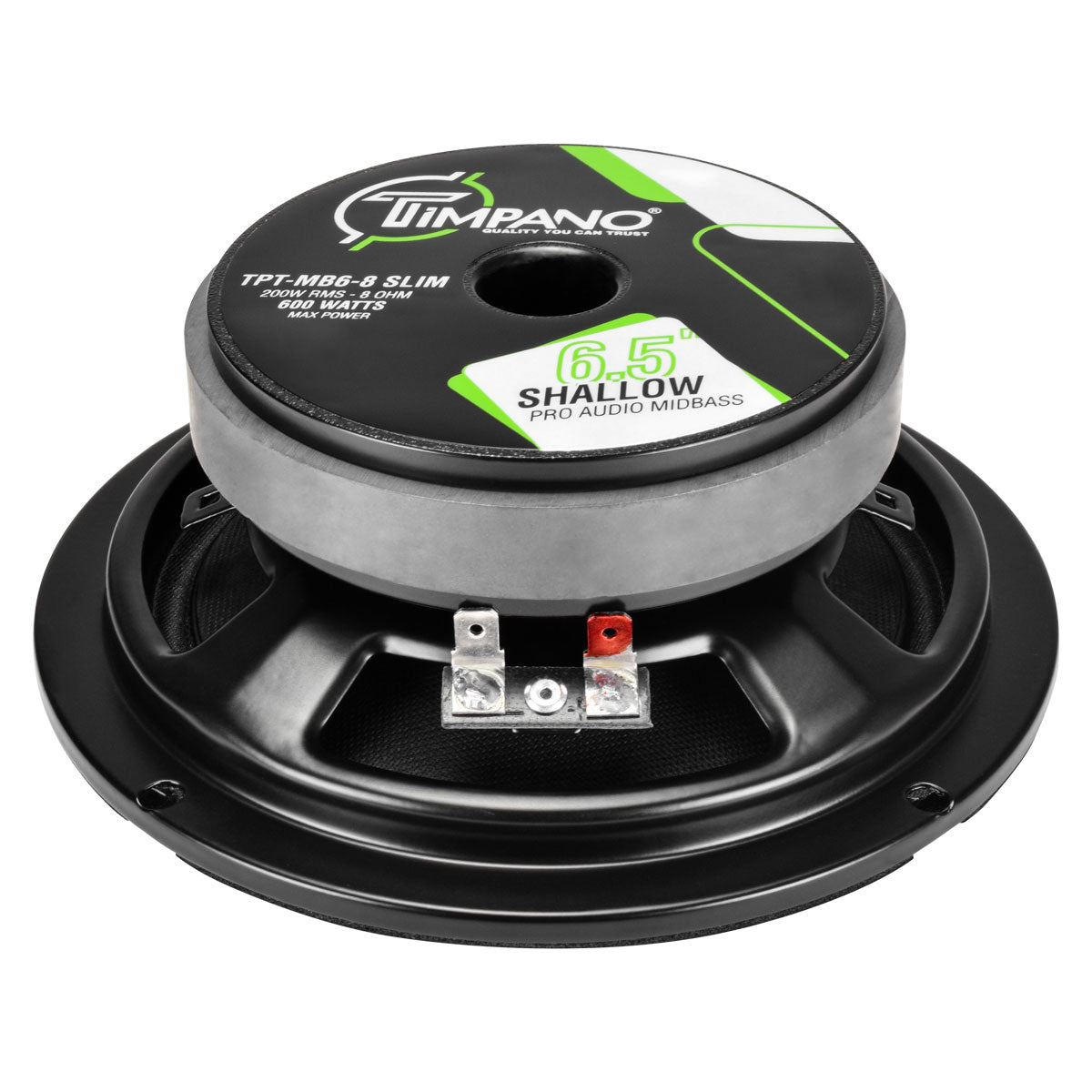

Shallow Steel Basket with High Strength Ferrite Magnet

Recommended High Pass Filter with TPT-SP4BT DSP:
125 Hz under 300 Watts of Amplifier RMS Power with 18dB Slope
110 Hz under *200 Watts of Amplifier RMS Power with 12dB Slope
(*Maximum power handling using a regular car audio amplifier crossover)

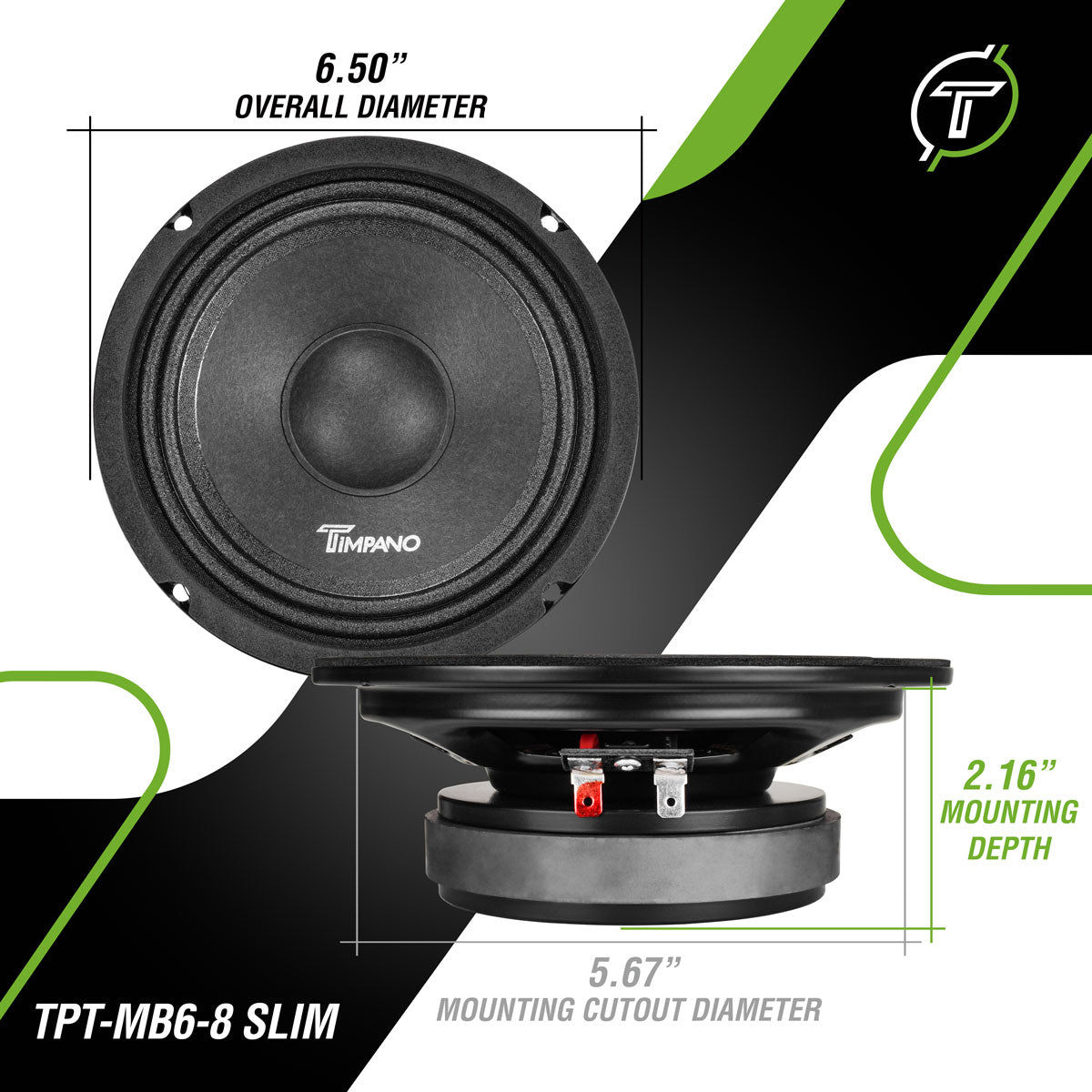

Sizing:
Mounting Depth: 2.16″
Mounting Cutout Diameter: 5.67″
Overall Diameter: 6.5″
Weight: 3.30 Lbs
