TPT-MR6-4 PRO

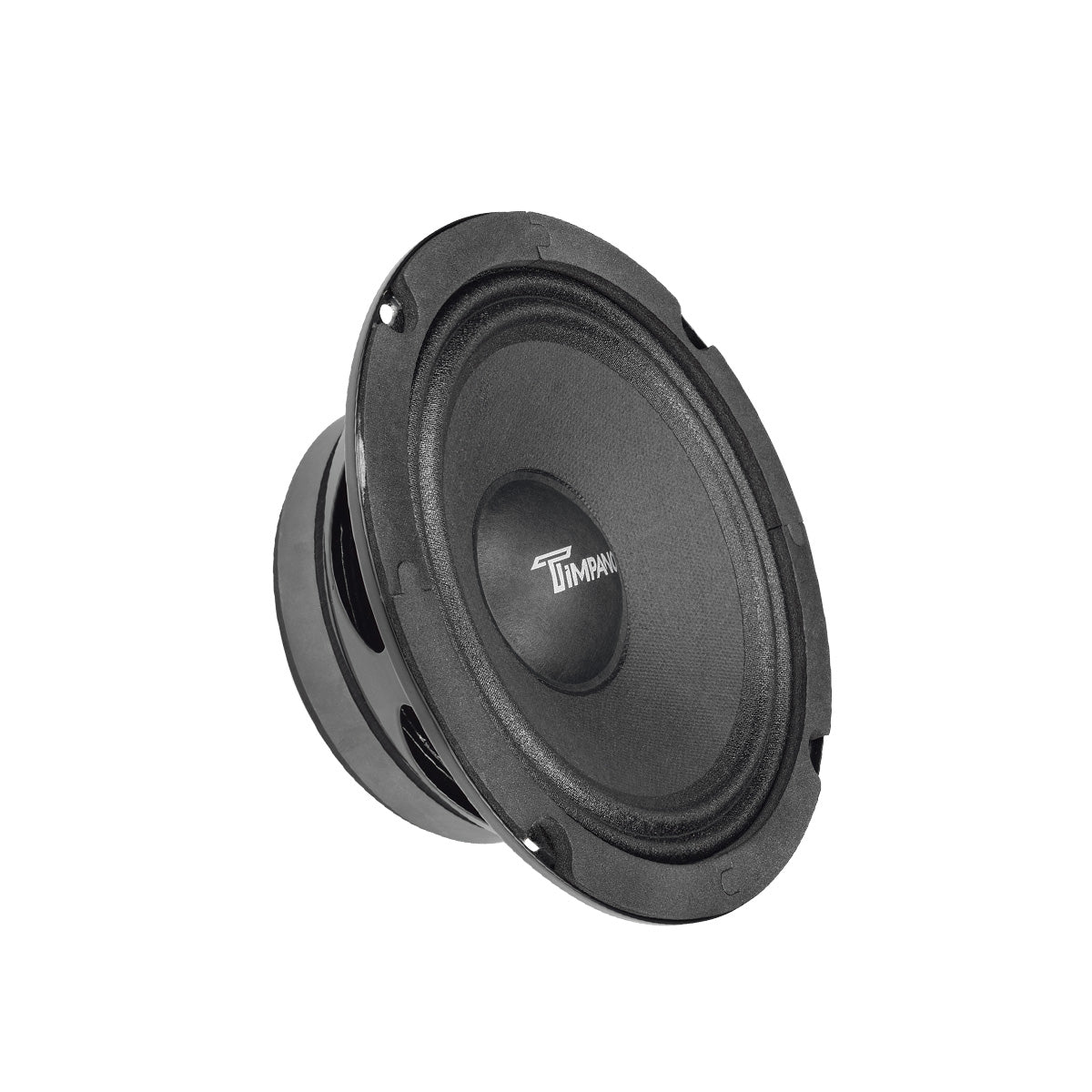

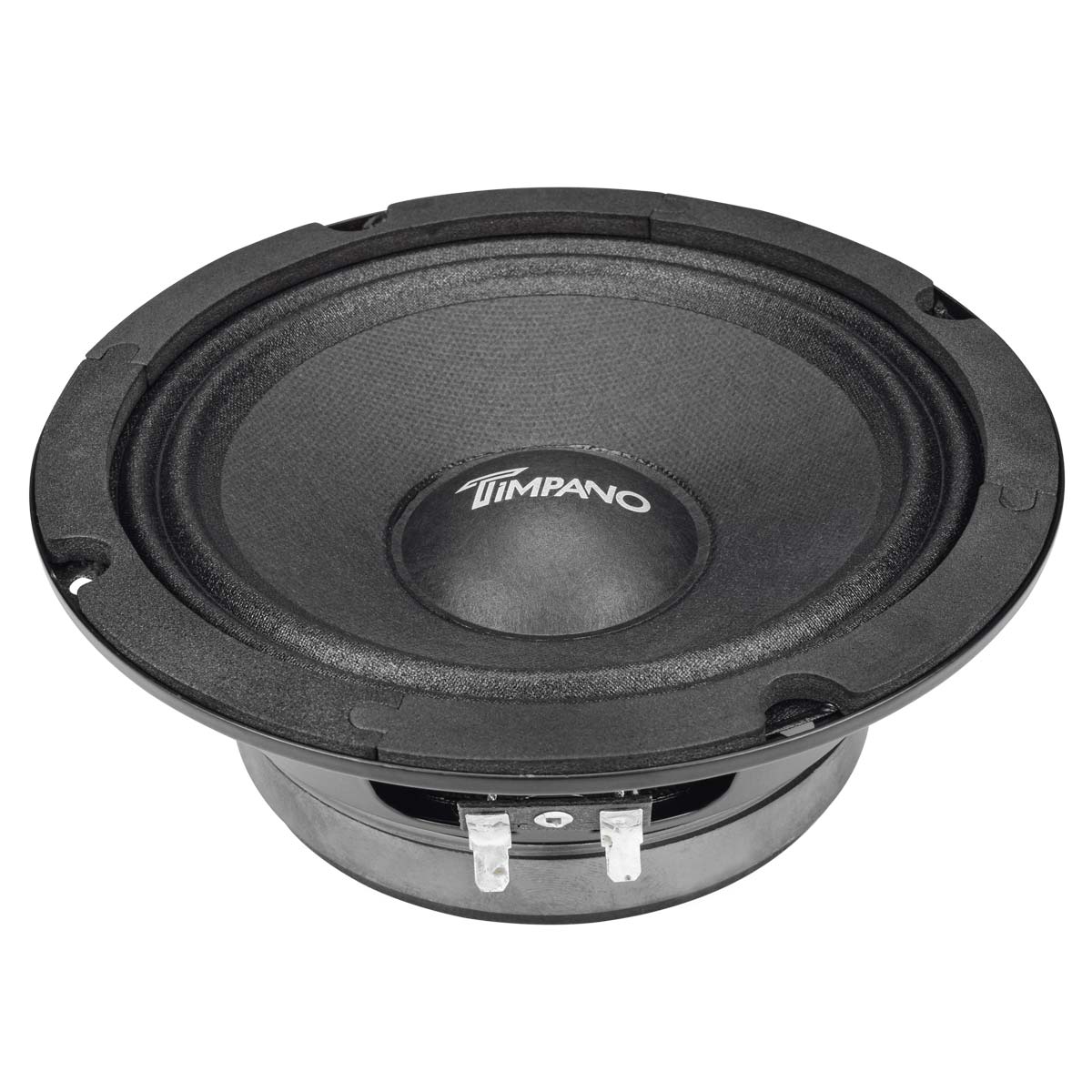

TPT-MR6-4 PRO 6.5” Midrange PRO Audio Loudspeaker 4 Ohm

This new series of PRO Audio loudspeakers are built like a professional midrange, making the perfect choice; combining power, sound clarity, and reliability. This 6.5″ mid range speaker is designed to provide low and mid range frequency sound reproduction in a wide range from a compact, shallow design.

• Can handle up to 500 Watts Max power, able to deliver tremendous amount of sound output
• With an amazing combination of value and technology for 3-Way systems ( Subwoofer, Mid & Tweeter )
• Wide Frequency Response of 160 – 9,500 Hz providing clean, detailed vocal reproduction
• High efficiency allows, more output and high-impact sound

Designated to the car audio market where multiple speakers are installed on a single system, you can easily wire 4x speakers in parallel to a TPT-1400EQ at 1ohm. Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

Engineered to be efficient without sacrificing power or performance, this driver utilizes an extremely efficient ferrite motor and high temperature voice coil, bringing to you a suitable option to upgrade your system to a high level of performance and SPL output at a reasonable price.

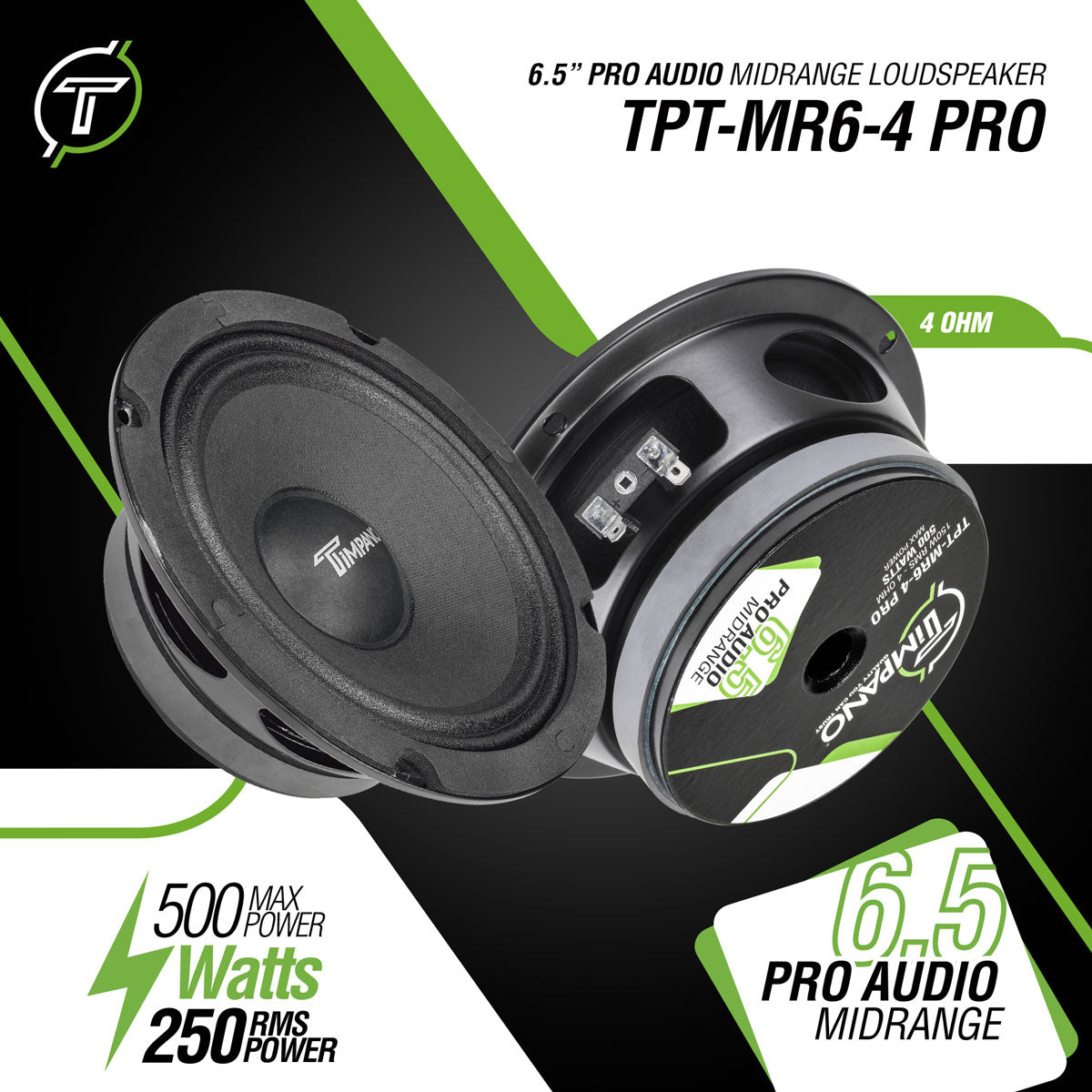

Specs:
500 Watts Max Power
250 Watts RMS Power with Digital DSP
150 Watts RMS Power with Car Audio Crossover
Impedance: 4 Ohm
Sensitivity: 94 dB
Frequency Response: 160 – 9,500 Hz
Voice Coil: 1.5”

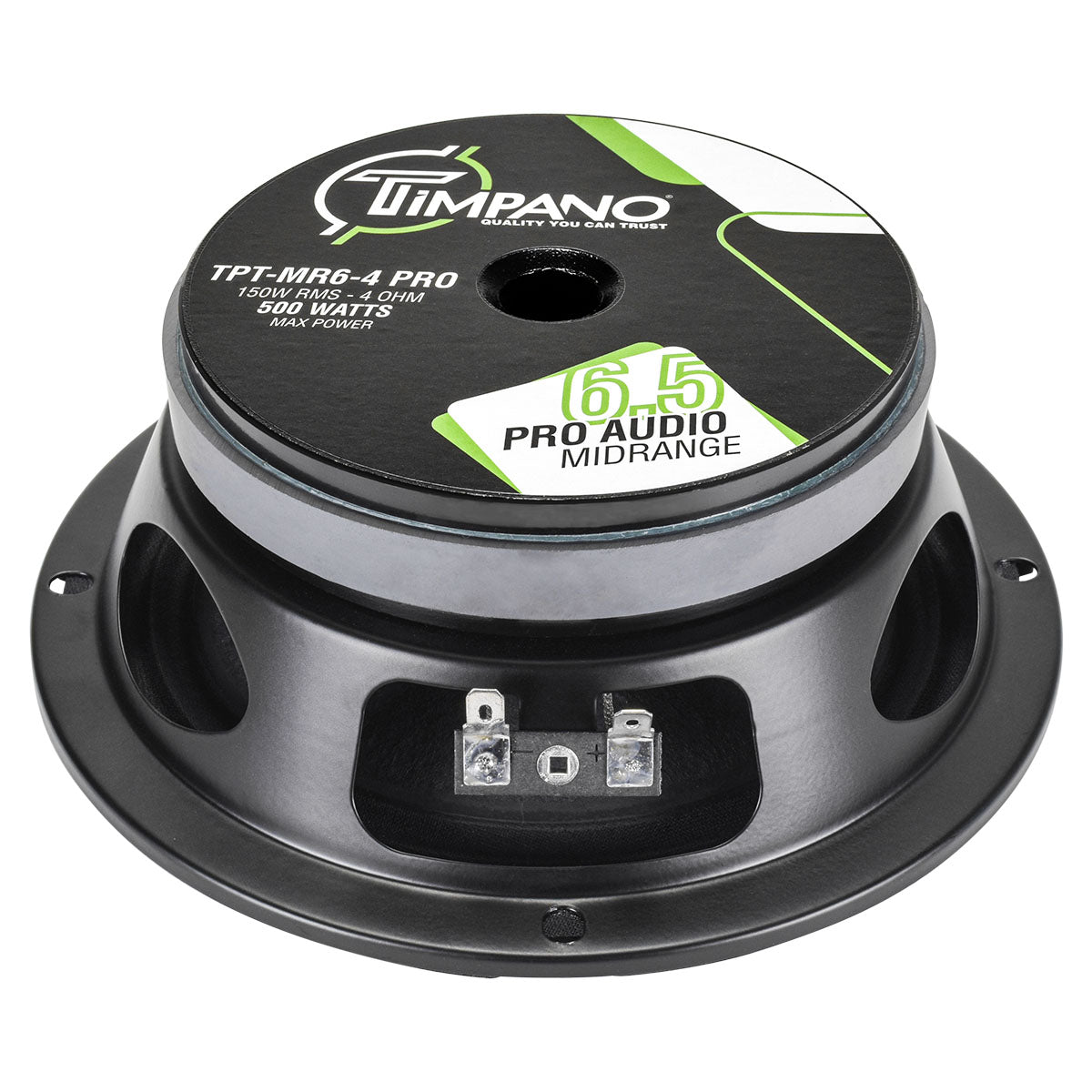

Shallow Steel Basket with High Strength Ferrite Magnet

Recommended High Pass Filter with TPT-SP4BT DSP:
160 Hz under 250 Watts of Amplifier RMS Power with 18dB Slope
120 Hz under *150 Watts of Amplifier RMS Power with 12dB Slope
(*Maximum power handling using a regular car audio amplifier crossover)

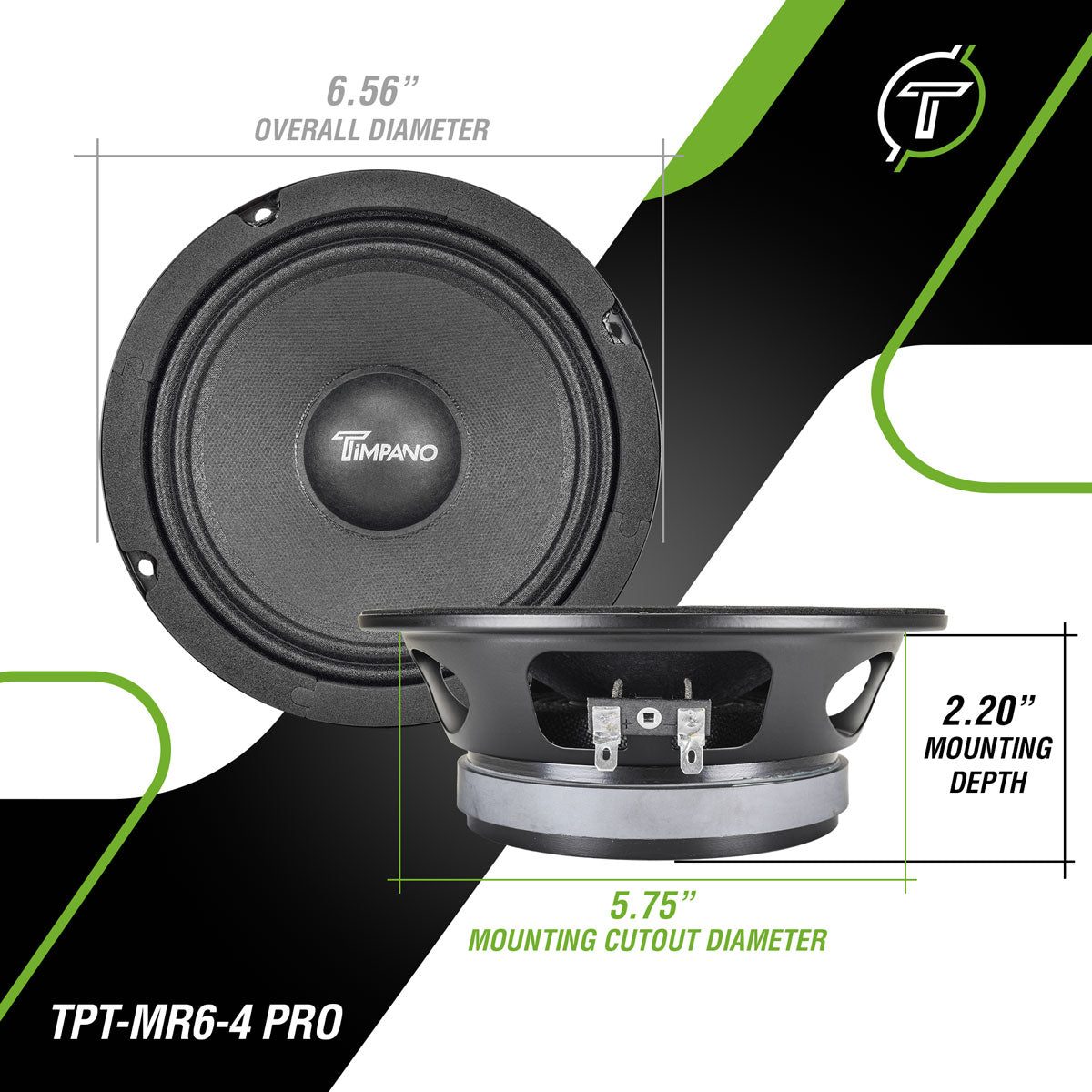

Sizing:
Mounting Depth: 2.20”
Mounting Cutout Diameter: 5.75″
Overall Diameter: 6.56″
Weight: 3.40 Lbs
