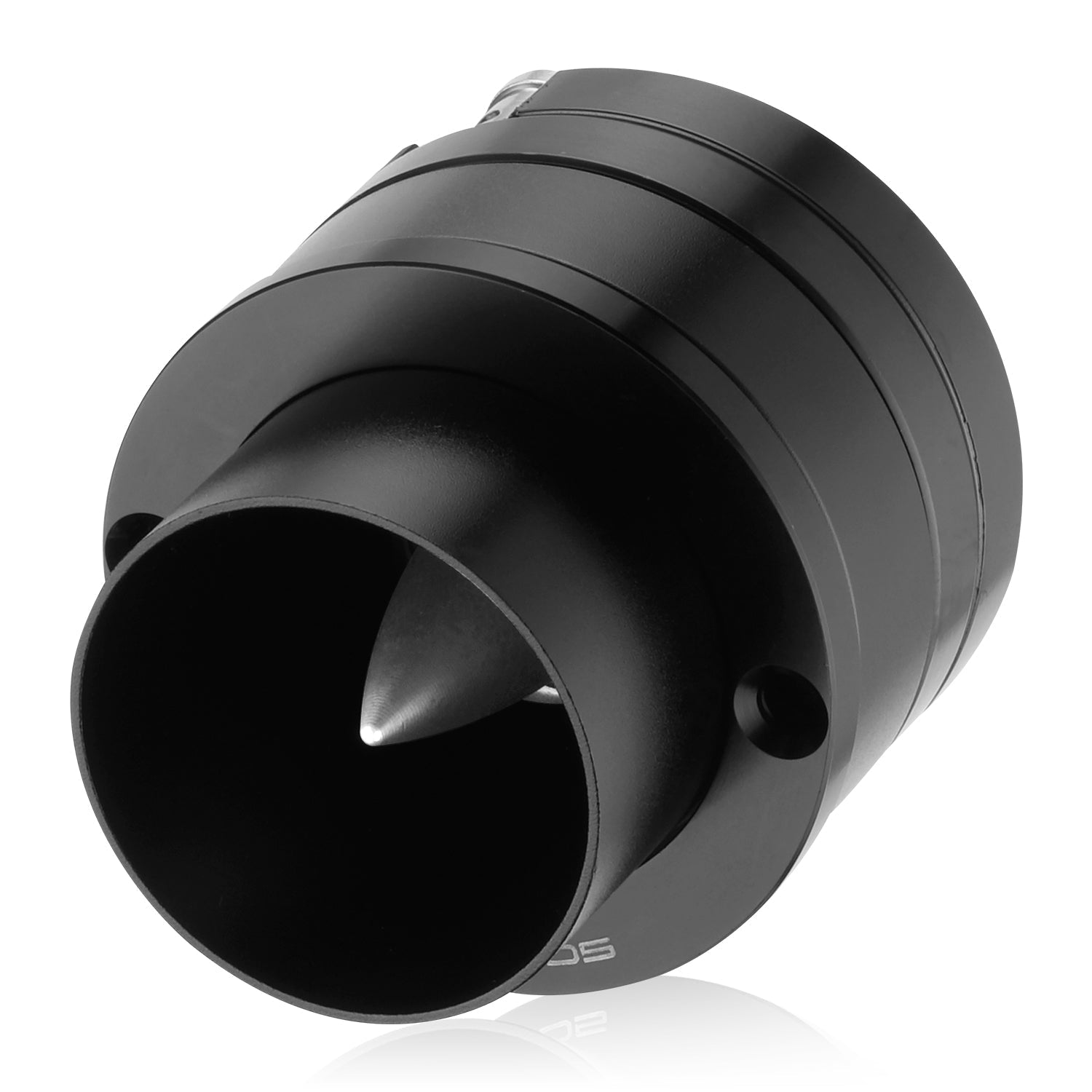

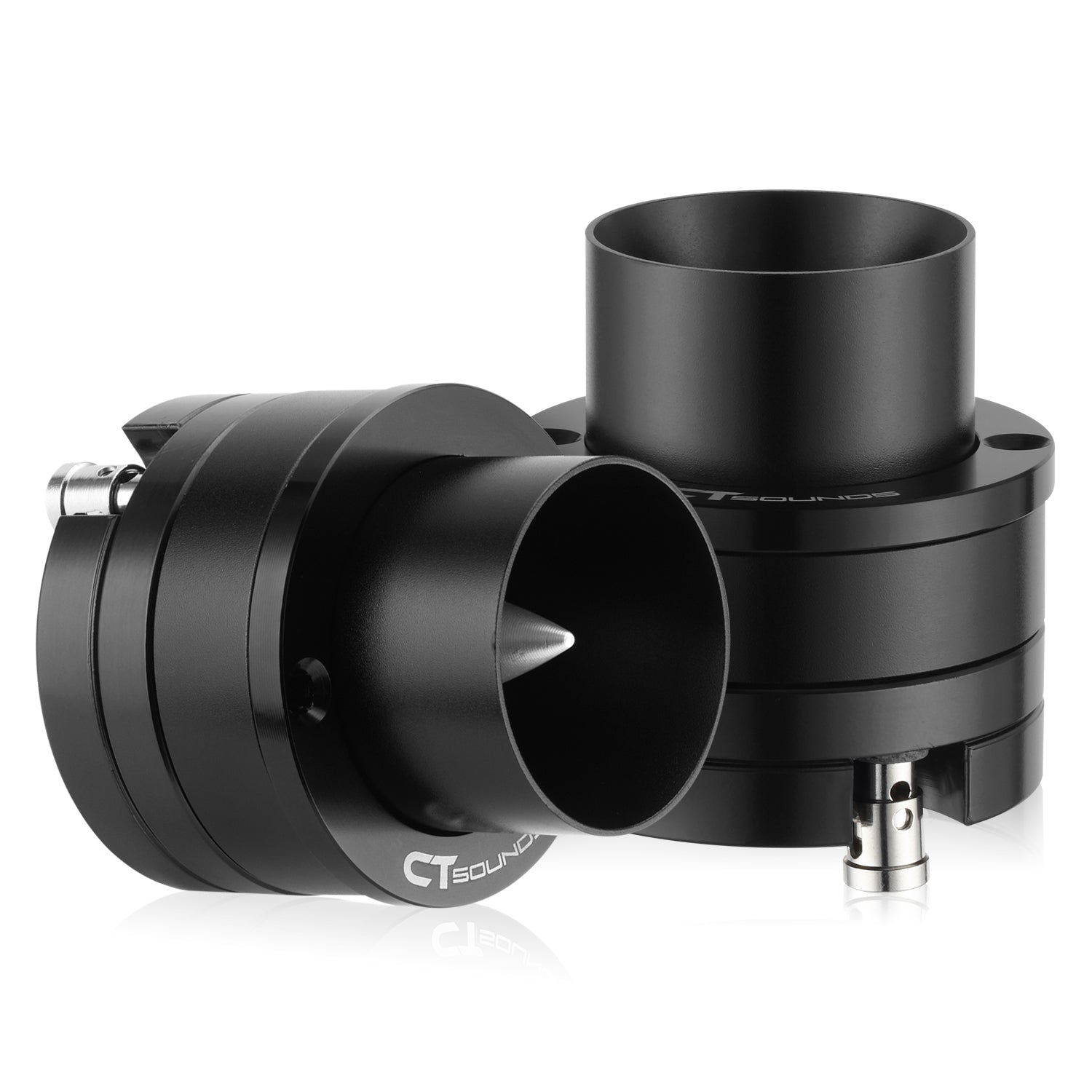

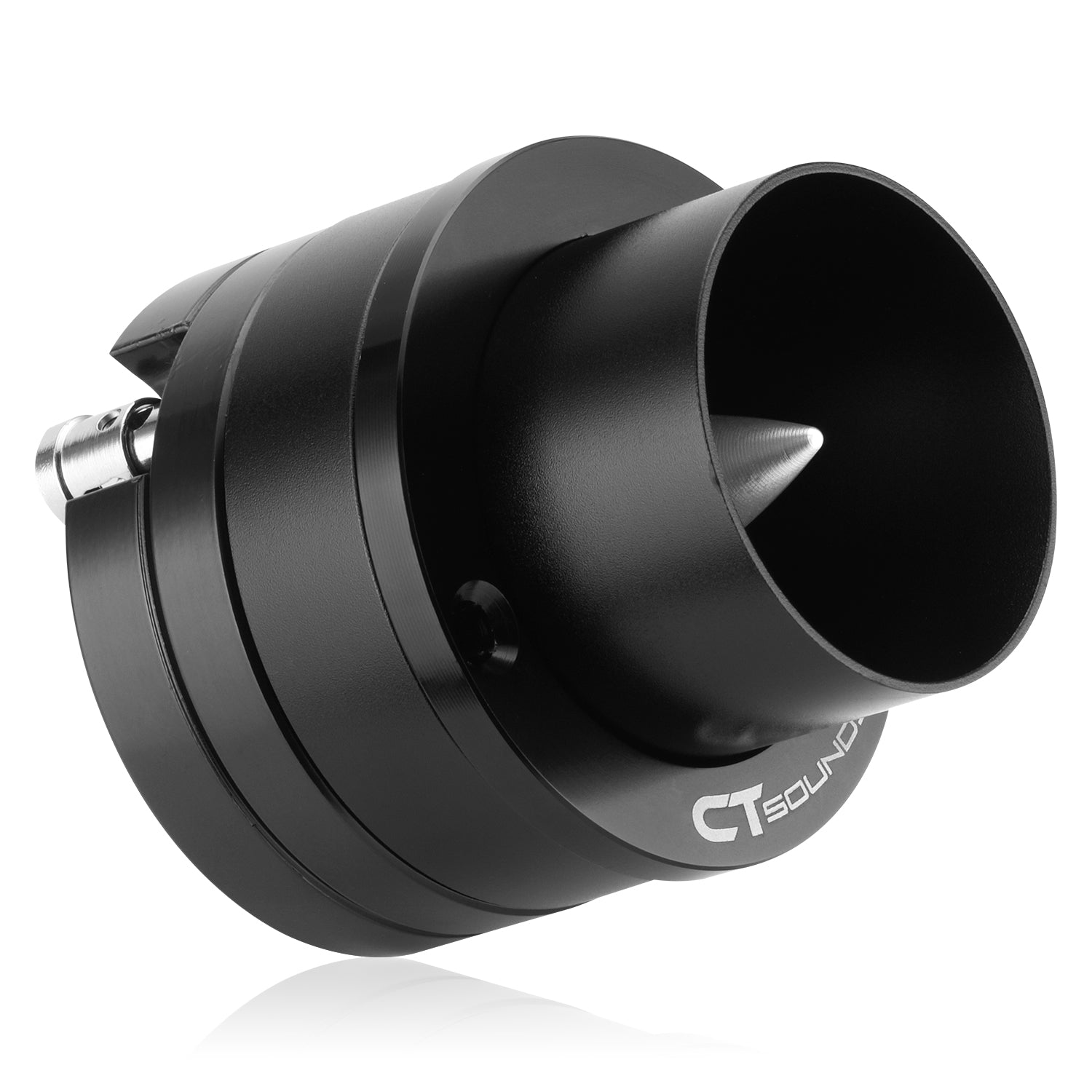

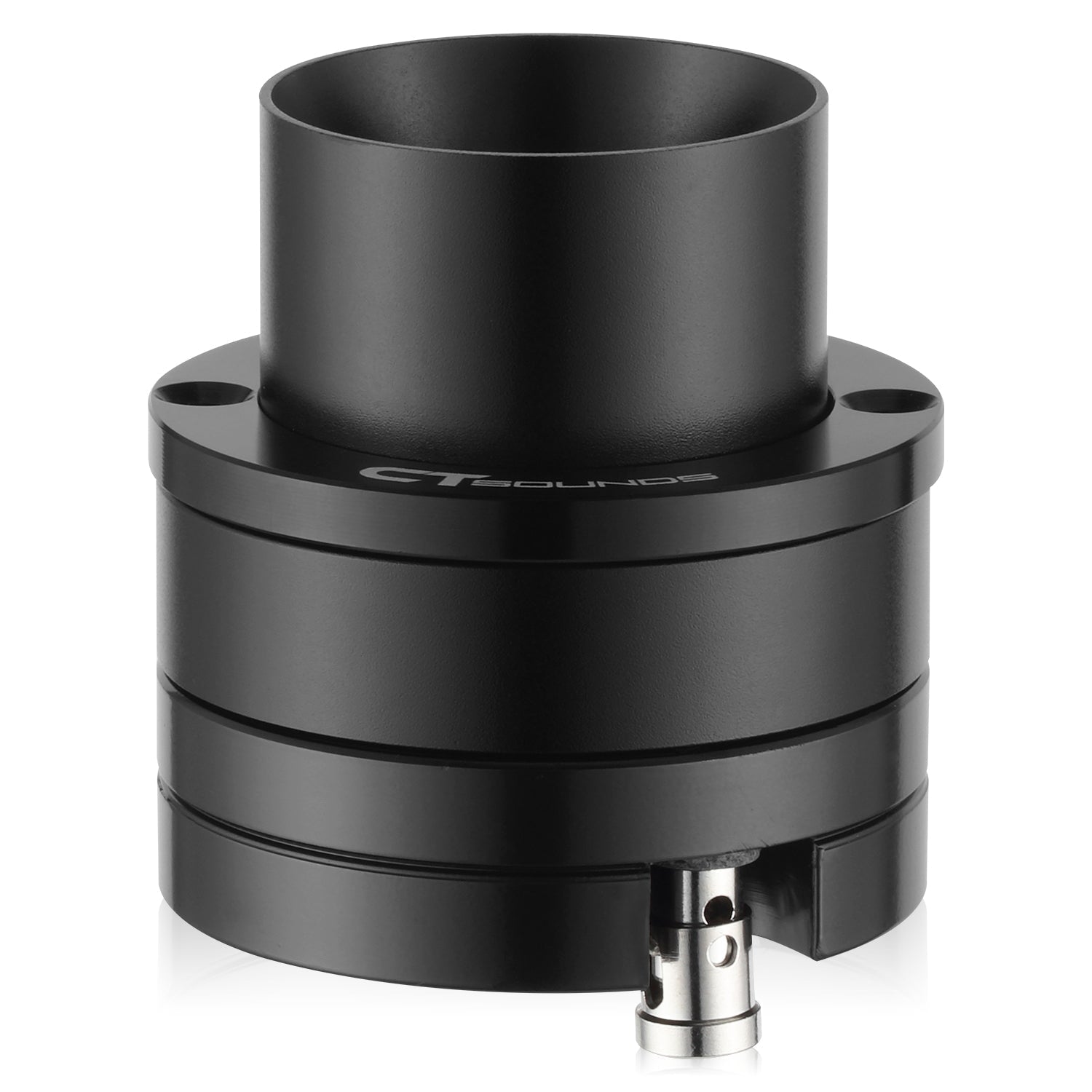

Introducing the CT Sounds TX-175B - the pinnacle of high-frequency audio reproduction. Crafted with precision and innovation, these super tweeters feature a lightweight electrical system engineered for exceptional clarity and detail, thanks to the neodymium motor and copper-clad aluminum voice coil.
| Quick Facts: | |
| RMS Power: | 240 Watts (Pair) |
| MAX Power: | 480 Watts (Pair) |
| Impedance: | Single 4-Ohm |
| Recommended High Pass Crossover | 5 kHz |
Equipped with a titanium diaphragm and custom-engineered bullet phase plug, these super tweeters deliver robustness and longevity, ensuring consistent performance in demanding environments. Whether cruising down the highway or enjoying a ride in town, your sound will be heard from a long distance.

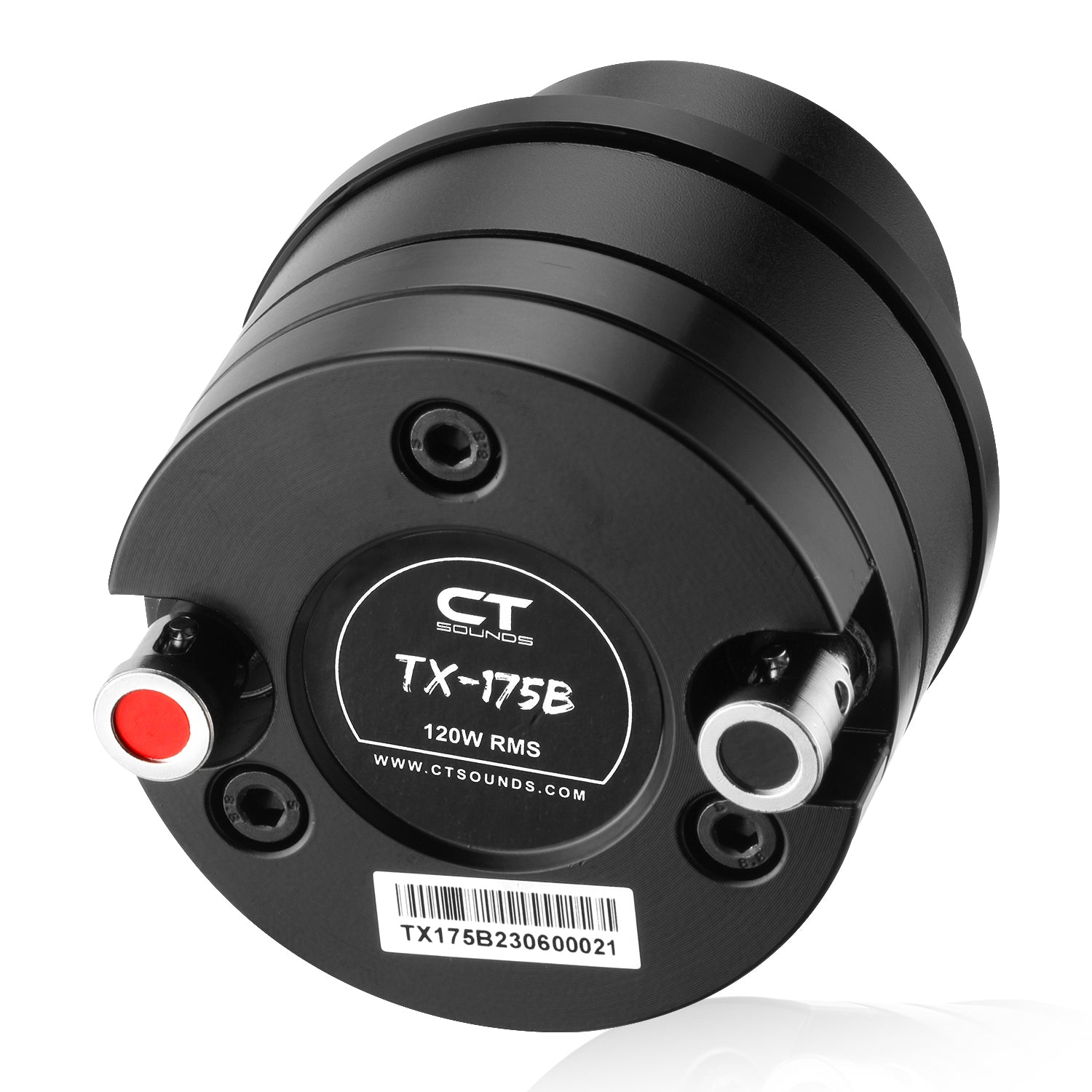

Installation is a breeze thanks to the push terminals, and included wires with pre-installed capacitors safeguarding your tweeters against low-end frequencies, preserving their sonic integrity. Additionally, the black aluminum bracket gives you the benefit of adaptability in mounting dimensions.
| General Specifications: | |
| Tweeter Size: | 1.75" |
| Tweeter Type: | Super Tweeter |
| Sold As Pair: | Yes |
| Capacitor Included: | Yes |
| Terminal Type: | Push Terminal |
| Impedance Per Tweeter: | Single 4-Ohm |
| Minimum Impedance Per Tweeter: | 4-Ohm @ 3.5 kHz |
| Power Per Tweeter: | 120W RMS | 240W MAX |
| Total System Power: | 240W RMS | 480W MAX |
| Tweeter Specifications: | |
| Voice Coil Size: | 1" |
| Voice Coil Winding Material: | CCAW |
| Voice Coil Former Material: | KSV |
| Diaphragm Material: | Titanium |
| Magnet Type: | Neodymium |
| Throat Diameter: | 1.59" |
| Output SPL (@1w/1m): | 105 dB |
| Frequency Response (@SPL -10dB): | 3 kHz - 20 kHz |
| Sweep Voltage: | 3V |
| Crossover Circuit: | 3.3 μF capacitor / 100 V |
| Crossover Filter: | 12 dB / octave |
| Recommended High Pass Crossover: | 5 kHz |

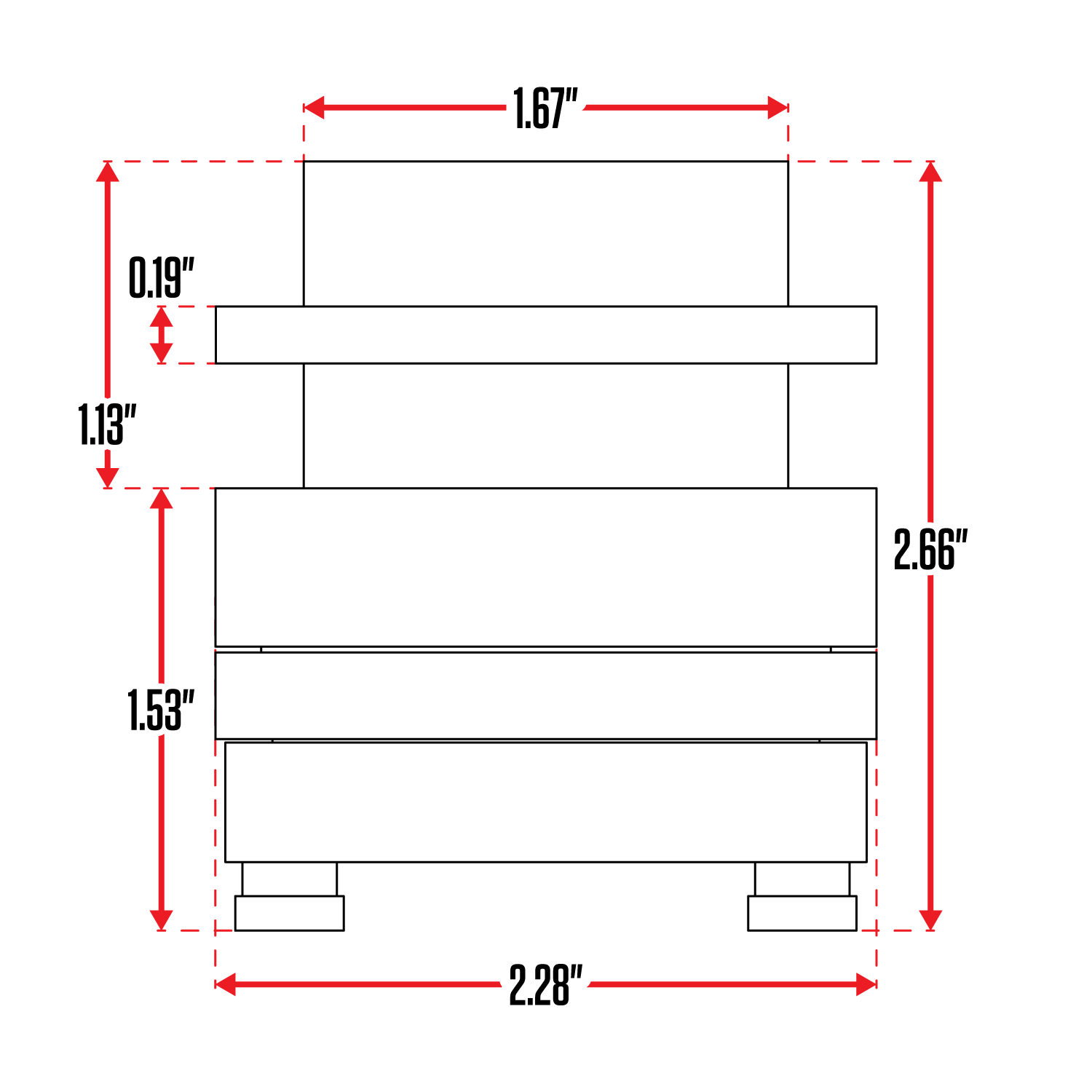

| Install Specifications: | |
| Overall Diameter: | 2.28" |
| Overall Height: | 2.66" |
| Cut-out Diameter: | 1.67" |
| Cut-out Diameter (incl. terminal slots): | / |
| Throat Depth: | 1.13" |
| Mounting Depth: | 1.53" |
| Flush Mount Lip Height: | 0.19" |
| Flush Mount Lip Width: | 2.28" |
