TX-35A // 3.5" 600 Watt Titanium Super Tweeters, Pair
TX-35A // 3.5" 600 Watt Titanium Super Tweeters, Pair is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
TX-35A // 3.5" 600 Watt Titanium Super Tweeters, Pair
TX-35A // 3.5" 600 Watt Titanium Super Tweeters, Pair is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Introducing the CT Sounds TX-35A - the pinnacle of high-frequency audio reproduction. Crafted with precision and innovation, these super tweeters feature a professional-grade electrical system engineered for exceptional clarity and detail, thanks to the ferrite motor and round copper voice coil.
| Quick Facts: | |
| RMS Power: | 300 Watts (Pair) |
| MAX Power: | 600 Watts (Pair) |
| Impedance: | Single 4-Ohm |
| Recommended High Pass Crossover | 3.75 kHz |
Equipped with a titanium diaphragm and custom-engineered bullet phase plug, these super tweeters deliver robustness and longevity, ensuring consistent performance in demanding environments. Whether cruising down the highway or enjoying a ride in town, your sound will be heard from a long distance.
Installation is a breeze thanks to the built-in capacitors safeguarding your tweeters against low-end frequencies, preserving their sonic integrity. Additionally, we include our recommended mounting screws making installation even easier.
| General Specifications: | |
| Tweeter Size: | 3.5" |
| Tweeter Type: | Super Tweeter |
| Sold As Pair: | Yes |
| Capacitor Included: | Yes |
| Terminal Type: | Spade Terminal |
| Impedance Per Tweeter: | Single 4-Ohm |
| Minimum Impedance Per Tweeter: | 4-Ohm @ 3.5 kHz |
| Power Per Tweeter: | 150W RMS | 300W MAX |
| Total System Power: | 300W RMS | 600W MAX |
| Tweeter Specifications: | |
| Voice Coil Size: | 1" |
| Voice Coil Winding Material: | Copper |
| Voice Coil Former Material: | KSV |
| Diaphragm Material: | Titanium |
| Magnet Type: | Ferrite |
| Throat Diameter: | 2.13" |
| Output SPL (@1w/1m): | 105 dB |
| Frequency Response (@SPL -10dB): | 2 kHz - 20 kHz |
| Sweep Voltage: | 3V |
| Crossover Circuit: | 3.3 μF capacitor / 100 V |
| Crossover Filter: | 12 dB / octave |
| Recommended High Pass Crossover: | 3.75 kHz |

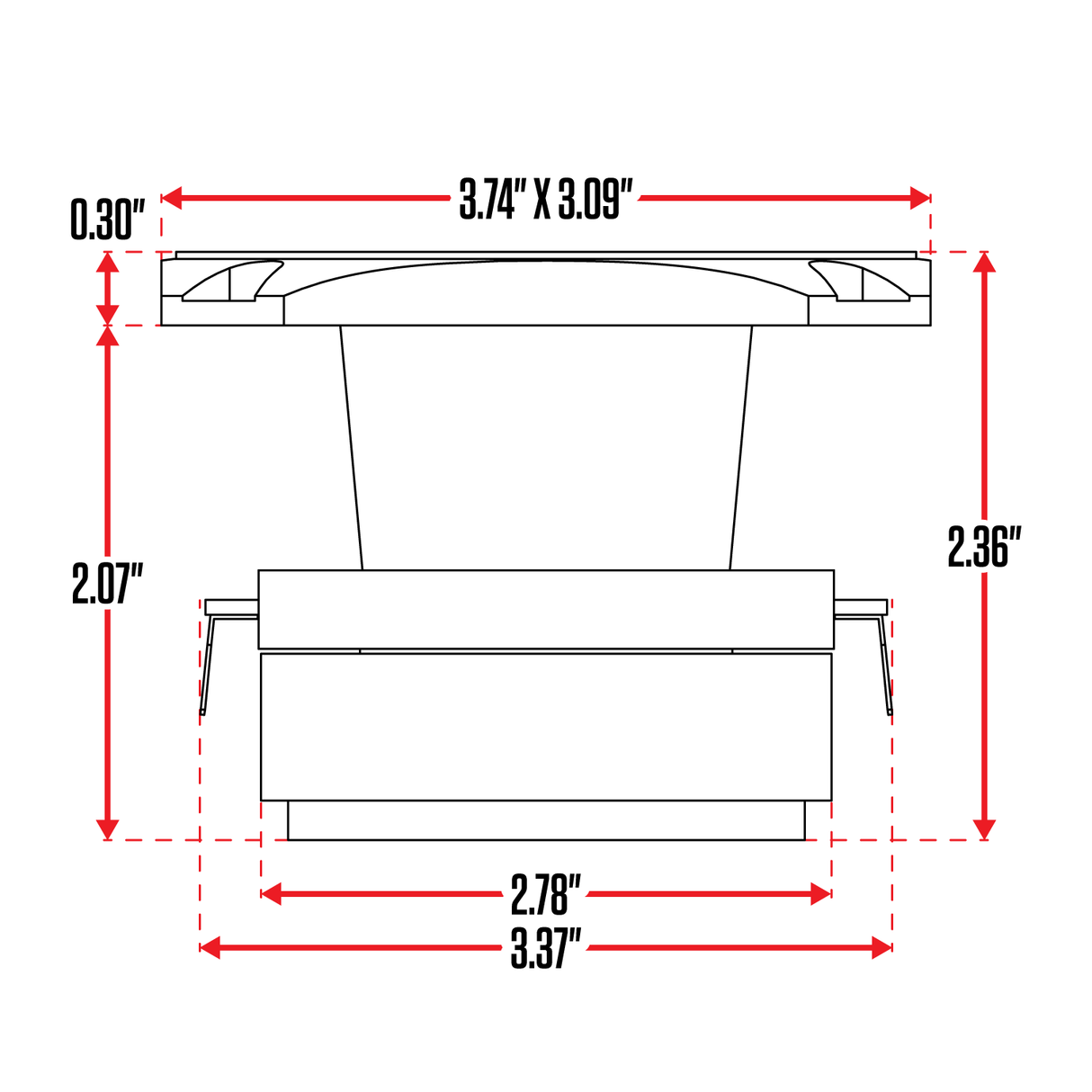

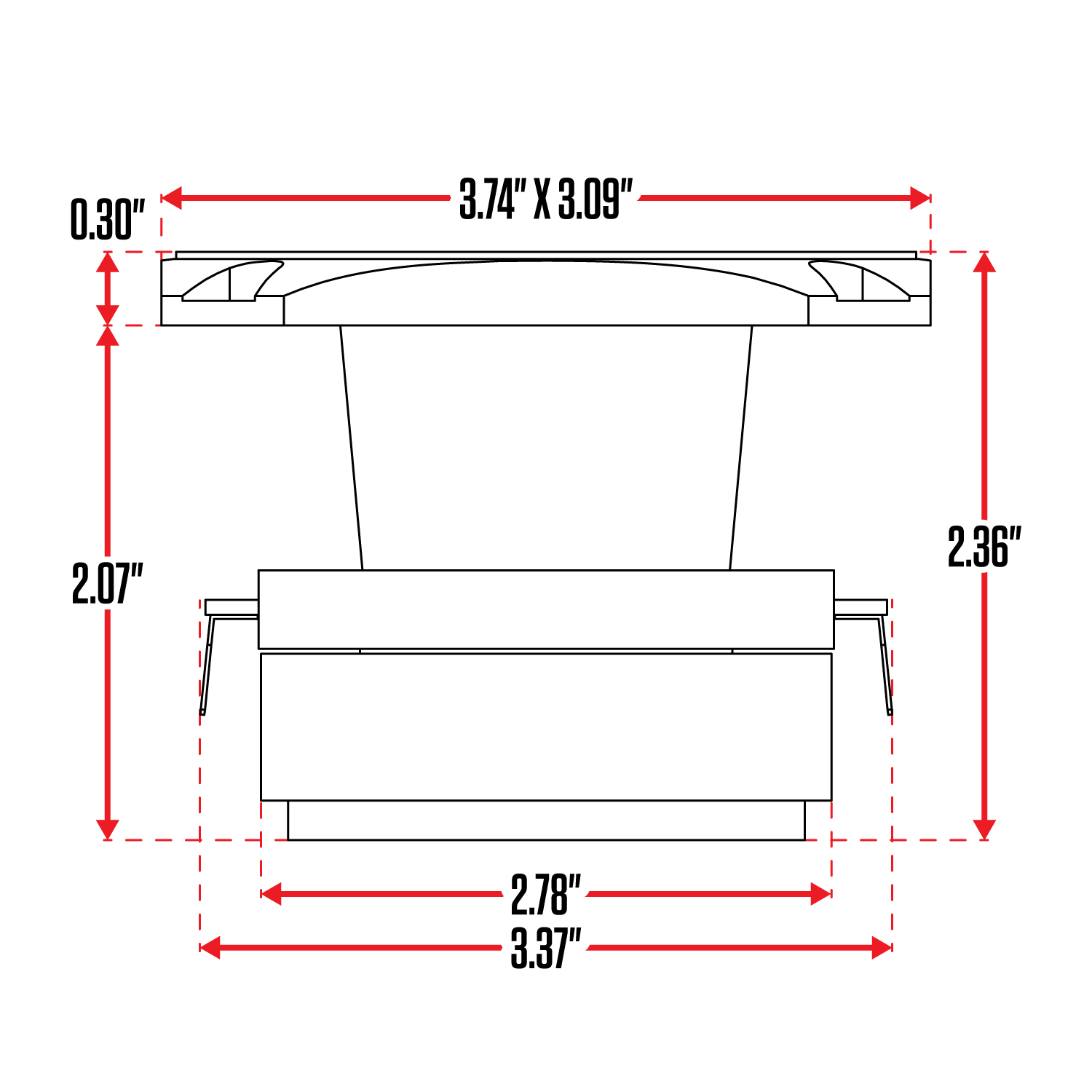

| Install Specifications: | |
| Overall Diameter: | 3.74" x 3.09" |
| Overall Height: | 2.36" |
| Cut-out Diameter: | 2.78" |
| Cut-out Diameter (incl. terminal slots): | 3.37" |
| Throat Depth: | / |
| Mounting Depth: | 2.07" |
| Flush Mount Lip Height: | 0.30" |
| Flush Mount Lip Width: | 3.09" |
