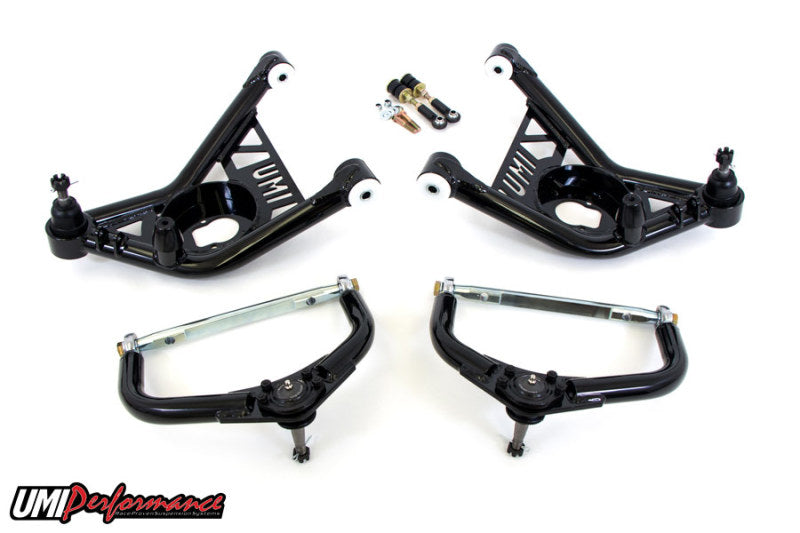

UMI Performance 70-81 GM F-Body Front A-arm Kit Delrin Bushings Adj Tall Ball Joints

UMI’s 2nd Generation F-Body performance a-arms are perfect for the F-Body enthusiast seeking to improve the performance and blur the lines between race and street use. This kit features caster relocation of both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster potential is 8+ degrees. The spindle pin location remains unchanged so fender clearance is like stock. The adjustable upper a-arms reduce the need for shims in addition to providing an easy way to achieve desired camber and caster settings. They also include a tall ball joint to improve camber gain. Upper and lower a-arms are designed to allow proper suspension movement and approved steering response using UMI built Delrin bushings and Teflon lined rod ends. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength. UMI’s double shear swivel sway bar end links are included and work nicely with UMI P/N 4035 sway bar and also most aftermarket stock eyelet type sway bars. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in Philipsburg, PA - USA.

This Part Fits:

Year	Make	Model	Submodel
1978-1981	Buick	LeSabre	Base
1985	Buick	LeSabre	Collector's Edition
1978,1982-1985	Buick	LeSabre	Custom
1985	Buick	LeSabre	Estate Wagon
1979-1985	Buick	LeSabre	Limited
1982	Buick	LeSabre	Limited Edition F/E
1978-1981	Buick	LeSabre	Sport
1992-1995	Buick	Roadmaster	Base
1996	Buick	Roadmaster	Collector's Edition
1991-1995	Buick	Roadmaster	Estate Wagon
1996	Buick	Roadmaster	Estate Wagon Collector's Edition
1992-1995	Buick	Roadmaster	Limited
1996	Buick	Roadmaster	Limited Collector's Edition
1970-1980	Chevrolet	Camaro	Base
1979-1981	Chevrolet	Camaro	Berlinetta
1973-1978	Chevrolet	Camaro	LT
1976-1978	Chevrolet	Camaro	LT Rally Sport
1976-1980	Chevrolet	Camaro	Rally Sport
1970-1973,1975	Chevrolet	Camaro	RS
1981	Chevrolet	Camaro	Sport
1970-1972	Chevrolet	Camaro	SS
1970-1974,1977-1981	Chevrolet	Camaro	Z28
1986-1992	Chevrolet	Caprice	Base
1978-1996	Chevrolet	Caprice	Classic
1986-1990	Chevrolet	Caprice	Classic Brougham
1978,1981-1982	Chevrolet	Caprice	Classic Estate
1978-1981	Chevrolet	Caprice	Classic Landau
1993-1994	Chevrolet	Caprice	Classic LS
1987-1990	Chevrolet	Caprice	Classic LS Brougham
1991-1993	Chevrolet	Caprice	Classic LTZ
1979-1980	Chevrolet	Caprice	Classic Sport
1994-1996	Chevrolet	Impala	SS
1977-1981	Pontiac	Bonneville	Base
1977-1981	Pontiac	Bonneville	Brougham
1978-1981	Pontiac	Bonneville	Safari
1977-1981	Pontiac	Catalina	Base
1977-1981	Pontiac	Catalina	Safari
1970-1981	Pontiac	Firebird	Base
1970-1981	Pontiac	Firebird	Esprit
1970-1981	Pontiac	Firebird	Formula
1970-1981	Pontiac	Firebird	Trans Am
