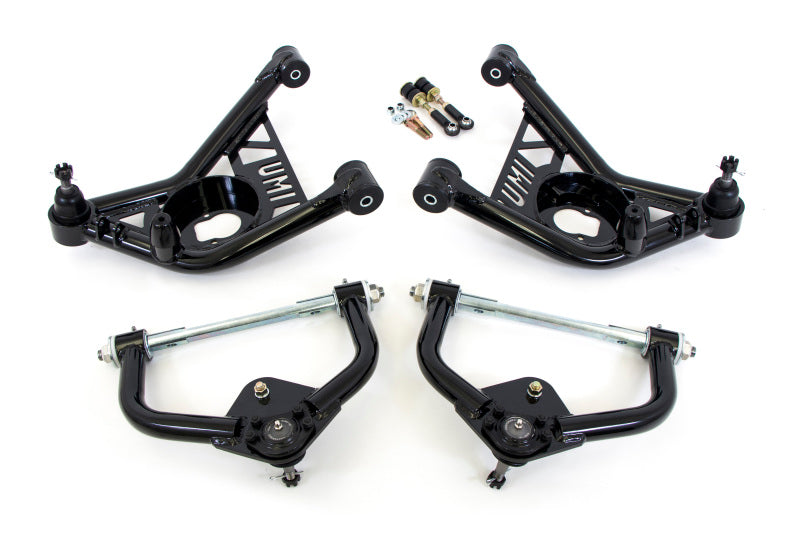

UMI Performance 70-81 GM F-Body Tubular Upper & Lower A-arm Kit

UMI’s 2nd Generation F-Body a-arms are perfect for the F-Body enthusiast seeking to improve the performance and appearance of their front suspension. This kit features caster relocation of both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster range is 5-7 degrees. The spindle pin location remains unchanged so fender clearance is like stock. The upper a-arms include CrMo offset cross shafts to reduce the amount of shims required when setting camber. A pancake style polyurethane bump stop and high quality ball joint is included. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength. UMI’s double shear sway bar end links are included and work nicely with UMI P/N 4035 sway bar and also most aftermarket stock eyelet type sway bars. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in Philipsburg, PA - USA.
Installation Instructions
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1978-1981	Buick	LeSabre	Base
1985	Buick	LeSabre	Collector's Edition
1978,1982-1985	Buick	LeSabre	Custom
1985	Buick	LeSabre	Estate Wagon
1979-1985	Buick	LeSabre	Limited
1982	Buick	LeSabre	Limited Edition F/E
1978-1981	Buick	LeSabre	Sport
1970-1980	Chevrolet	Camaro	Base
1979-1981	Chevrolet	Camaro	Berlinetta
1973-1978	Chevrolet	Camaro	LT
1976-1978	Chevrolet	Camaro	LT Rally Sport
1976-1980	Chevrolet	Camaro	Rally Sport
1970-1973,1975	Chevrolet	Camaro	RS
1981	Chevrolet	Camaro	Sport
1970-1972	Chevrolet	Camaro	SS
1970-1974,1977-1981	Chevrolet	Camaro	Z28
1986-1992	Chevrolet	Caprice	Base
1978-1996	Chevrolet	Caprice	Classic
1986-1990	Chevrolet	Caprice	Classic Brougham
1978,1981-1982	Chevrolet	Caprice	Classic Estate
1978-1981	Chevrolet	Caprice	Classic Landau
1993-1994	Chevrolet	Caprice	Classic LS
1987-1990	Chevrolet	Caprice	Classic LS Brougham
1991-1993	Chevrolet	Caprice	Classic LTZ
1979-1980	Chevrolet	Caprice	Classic Sport
1994-1996	Chevrolet	Impala	SS
1977-1981	Pontiac	Bonneville	Base
1977-1981	Pontiac	Bonneville	Brougham
1978-1981	Pontiac	Bonneville	Safari
1977-1981	Pontiac	Catalina	Base
1977-1981	Pontiac	Catalina	Safari
1970-1981	Pontiac	Firebird	Base
1970-1981	Pontiac	Firebird	Esprit
1970-1981	Pontiac	Firebird	Formula
1970-1981	Pontiac	Firebird	Trans Am
