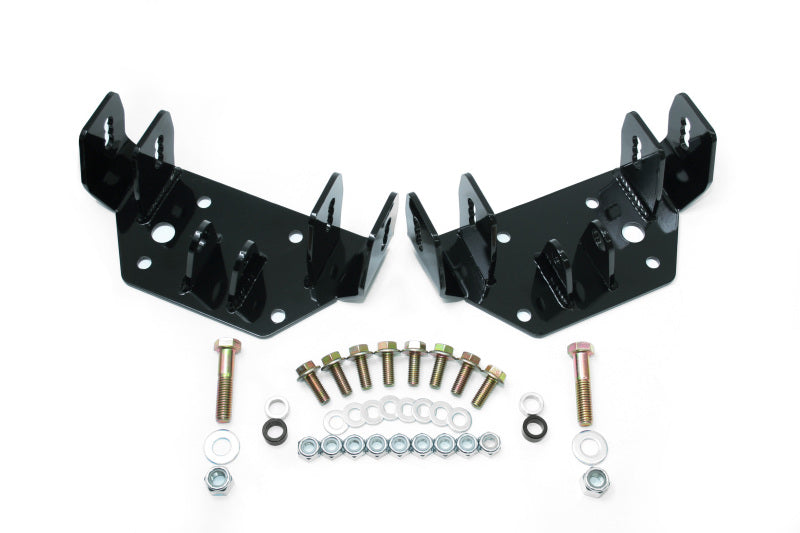

UMI Performance 93-02 F-Body Front Upper A-Arm Mounts Adjustable Coil Over Only

When looking to mount a coilover to the front of your 4th generation Camaro or Firebird, look no further than UMI’s new #2335 fabricated adjustable coilover a-arm mounts. The UMI upper a-arm mount is a direct bolt in upgrade that replaces the original GM mount and helps when converting to coilovers. The two stand-off tabs are angled perfectly to attach any bearing mounted coilover. Spacers are included to install coilover shocks with 1” or 1-1/4” wide bearing. UMI’s product features a unique fabricated design that allows the mounts to be strong without adding any extra weight. UMI’s kit is supplied with three upper a-arm adjustment holes for fine tuning the vehicles front suspension. The original factory holes are located at the center and driver has the option to raise or lower the a-arm mounting point 3/8 of an inch. Adjustment holes feature the ability to dial in the front roll center height. Raising the roll center height increases responsiveness and improves camber gain which allows a less aggressive street alignment to perform well when cornering. For street and drag applications choosing the center hole places the a-arm in the factory location. For ultimate performance use with UMI’s lower a-arms P/N 2317 or 2314 to run a true bearing to bearing mounted coilover (no more t-bar). As always, these products are extensively tested on UMI’s test cars in some of the harshest highway and racing environments. This makes them an excellent upgrade for the street cruiser to the road course expert.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-2002	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1993-2002	Pontiac	Firebird	Base
1993-2002	Pontiac	Firebird	Formula
1993-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
