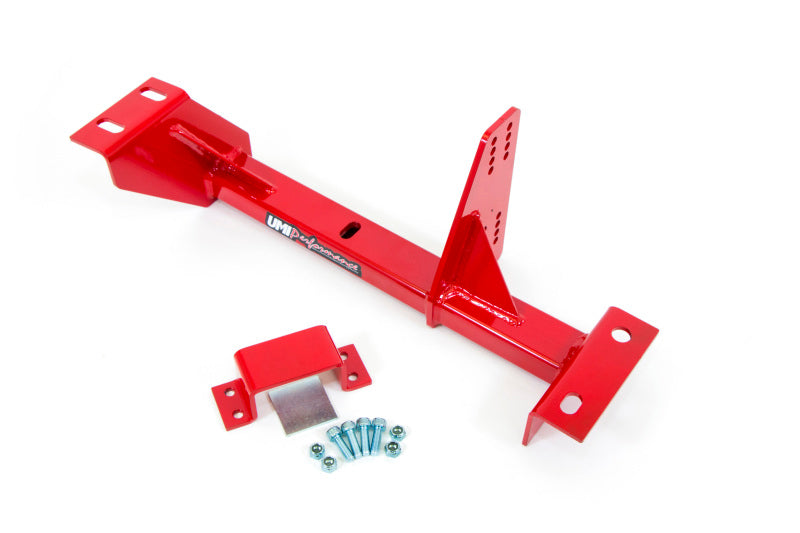

UMI Performance 98-02 GM F-Body Manual / Torque Arm Relocation Kit

The torque arm relocation kit from UMI Performance is designed to remove the front mounting point of the torque arm off the transmission and protect the tail shaft from damage. General Motors tail shaft mounted design works great for a stock driven vehicle however it is not designed to take abuse and hard launches. This set-up replaces your transmission cross member with a new stronger set-up with a built in torque arm mount. Each relocation kit is designed to fit a specific transmission and will work with virtually any stock style aftermarket torque arm as well as the factory torque arm. This unit is built using rectangular mild steel tubing, 0.188” mild steel mounting plates and includes all appropriate hardware needed for the installation. The torque arm mount is machined from 0.250” thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. Please use the FAQ’s below for additional information.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1998-2002	Chevrolet	Camaro	Base
1998-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1998-2002	Pontiac	Firebird	Base
1998-2002	Pontiac	Firebird	Formula
1998-2002	Pontiac	Firebird	Trans Am
