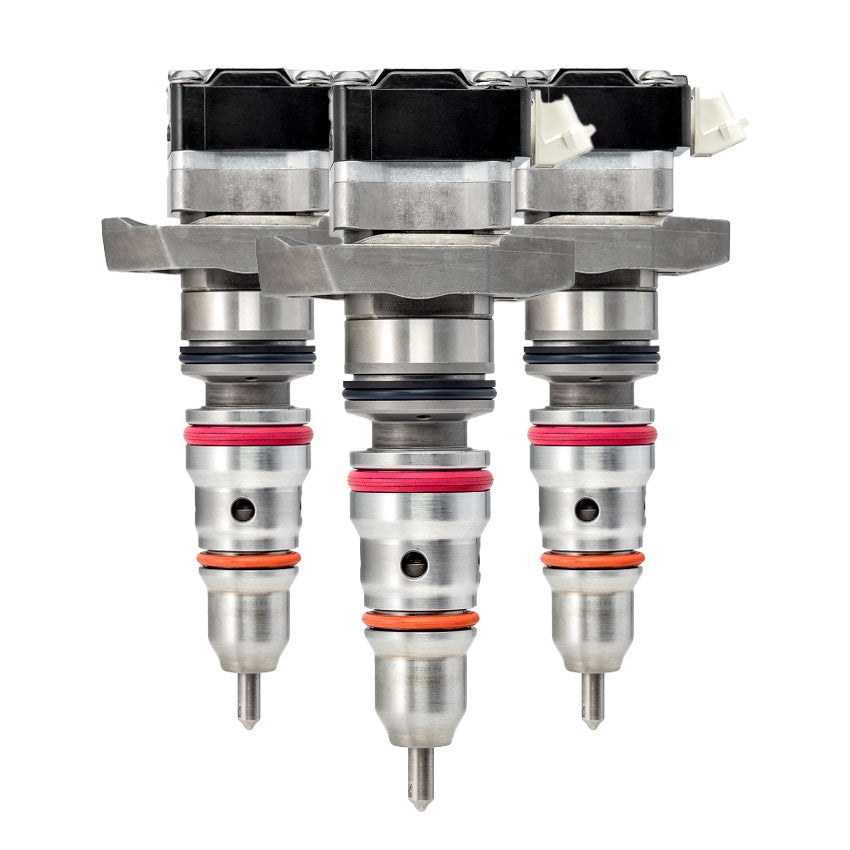

(1994-2003) Unlimited Diesel Performance Stage 3.5 Powerstroke Fuel Injectors

Unlimited Diesel Performance Stage 3.5 275/100 Fuel Injectors

275cc/100% Nozzles - With a slightly larger nozzle than the stage 3 as well as mild body modifications, the Stage 3.5 Powerstroke fuel injector by Unlimited Diesel can support up to 550 HP while being completely streetable and tow as well. This injector works well with a modded H2e type turbo or a 38r with ported heads and a Head studs are recommended at this level and above. Fuel pressure should be checked also to ensure at least 60 PSI. Custom Tuning required for optimal performance.  Fits1994-2003 7.3L Ford Powerstroke diesel engines

 Each Unlimited Diesel Performance Powerstroke fuel injector:

• Includes NEW Tungsten coated Plunger & Barrel assemblies
• Inlcudes NEW Nozzles
• Has o-rings replaced, and new nozzle springs installed
• Solenoids are all inspected for proper resistance
• Cores thoroughly cleaned using a Pro Ultrasonics cleaning unit for a super clean injector body.
• Injector clearances reset to proprietary specs
• Is bench tested at a full range of RPMS and oil pressures
• Is backed by Unlimited Diesel's limited lifetime warranty

 Common Issues that require Powerstroke fuel injector replacement:

• Plugged Nozzles
• Blowby from Nozzle Pintle
• Scored Plungers and Barrels
• Broken Plunger Spring
• Broken Nozzle Spring
• Blown Internal Orings
• Blown External Orings
• Scored Poppet Valves
• Worn Armature Clearances
• Armature contacting solenoid
• Loose adapter plate screws
• Loose armature screw
• Shorted/open solenoid

*Fuel injectors are sold in sets of 8. Call for single fuel injector pricing. We use ONLY New Alliant Power External Orings, beware of cheap orings. We have had multiple customers call us with competitor products using inferior orings that have failed.

Core charge will be refunded provided your existing Powerstroke injectors do not have any external damage and are rebuild-able.

Under no circumstances will any injector cores be accepted that are shipped via United States Postal Service. There is a $50 per day late fee for cores returned after 21 days. Cores must be injectors that are in good physical condition, are rust free, and have not been burned or externally damaged. Cores that have been subjected to any alternative or "Bio" fuels will not be accepted as good cores. Any injector received that is disassembled or missing parts will not be accepted as a good core. There is a $50.00 charge per damaged solenoid. Cores should be returned in original packaging to avoid damage. To make special arrangements for core returns please contact us at 409-383-4766 for approval.

Click here to download Powerstroke fuel injector limited lifetime warranty information from Unlimited Diesel.

UDP-STG3.5-REMAN
