Upper Triangulated 4 Link Combination Bracket

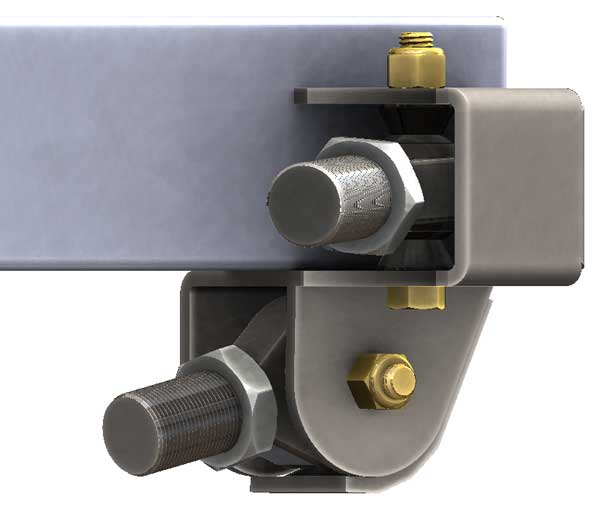

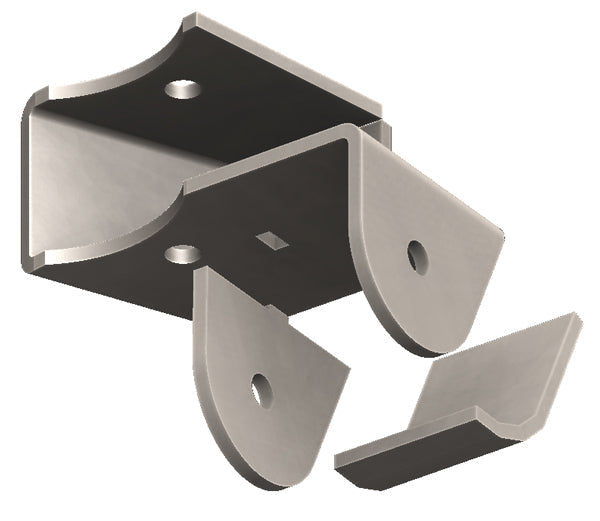

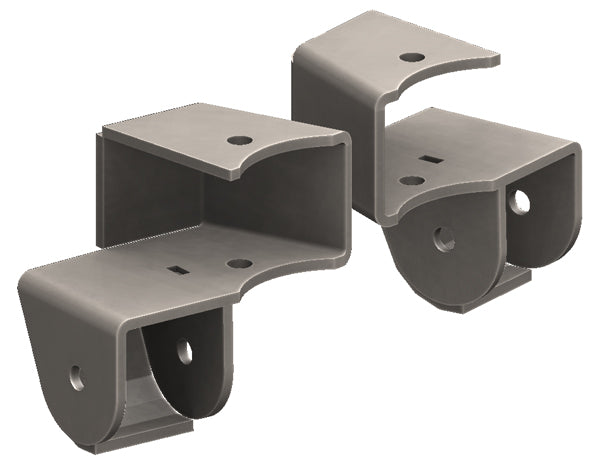

Our upper triangulated 4 link combination bracket is one of the easiest ways to add a 4 link to your vehicle.  This all in one bracket includes all 4 frame mounting locations that you will need to attach your four link suspension to your chassis.  Fabricated from 1/4 inch steel this is also one of the strongest brackets on the market.  This bracket is designed to use a suspension joint with a 2-5/8 inch mounting width and a 9/16 inch bolt.  The upper suspension joint will be in a horizontal orientation allowing the suspension joint to achieve full articulation without any binding and will accommodate various upper link angles.  The lower link locations are set to 10° outwards to maximize you lower link triangulation.  This bracket features 3 inches of vertical separation.  This bracket will require welding and are sold in pairs.
