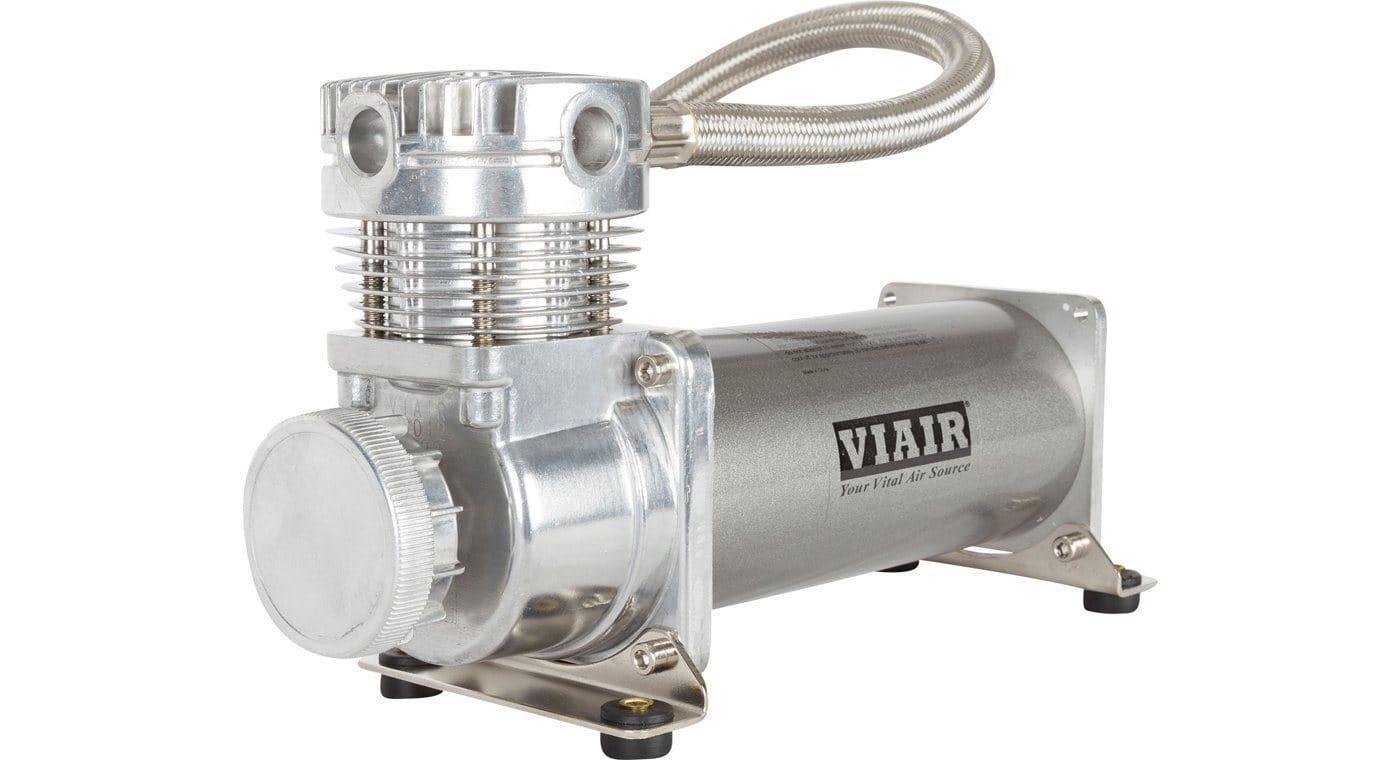

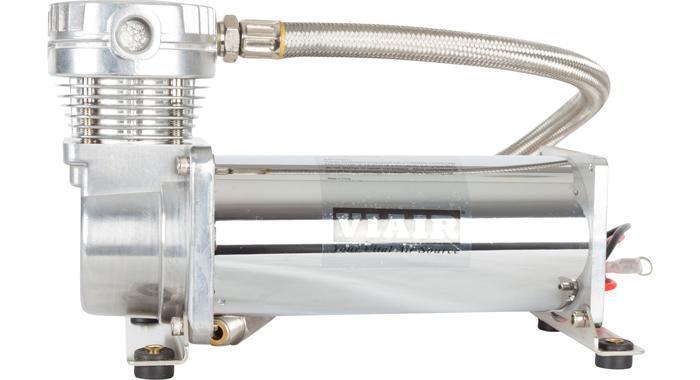

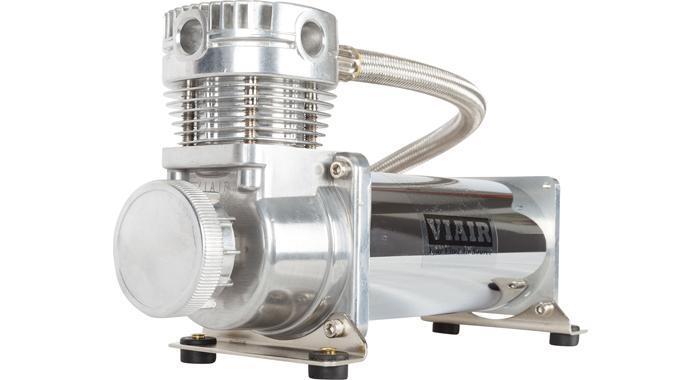

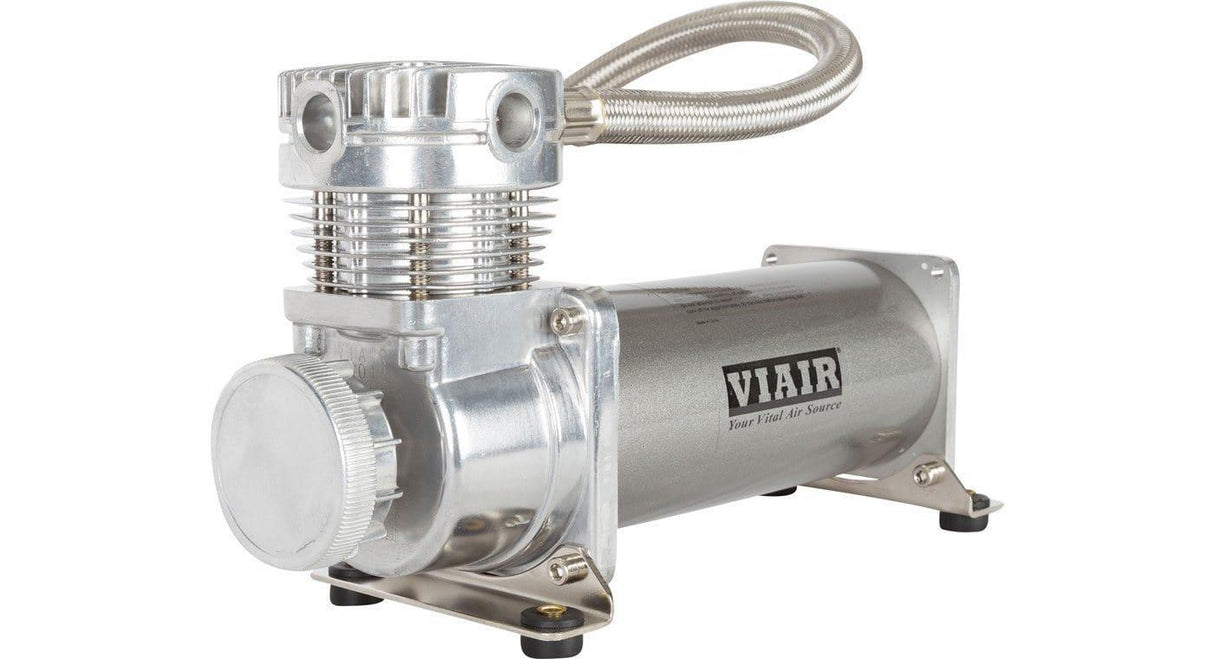

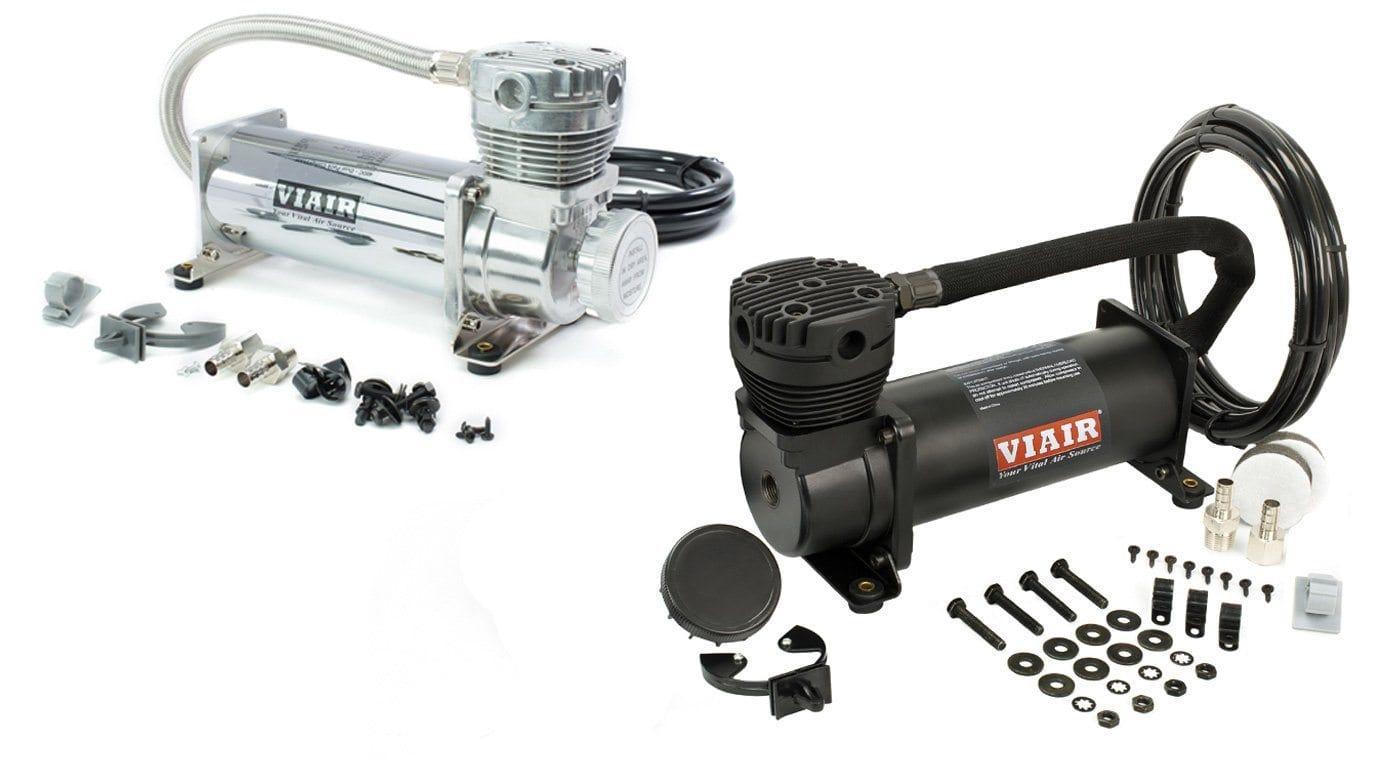

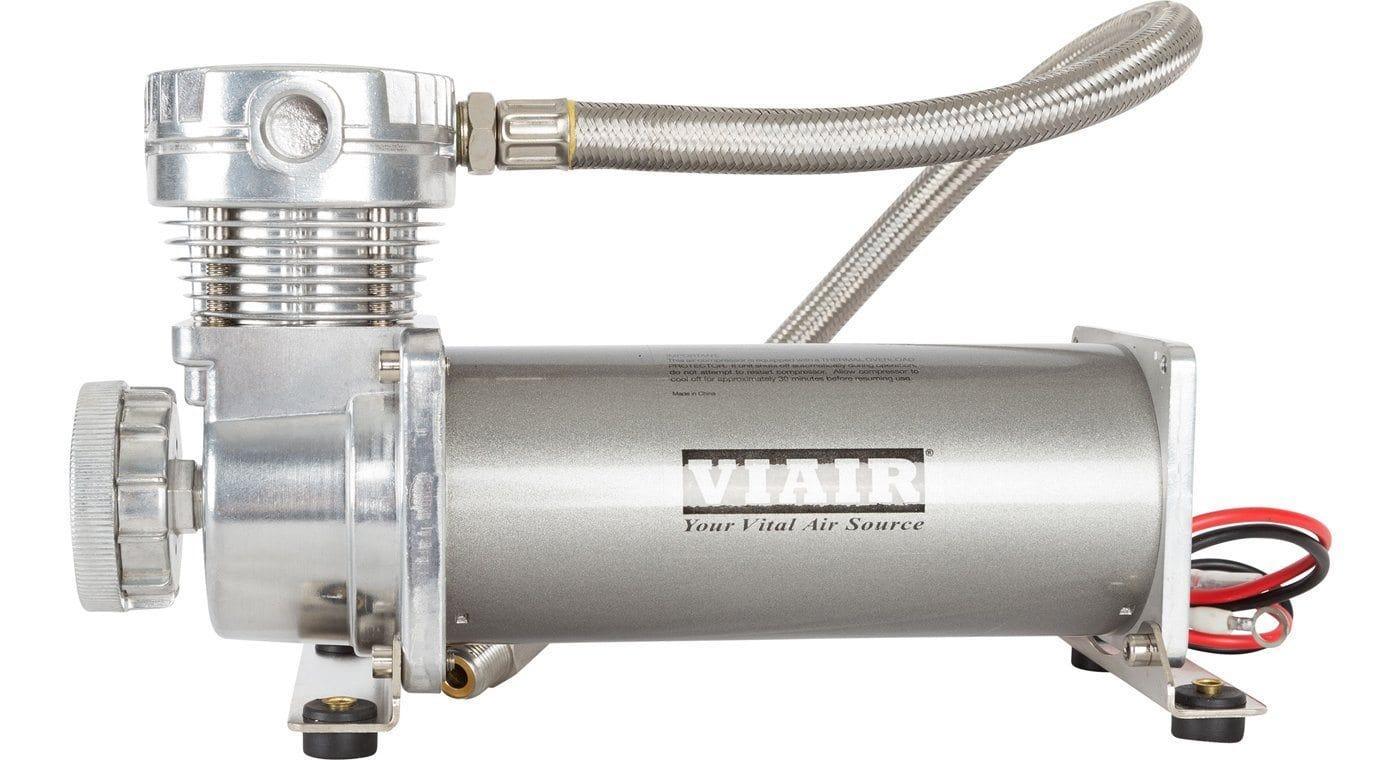

Viair 480C Air Compressor
Viair 480C Air Compressor - Pewter / Single Compressor is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
THE ULTIMATE ROAD WARRIOR
Welcome to the pinnacle of air compressor technology - the Viair 480C Air Compressor. Engineered for versatility, this unit seamlessly merges strength, speed, and efficiency, ensuring you're always equipped with the best for your pneumatic needs.
- Versatile Application: Whether it's inflating tires, using air tools, fine-tuning air suspension, or making your HornBlasters train horns echo, the Viair 480C is your dependable companion.
- High-End Construction: The unit's permanent magnetic motor, combined with an oil-less design and gearless direct drive motor, ensures unmatched durability and efficiency.
- Safety and Durability: With features like the automatic reset thermal overload protection, moisture & dirt resistance, and stainless steel valves, you're investing in a compressor built for longevity.
- Easy Installation: Every essential for a seamless installation, including a remote mount intake filter assembly, stainless steel braided leader hose, and insulated wiring, is right in the box.
Dive into a world of unparalleled pneumatic prowess with the Viair 480C Air Compressor. Designed for those who settle for nothing but the best.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.86 | 10 | 0 | 52.7 | 10 |
| 10 | 1.75 | 12 | 1.0 | 47.5 | 13 |
| 20 | 1.59 | 14 | 2.0 | 43.2 | 15 |
| 30 | 1.52 | 15 | 3.0 | 40.7 | 16 |
| 40 | 1.45 | 16 | 4.0 | 38.1 | 18 |
| 50 | 1.41 | 17 | 5.0 | 35.3 | 18 |
| 60 | 1.33 | 18 | 6.0 | 32.6 | 19 |
| 70 | 1.26 | 18 | 7.0 | 30.0 | 20 |
| 80 | 1.20 | 19 | 8.0 | 27.0 | 22 |
| 90 | 1.13 | 19 | 9.0 | 25.0 | 22 |
| 100 | 1.07 | 20 | 10.0 | 22.3 | 21 |
| 110 | 0.99 | 21 | 11.0 | 20.1 | 21 |
| 120 | 0.93 | 23 | 12.0 | 18.3 | 21 |
| 130 | 0.88 | 22 | 13.0 | 16.0 | 20 |
| 140 | 0.82 | 22 | 14.0 | 14.0 | 19 |
| 150 | 0.75 | 21 | |||
| 160 | 0.71 | 21 | |||
| 170 | 0.67 | 21 | |||
| 180 | 0.61 | 21 | |||
| 190 | 0.55 | 20 | |||
| 200 | 0.51 | 19 |
* Supply Voltage: 13.8 Volts
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 2 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 57 sec. (± 05 sec.) |
| 0 to 200 PSI | 5 min. 02 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 30 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 6 min. 02 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 55 sec. (± 05 sec.) |
| 0 to 200 PSI | 10 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI | 3 min. 10 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts

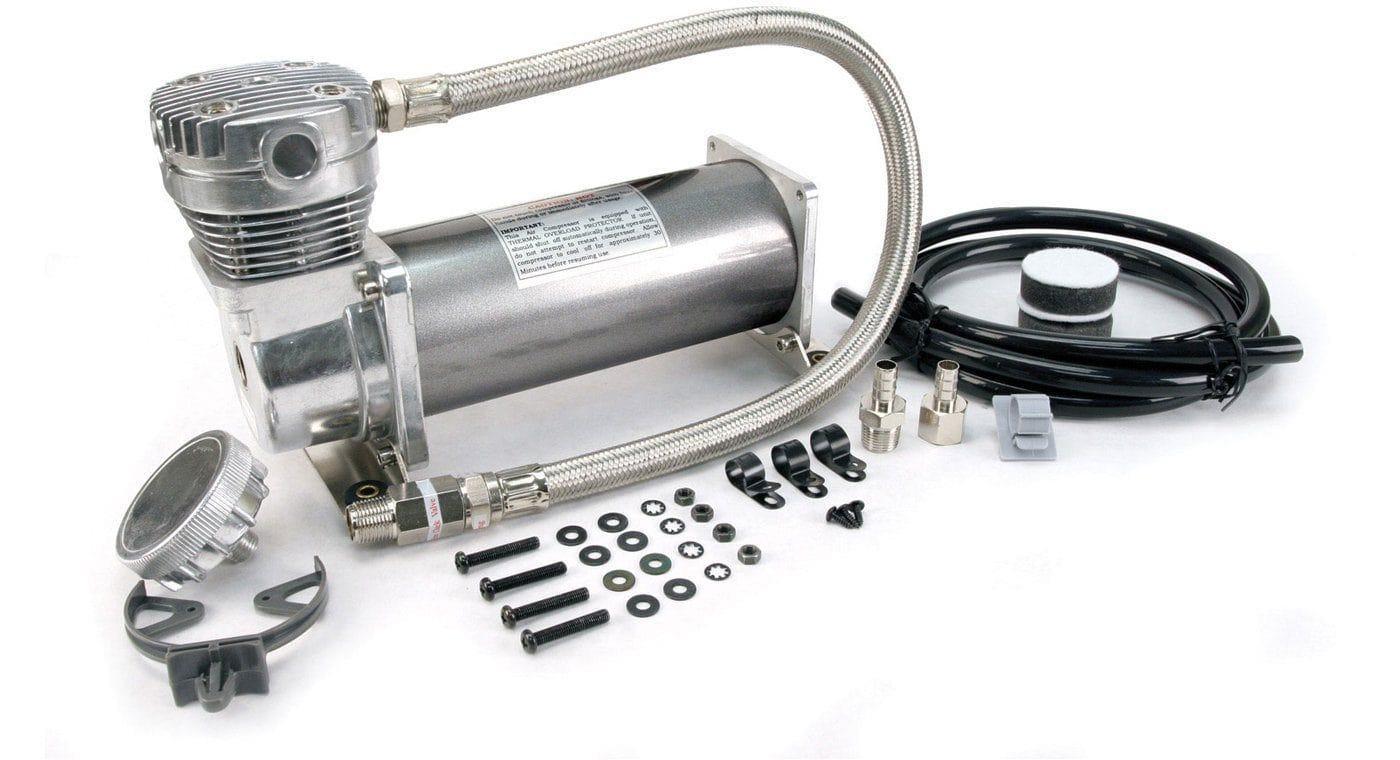

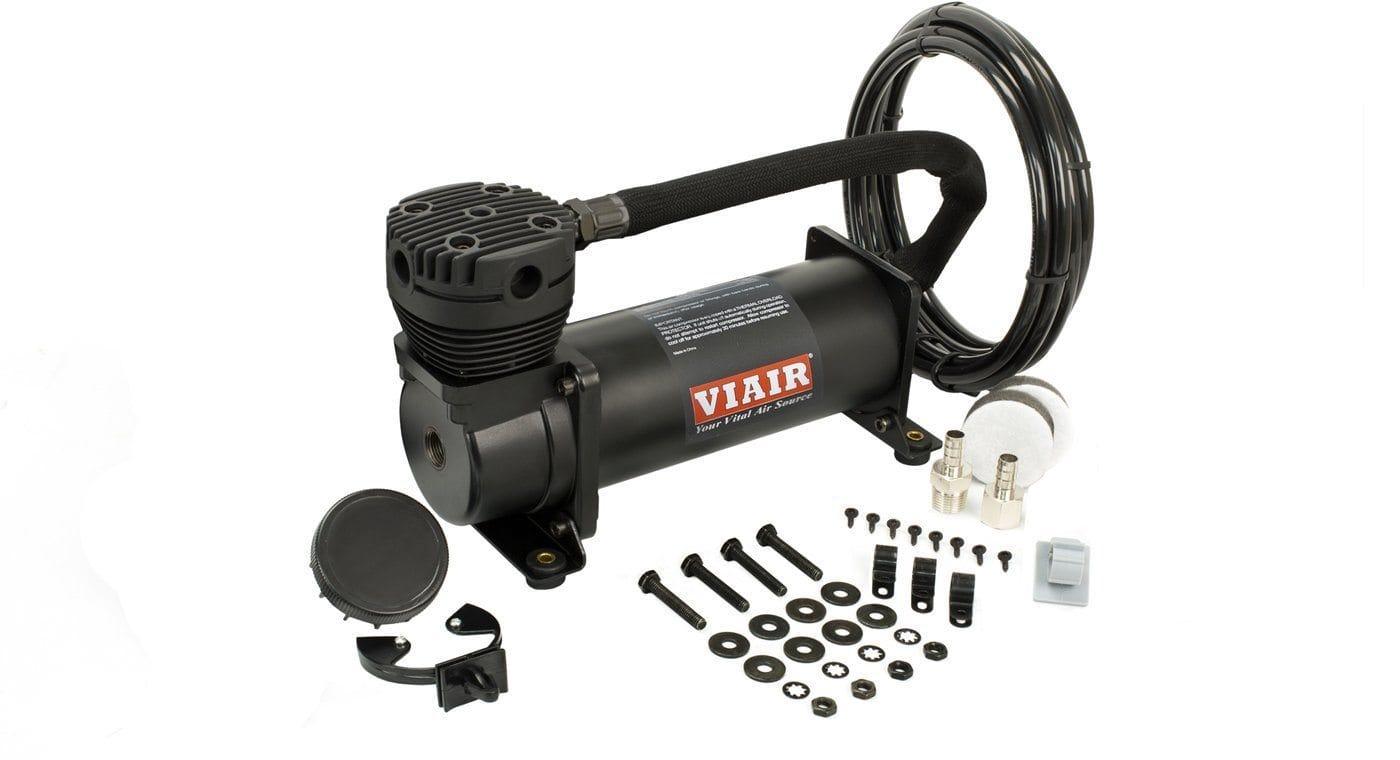

- Viair 480C Air Compressor
- Chrome/Pewter & Black 3/8" NPT Braided Leader Hose & Check Valve
- Chrome/Pewter & Black Remote Mount Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year Manufacturer's Defect Warranty
- Mounting Hardware
| SPECIFICATION | |
|---|---|
| Part Number | AC-480 / AC-480C / AC-480K |
| Voltage | 12 Volts DC |
| Max Amperage | 23 Amps |
| Maximum Duty Cycle | 100% @ 100 PSI |
| Maximum Pressure | 200 PSI |
| Max Tank Size | 5 Gallons |
| CFM @ 0 PSI | 1.86 CFM |
| CFM @ 100 PSI | 1.07 CFM |
| Length | 10.87″ (276.09 mm) |
| Width | 4.2″ (106.68 mm) |
| Height | 6.75″ (171.45 mm) |
| Weight | 11.05 lb (3.15 Kg) |
-
