Warn 16.5ti 68801 16.5K Large Size Truck Winch
Warn 16.5ti 68801 16.5K Large Size Truck Winch is backordered and will ship as soon as it is back in stock.
Buy with confidence
Verify fitment, selected options, availability and included components before checkout. Secure payment options and order confirmation are provided at checkout.
Description
Description
Style: Warn 16.5K Winch
Vehicle Fit: Jeep, Truck & SUV Winches
Weight: 136.50 lbs.

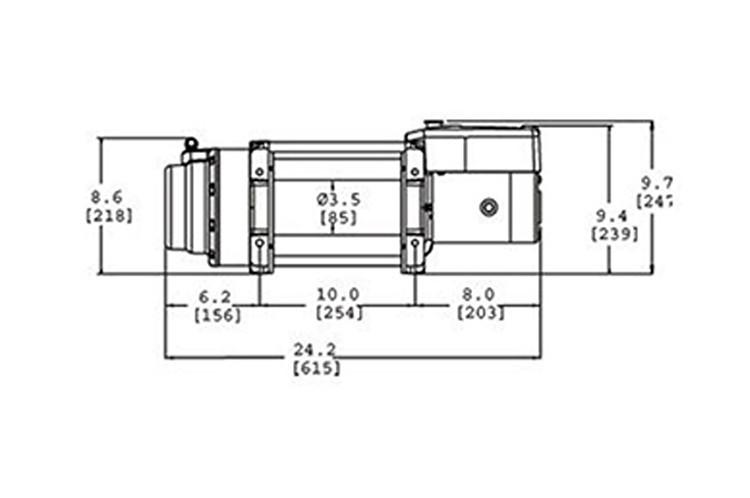

Dimensions (L x W x H): 26.50 x 17 x 10.50 in.
Winch Type: Electric
Winch Rope/Cable Type: Non Synthetic
Winch Pull Rating: 14K - 30K lbs.

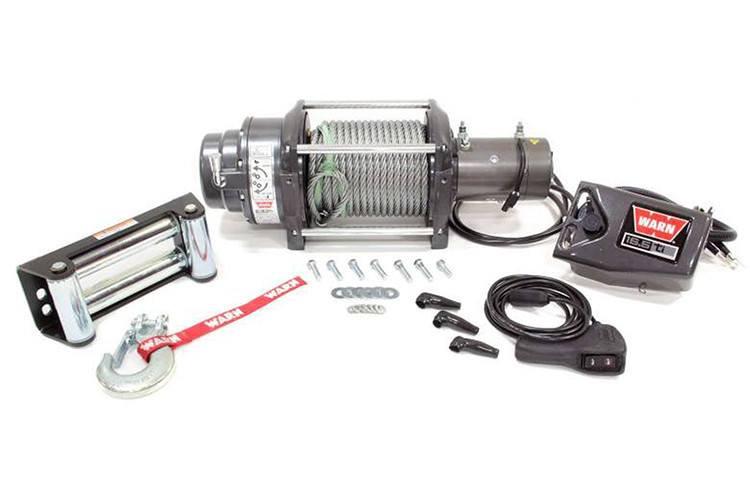

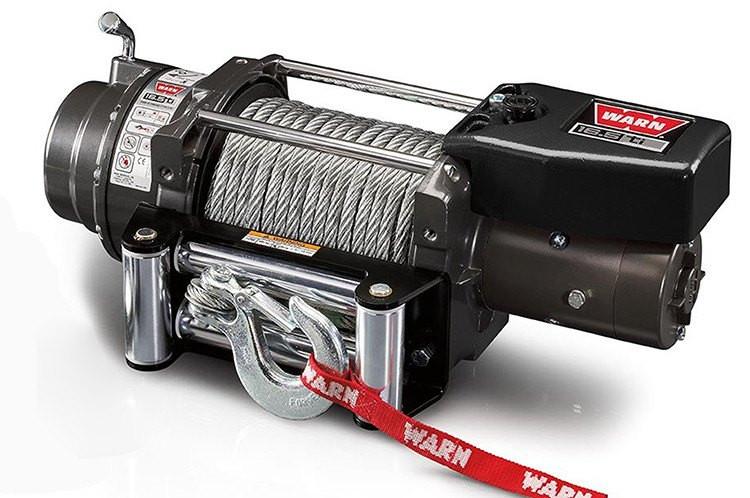

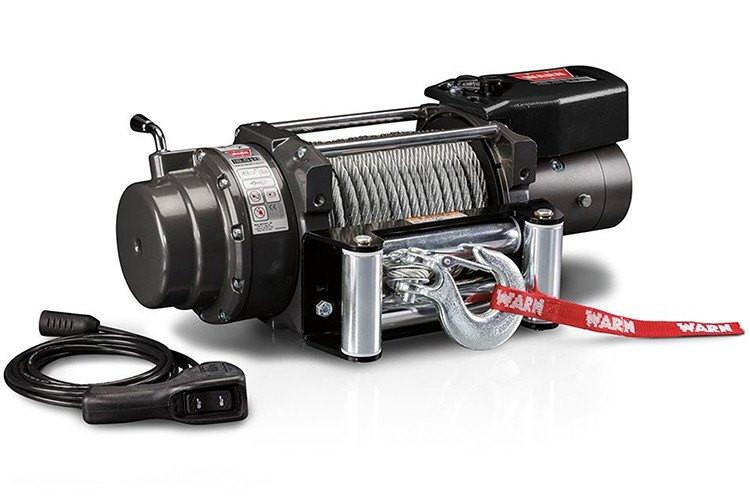

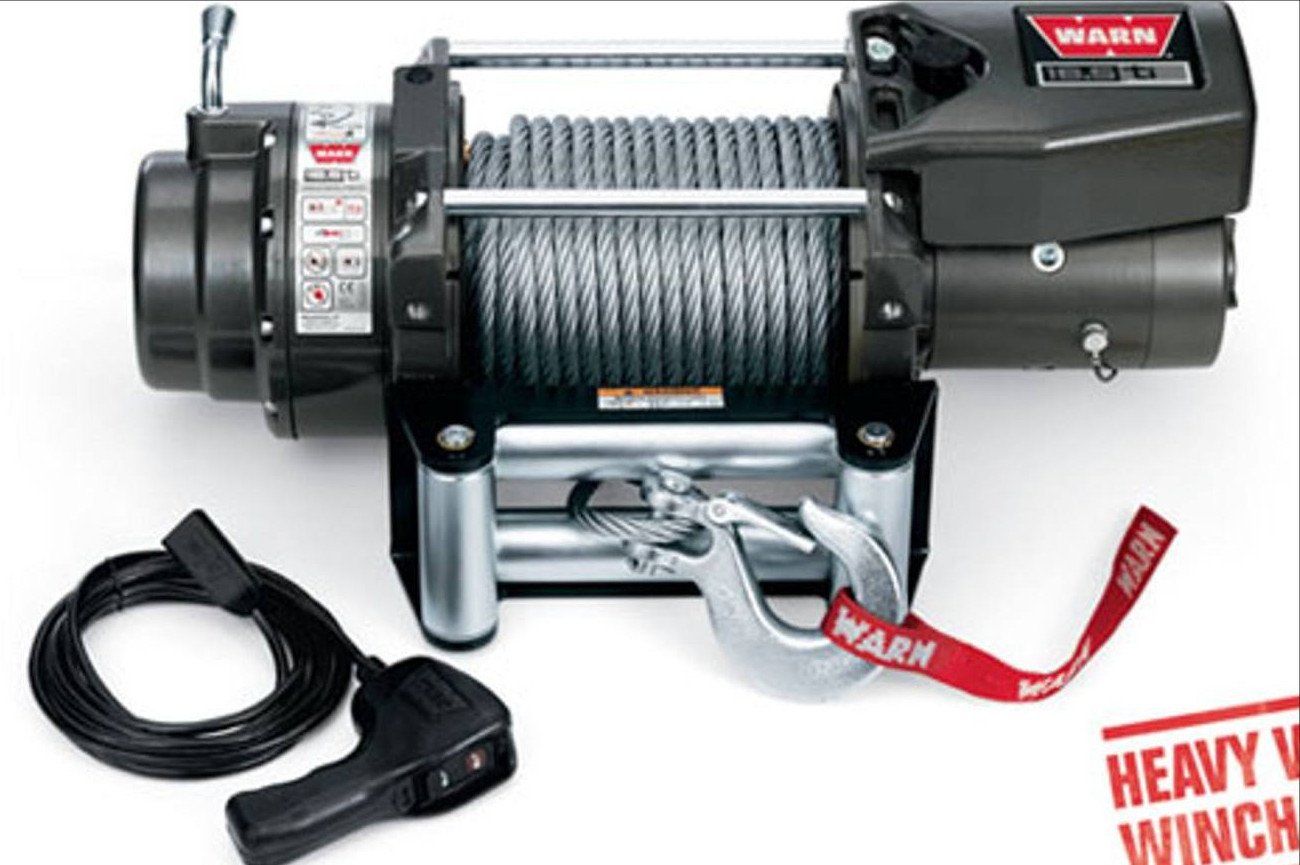

Warn 16.5ti Winch 68801
Outfit your truck with this tough Warn truck winch!
- Extreme-duty sealing helps protect the winch from the outside elements
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Exclusive brake design provides superior control while winching
- Aluminum control box cover for added protection of the electronics
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
- Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
- 90' of 7/16" (27m of 11mm) diameter wire rope
- Backed by the Warn Limited Lifetime Warranty
- Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
- Motor: 12V 4.6 hp, Gen II, Series Wound
- Electrical Controls: Solenoid Control Pack
- Remote Control: Remote switch, with LED indicator 12 ft. (3.7m) Lead
- Geartrain: 3-Stage Planetary
- Gear Ratio: 315:1
- Clutch (freespooling): Rotating Ring Gear
- Brake: Automatic Direct Drive Cone
- Drum Diameter/Length: 3.5 in/8.2 in(9cm/21cm)
- Weight: 138 lbs. (63 kgs)
- Wire Rope: 90 ft, 7/16 in diameter(27m, 11mm diameter)
- Fairlead: Roller
- Recommended Battery: 650 CCA minimum for winching
- Battery Leads: 2 gauge, 72" (1.83m)
- Finish: High-gloss powder coat over primer undercoating
Why pick this heavy-duty Warn winch for your truck?
The 16.5ti features the full diagnostic ability of Warn thermometric technology, plus the extreme sealing, durability, and reliability that the Warn ti-series of winches are known for. Series-wound motor combined with a 3-stage planetary gear train delivers 16,500 lbs. of pulling power. Thermometric indicator LED provides operator feedback on motor temperature.
