Warren 7250 PSI ICP Sensor & High Pressure IPR Valve - 6.0 Powerstroke (2003-2007)

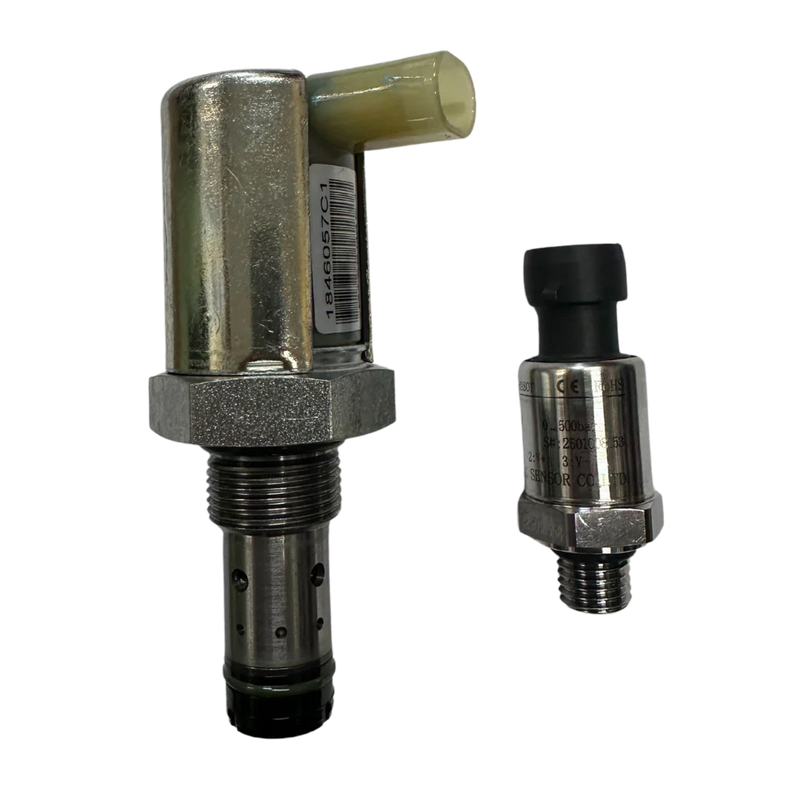

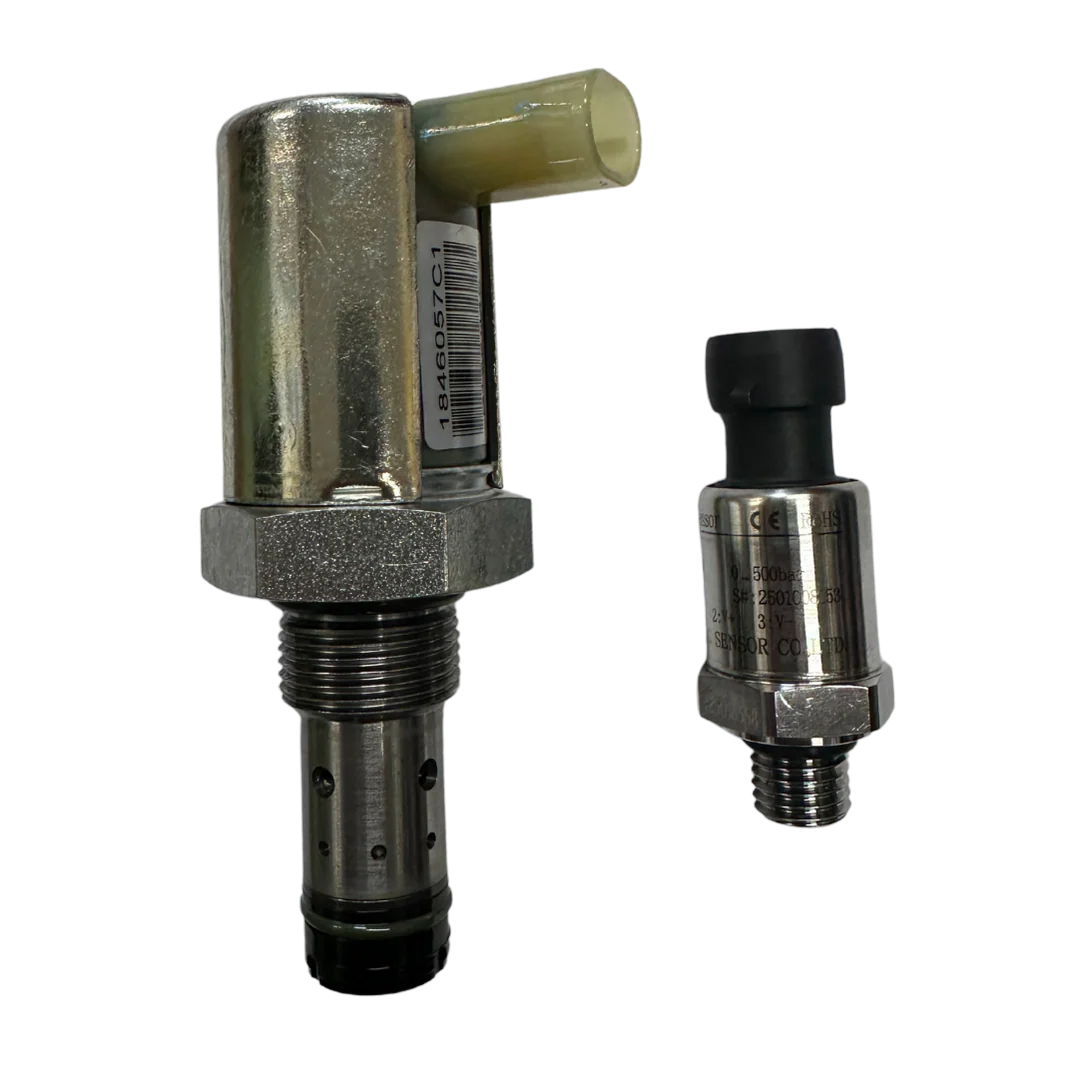

Warren Diesel Modified IPR Valve & 7250psi ICP Sensor

Features & Details:

• Warren Diesel's All-New Modified High Pressure IPR Valve & ICP Sensor
• Built From a New OEM Motorcraft IPR Valve
• Built to Withstand 5500 psi & Tested to 6000 psi on Warren's engine dyno
• Guaranteed not to blow open under 6,000psi
• Allows 6.0 Powerstrokes to run over 5,500psi of ICP at Wide Open Throttle*
• Increased ICP allows for greater fuel atomization, more efficient combustion, and increased power output
• Dyno tested to increase power output by more than 20%**
• Custom ECM and FICM tuning is REQUIRED***

Description:

After months of testing, Warren Diesel Injection has launched the 7250 psi ICP Sensor & High Pressure IPR Valve for the 6.0L Powerstroke. This modified IPR Valve and higher reading ICP sensor allows for a 6.0 Powerstroke to increase its Injection Control Pressure from the OEM 4,000psi maximum to 5,500psi.

High performance, high pressure IPR Valve for the 6.0L Powerstroke. This product is modified from a BRAND NEW OEM Motorcraft IPR Valve. Guaranteed not to blow open. Built to withstand 5500 psi without any modifications. Tested to 6000 psi on our engine dyno.

This 7250psi capable sensor is required for pushing ICP over 4500 psi. It is manufactured to read ICP values from 0psi to 7500 psi when used in conjunction with the Warren Diesel Modified High Pressure IPR Valve.

Custom ECM and FICM tuning is REQUIRED. Custom ECM and FICM tuning for the high pressure ICP sensor is required when data logging pressure. Actual real pressure will be reflected on read out. When data shows 5500 psi, you are making 5500 psi.

Contact Warren Diesel for recommended tuning companies at 866.276-2511 or customerservice@warrendiesel.com.

NOTE: If running a Thumper II Pump - we are NOT responsible for the pump blowing apart. You are running this pump at your own risk.


*The Warren Modified IPR Valve and 7250psi ICP Sensor are designed to run up to 5,500psi of ICP with no other modifications needed. To achieve greater pressures, other modifications must be made.  NOTE: This IPR valve is capable of 6500 psi. However, you will need a resistor mod installed to go over 5500psi. If this is something you wish to proceed with, please call Warren Diesel at 866.276.2511 before ordering.

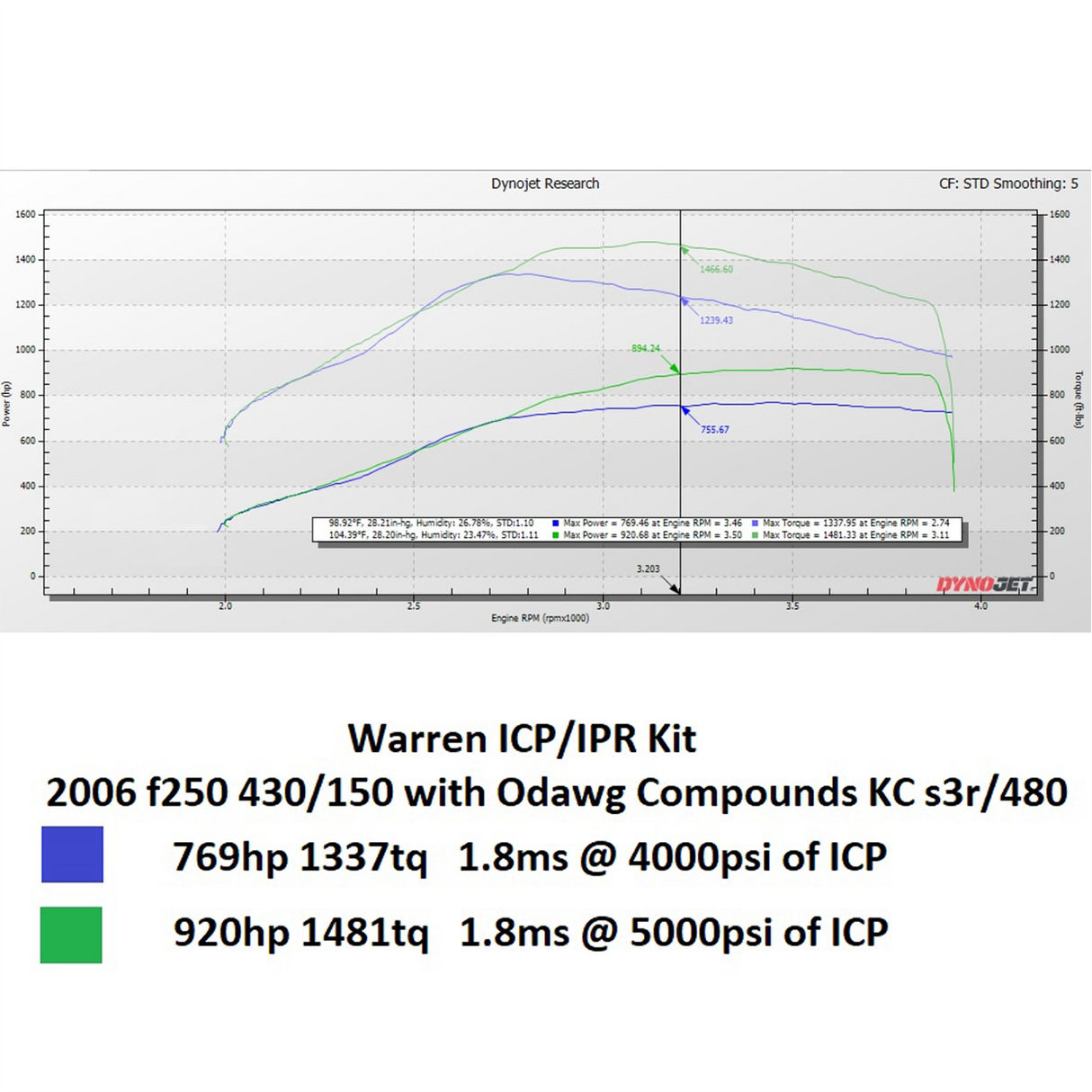

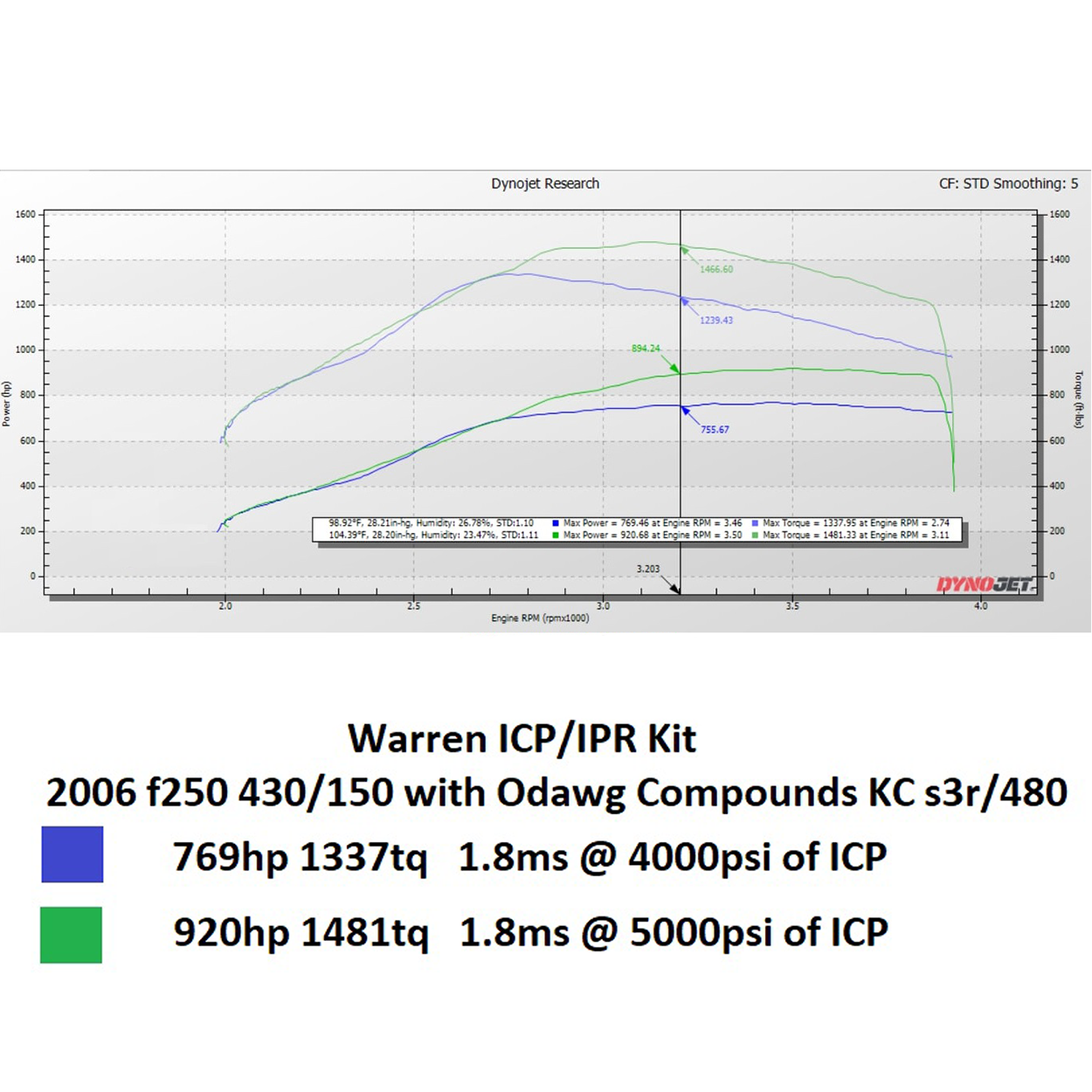

** ≈20% increase shown on dyno image provided. Results will vary based on injector sizing, turbo setup, and engine condition

***Custom ECM and FICM tuning is REQUIRED. Contact Warren Diesel for recommended tuning companies at 866.276-2511 or customerservice@warrendiesel.com.
