X-Series v.3 10" Subwoofer *USED*
X-Series v.3 10" Subwoofer *USED* - D2 is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
This is a used product that has been professionally rebuilt here at Sundown Audio. It comes with a non-doa warranty only. That means they are guaranteed to work when you receive it but no further warranty afterwards. Let us know within 24 hours of delivery if this product has an issue. We will not warranty any used subwoofer after that time. These potentially have scratches & scuffs on the magnets/motors and will not be in new condition.
- RMS 2000 watts
- Dual 1 or 2 ohm voice coil
- Made for extremely deep bass
- Triple-stacked magnet
- 3” voice coil
- Hyper-extended pole
- Built to order
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

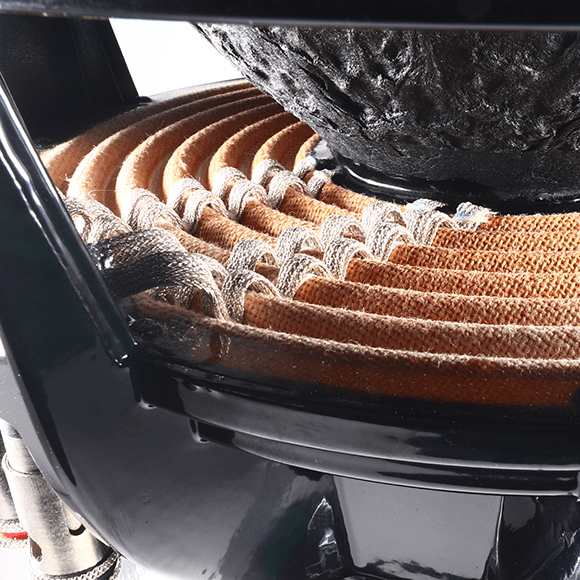

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
Specifications
| RE (Ohms) | 1.4 | 3.2 |
| FS (Hz) | 39.104 | 40.208 |
| VAS (L) | 11.623 | 9.352 |
| Qes | 0.441 | 0.528 |
| Qms | 2.567 | 2.842 |
| Qts | 0.376 | 0.445 |
| Le (mH) | ||
| BL (NA) | 14.155 | 21.509 |
| Mms (Grams) | 256.970 | 302.089 |
| Cms (uM/N) | 64.465 | 51.867 |
| Sens (dB @ 1w/1m) | 83.8dB | 82.5dB |
| Xmax | 30mm | 30mm |
| T/S SPECS | X V.3 10″ D1 | X V.3 10″ D2 |
|---|
Enclosure Specifications
| X v.3 8 | X v.3 10 | X v.3 12 | X v.3 15 | X v.3 18 | |
| Sealed Enclosure | 0.3-.04cuft | N/A | N/A | N/A | N/A |
| Ported Enclosure | 0.75-1.0 cu ft | 1.5 cu ft | 2.5 cu ft | 4.25 cu ft | 7.00 cu ft |
| Recommended Tuning | 32hz | 32hz | 32hz | 32hz | 32hz |
| Recommended Port Area | 12-16 sq in | 24 sq in | 40 sq in | 68 sq in | 112 sq in |
| Displacement | 0.13 cu ft | 0.21 cu ft | 0.2 cu ft | 0.22 cu ft | 0.23 cu ft |
| Depth | 6.8" | 9.4" | 10.4" | 11.6" | 13.6" |
| Outside Diam. | 8.70" | 11.65" | 12.68" | 15.51" | 18.42" |
| Cutout | 7.36" | 10.01" | 11.09" | 13.83" | 16.69" |
| Physical Dimensions | Download | Download | Download | Download | Download |
