ZZ Diesel OBS Intercooler Kit, 1994-1997 Ford 7.3L Powerstroke Diesel

OBS Diesel Intercooler Kit.
Provides the maximum reduction in boost air temperature with a minimal loss of boost pressure.
For 1994, 1996, 1996, 1997 Ford OBS 7.3L Powerstroke Diesel

The OBS Ford 7.3 Powerstroke 1994-1997 did not come with a factory mount intercooler system. Instead Ford decided that the turbo would be sufficient with the larger 1.15 turbo turbine housing. Although it probably helped out some it did not cure EGT problems for a modified truck.


The ZZ Diesel Intercooler system includes mandrel-bent 3" high-flow boost tubes large, high-efficiency all-aluminum end tanks, a wide-open inlet and outlet and a thick core area with impressive volume. This kit is a bolt on design. Comes with brackets for the intercooler, power steering cooler, and AC Condenser. Adds 20 HP & 40 Ft Lbs. to a stock truck (more if modified)


This intercooler provides the maximum reduction in boost air temperature with a minimal loss of boost pressure. Your engine now gets a continual supply of cool, dense, oxygen-rich air, which improves combustion as well as engine efficiency. Result: higher continuous power and more power at any EGT, better fuel economy. and lower EGTs.

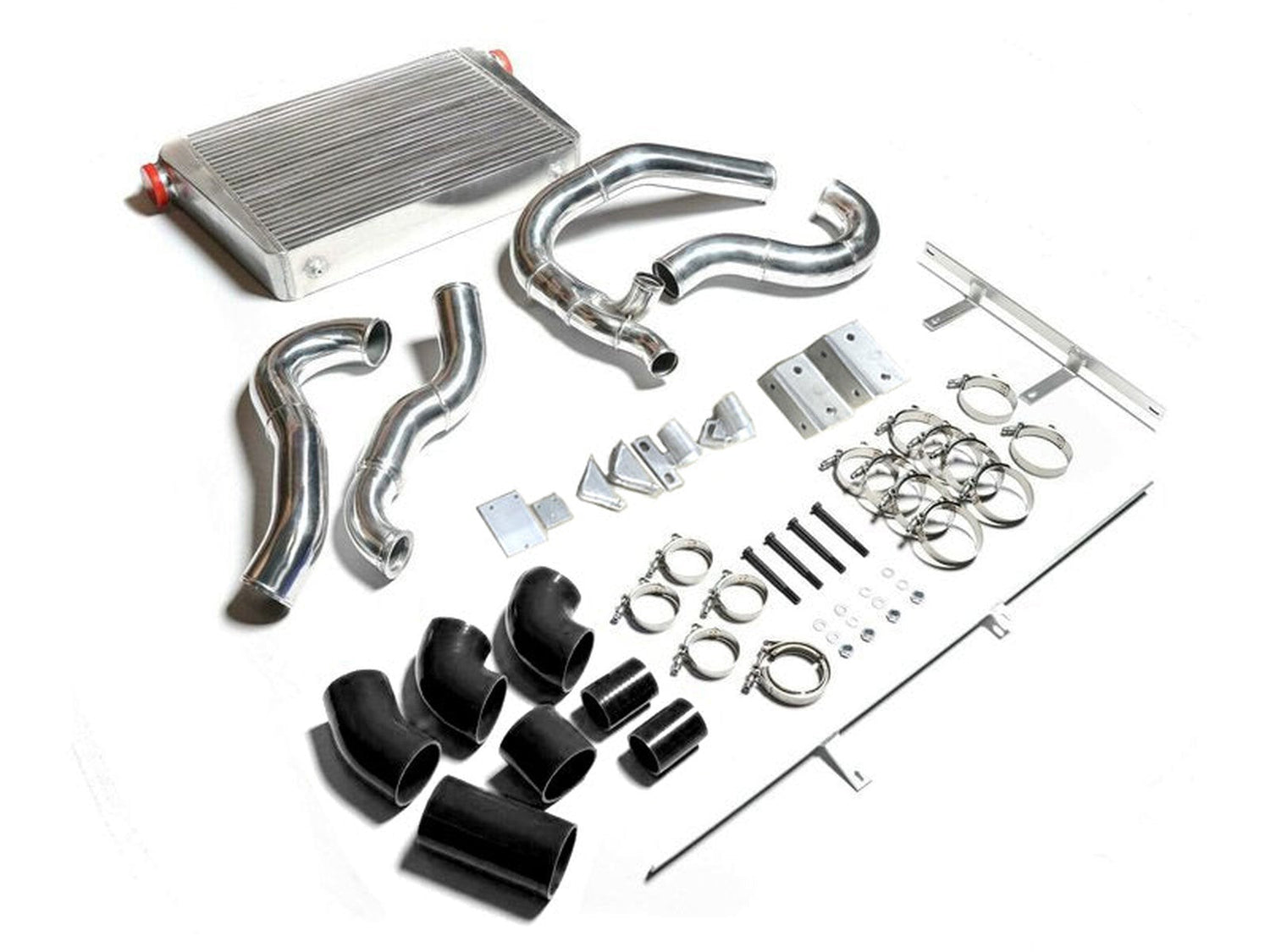

Includes:
• High Flow Intercooler
• 3" Intercooler Pipes
• Boots/Clamps
• Bar & Plate Design
• 3" Aluminum Piping
• Adds 20 HP & 40 Ft Lbs. to a stock truck (more if modified)
• Direct Fit Bolt On (Some trimming is required)


Intercooler Specs:
• 3" Inlet and 3" Outlet
• Overall Size 31"x 18"x 4"
• Core Size 24" x 18" x 4"

Instructions

View Instructions
